VOLTCRAFT LSG-20 Cable locator Location
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Highlights & Details

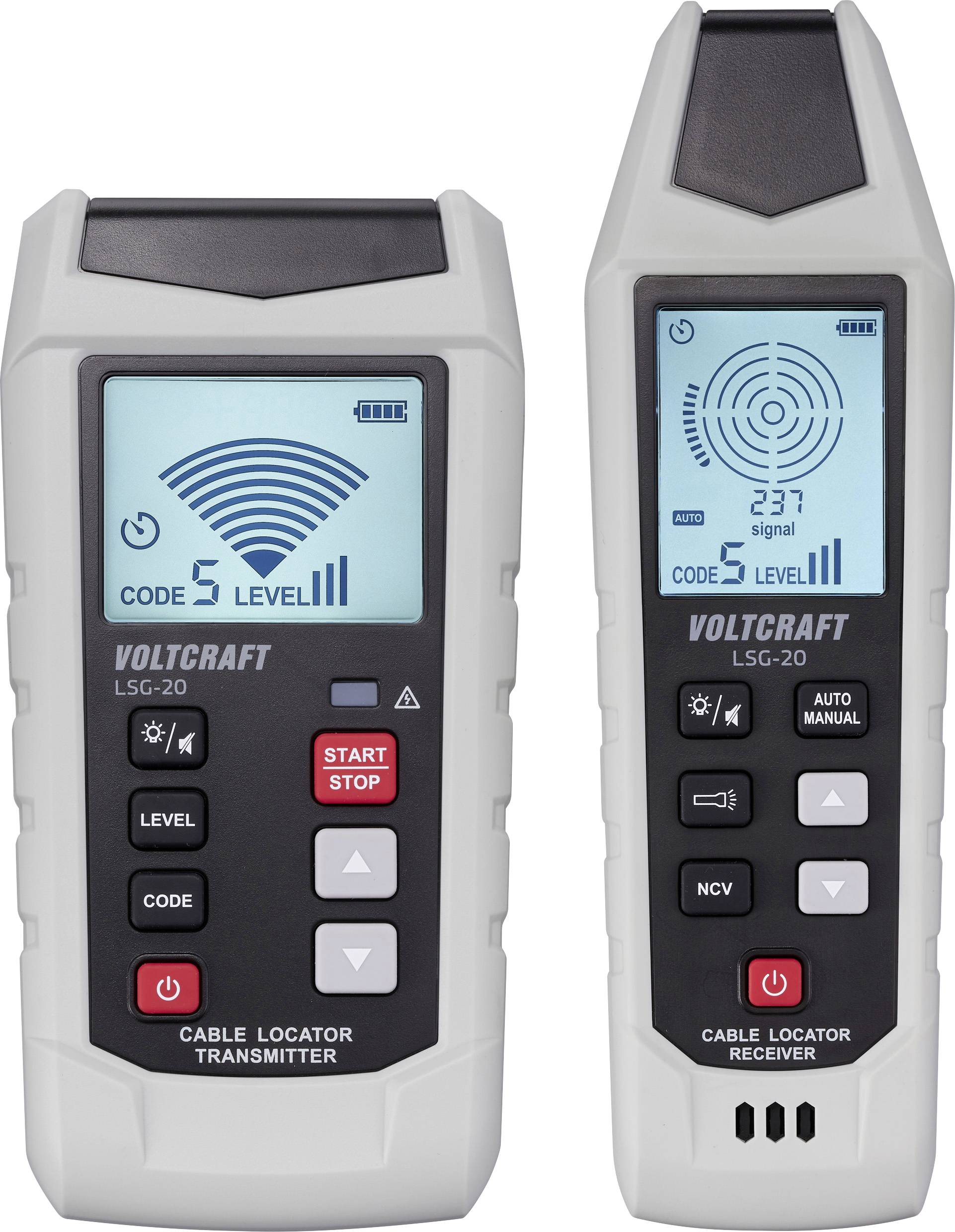

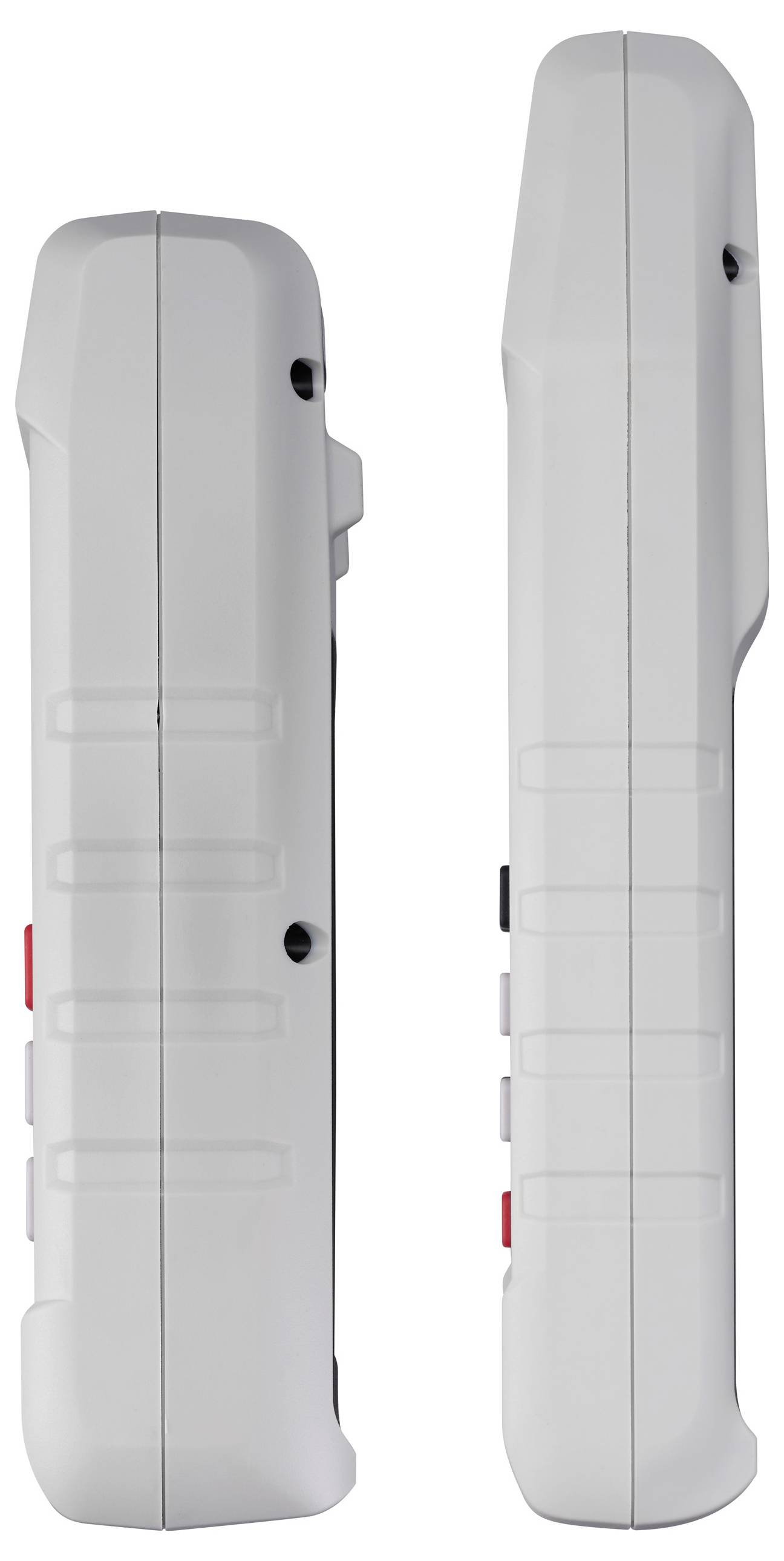

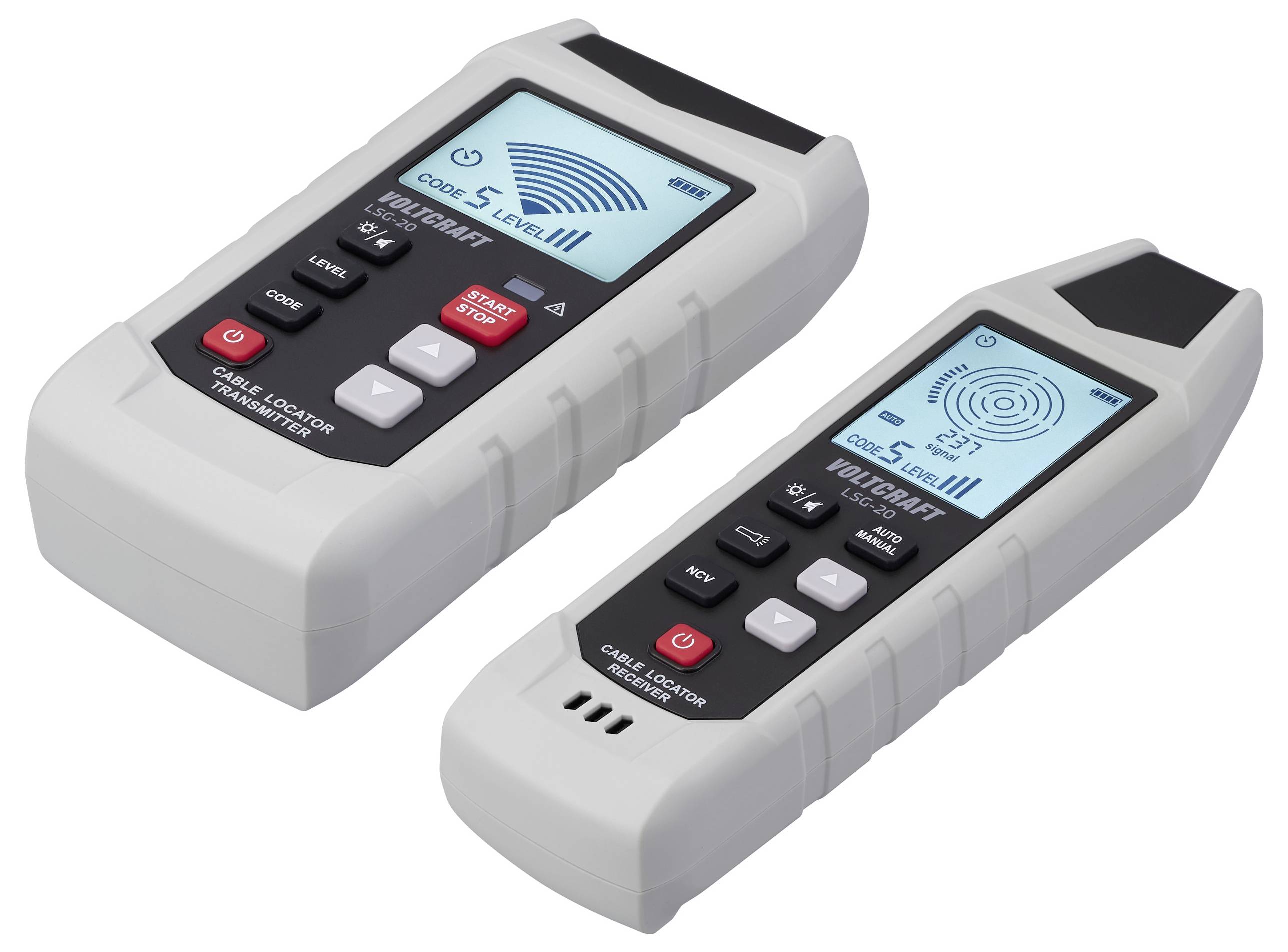

VOLTCRAFT LSG-20 Cable locator CAT III 480 V
- CAT III 480 V

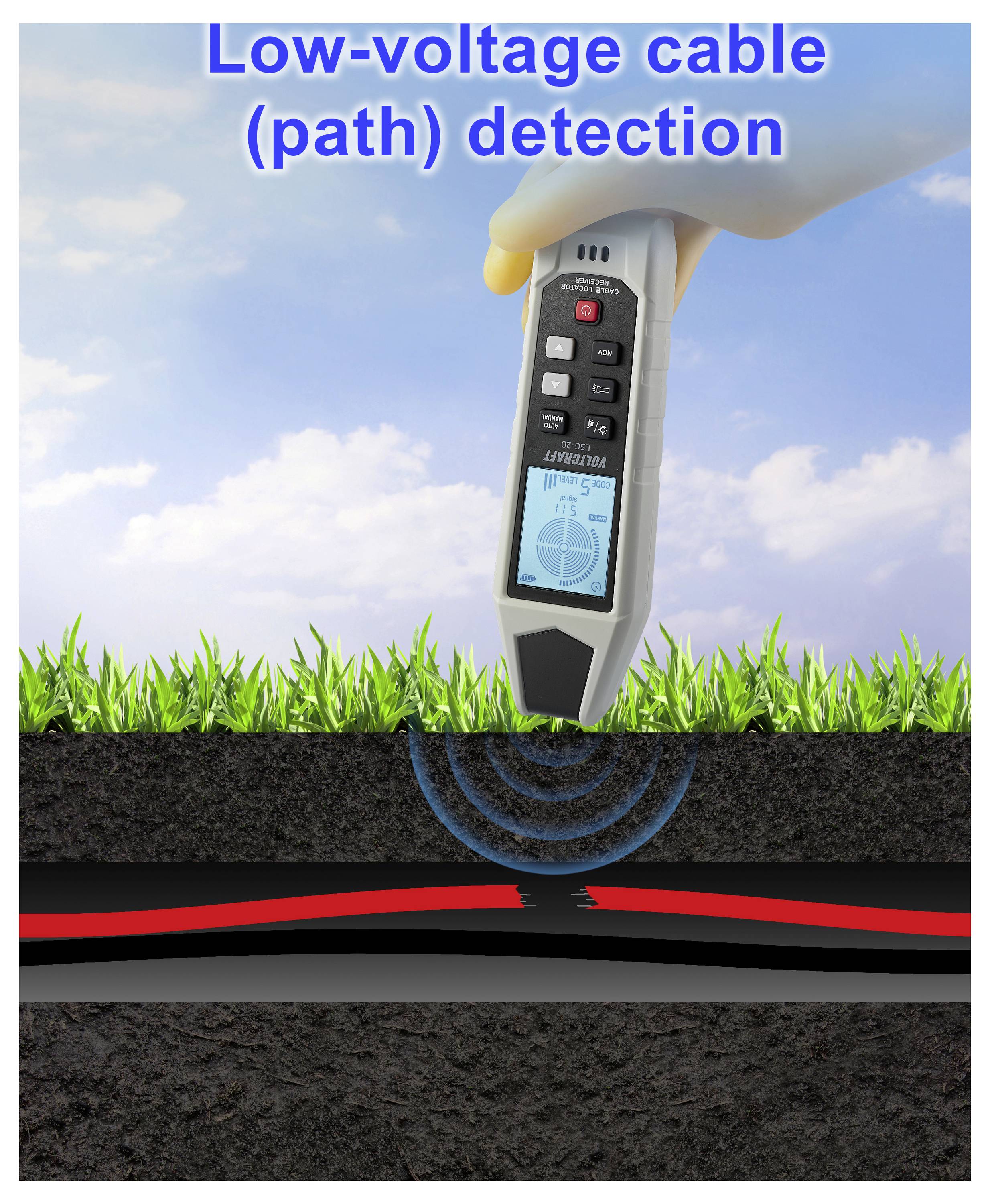

- For tracing underground cable paths, water pipes and metal heating pipelines

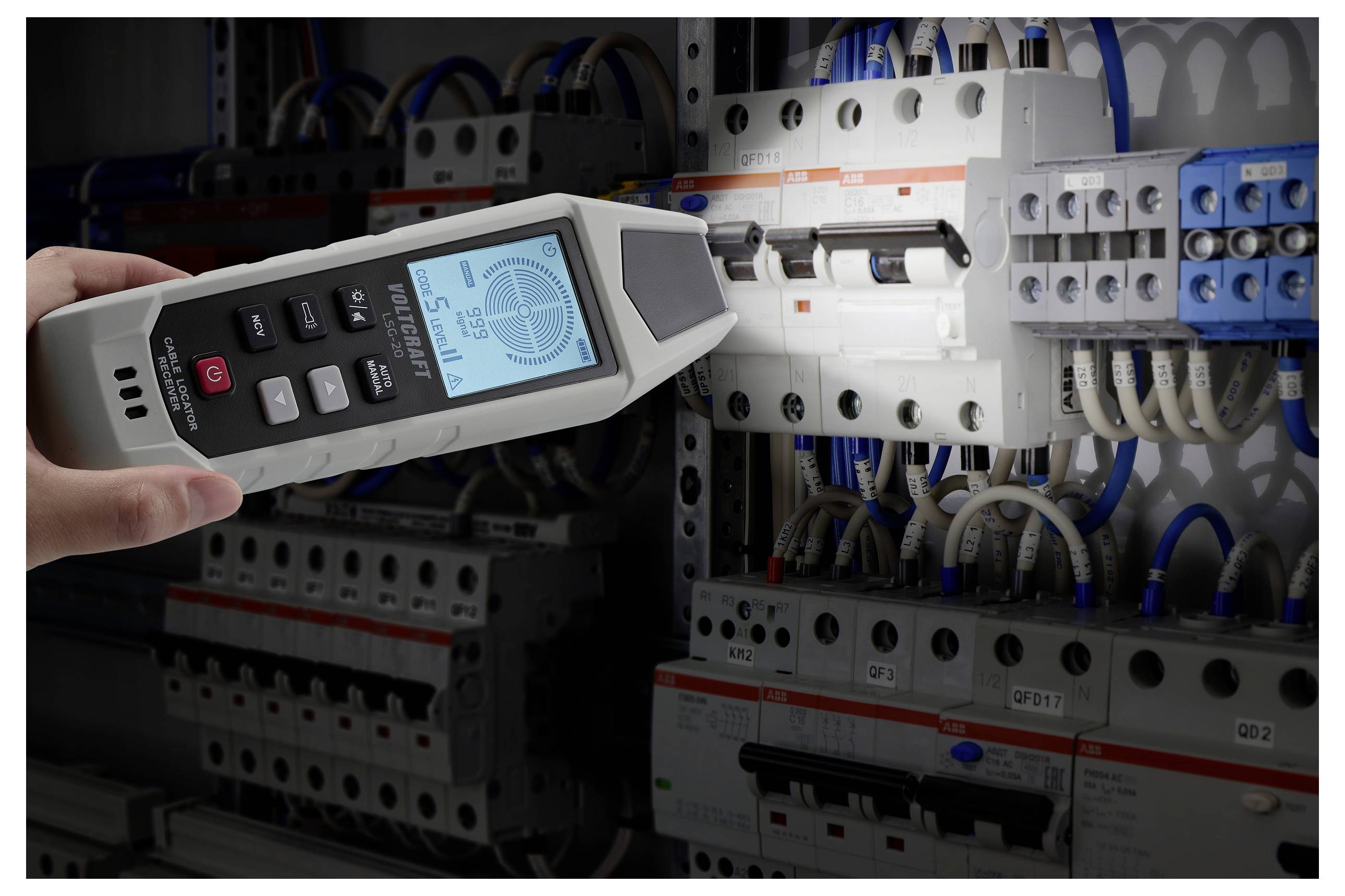

- Locate fuses and associated devices

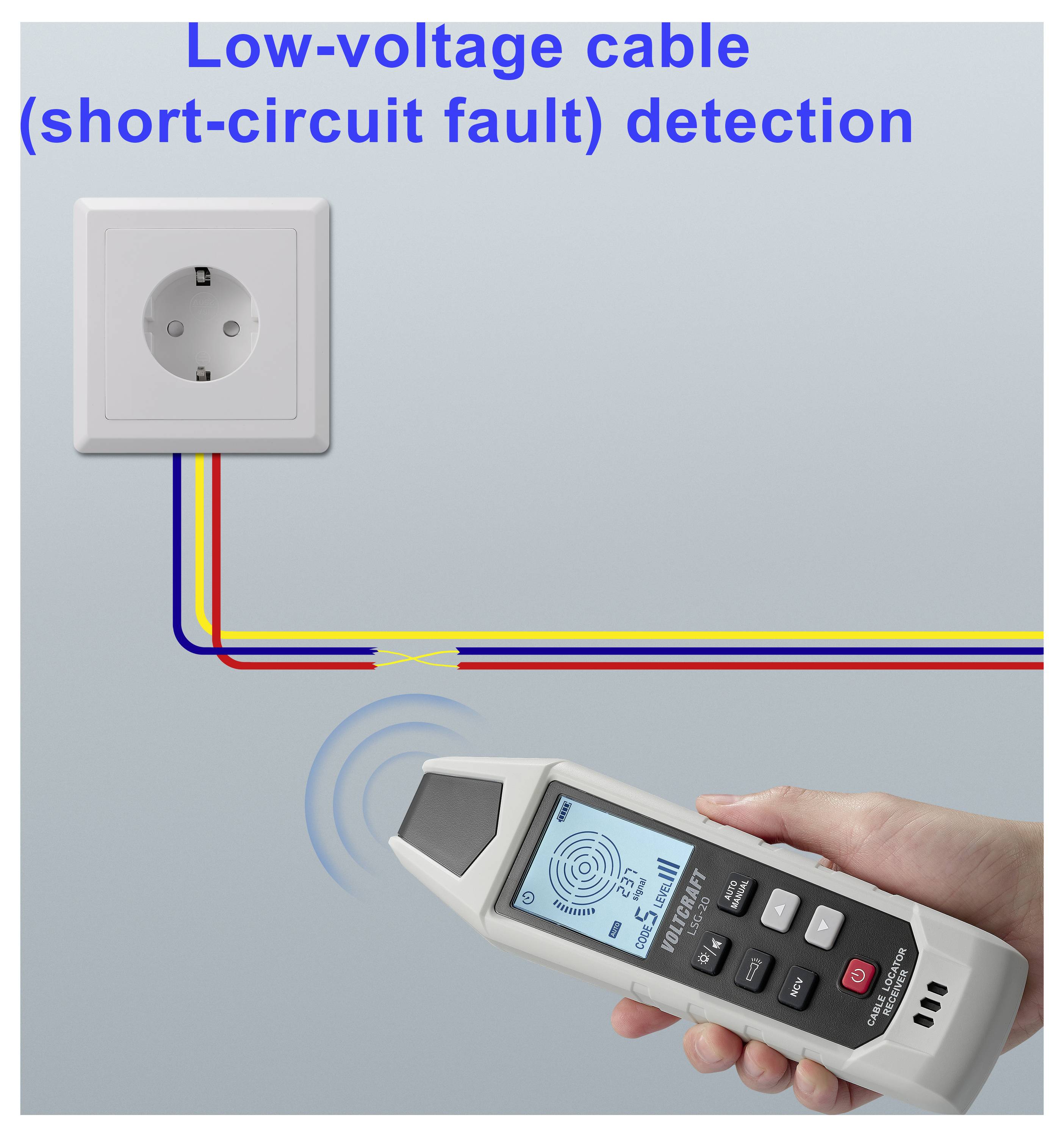

- Identify short circuits and open circuits in underfloor heating (metal)
- Adjustable sensitivity (Receiver 3 levels, Transmitter 9 levels)
- Adjust the receiver sensitivity automatically or manually
- Energized wire detection: up to 480 V (AC/DC)
- Audible and visual indications (LED and buzzer)
Technical specifications
- Product type
Cable locator
- Function
Location
- Optical display
Yes
- Acoustic signal
Yes
- Display
LCD
- Dim
(L x W x H) 68 x 38 x 226 mm
- Weight
287 g
- Weight (transmitter)
389 g
- Operating voltage
9 V DC
- Weight, information
approx., without batteries
- Width
38 mm
- Height
226 mm
- Length
68 mm
- Type
LSG-20
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3532471 VOLTCRAFT LSG-20 Cable locator Location
User & Safety Instructions
User & Safety Instructions 3532471 VOLTCRAFT LSG-20 Cable locator Location
Warranty Terms
Warranty Terms 3532471 VOLTCRAFT LSG-20 Cable locator Location
Description
The VOLTCRAFT LSG-20 cable detector is a precise measurement system consisting of a transmitter and a receiver for locating cables in walls and ground. It supports troubleshooting in current-carrying as well as voltage-free circuits and is designed for applications up to CAT III 480 V. Digital signal processing allows the system to reliably identify cable routing in complex building installations.
Versatile location functions
The device detects electrical conductors and identifies interruptions or short-circuits in cables. It also enables underground cable tracking and locating fuses and their associated circuits.
Specialized application in home technology
In addition to the classic power cables, the system detects short circuits and interruptions in underfloor heating. It is also suitable for tracking metallic water pipes and heating pipes in the building.
Expandability for complex projects
The system supports operation of up to eight transmitters simultaneously for comprehensive measurement tasks in residential or commercial buildings. This permits efficient assignment and labeling of different wiring harnesses in one installation.
Integrated working lights
The transmitter as well as the receiver have an integrated flashlight function. This makes it easier to work safely in dark environments such as false ceilings, shafts or distribution cabinets.
This text is machine translated.
Versatile location functions
The device detects electrical conductors and identifies interruptions or short-circuits in cables. It also enables underground cable tracking and locating fuses and their associated circuits.
Specialized application in home technology
In addition to the classic power cables, the system detects short circuits and interruptions in underfloor heating. It is also suitable for tracking metallic water pipes and heating pipes in the building.
Expandability for complex projects
The system supports operation of up to eight transmitters simultaneously for comprehensive measurement tasks in residential or commercial buildings. This permits efficient assignment and labeling of different wiring harnesses in one installation.
Integrated working lights
The transmitter as well as the receiver have an integrated flashlight function. This makes it easier to work safely in dark environments such as false ceilings, shafts or distribution cabinets.
This text is machine translated.
Features
- Supports single pole and dual pole
- Backlight
- Flashlight
- Working frequency: 33 kHz
- NCV

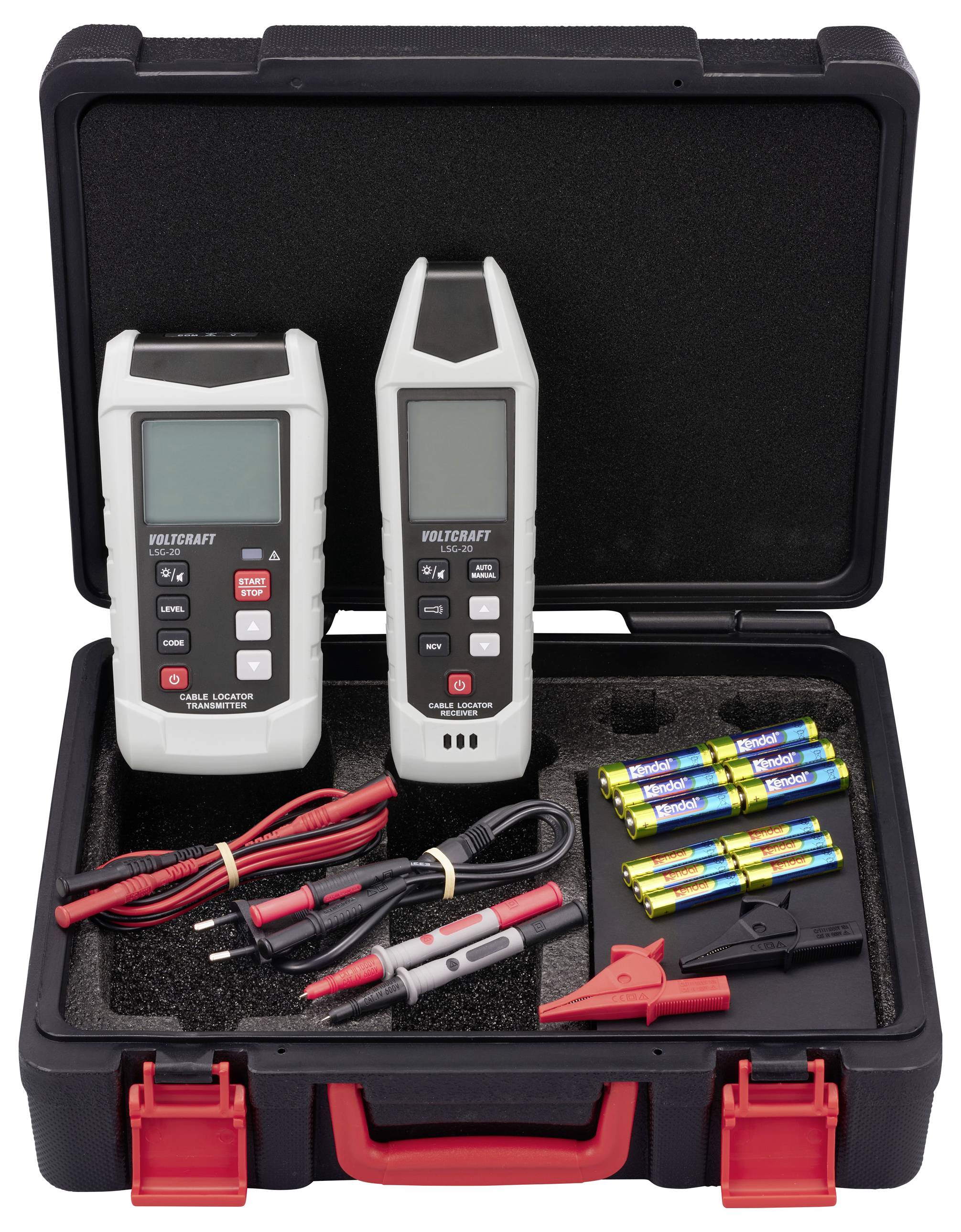

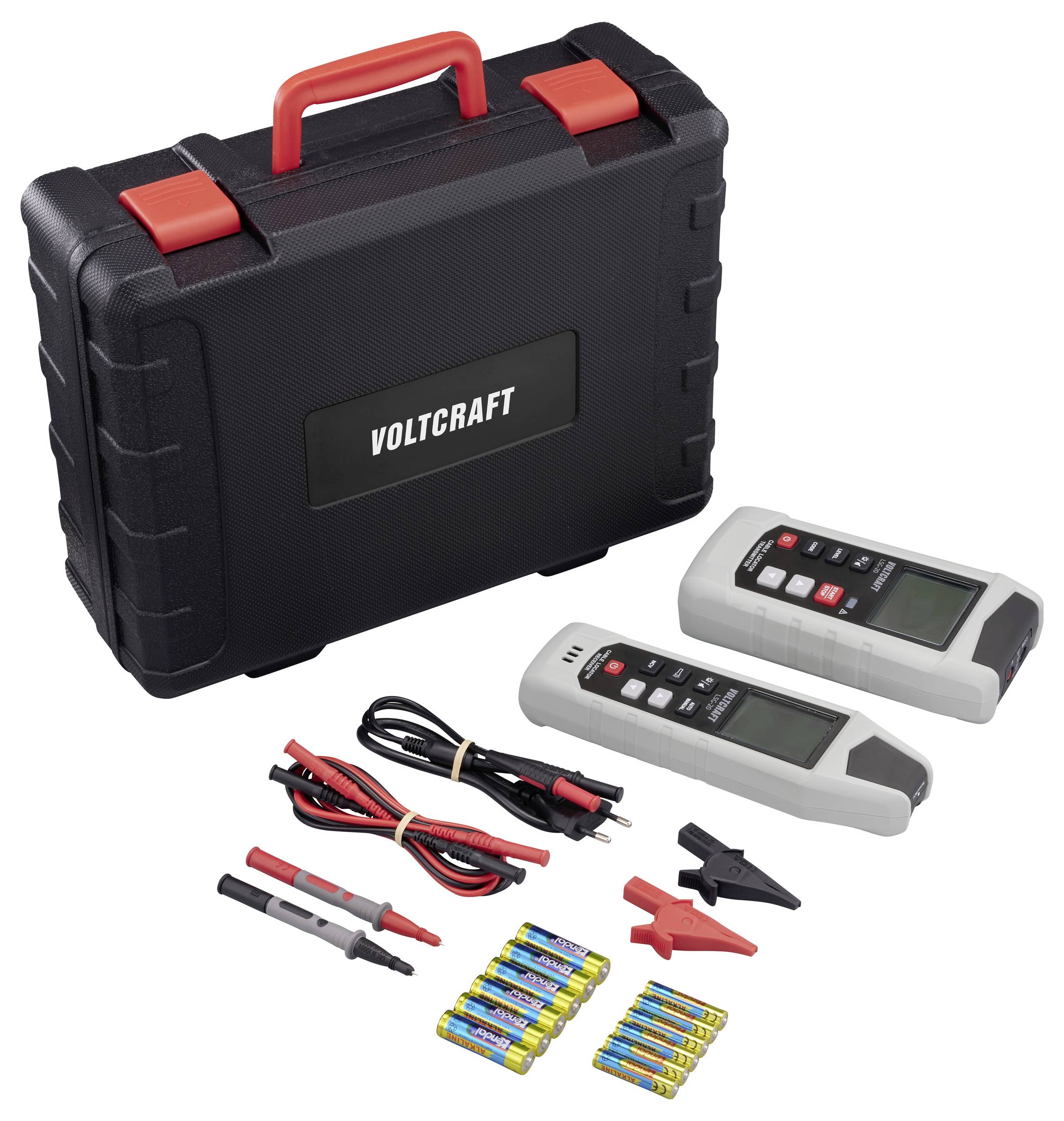

Scope of delivery

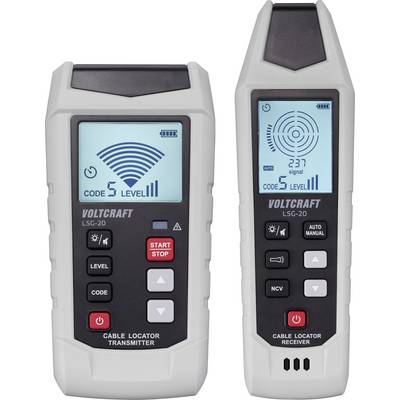

- Transmitter
- Receiver
- Dual in-line test lead (red, black) pair
- Lantern-tip test probe (red, black) pair
- 2x Alligator clips
- AC polarized plug wire
- 6x 1.5 V AA batteries
- 6x 1.5 V AAA batteries
- Carrying case
- User manual
