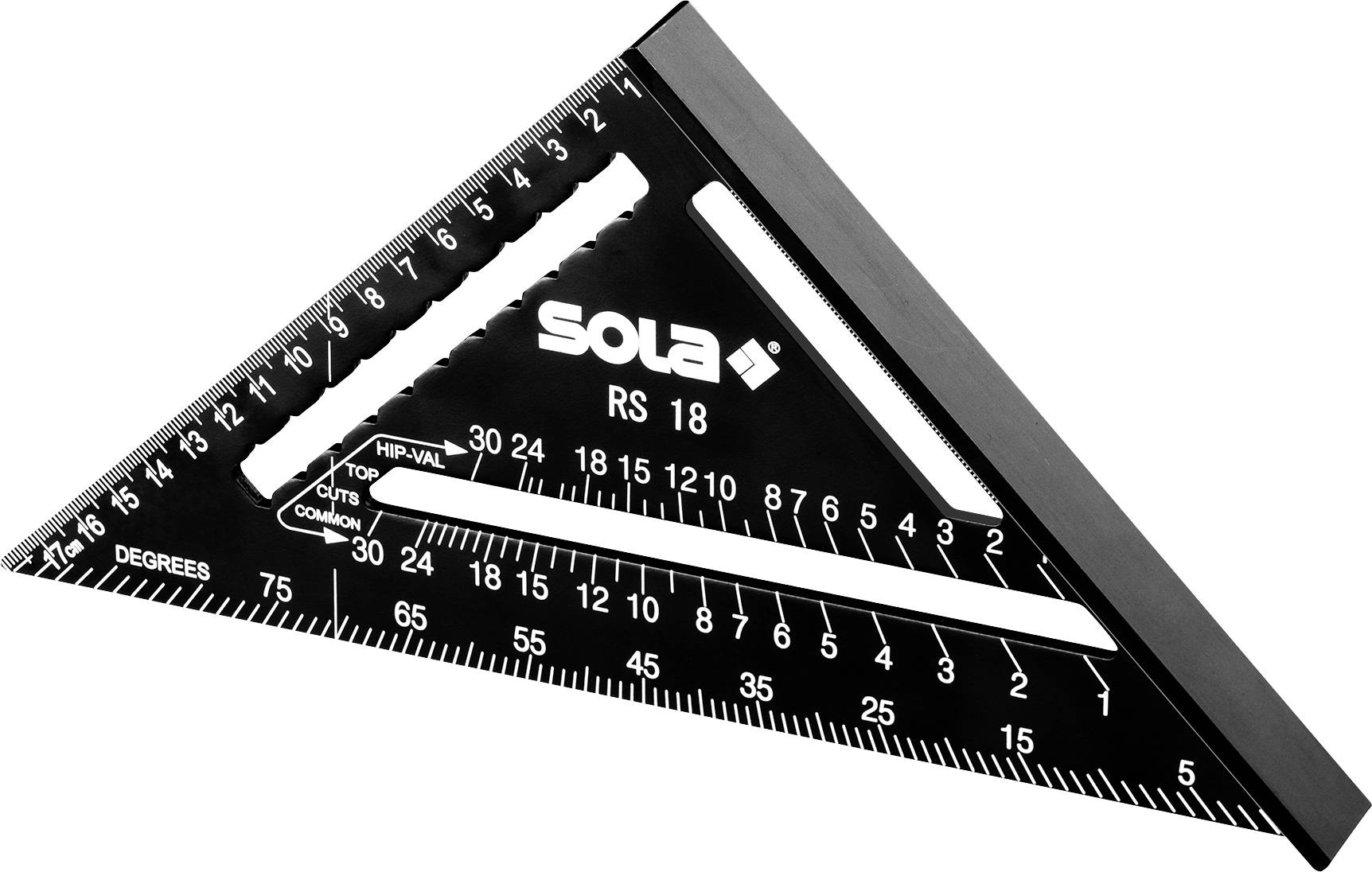

Sola RS 18 56160101 Rafter square 185 x 185 mm 90 °
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
RS 18 Saving angle
- Light, robust multi-functional angle with mm/cm scale
- Multi-functional: Ruler, stop angle, miter angle, angle gauge, marking aid, Saw guide and rafter blades
- Stopper for exact 90° and 45° marking
- Quickly marking lifter cuts on ordinary rafters and hip rafters
- Scribing-aid for comfortable dimensional transfer
- Excellent readability of the measurement results thanks to increased contrast
Technical specifications
- Colour, black
- Scaling: Mm/cm scale (lasered, both sides)
- Marking aids: Notches in the distance of 0.5 cm
- Special scales: Integrated scale for normal (COMMON) and burr and throat rags (HIP-VAL)
- Additional functions: Use as a saw guide for circular saws and jigsaws possible
- Product type
Rafter square
- Side A
185 mm
- Side B
185 mm
- Angle setting (max.)
90°
- Material
Aluminium
- Material properties
anti-corrosive
powder-coated
- Length
185 mm
- Height
22 mm
- Depth
22 mm
- Weight
190 g
Manufacturer's standards (no certificate)
- Type
RS 18
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819488 Sola RS 18 56160101 Rafter square 185 x 185 mm 90 °
Datasheet 3819488 Sola RS 18 56160101 Rafter square 185 x 185 mm 90 °
User & Safety Instructions
User & Safety Instructions 3819488 Sola RS 18 56160101 Rafter square 185 x 185 mm 90 °
Description
The multi-functional angle for precise marking and measuring

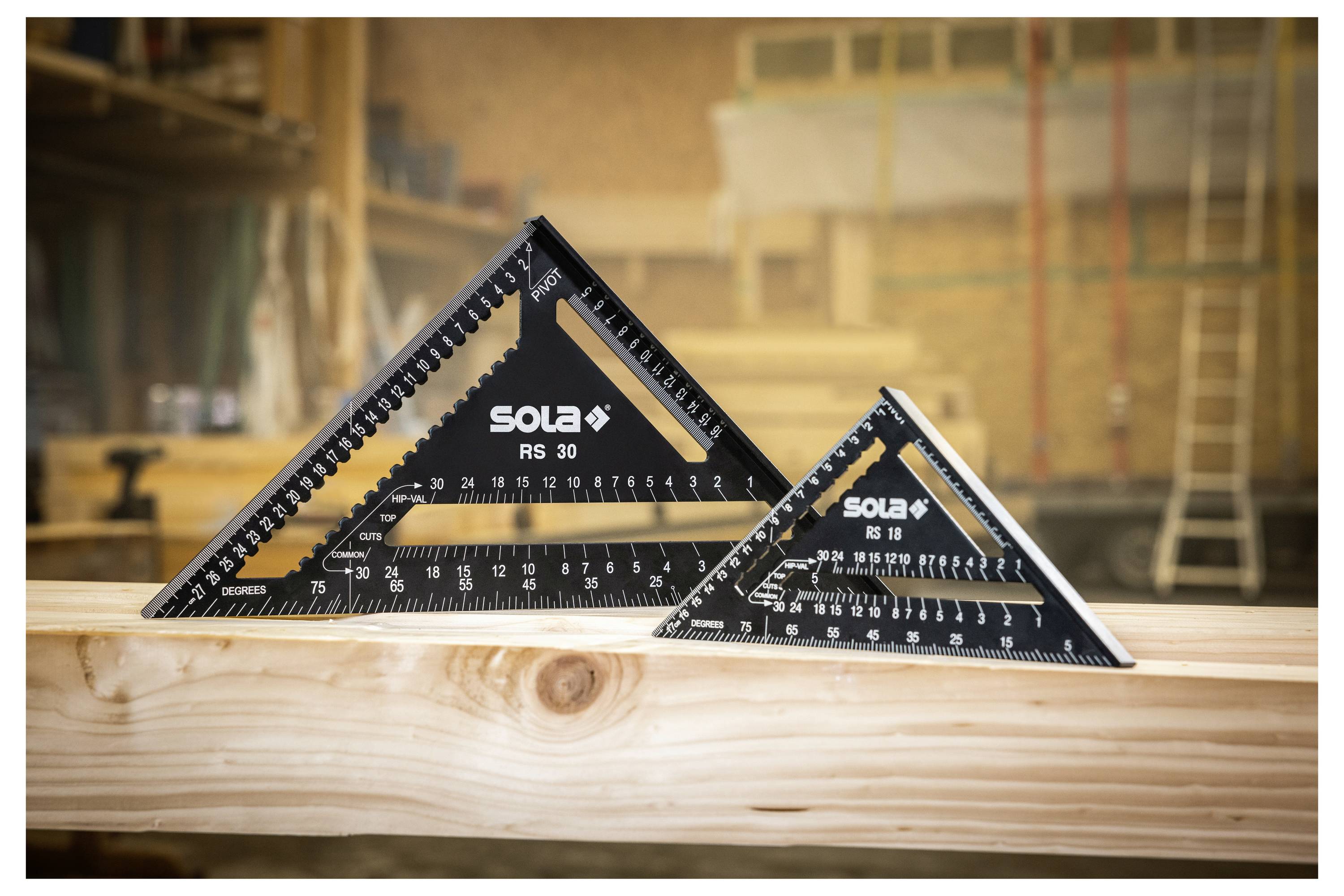

With the RS 18 and RS 30, Sola has expanded the angle range by two new saver angles with a leg length of 18 cm and 30 cm. Both rafter angles have the shape of a right-angled triangle with a stop at a catheter and combine the functions of a ruler, stop angle, miter angle, angle gauge as well as rafter knife. Moreover, they can be used as a marking tool and thanks to a robust edge as a saw guide. The angles are light, but still very robust and durable, made from aluminum.
Multi-talent for markings

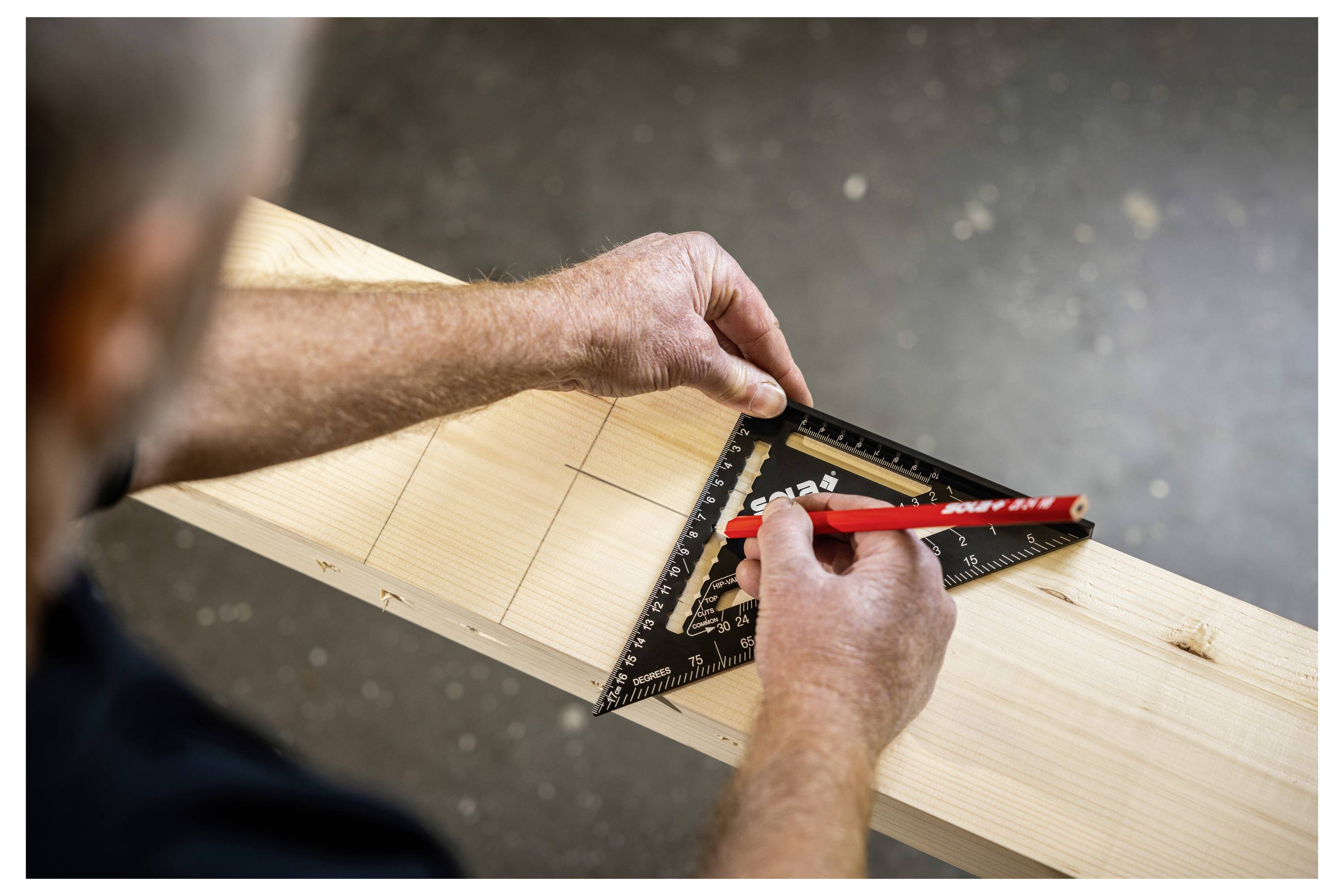

The large number of cut-outs and metric scales in mm and cm placed on both sides make the Sola saver angle a multi-functional tool that Ideal is suitable for marking lines and angles. With the offset scale below the stop, lines can be drawn perpendicular to the stop. If you want to mark or tear parallel lines with a pin, use the marking aid with notches at a distance of 0.5 cm.
0°to 90° angle gauge

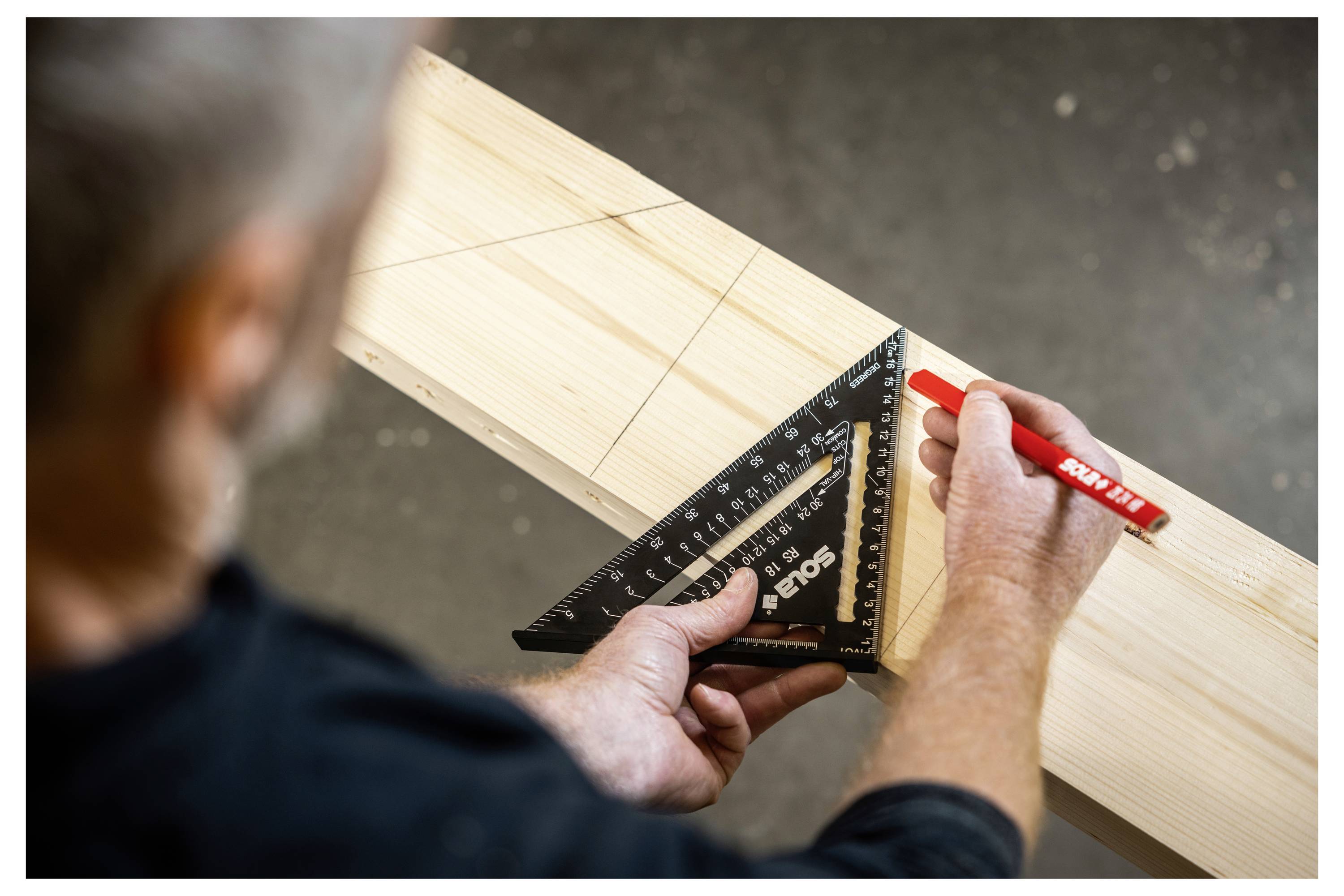

If the rafter angle is attached to the rafter or workpiece with the stop, a 45° and 90° angle can be marked or checked quickly and easily. With the degree scale at the hypotenuse, any angle measurements can be made between 0° to 90°. The rafter angle is rotated around the pivot point (Pivot Point) to the desired angle on the degree scale.
Quickly marking lifter cuts
The different scales and recesses of the saver angle are special
Predestined for working with the material wood – be it in rooms, carpenters or carpenters. Particularly in the carpentry shop for roof structures and rafters, the use of a rafter angle has advantages. Parallel to the degree scale there is a recess with two special scales for the coating of normal, burrs and throat rafters. In addition, the rafter angle from Sola offers a 90°-marking aid for grease cuts.
Robust and durable
The saver angles from Sola are made from light aluminum and score through
Special robustness and durability. The scalings on both sides are lasered, do not dazzle and have an increased contrast, in order to be able to read the results quickly and comfortably. In addition to the RS 18 and RS 30 in metric design, Sola also offers saver angles in the imperial sizes of 7 inch (RSI 7) and 12 inch (RSI 12).
This text is machine translated.
With the RS 18 and RS 30, Sola has expanded the angle range by two new saver angles with a leg length of 18 cm and 30 cm. Both rafter angles have the shape of a right-angled triangle with a stop at a catheter and combine the functions of a ruler, stop angle, miter angle, angle gauge as well as rafter knife. Moreover, they can be used as a marking tool and thanks to a robust edge as a saw guide. The angles are light, but still very robust and durable, made from aluminum.
Multi-talent for markings
The large number of cut-outs and metric scales in mm and cm placed on both sides make the Sola saver angle a multi-functional tool that Ideal is suitable for marking lines and angles. With the offset scale below the stop, lines can be drawn perpendicular to the stop. If you want to mark or tear parallel lines with a pin, use the marking aid with notches at a distance of 0.5 cm.
0°to 90° angle gauge
If the rafter angle is attached to the rafter or workpiece with the stop, a 45° and 90° angle can be marked or checked quickly and easily. With the degree scale at the hypotenuse, any angle measurements can be made between 0° to 90°. The rafter angle is rotated around the pivot point (Pivot Point) to the desired angle on the degree scale.
Quickly marking lifter cuts
The different scales and recesses of the saver angle are special
Predestined for working with the material wood – be it in rooms, carpenters or carpenters. Particularly in the carpentry shop for roof structures and rafters, the use of a rafter angle has advantages. Parallel to the degree scale there is a recess with two special scales for the coating of normal, burrs and throat rafters. In addition, the rafter angle from Sola offers a 90°-marking aid for grease cuts.
Robust and durable
The saver angles from Sola are made from light aluminum and score through
Special robustness and durability. The scalings on both sides are lasered, do not dazzle and have an increased contrast, in order to be able to read the results quickly and comfortably. In addition to the RS 18 and RS 30 in metric design, Sola also offers saver angles in the imperial sizes of 7 inch (RSI 7) and 12 inch (RSI 12).
This text is machine translated.
Scope of delivery
- RS 18 Saving angle
