Name: Sonel MMR-620 Component tester Digital incl. testing cable, Splashproof (IP54), Data logger CAT IV 300 V
Brand: Sonel
SKU: 1427990
Availability: BackOrder

Electronic measuring instrument with open lid, showing various buttons, scales, and a digital display. Used for resistance measurements.

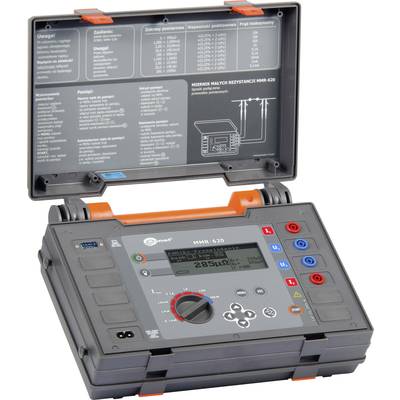

A digital measuring device with an open lid, showing controls and connections. Inscription: 'MEASURING SMALL RESISTANCES MMR-620'.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,919.00 / piece)

€ 3,919.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Micro Ohmmeter MMR-620

Measurement current up to 10 A
Resolution up to minimum 1 µΩ
3 different measurement modes (normal, car, cont.)
Measurement of resistive and inductive objects
4-wire measurement
No influence due to interference.
Adjustable limits (min/max).

Technical specifications

10 A testing current range 0...999 µΩ µΩ: Resolution: 1, measuring voltage: 20 mV, accuracy: ± (0.25% v.M. such + 2 digits); 10 A testing current range 1.000... 1.999 mΩ: Resolution: 0.001 mΩ, measuring voltage: 20 mV, accuracy: ± (0.25% v.M. such + 2 digits); 10 A testing current range 2.00 ... 19.99 mΩ: Resolution: 0.01 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such + 2 digits); 1 A test current range 20.0... 199.9 mΩ: Resolution: 0.1 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such + 2 digits); 0.1 A testing current range 200...999 mΩ: Resolution: 1 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such + 2 digits); 0.1 A testing current range 1.000... 1.999 Ω: Resolution: 0.001 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 10 mA test current range 2.00 ... 19.99 Ω: Resolution: 0.01 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 1 mA test current range 20.0... 199.9 Ω: Resolution: 0.1 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 0.1 mA test current range 200 ... 1999 Ω: Resolution: 1 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits)

Product type: Component tester

Reading range - resistance: 1 µΩ - 1999 Ω

Basic accuracy: 0.25 %

Interfaces: RS232

Power supply (details): 4.8 V NiMH 3Ah

Height: 180 mm

Width: 455 mm

Length: 310 mm

Weight: 1.7 kg

: Manufacturer's standards (no certificate)

Reading category: CAT IV 300 V

Type: MMR-620

Display: Digital

Dim: (L x W x H) 310 x 455 x 180 mm

Features: incl. testing cable
Splashproof (IP54)
Data logger

Interfaces: RS232C

Documents & Downloads

Datasheet

Datasheet 1427990 Sonel MMR-620 Component tester Digital incl. testing cable, Splashproof (IP54), Data logger CAT IV 300 V

User & Safety Instructions

User & Safety Instructions 1427990 Sonel MMR-620 Component tester Digital incl. testing cable, Splashproof (IP54), Data logger CAT IV 300 V

Conformity certificate

Conformity certificate 1427990 Sonel MMR-620 Component tester Digital incl. testing cable, Splashproof (IP54), Data logger CAT IV 300 V

Description

The Micro Ohmmeter MMR-620 is a professional test device for measuring the small resistances. Due to the high measuring current and the very small resolution of min. 1 µΩ, precise measurements of motors, transformer windings as well as the electrical connections of all kinds can be carried out. It can use both inductive and resistive resistance measurements with 4-conductor measurement can be made.

This text is machine translated.

Features

Portable IP54 housing
CAT IV 300V
Test Leads
Large alligator clips with large pliers
Kelvin terminals for 4-wire measurement
Battery charger
Battery pack
Sonel Reader software
Memory for 990 measuring results by an RS-232C interface to a computer rerecorded.

Scope of delivery

Test lead 3 m · Alligator clip K 03, black · Alligator clip Kelvin K06 · L1 carrying case · Power cable for charging device · Battery NiMH 4.8 V 3 Ah · RS-232 cable · Kelvin-probe with two test tips · Strap
User manual · Calibration certificate · Sonel Reader software

Description

Features

Portable IP54 housing
CAT IV 300V
Test Leads
Large alligator clips with large pliers
Kelvin terminals for 4-wire measurement
Battery charger
Battery pack
Sonel Reader software
Memory for 990 measuring results by an RS-232C interface to a computer rerecorded.

Scope of delivery

Test lead 3 m · Alligator clip K 03, black · Alligator clip Kelvin K06 · L1 carrying case · Power cable for charging device · Battery NiMH 4.8 V 3 Ah · RS-232 cable · Kelvin-probe with two test tips · Strap
User manual · Calibration certificate · Sonel Reader software
