Sonel MZC-306 Electrical tester
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3,419.00 / piece)
€ 3,419.00
incl. VAT
14-day return policy included
Highlights & Details

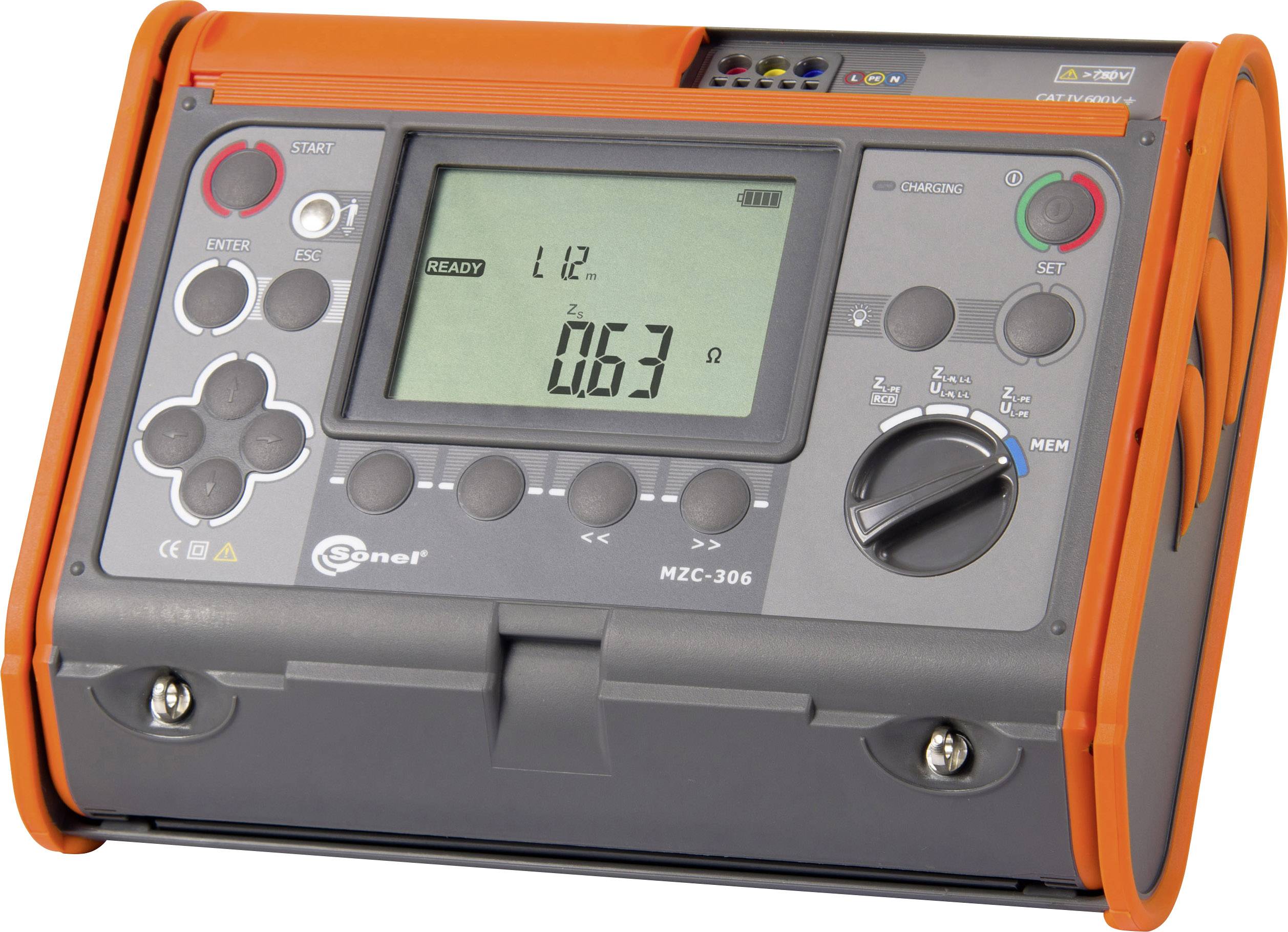

Loop impedance measuring device MZC-306
- Loop impedance measurement: ZL-PE, ZL-N, ZL-L at the mains voltage up to 750 V
- Messtrom: max. 30 A
- Automatic calculation of the short-circuit current
- AC voltage measurement
- Frequency measurement.
- Measuring range according to IEC 61557
- Checking for correct PE connection
- Data transfer via USB.
- Memory for 990 measured values
Technical specifications
- Range loop impedance measurement ZL-PE, ZL-N, ZL-L 0.00... 19.99 Ω: Resolution: 0.01 Ω, accuracy: ± (5% v.M. such + 3 digits); range loop impedance measurement ZL-PE, ZL-N, ZL-L 20.0... 199.9 Ω: Resolution: 0.1 Ω, accuracy: ± (4% v.M. such + 3 digits); range loop impedance measurement ZL-PE, ZL-N, ZL-L200 ... 1999 Ω: Resolution: 1 Ω, accuracy: ± (4% v.M. such + 3 digits); nominal voltage UnL-N/UnL-L: 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V, 400/690; voltage range ZL-PE, ZL-N: 100...440 V; voltage range ZL-L: 100...750 V; frequency: 45...65 Hz; Measuring current: max. 30 A; range loop impedance measurement ZL-PE 0.00... 19.99: Resolution: 0.1 Ω, accuracy: ± (6% v.M. such + 10 digits); range loop impedance measurement ZL-PE 20...199 Ω: Resolution: 0.1 Ω, accuracy: ± (6% v.M. such + 5 digits); range loop impedance measurement ZL-PE 200... 1999 Ω: Resolution: 1 Ω, accuracy: ± (6% v.M. such + 5 digits), nominal voltage ZL-PE Un: 100...440 V, voltage: 110 V, 115 V, 127 V, 220 V, 230 V, 240 V, 290 V, 400 V; range voltage measurement 0.0 V... 249,9 V: Resolution: 0.1 V, accuracy: ± (2% v.M. such + 4 digits); range voltage measurement 250V.. .750 V: Resolution: 1 V, accuracy: ± (2% v.M. such + 2 digits); range Frequency: 45.0Hz...65.0 Hz
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Interfaces
USB
- Dim
(L x W x H) 300 x 400 x 200 mm
- Weight
4.16 kg
IP67
- Reading range (VDE)
Loop impedance
Voltage
Current
Frequency
Resistance
- Display type
Digital (LCD)
- Width
400 mm
- Height
200 mm
- Length
300 mm
- Test procedure
automated
- Voltage supply
Mains
- Memory (space)
990
- Memory
Yes
- Type
MZC-306
- Features
incl. software
Documents & Downloads
Datasheet
Datasheet 1427974 Sonel MZC-306 Electrical tester
User & Safety Instructions
User & Safety Instructions 1427974 Sonel MZC-306 Electrical tester
Description
The effective loop impedance measuring device MZC-306 of sonel is the loop measurement of ZL-PE, ZL-N and ZL-L in networks of 110 V-715 V with frequencies from 45 to 65 Hz. The measurements are after checking the correct PE connection with a test current depending on the mains voltage with a maximum of 30 a. After the automatic calculation of the short-circuit current can thus correct function of the overcurrent protective device. Additional measurement parameters such as AC voltage and frequency can then be transferred to the PC via the USB cable and the Software Sonel Reader can be evaluated.
This text is machine translated.
This text is machine translated.
Features
- Rubber-protected robust IP54 housing; CAT IV 600 V; Protection class IP67; CEE-adapter 16 A and 32 A 4- or 5-pole; Prufleitungungen and alligator clips; UNI-earthing contact plug; carrying case; protocol software Sonel Reader; data transfer via ODER-1-Adapter; LR6 batteries
Scope of delivery
- UNI-earthing contact adapter WS-05 (angle)
- Test lead 1.2 m yellow
- Test lead 1.2 m blue
- Test lead 1.2 m red
- Crocodile clip, blue, K02
- Alligator clip, red K02
- Test tip blue
- Test tip red
- Test tip yellow
- Carry case L-4
- USB cable
- Rechargeable Ni-MH battery
- 4.8V.
- 4.2Ah
- Strap
- Battery charger Z7
- Software: Sonel Reader
- User manual
- Calibration certificate
