SpeaKa Professional SP-11562928 1 port HDMI extender set PC-controlled 4096 x 2160 p Black
EAN:
Part number:
Item no:
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
14-day return policy included
Highlights & Details

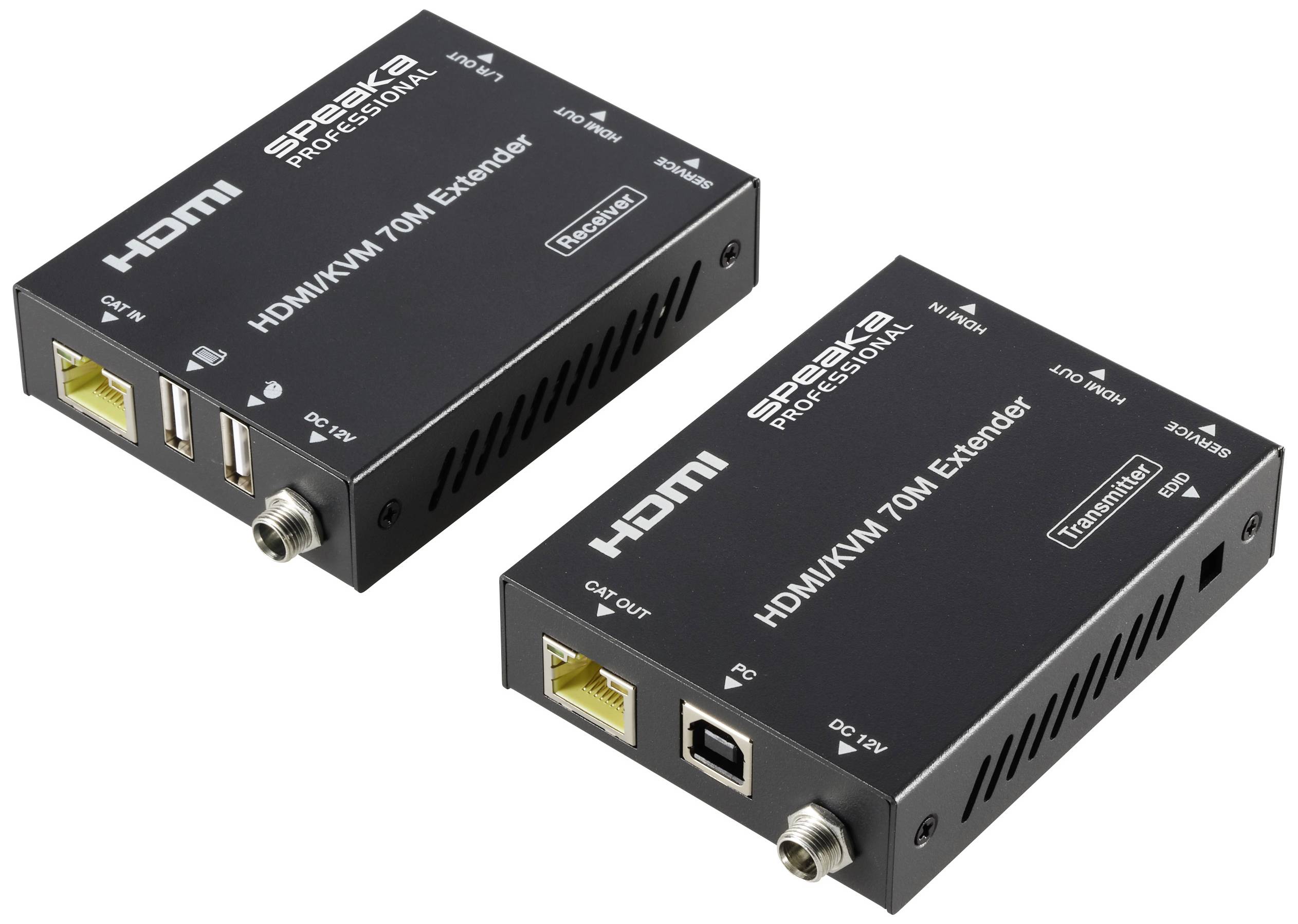

SpeaKa Professional SP-11562928 1 port HDMI extender set
- The transfer distance can be extended by means of a single CAT6/6a cable to up to 70 m.
- Supports video resolutions up to 4K or 2K@60Hz RGB / YCBCR 4:4:4
- Complies with HDMI 2.0b and HDCP 2.2
- Supports 18 Gbps video bandwidth
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
- USB KVM pass-through function, USB 1.1 compliant: Allows remote control of the computer or laptop connected to the transmitter via USB keyboard and mouse
- Supports 3.5mm analog audio de-embedding: Audio is output via the receiver's L/R OUT connection (Ideal for connecting to existing active speakers or amplifiers)
- Audio formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+)
- EDID copy function between the source device and the display device
- Supports the bi-directional POC (Power over Cable) function and thus supplies transmitter & receiver with only one power supply
- Compact design and enclosed mounting loops for easy and flexible installation
Technical specifications
- Product type
HDMI extender set
- Supported monitors
1
- No. of inputs
1 x
- Interfaces (input)
HDMI® input
- No. of outputs
1 x
- Interfaces (output)
HDMI® output
- Resolution (max.)
4096 x 2160 p
- Switch function
Hot key
- Power supply (LOV)
mains-powered
- Distributor/switch features
PC-controlled
- Factory colour
Black
- Weight
170 g
- Width
90 mm
- Height
68 mm
- Depth
22 mm
- Dim
(W x H x D) 90 x 68 x 22 mm
- Port
1 port
- Supported audio file formats
LPCM 2.0
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890732 SpeaKa Professional SP-11562928 1 port HDMI extender set PC-controlled 4096 x 2160 p Black
Description
This HDMI Extender is Ideal for multimedia conference rooms, for use in lessons with projection or large-screen displays.
The 18 Gbps HDMI Extender can extend the HDMI Full HD signal via a single optional CAT6/6a cable to a distance of up to 70 m. This enables delay-free, uncompressed transmission over large distances between transmitter and receiver. The maximum video resolution for transmission is 4K@60Hz. The Extender also supports the transmission of KVM signals for transmission of input devices (keyboard/mouse). With it the source device (e.g. computer/laptop) can be controlled from a distance. It supports EDID copying function between the source device and the display device. The power supply of the transmission set is effected via a mains unit connected to the transmitter or receiver. Via the POC function the power supply of the other component is also done via the network cable.
This text is machine translated.
The 18 Gbps HDMI Extender can extend the HDMI Full HD signal via a single optional CAT6/6a cable to a distance of up to 70 m. This enables delay-free, uncompressed transmission over large distances between transmitter and receiver. The maximum video resolution for transmission is 4K@60Hz. The Extender also supports the transmission of KVM signals for transmission of input devices (keyboard/mouse). With it the source device (e.g. computer/laptop) can be controlled from a distance. It supports EDID copying function between the source device and the display device. The power supply of the transmission set is effected via a mains unit connected to the transmitter or receiver. Via the POC function the power supply of the other component is also done via the network cable.
This text is machine translated.
Scope of delivery
- 18Gbps HDMI Extender (transmitter)
- 18 Gbps HDMI Extender (receiver)
- USB-A to USB-B cable (1.5 m)
- 4× mounting eyes
- 8× Machine screws (KM3*4)
- 12V/1A Lockable mains adapter with EU-plug
- User manual
