Renkforce RF-DVIS-200 DVI splitter suitable for indoor use, Ultra HD compatibility 3480 x 2160 p Black
EAN:
Part number:
Item no:
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details
Renkforce 2-Port DVI Splitter Ultra HD capable 3840 x 2160 pixels Black
- Supports resolution up to 4K30Hz

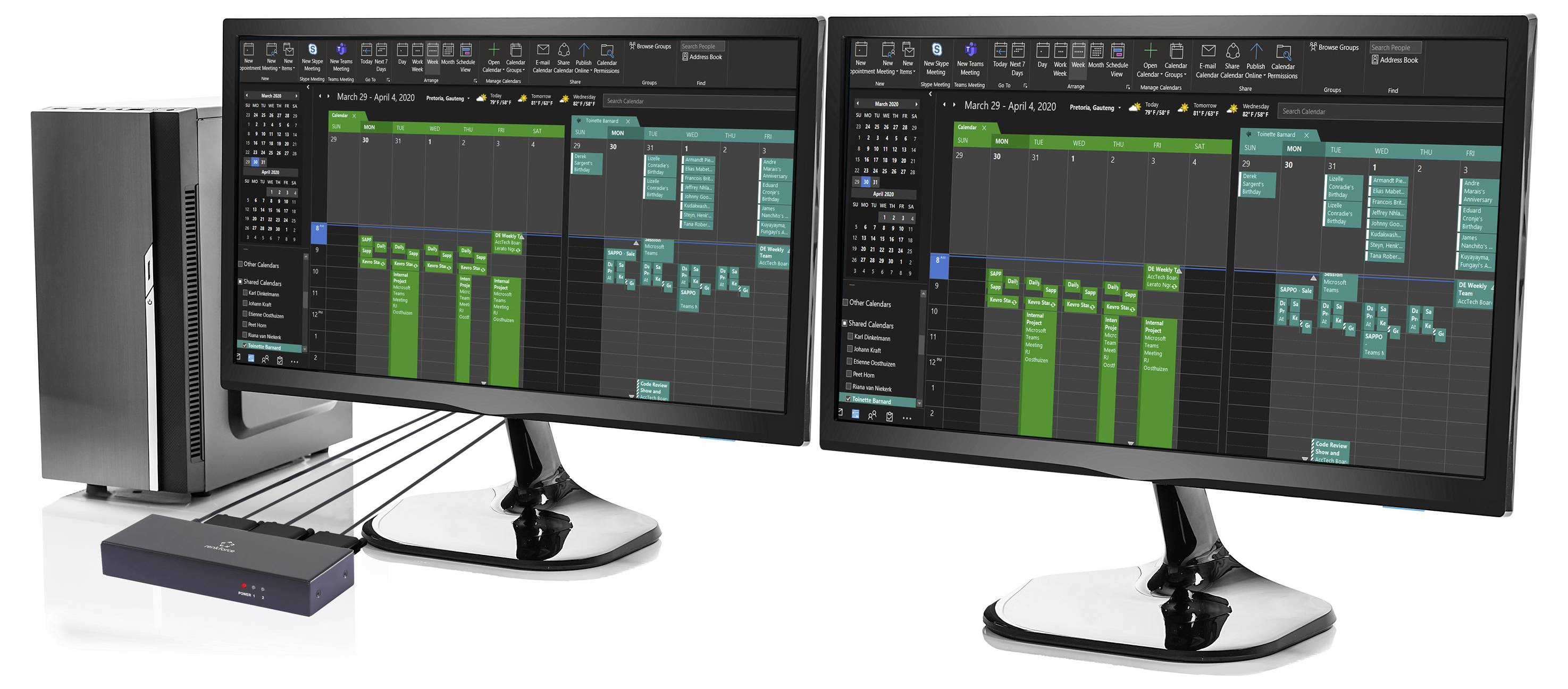

- Splits your DVI signal across two monitors simultaneously
- Perfect for presentations
Technical specifications
- DVI versions: DVI1.4/DVI1.3

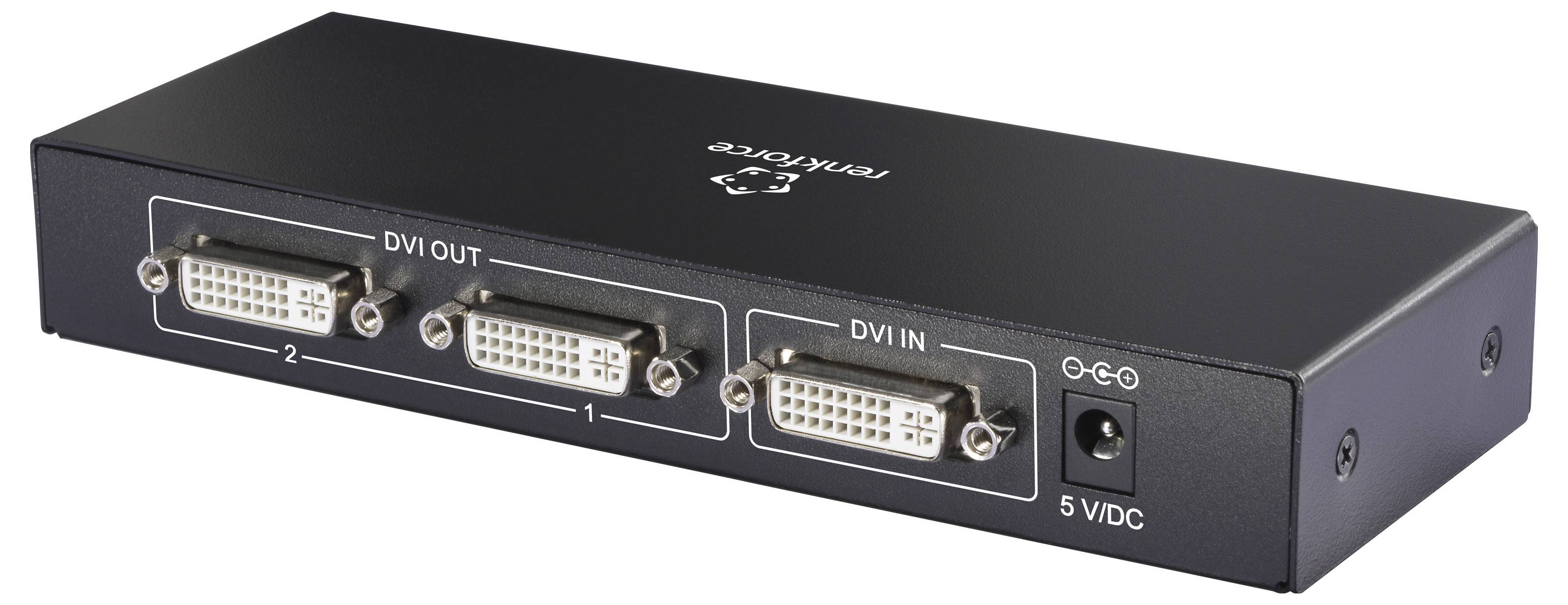

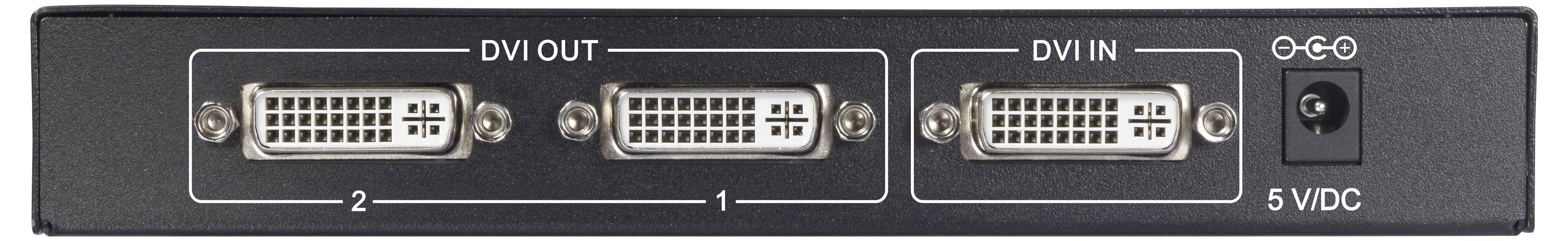

- Input port: DVI 24+5-A x 1
- Output port: DVI 24+5-A x 2
- Maximum working current: 0.6 A
- Product type
DVI splitter
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
DVI
- No. of outputs
2 x
- Interfaces (output)
DVI
- Resolution (max.)
3480 x 2160 p
- Switch function
Automatic
- Power supply (LOV)
via DC in
- Distributor/switch features
suitable for indoor use
Ultra HD compatibility
- Factory colour
Black
- Weight
286 g
- Width
178 mm
- Height
66 mm
- Depth
27 mm
- Dim
(W x H x D) 178 x 66 x 27 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3475832 Renkforce RF-DVIS-200 DVI splitter suitable for indoor use, Ultra HD compatibility 3480 x 2160 p Black
Description
The Renkforce 2 port DVI splitter Ultra HD-capable enables the reliable distribution of a single DVI input signal on two separate monitors. The device is housed in a robust metal case and designed for professional use where a stable signal transmission and simple handling are in the foreground. Thanks to the compact design, the splitter can be integrated in existing work environments in a space-saving way.
High image resolution
The device supports resolutions up to 4K at 30Hz as well as video formats with a color depth of 8, 10 or 12 bit. This ensures a detailed image reproduction on both the connected displays, as long as the hardware supports these standards.
Robust construction and stable operation
The metal housing protects the internal components and ensures efficient heat dissipation. In connection with the stable performance and Maximum data transmission rate 10.2 Gbps
Flexible cable lengths
The system is designed for considerable transmission paths On the input side, cables up to a length of 10 m (AWG26) can be used, while at the output cable lengths of up to 15 m (AWG26) are possible with full 4K/30Hz support.
This text is machine translated.
High image resolution
The device supports resolutions up to 4K at 30Hz as well as video formats with a color depth of 8, 10 or 12 bit. This ensures a detailed image reproduction on both the connected displays, as long as the hardware supports these standards.
Robust construction and stable operation
The metal housing protects the internal components and ensures efficient heat dissipation. In connection with the stable performance and Maximum data transmission rate 10.2 Gbps
Flexible cable lengths
The system is designed for considerable transmission paths On the input side, cables up to a length of 10 m (AWG26) can be used, while at the output cable lengths of up to 15 m (AWG26) are possible with full 4K/30Hz support.
This text is machine translated.
Features
- Maximum Resolution Sing Link: 480p to 1080p
- Maximum Resolution Dual Link: 480p to 2160p

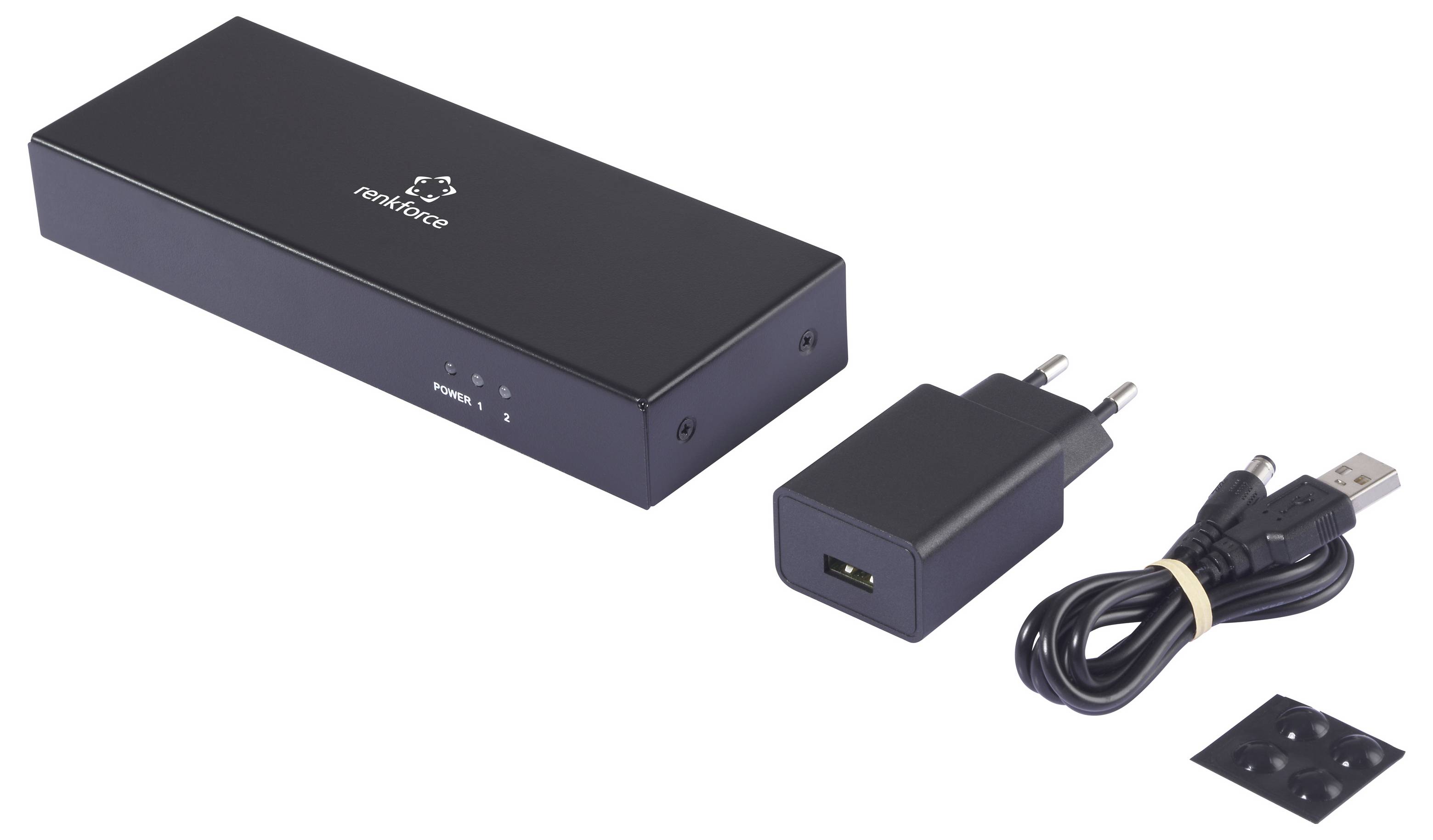

Scope of delivery
- DVI splitter
- Power adapter
- USB power cable
- rubber feet x 4
- Manual
