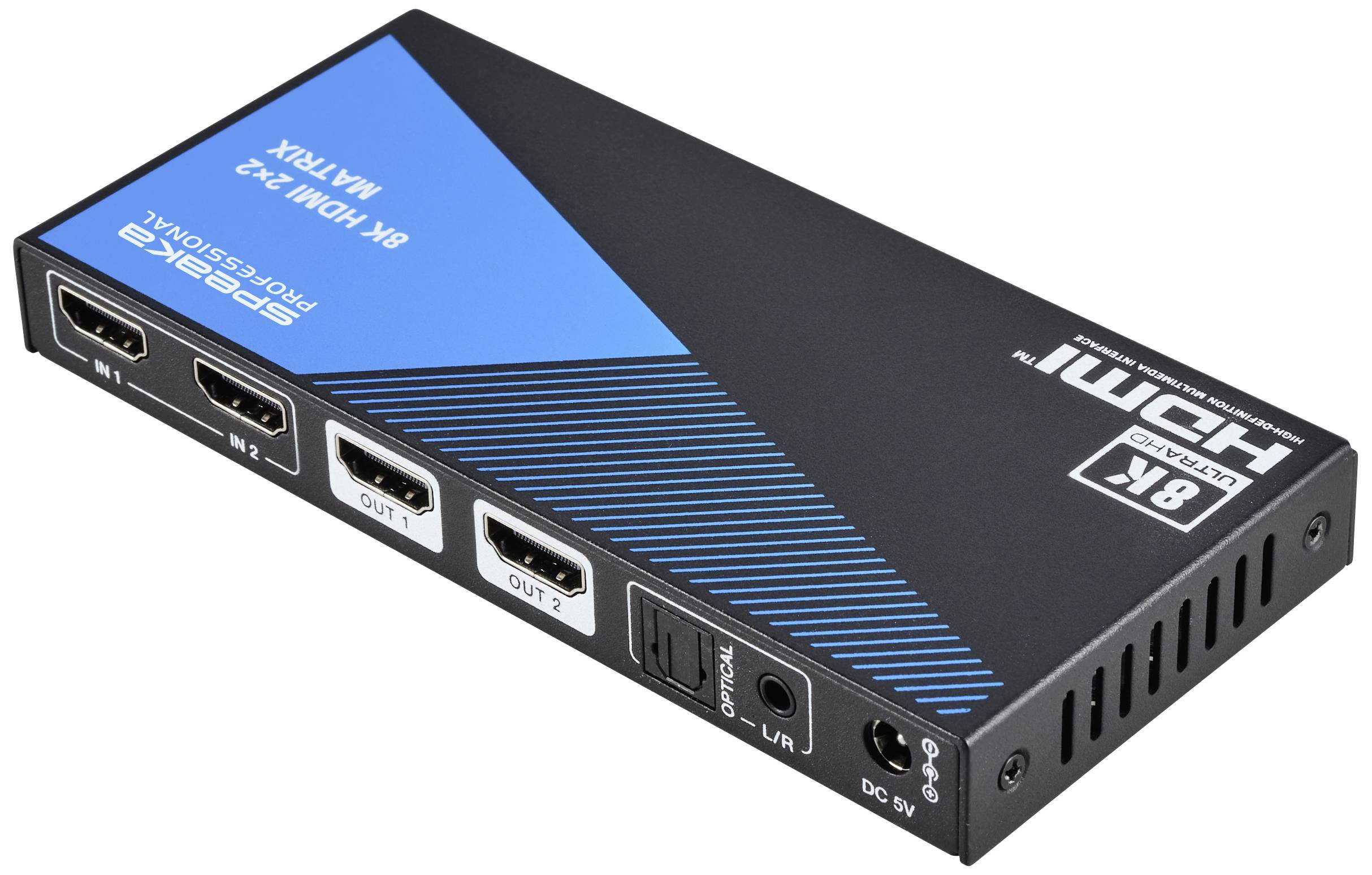

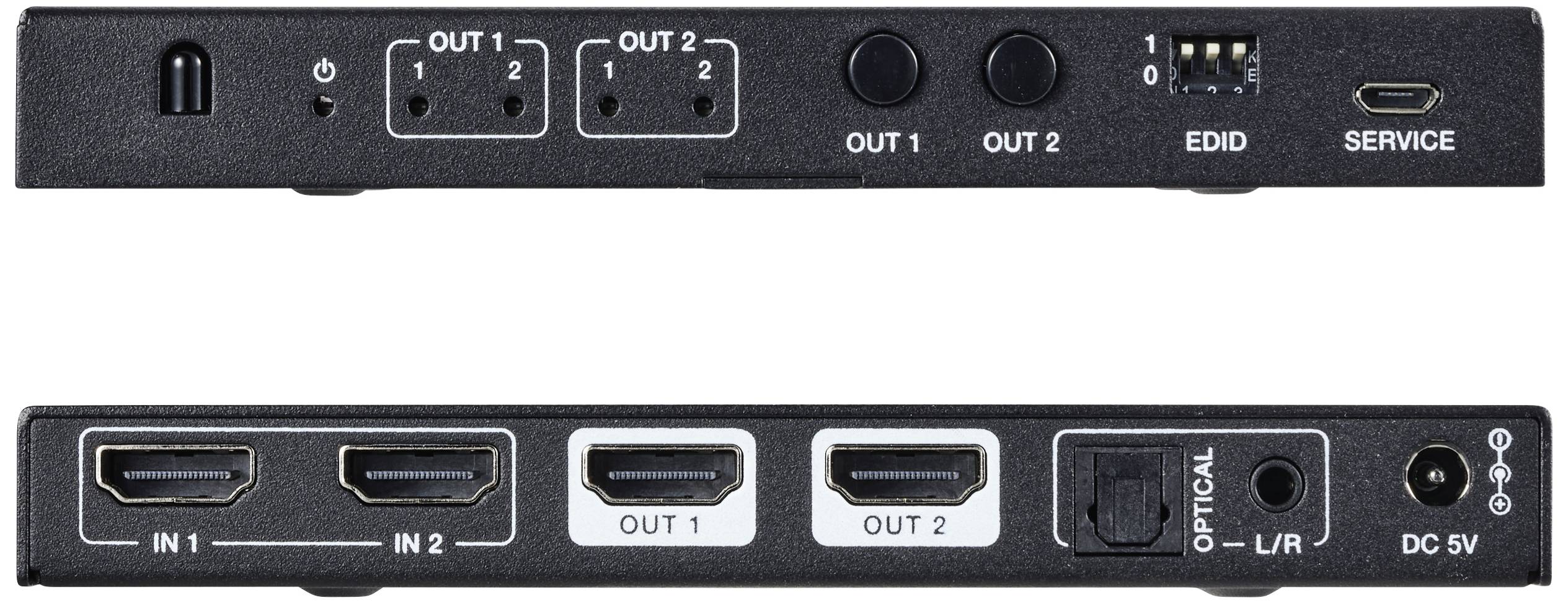

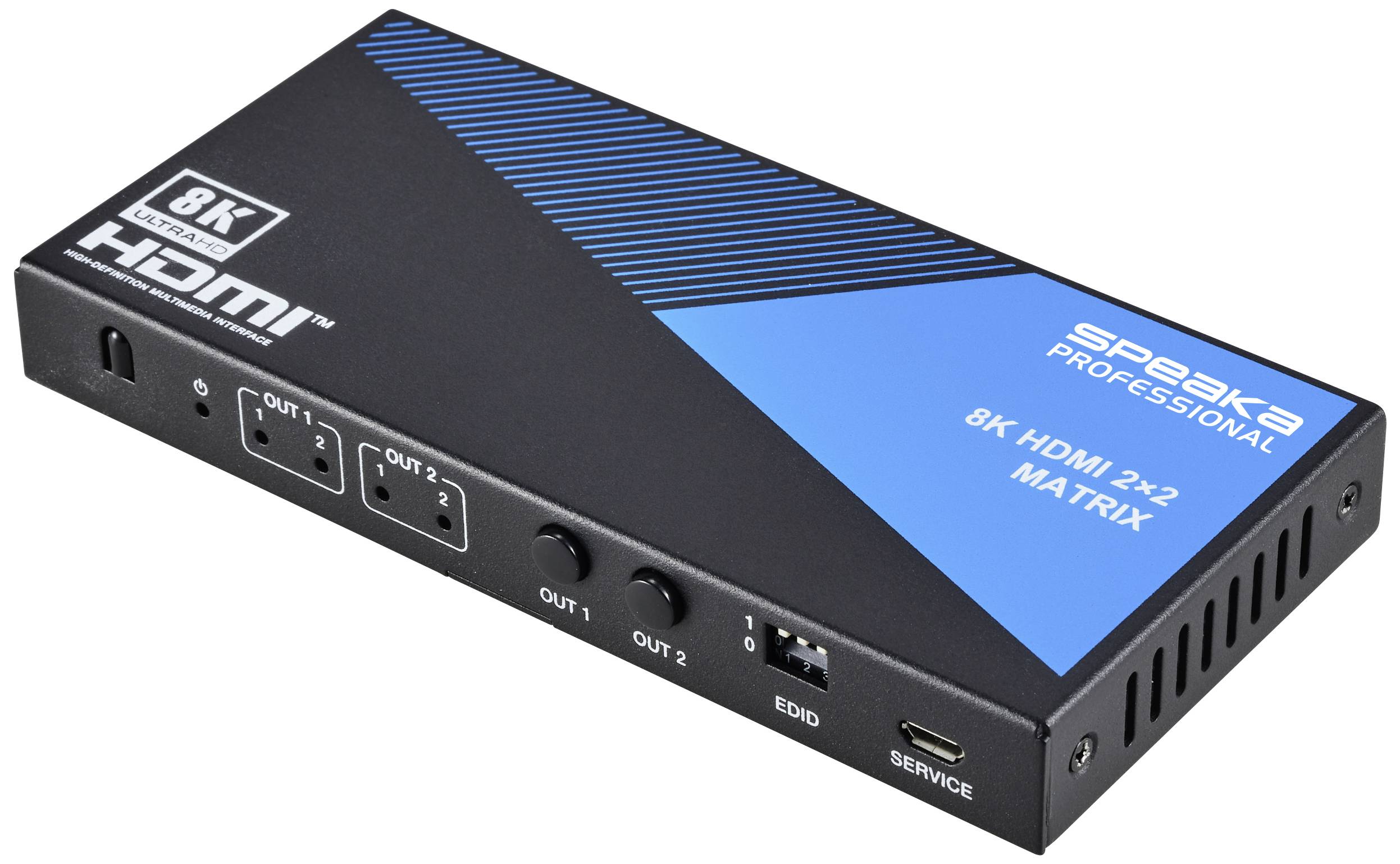

SpeaKa Professional SP-11571776 2+2 ports HDMI matrix switcher Ultra HD compatibility 7680 x 4320 p Black
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Highlights & Details
SpeaKa Professional 8K HDMI matrix switch 2x2 with audio extractor
- Complies with HDMI 2.1 and HDCP 2.3
- Supports 40 Gbps video bandwidth
- Supports video resolutions up to 8K@60Hz, 8K@30Hz, 4K@120Hz
- VRR, FVA, ALL SUPPORTED
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- In-built equalizer, retiming and driver
- Advanced EDID management
- Supports audio de-embedding function (output via optical and analogue connections)
- Supports IR remote control and key switching on the front panel
- Compact design for easy and flexible installation
Technical specifications
- Product type
HDMI matrix switcher
- Supported monitors
2
- No. of inputs
2 x
- Interfaces (input)
HDMI™
- No. of outputs
2 x
- Interfaces (output)
HDMI™
- Resolution (max.)
7680 x 4320 p
- Switch function
Remote control
- Power supply (LOV)
mains-powered
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
268 g
- Width
145 mm
- Height
68 mm
- Depth
17 mm
- Dim
(W x H x D) 145 x 68 x 17 mm
- Port
2+2 ports
- Supported audio file formats
LPCM 7.1
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2892944 SpeaKa Professional SP-11571776 2+2 ports HDMI matrix switcher Ultra HD compatibility 7680 x 4320 p Black
Description

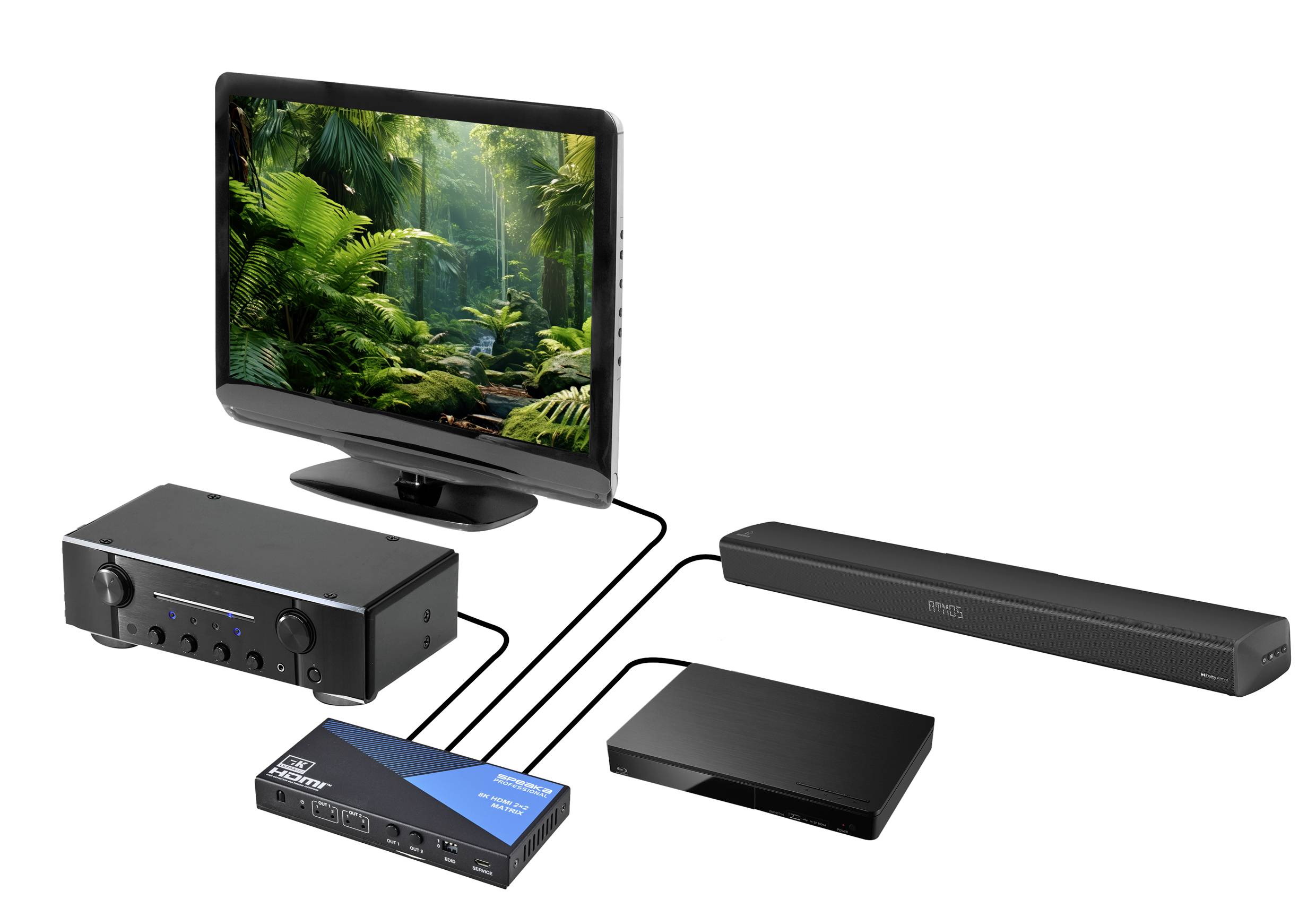

This 8K-HDMI-2x2 matrix switch can not only switch one of the two HDMI input signals, but can also distribute it simultaneously to two displays. It supports video resolution of up to 8K@60Hz. It supports advanced EDID management and an audio de-embedding function (output via optical and analogue connections). This multi-functional product can be used as a splitter as well as a switch and is therefore widely used in presentations, video conferences, multimedia training and other occasions when a large-screen demonstration is required.
This text is machine translated.
This text is machine translated.
Features
- HDMI and HDCP compliant
- Supports video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- Supports VRR, FVA and ALLM
- Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
- Supports HDMI audio formats: LPCM7.1, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Built-in equalizer, retiming and driver
- advanced EDID management

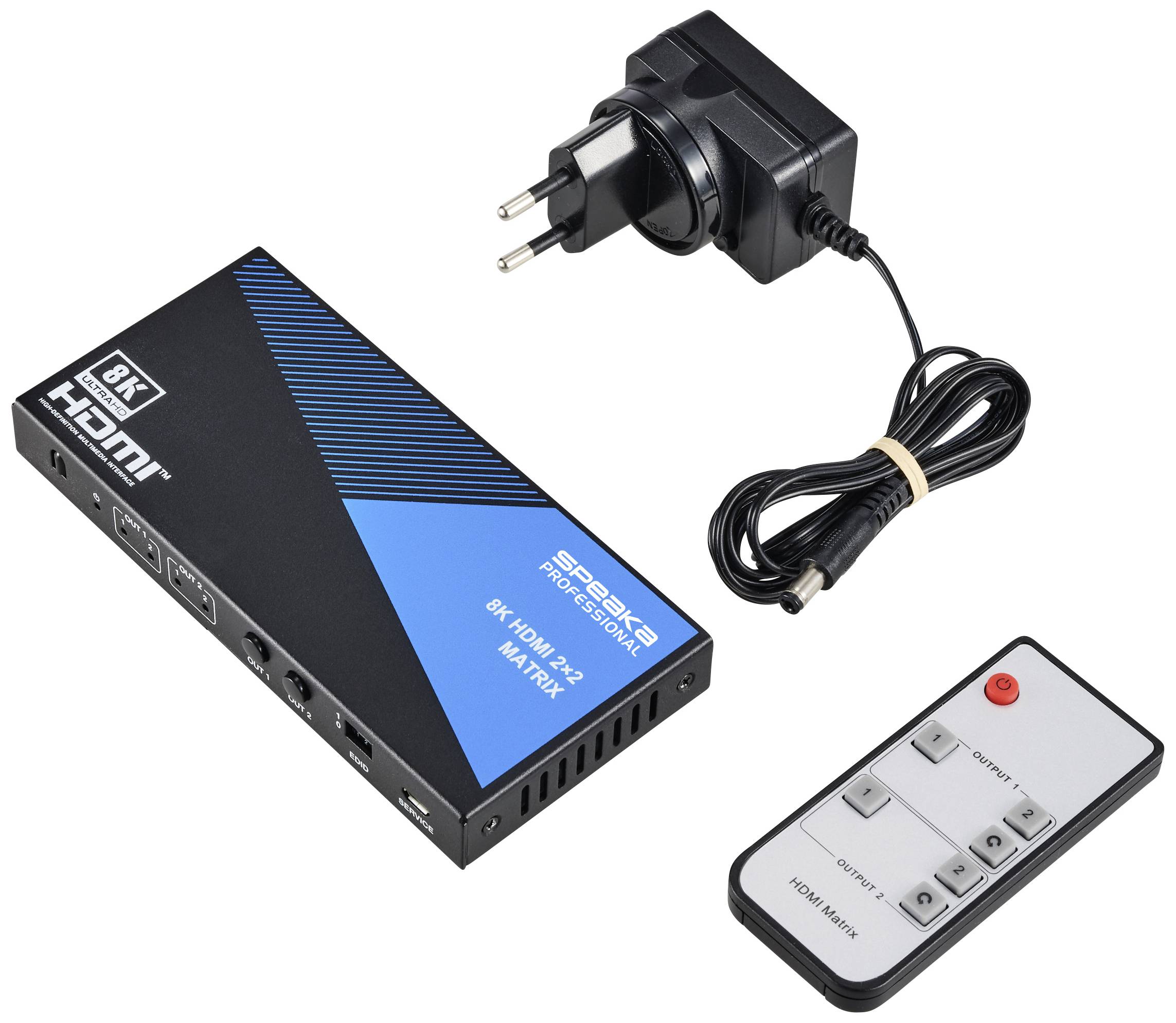

Scope of delivery
- 8K HDMI 2x2 matrix switch
- IR remote control
- 5V/2A multinational power supply
- User manual
