SpeaKa Professional SP-HDS-QMV200 4 ports HDMI quad multi viewer + PiP 3480 x 2160 p
EAN:
Part number:
Item no:
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
14-day return policy included
Highlights & Details

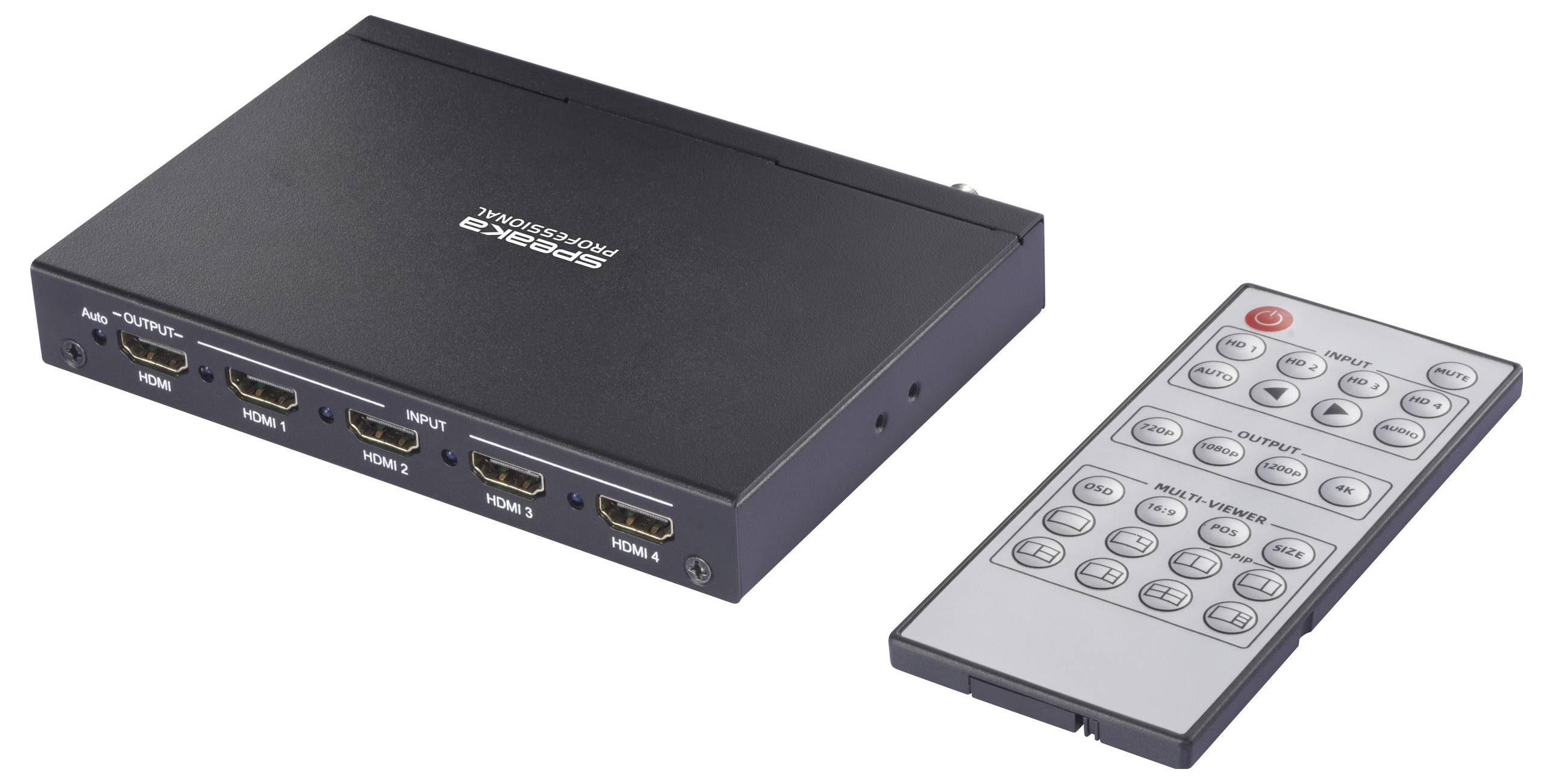

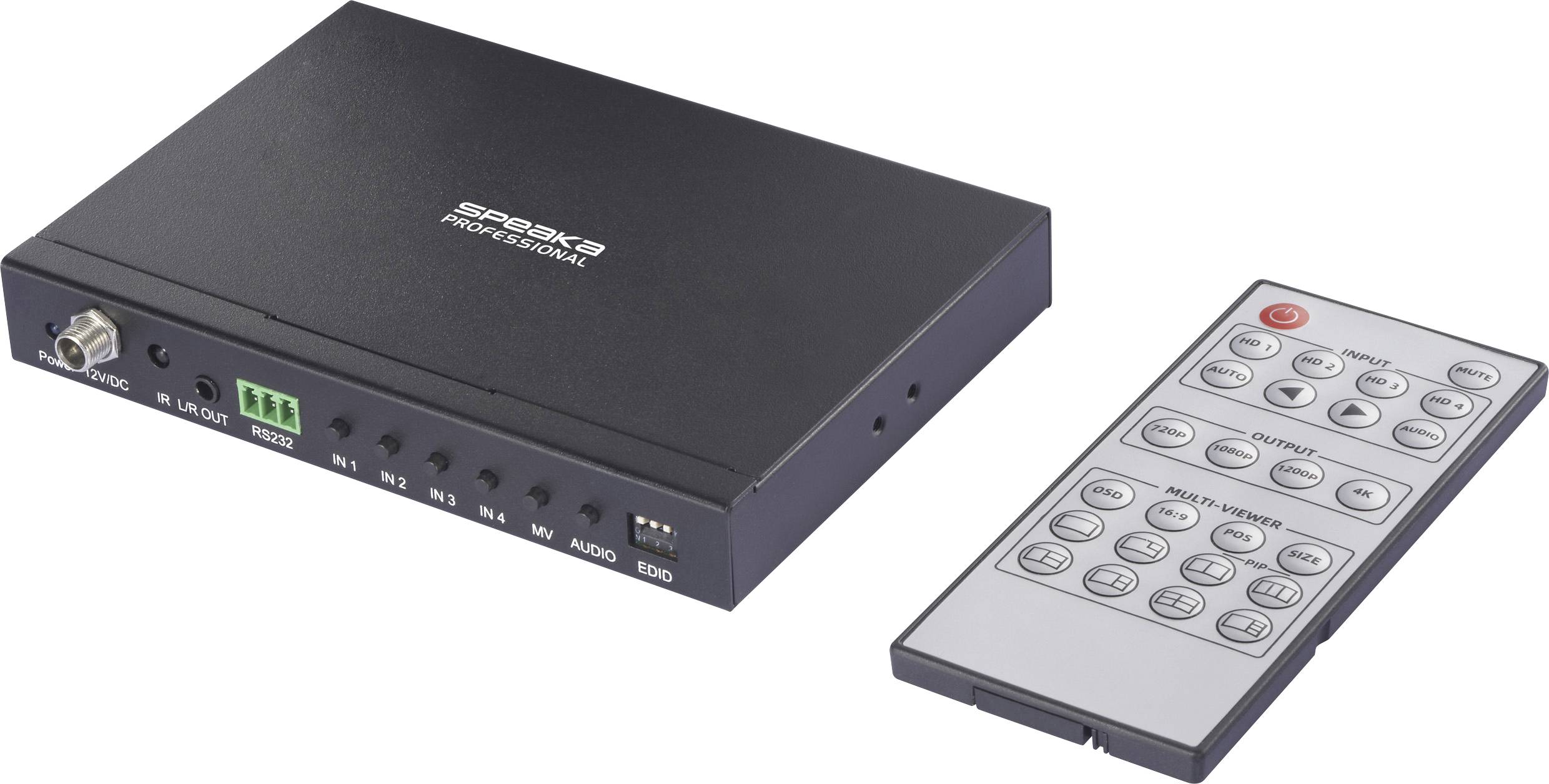

Speaka Professional SP-HDS-QMV200 HDMI 4x1 Quad Multi-viewer with seamless switcher, black
- High-performance 4×1 quad multi-viewer, enables four HDMI inputs to be displayed on one HDMI display
- Supports audio outputs from different input sources
- Also supports multi-view display modes
- Output resolution can be adjusted up to 4K30Hz.
- Can be controlled via front panel buttons, IR remote and RS-232 control.
Technical specifications
- Product type
HDMI quad multi viewer
- Supported monitors
1
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
1 x
- Switch function
Automatic
Remote control
Key
- Resolution (max.)
3480 x 2160 p
- Distributor/switch features
+ PiP
- Factory colour
Black
- Power supply (LOV)
via DC in
- Width
14.85 cm
- Height
10.3 cm
- Depth
2.15 cm
- Weight
342 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Port
4 ports
- Supported audio file formats
DTS
LPCM 2.0
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3399154 SpeaKa Professional SP-HDS-QMV200 4 ports HDMI quad multi viewer + PiP 3480 x 2160 p
Download
Download 3399154 SpeaKa Professional SP-HDS-QMV200 4 ports HDMI quad multi viewer + PiP 3480 x 2160 p
Description
High-quality 4×1 quad multiviewer with four HDMI inputs for the realization of presentation or monitoring solutions.
Allows the display of several video sources, either alternating or combined on a screen - always the desired comfortable in the view thanks to the different modes and remote control.
With 8 flexible display modes the ideal presentation is usually only a keystroke on the remote control for many applications.
Each source can be switched individually to the output. Various alternative options are also available for displaying several sources. These include, for example, picture-in-picture (PIP) and several configuration options to display all four input signals on a monitor on the output. Retain full control - Thanks to clear symbol display on the remote control the options are selected quickly.
The application possibilities are manifold - you can monitor or switch between several sources or live data feeds. In meetings, use a common display for multiple devices for presentation purposes.
Easily switch multiple video sources to one display in control rooms or during live events.
This text is machine translated.
Allows the display of several video sources, either alternating or combined on a screen - always the desired comfortable in the view thanks to the different modes and remote control.
With 8 flexible display modes the ideal presentation is usually only a keystroke on the remote control for many applications.
Each source can be switched individually to the output. Various alternative options are also available for displaying several sources. These include, for example, picture-in-picture (PIP) and several configuration options to display all four input signals on a monitor on the output. Retain full control - Thanks to clear symbol display on the remote control the options are selected quickly.
The application possibilities are manifold - you can monitor or switch between several sources or live data feeds. In meetings, use a common display for multiple devices for presentation purposes.
Easily switch multiple video sources to one display in control rooms or during live events.
This text is machine translated.
Features
- Supports input and output resolution up to 4K@30Hz
- Supports 10.2Gbps video bandwidth
- Supports auto and manual switching
- Seamless switching between inputs on single UHD monitor (multi-view display mode)
- Seamless switching in single-view display mode
- Supports 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Supports LPCM, DD, DD+, and DTS audio channel
- Supports audio de-embedding via the analog audio port
- Supports independent audio selection
- Supports OSD display in multi-view display mode

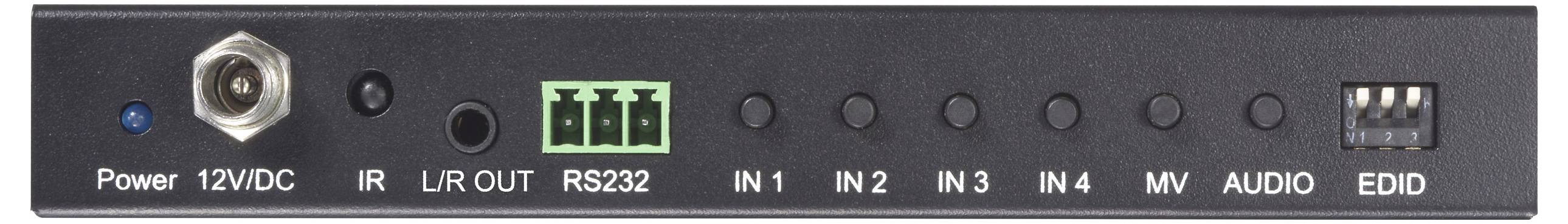

- Can be controlled via front panel button, IR remote and RS-232 commands
- Advanced EDID management

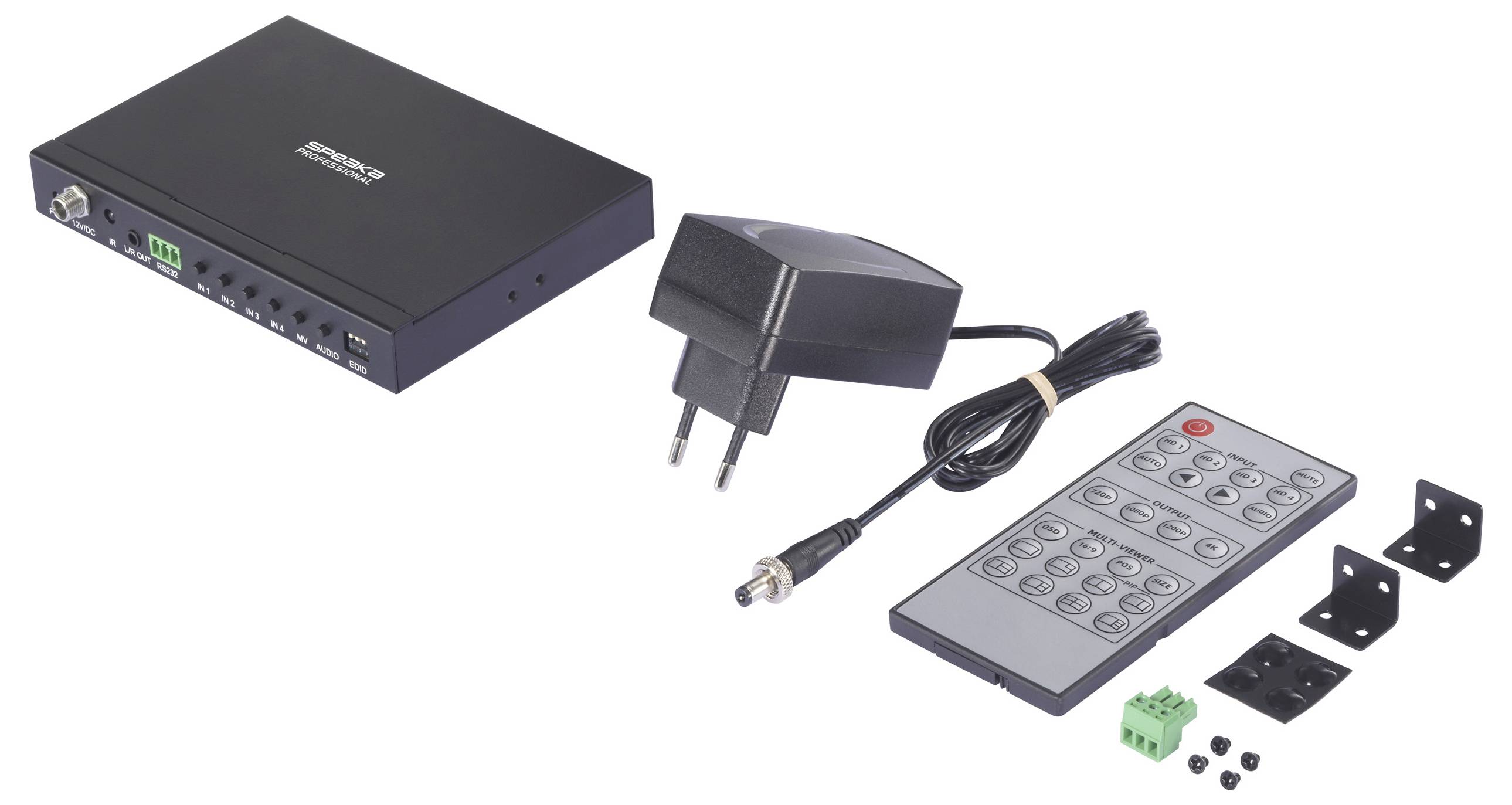

Scope of delivery
- Switch
- Remote control (incl. Battery 1x CR2025)
- Power adapter
- 4x Rubber feet
- 2x Bracket
- 4x Screw
- RS232 Phoenix
- Manual
