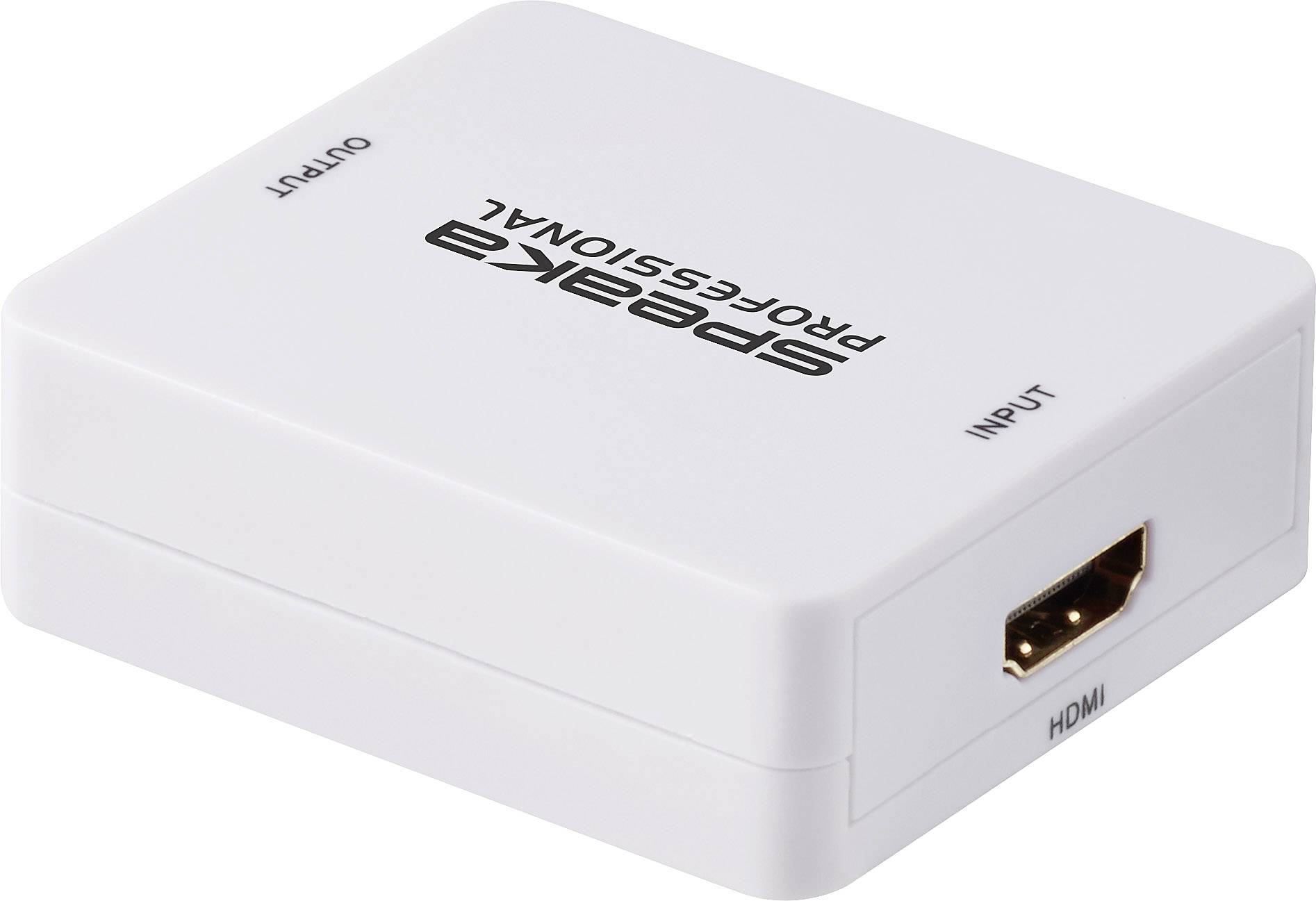

SpeaKa Professional Audio/phono Extractor [HDMI - HDMI, Jack, RCA] 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
SpeaKa Professional HDMI Audio Extractor with TRS and RCA Audio (R/L) output
- Enables the separation of HDMI audio and video and passing the audio signal to other devices
- Converts the audio signal from HDMI to RCA stereo (R/L) and jack
- HDMI video signal is looped through to the output devices
Technical specifications
- Product type
Audio/phono Extractor
- Connection type
HDMI
Jack
RCA
- No. of A connectors
1 x
- Type A

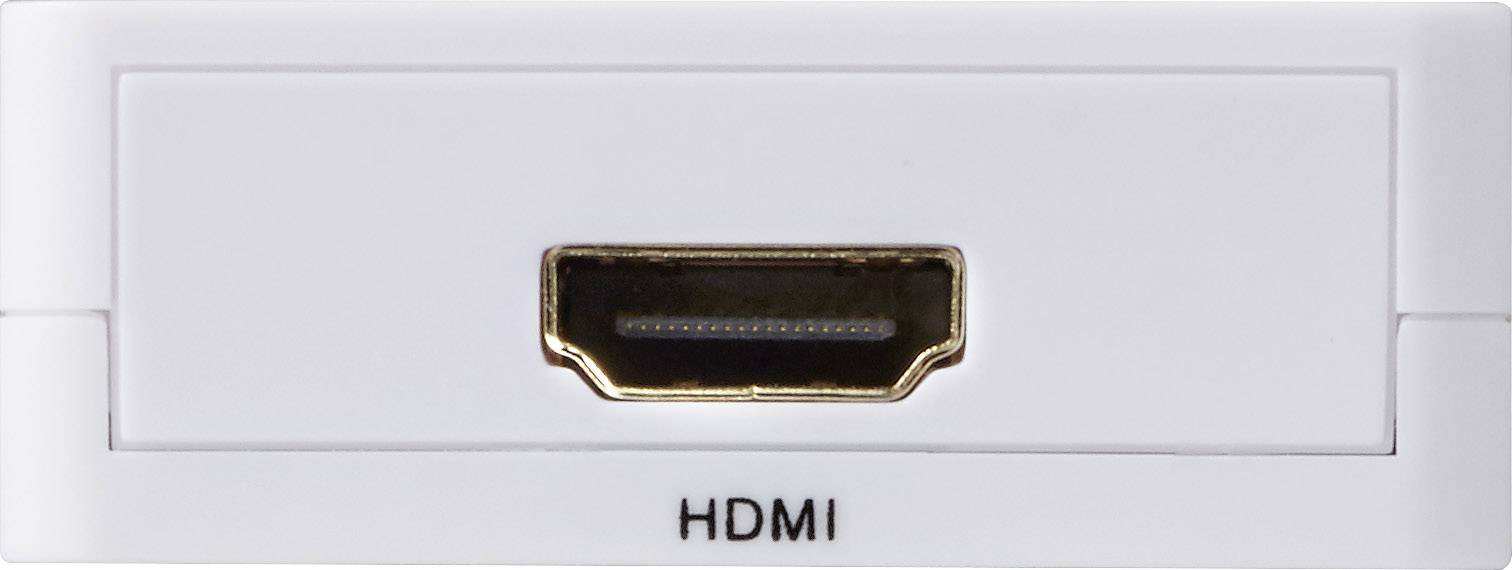

HDMI socket
- No. of B connections
1 x
- Type B
HDMI socket
Jack socket 3.5 mm
RCA socket (phono)
- Video resolution
1920 x 1080 Pixel
- Factory colour
White
- Connector version
straight
- Version
Extractor
- Cable use
Audio/phono
- Signal flow direction
Unidirectional (uni)
- Weight
42 g
- Length
60.5 mm
- Width
54.5 mm
- Height
20 mm
- Dim
(L x W x H) 60.5 x 54.5 x 20 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1693321 SpeaKa Professional Audio/phono Extractor [HDMI - HDMI, Jack, RCA] 1920 x 1080 Pixel
Conformity certificate
Conformity certificate 1693321 SpeaKa Professional Audio/phono Extractor [HDMI - HDMI, Jack, RCA] 1920 x 1080 Pixel
Description
Ideal if you HD receiver, Blu-ray player or a game console to the Home Theater System you want to connect to and it is only the digital HDMI signal are available. Simply use these audio extractor, in order to couple the audio signal from an HDMI signal. While the video signal to a TV or monitor is displayed, you can turn the audio signal analogue via RCA stereo (R/L) or jack for other devices.
This text is machine translated.
This text is machine translated.
Features
- Supports 3D and CEC
- Supports sampling rates of 32 - 192 KHz
- Compatible with HDMI, HDCP 1.2 and DVI 1.0
Scope of delivery
- HDMI audio extractor
- Audio cable (3.5 mm jack plug 2x RCA socket, 0.28 m)
- USB power cable (1 m)
- User manual.
