Marmitek AV Converter Connect AE34 [ - ] 7680 x 4320 Pixel
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 3 Piece(s) available
Highlights & Details

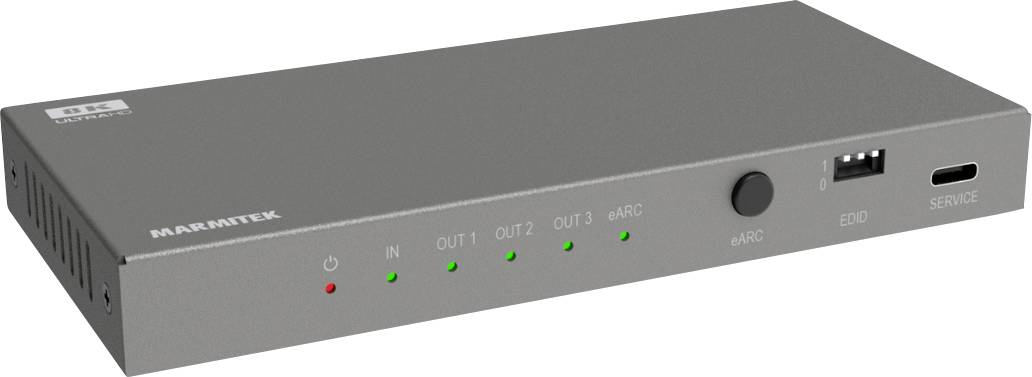

Marmitek connect AE34 - HDMI audio extractor
- HDMI 2.1 Audio Extractor with earc
- Supports 8K60, 4K120, Dolby Vision & HDR10+
- VRR, ALL, QMS, SBTM
- Dolby Atmos & DTS:x audio
- HDMI, optical & analogue audio output
- CEC-volume control via TV-remote control
- Connect audio to both sound bar and amplifier
Technical specifications
- Host Interface: HDMI
- Product type
AV Converter
- Connection type
HDMI
Toslink
- Type A
HDMI®
- Type B
Toslink
HDMI®
- Video resolution
7680 x 4320 Pixel
- Version
Converter
- Cable use
AV
- Weight
262 g
- Width
145 mm
- Height
18 mm
- Dim
(W x H x D) 145 x 18 x 68 mm
- Depth
68 mm
- Frame rate
120 Hz
- HDCP
No
- Input voltage
100 - 240 V
- Operating temperature (T-T)
0 - 40 °C
- AC adapter included
yes
- 3.5 mm connector
yes
- Colour depth
12 Bit
- Internal
no
- S/PDIF out port
yes
- DC-in jack
yes
- Bandwidth
48 Gbit/s
- External power adapter
yes
- Extended display identification data (EDID)
yes
- Manual
yes
- Operating voltage
5 V
- Operating relative humidity (H-H)
20 - 90 %
- Operating current
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3557597 Marmitek AV Converter Connect AE34 [ - ] 7680 x 4320 Pixel
Description
HDMI audio extractor with earc and 8K support
With the Marmitek Connect AE34, you can play the sound of your TV – whether it's from apps, a built-in decoder or a connected HDMI source – simultaneously via a sound bar and a separate home theater system or an amplifier. Ideal if you want to control multiple audio systems or zones without any effort.
This device supports the latest video standards such as Ultra HD 8K@60Hz, 4K@120Hz and HDR10+. So you enjoy the best picture and sound - without any compromises. Thanks to the support for Deep Color and complete 4:4:4 chroma, even the color gradients are pin-sharp.
The Connect AE34 extracts the audio signal from the HDMI source (Audio De-Embedding) and forwards it to an amplifier, receiver or active speaker system via an HDMI, digital (Toslink) or analogue 3.5 mm output. The video signal is thereby passed through simply to your TV-set or beamer.
Unique: Use the earc function of your TV even if your audio system is not suitable for it. So you get the Maximum out of your setup - without having to change everything.
By built-in EDID switch, you can easily set the desired audio format. No matter whether Stereo, 5.1 or 7.1 – you always have control over the signal.
The Marmitek Connect AE34 is the perfect solution for anyone who wants to cleverly separate and distribute audio signals without loss of quality.
This text is machine translated.
With the Marmitek Connect AE34, you can play the sound of your TV – whether it's from apps, a built-in decoder or a connected HDMI source – simultaneously via a sound bar and a separate home theater system or an amplifier. Ideal if you want to control multiple audio systems or zones without any effort.
This device supports the latest video standards such as Ultra HD 8K@60Hz, 4K@120Hz and HDR10+. So you enjoy the best picture and sound - without any compromises. Thanks to the support for Deep Color and complete 4:4:4 chroma, even the color gradients are pin-sharp.
The Connect AE34 extracts the audio signal from the HDMI source (Audio De-Embedding) and forwards it to an amplifier, receiver or active speaker system via an HDMI, digital (Toslink) or analogue 3.5 mm output. The video signal is thereby passed through simply to your TV-set or beamer.
Unique: Use the earc function of your TV even if your audio system is not suitable for it. So you get the Maximum out of your setup - without having to change everything.
By built-in EDID switch, you can easily set the desired audio format. No matter whether Stereo, 5.1 or 7.1 – you always have control over the signal.
The Marmitek Connect AE34 is the perfect solution for anyone who wants to cleverly separate and distribute audio signals without loss of quality.
