SpeaKa Professional SP-HDS-220 1+2 ports HDMI splitter Ultra HD compatibility 3840 x 2160 p Black
EAN:
Part number:
Item no:
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
14-day return policy included
Highlights & Details
SPEAKA 1X2 HDMI SPLITTER 4K@60HZ
- HDMI 2.0
- HDCP 2.2
- Supports HDTV resolutions up to 4K 60Hz and Deep Color 12-bit
- Supports LPCM 7.1CH and DTS-HD master audio
- Supports Full 3D
Technical specifications

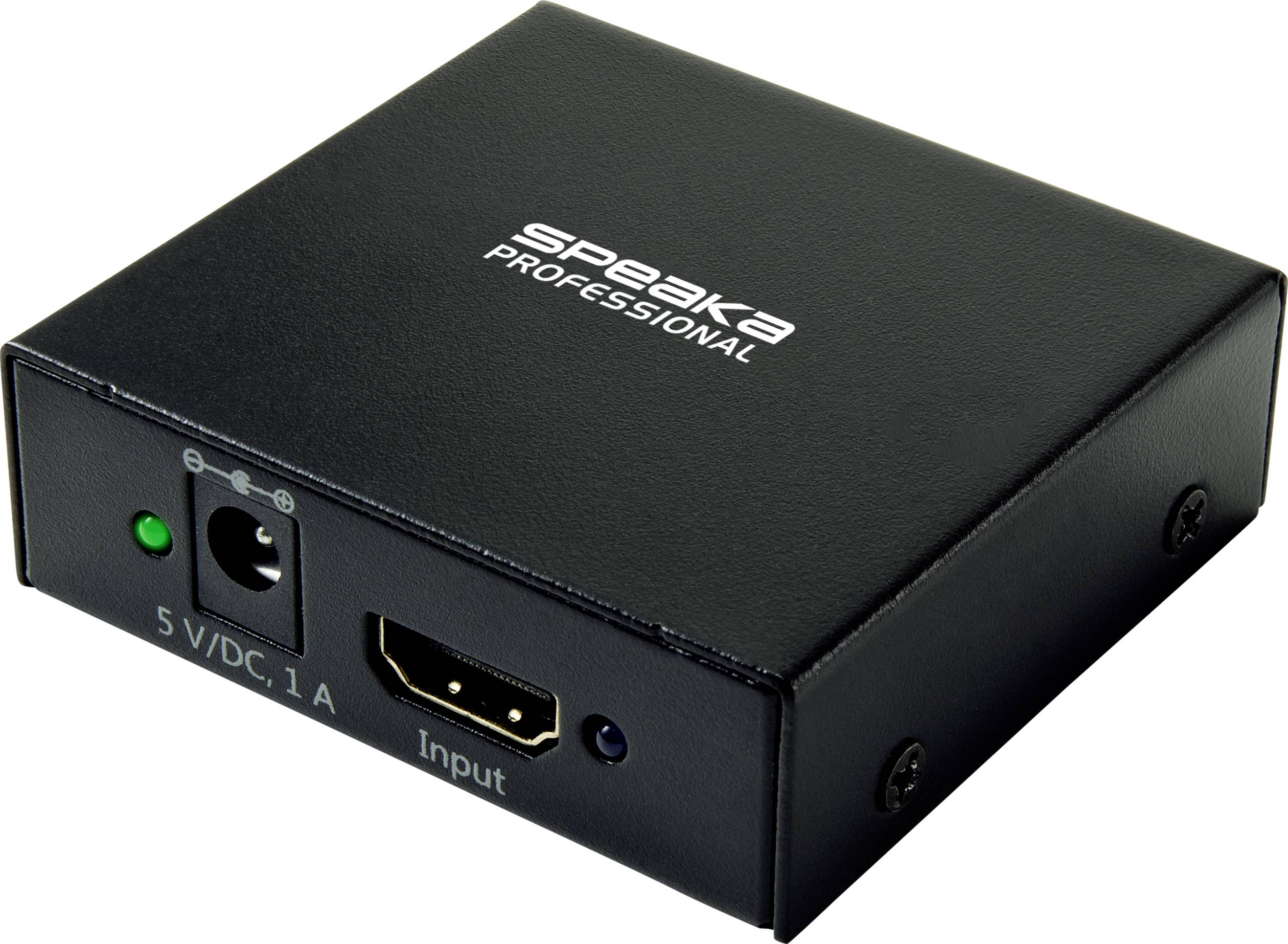

- ● Metal housing
- ● HDMI 2.0&HDCP 2.2
- ● Wide Frequency Range: 25MHz - 600MHz
- ● Supports HDTV resolutions up to 4K 60Hz
- ● Supports 4K@60Hz, Deep Color 12-bit
- ● Supports LPCM 7.1CH, and DTS-HD Master Audio
- ● Supports Full 3D
- Product type
HDMI splitter
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
2 x
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Switch function
Automatic
- Power supply (LOV)
via DC in
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
105 g
- Width
65 mm
- Height
62 mm
- Depth
21 mm
- Dim
(W x H x D) 65 x 62 x 21 mm
- Port
1+2 ports
- Supported audio file formats
PCM
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2251516 SpeaKa Professional SP-HDS-220 1+2 ports HDMI splitter Ultra HD compatibility 3840 x 2160 p Black
Conformity certificate
Conformity certificate 2251516 SpeaKa Professional SP-HDS-220 1+2 ports HDMI splitter Ultra HD compatibility 3840 x 2160 p Black
Description

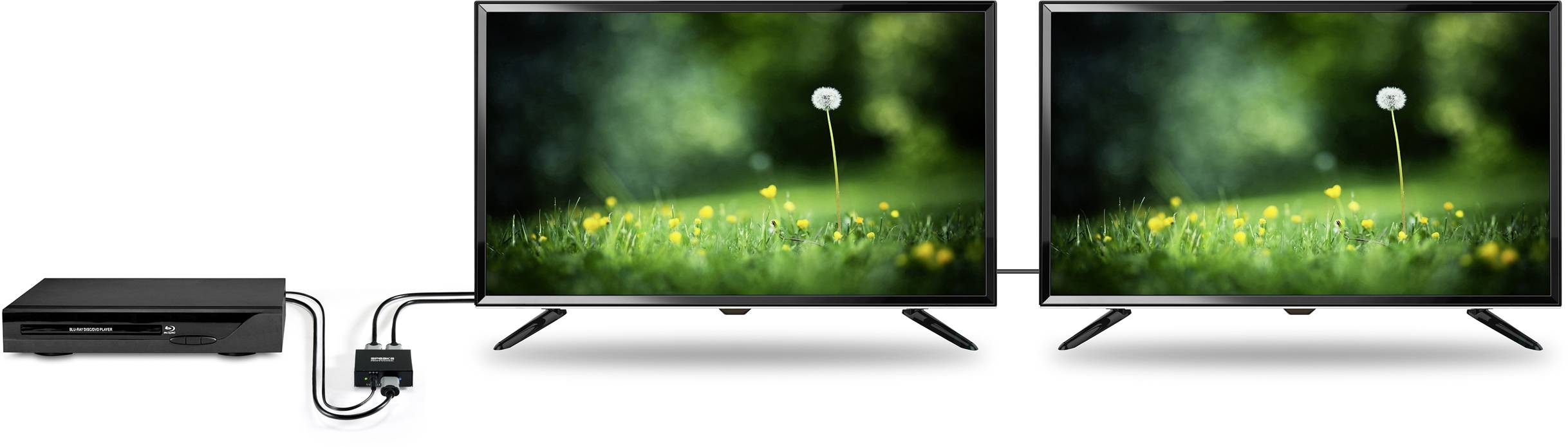

The perfect and uncomplicated solution for presentations in schools, conference rooms, at trade fairs or in the cozy home cinema: The Speaka 1x2 HDMI splitter with its equally compact and robust metal housing makes it possible to distribute the contents of notebook, tablet or smartphone on up to two monitors simultaneously - and this at a resolution of up to 4K at 60 Hz. In addition, it also supports Full 3D for extraordinary presentation features and even more film fun! Another practical highlight: No separate installation is necessary: Just plug in and start!
This text is machine translated.
This text is machine translated.
Features
- Metal housing
- large frequency range: 25 MHz - 600 MHz
- Technical data:
- Video bandwidth: 600 MHz / 6 Gbps per channel, 18 Gbps for all channels

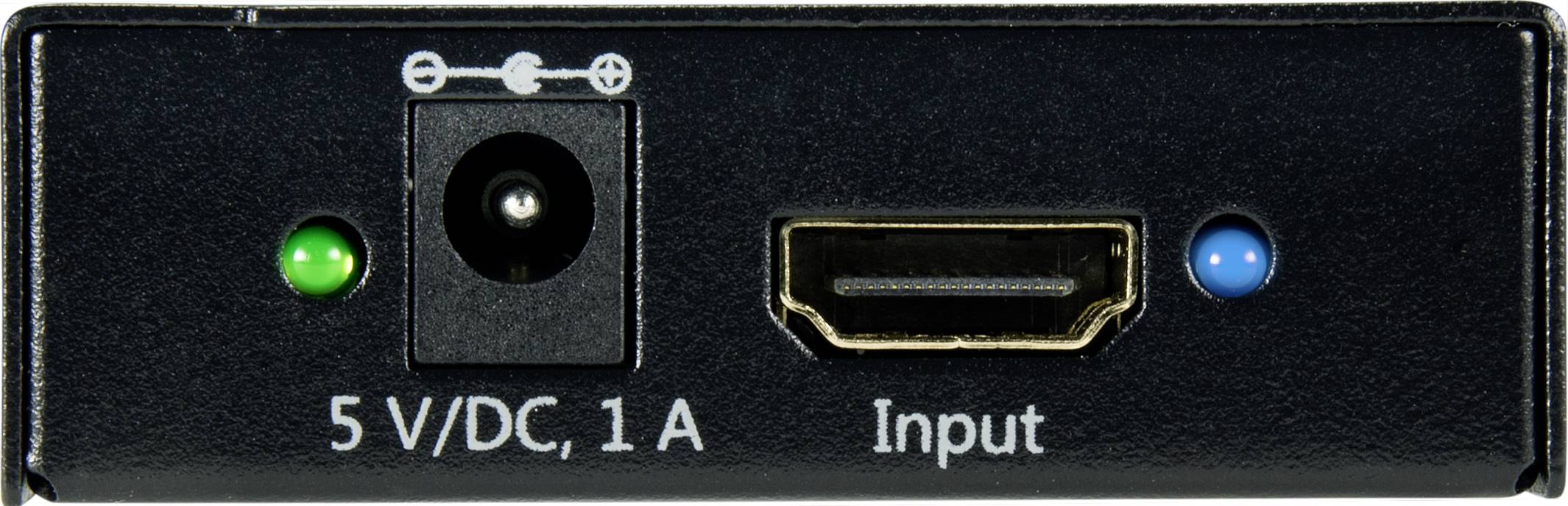

- Input port: 1 × HDMI (female connector)

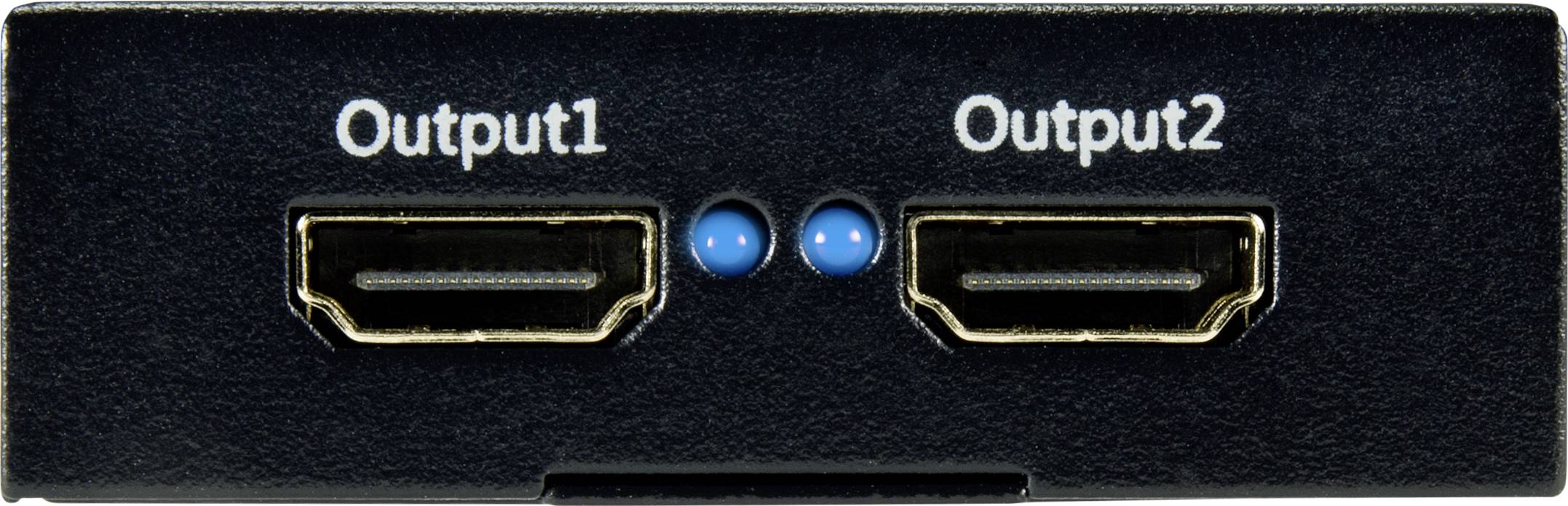

- Output ports: 2 × HDMI (female connector)
- Output resolution:
- 480i~1080p@50/60,
- 1080p@24/50/60,
- VGA ~ UXGA, 4K 2K at 60 Hz
- Standard Data:
- Dimensions: 65 x 62 x 21 mm (L x W x H)
- Weight: 105 g
- Operating temperature & humidity: 0°C to 40°C / 20% to 90% RH (non-condensing)
- Storage temperature and humidity: -20°C to 60°C / 5% to 90% RH (non-condensing)
Scope of delivery
- HDMI Splitter
- Mains adapter
- Manual
