LINDY HDMI 18G & IR Extender HDMI™ HDMI extender via RJ45 network cable 50 m
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 7 Piece(s) available
LINDY HDMI 18G & IR Extender HDMI™ HDMI extender via RJ45 network cable 50 m
Highlights & Details
- Transmits 4K-HDMI-18G signals over distances up to 50m with a standard network cable
- Supports resolutions up to 3840x2160@60Hz 4:4:4 8Bit and HDR
- HDMI loop-through output for additional display on a local display
- Supports power over Cat.6 (PoC) - it's just one Power supply required
Technical specifications
- Product type
HDMI extender
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Range (max.)
50 m
- Factory colour
Black
- Weight
156 g
- Length
97 mm
- Width
70 mm
- Height
15 mm
- Dim
(L x W x H) 97 x 70 x 15 mm
- Power supply (LOV)
mains-powered
- Version
Connection cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
PC
- Connection type
HDMI
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2361107 LINDY HDMI 18G & IR Extender HDMI™ HDMI extender via RJ45 network cable 50 m
Warranty Terms
Warranty Terms 2361107 LINDY HDMI 18G & IR Extender HDMI™ HDMI extender via RJ45 network cable 50 m
Description

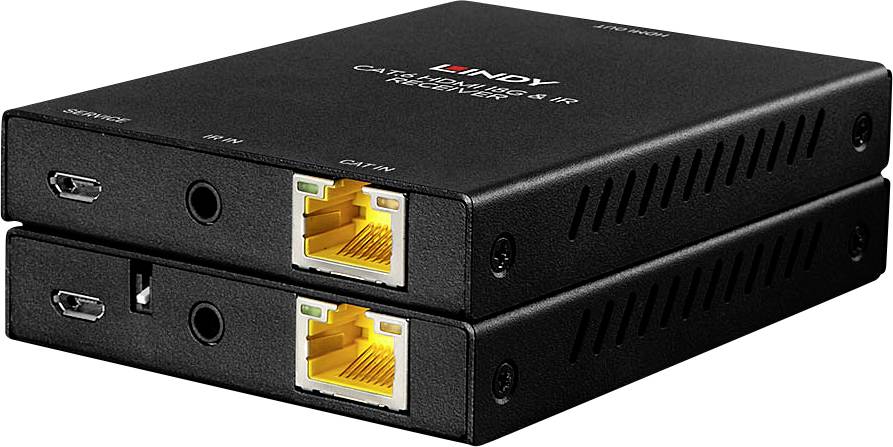

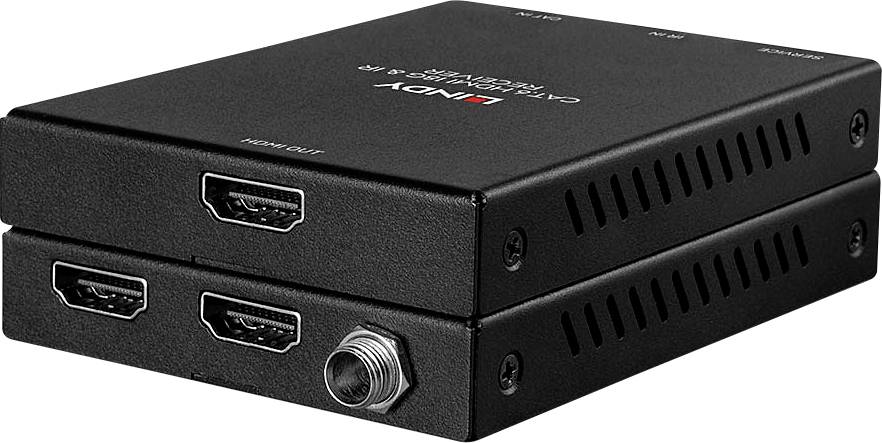

The Lindy Cat.6 HDMI 18G & IR Extender with PoC is an efficient, reliable solution for transferring high-quality 4K HDMI signals with a standard Cat. 5e6/6 network cable over distances up to 50m (164.04ft). HDMI 2.0 18G allows the transmission of detailed 4K Ultra HD resolutions. The additional High Dynamic Range (HDR) support ensures that video content is displayed with higher brightness, greater contrast and a wider color spectrum, perfect for a great home theater experience or striking digital signage systems in retail. Lossless audio formats including DolbyTrueHD and DTS-HD deliver powerful multi-channel sound to the videos and a realistic movie experience. HDCP 2.2 allows the playback of 4K-contents of copy-protected sources such as Blu-ray films, media players and streaming services without compatibility problems.
The Extender has an HDMI loop-through output on the transmitter that allows simultaneous viewing on a local and remote display. Due to its high flexibility, the Extender offers solutions for different scenarios, e.g. for presentation systems in the education sector, for home theater systems or trade fairs. The integrated EDID DIP switch enables the user to select an EDID from both displays and thus guarantees an easy installation and configuration with maximum compatibility with HDMI displays. POC allows the transmission of power and data signals via a Cat.6 cable in a point-to-point configuration, so that only one power supply is required for transmitter and receiver - ideal if the number of available outlets is limited. The IR pass-through feature allows you to control the source devices with compatible infrared remote controls from the remote displays.
This text is machine translated.
The Extender has an HDMI loop-through output on the transmitter that allows simultaneous viewing on a local and remote display. Due to its high flexibility, the Extender offers solutions for different scenarios, e.g. for presentation systems in the education sector, for home theater systems or trade fairs. The integrated EDID DIP switch enables the user to select an EDID from both displays and thus guarantees an easy installation and configuration with maximum compatibility with HDMI displays. POC allows the transmission of power and data signals via a Cat.6 cable in a point-to-point configuration, so that only one power supply is required for transmitter and receiver - ideal if the number of available outlets is limited. The IR pass-through feature allows you to control the source devices with compatible infrared remote controls from the remote displays.
This text is machine translated.
Features
- AV-interface: HDMI
- Interface standard HDMI 2.0
- Supported bandwidth: 18Gbit/s.
- Max. Range: 50m (164.04ft) – Cat.6/7, 30m (98.42ft)– Cat. 5e
- Maximum resolution: 3840x2160@60Hz 4:4:4 8Bit
- HDCP support: Pass-through
- EDID pass-through: Pass-through
- Audio: Up to 7.1 (pass-through)
- Separate audio ports: -
- IR support: 20-60kHz
- CEC support: -
- Serial interface: -
- Transmission protocol: -
- Transmission medium: 1 x Cat. 5e/6 or higher
- Laser class (only for fiber optic cables): -
- Wavelength (only for fiber optic cables): -
- Chipset: Transmitter: SIL9396 / Receiver: SIL9630
- Special features:
- - PoC (power over Cat.6)
- IR pass-through
- - Loop Out

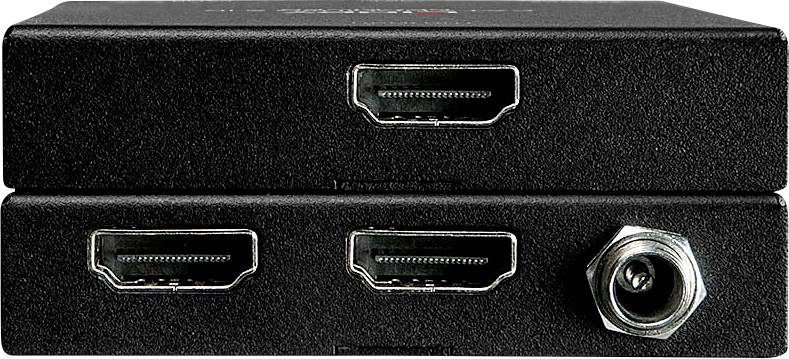

- Transmitter inputs: HDMI type A 19Pin (socket), Micro-USB (socket), DC12V
- Transmitter outputs: HDMI type A 19Pin (socket), RJ45 (socket), IR (socket)

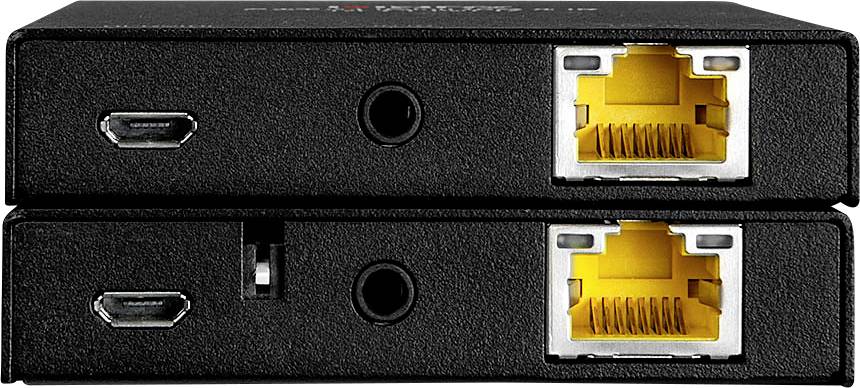

- Receiver inputs: RJ45 (socket), IR (socket), Micro-USB (socket)
- Receiver outputs: HDMI type A 19Pin (socket)
- BI-directional ports: -
- Power supply / power supply: 5.5/2.1mm DC-hollow plug
- Housing dimensions (approx.) WxDxH:
- - Transmitter: 70x97x15mm (2.76x3.82x0.59in)
- - Receiver: 70x97x15mm (2.76x3.82x0.59in)
- Case material: metal
- Net weight of devices:
- Transmitter: 0.156kg (0.34lb)
- Receiver: 0.151kg (0.33lb)
- OPERATING TEMPERATURE 0°C - 40°C (32°F - 104°F)
- STORAGE TEMPERATURE -20°C - 60°C (-4°F - 140°F)
- Humidity 20 – 90% RH (non-condensing)
- Power consumption: 12VDC 1A
Scope of delivery
- IR receiver, IR transmitter
Hints
Please note that this product is not designed for use with active network devices and is only intended for use in a point-to-point connection.
