SpeaKa Professional Audio/phono Extractor SP-AE-H/TC-04v2 [HDMI - HDMI, Toslink, Jack, RCA] 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
14-day return policy included
Highlights & Details
SpeaKa Professional HDMI Audio Extractor UHD @ 60 HZ
- Extracts the audio signal from HDMI and outputs it in 4K at 60 Hz
- Conversion of HDMI audio to Toslink and phono audio (R/L)
- HDMI video signal is looped through to the device output
Technical specifications
- Product type
Audio/phono Extractor
- Connection type
HDMI
Toslink
RCA
- No. of A connectors
1 x
- Type A
HDMI socket

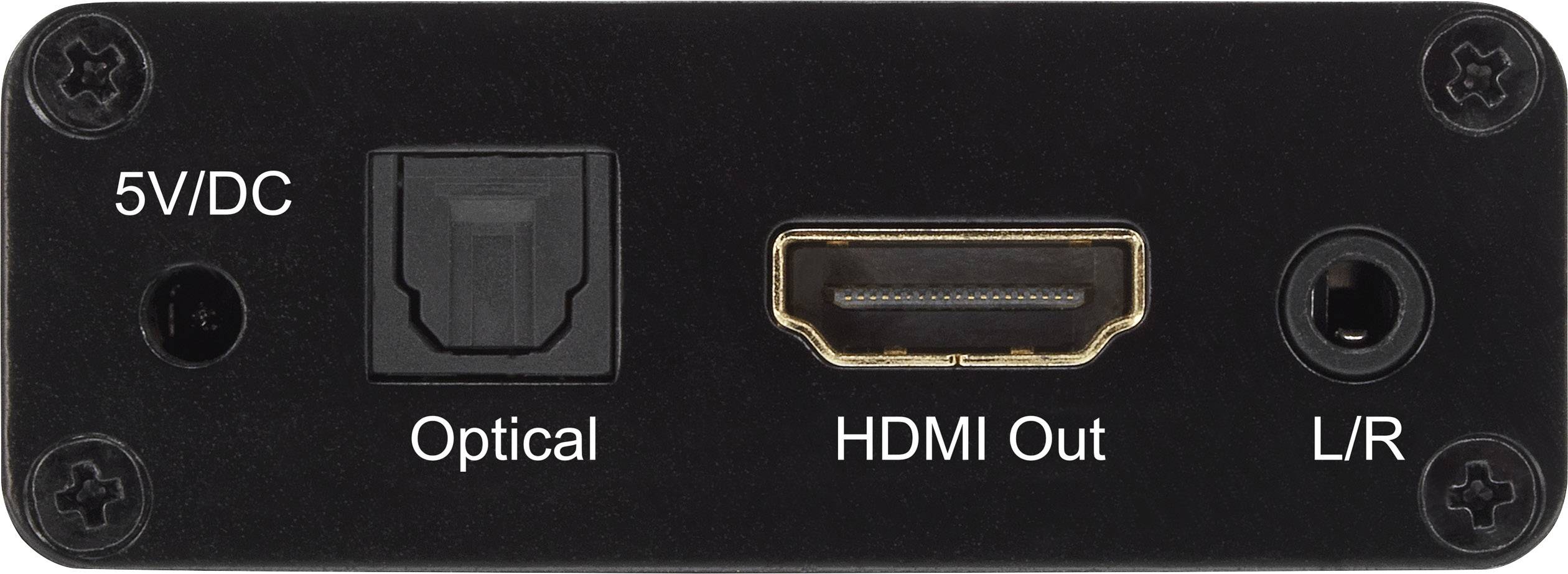

- No. of B connections
3 x
- Type B
RCA socket (phono)
Jack socket 3.5 mm
Toslink socket (ODT)
HDMI socket
- Video resolution
3840 x 2160 Pixel
- Factory colour
Black
- Connector version
angled on one side
- Version
Extractor
- Cable use
Audio/phono
- Signal flow direction
Unidirectional (uni)
- Weight
93 g
- Length
77 mm
- Width
64 mm
- Height
23 mm
- Dim
(L x W x H) 77 x 64 x 23 mm
- Range of use
Monitors/TV adapters
- Port
2 ports
- Supported audio file formats
DTS
LPCM 2.0
LPCM 5.1
LPCM 7.1
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1677716 SpeaKa Professional Audio/phono Extractor SP-AE-H/TC-04v2 [HDMI - HDMI, Toslink, Jack, RCA] 3840 x 2160 Pixel
Description
With this converter pair the audio signal from your existing HDMI signal. This makes it easy for you to the HDMI video signal to a TV, projector or monitor send and the HDMI audio signal to a plant, amplifier or headphones. The device also supports modern video signals from up to 4K at 60 Hz and processes it accordingly.

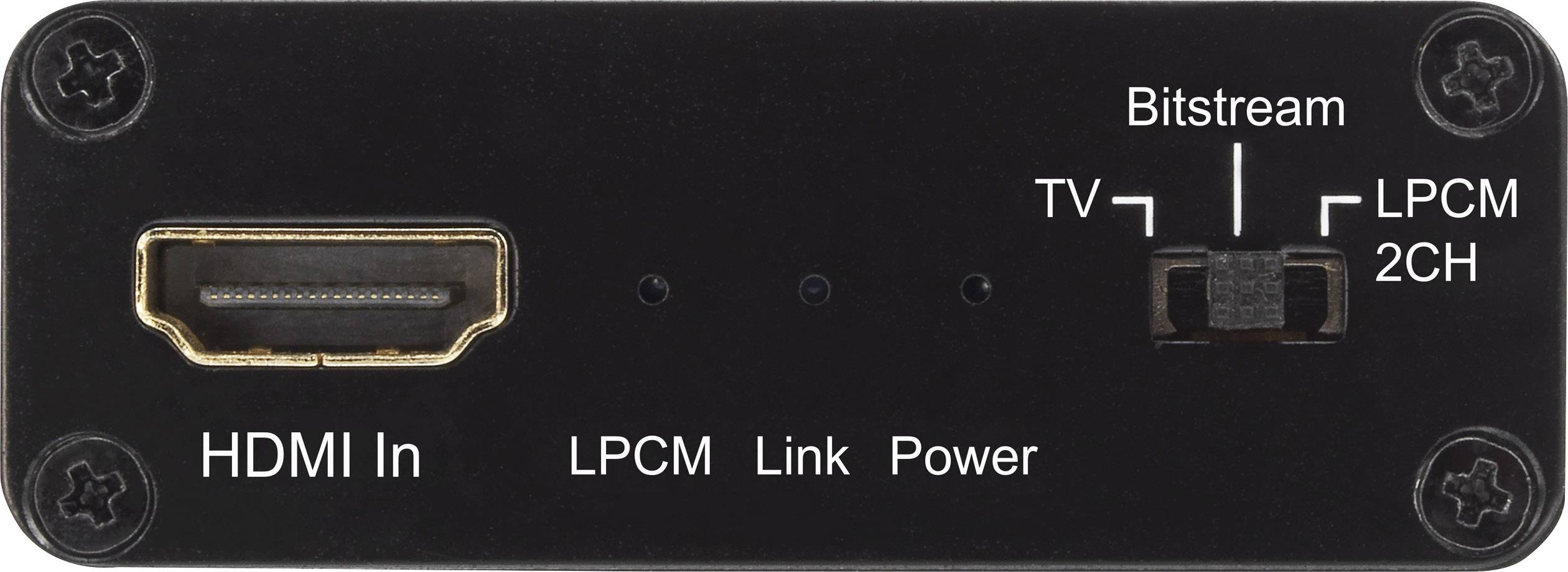

There are 3 options:
1. TV: The HDMI signal (audio + video) is simply slipped through by the device, there is no breakdown in audio and video.
2. Bitstream: conversion to the Toslink 5.1 (Dolby Digital 5.1)
3. LPCM 2CH: Here, the HDMI audio signal in Toslink and phono (stereo, R/L)
This provides solutions for digital entertainment center, UHDTV, STB, DVD, projectors, and much more.
Compatible with MHL-enabled devices
MHL-enabled devices can be supplied from the extractor with sufficient power.
Optimized power consumption
This audio extractor is optimized for low power consumption and it needs no AC adapter, as opposed to conventional devices. Simply use e.g. the USB socket of the TVs around the extractor with energy. Practical energy saving effect: the extractor consumes energy only if the TV is running.
This text is machine translated.
There are 3 options:
1. TV: The HDMI signal (audio + video) is simply slipped through by the device, there is no breakdown in audio and video.
2. Bitstream: conversion to the Toslink 5.1 (Dolby Digital 5.1)
3. LPCM 2CH: Here, the HDMI audio signal in Toslink and phono (stereo, R/L)
This provides solutions for digital entertainment center, UHDTV, STB, DVD, projectors, and much more.
Compatible with MHL-enabled devices
MHL-enabled devices can be supplied from the extractor with sufficient power.
Optimized power consumption
This audio extractor is optimized for low power consumption and it needs no AC adapter, as opposed to conventional devices. Simply use e.g. the USB socket of the TVs around the extractor with energy. Practical energy saving effect: the extractor consumes energy only if the TV is running.
This text is machine translated.
Features
- Supports the resolutions 480p, 576p, 720p, 1080p, 2160p up to 4K at 60 Hz
- Video bandwidth: 18 Gbps
- 10-bit, 12-bit color depth:
- Compatible with MHL-enabled devices
- Device installs quickly
Scope of delivery
- HDMI Audio Extractor UHD
- USB power cable (0.6 m)
- 4x rubber feet
- User manual
