SpeaKa Professional SP-HSU-300 4 ports HDMI switch ARC (Audio Return Channel) 3840 x 2160 p
EAN:
Part number:
Item no:
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
14-day return policy included
Highlights & Details
Speaka Professional 4 Port HDMI-Switch UHD 4K @ 60 Hz
- Supports resolution up to 4K@60Hz 4:4:4
- Supports 4 ports HDMl input, 1 port HDMl output Toslink SPDlF output,L/Routput,3.5mm Audio output
- Supports IR and Panel button control
- Support ARC
Technical specifications
- Support HDMI resolution up to 4K@60Hz 4:4:4
- Support 24/30/36 bit deep color per channel
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- HDMI Max Bandwidth: 600MHz
- HDMI Max Baud Rate: 18.5Gbps
- HDMI Input Cable Distance: ≤5m AWG26 2.0 HDMI Standard Cable
- HDMI Output Cable Distance: ≤5m AWG26 2.0 HDMI Standard Cable
- Power Adapter:
- Model No: CW12E0502000ES
- Input: 100-240V ~ 50/60Hz 0.4A MAX.
- Output: 5.0V === 2.0A 10.0W
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of outputs
1 x
- Switch function
Remote control
- Resolution (max.)
3840 x 2160 p
- Distributor/switch features
ARC (Audio Return Channel)
- Factory colour
Black
- Power supply (LOV)
via USB
- Width
179 mm
- Height
66 mm
- Depth
22 mm
- Weight
256.5 g
- Resolutions (max.)
HDR 4K @ 60 Hz
- Port
4 ports
- Supported audio file formats
DTS
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3630408 SpeaKa Professional SP-HSU-300 4 ports HDMI switch ARC (Audio Return Channel) 3840 x 2160 p
Description

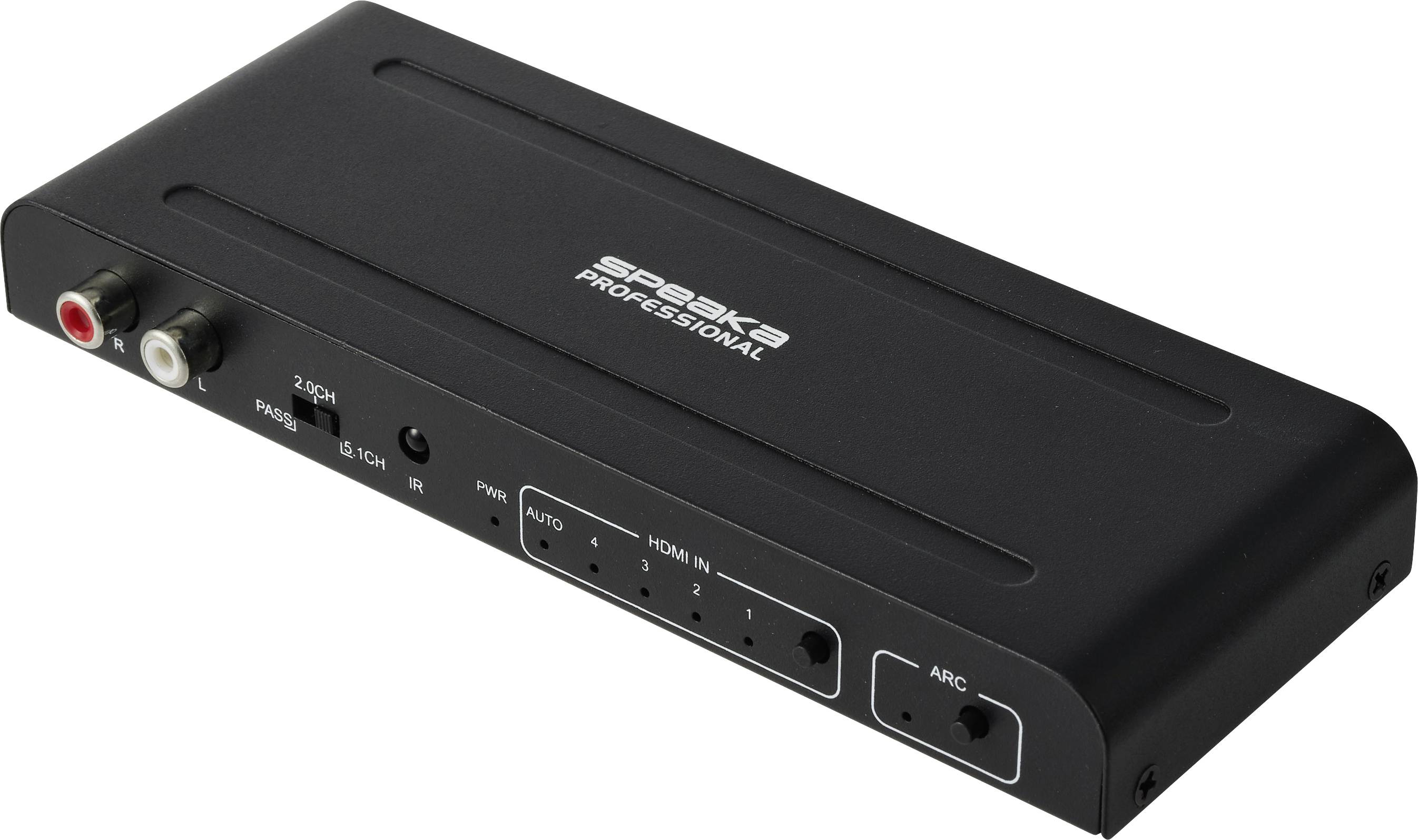

The SpeaKa Professional 4-port HDMI switch allows you to connect up to four HDMI source devices to a single display. The device is suitable for use in conference rooms or offices, in order to change easily between different signal sources.
Image quality and resolution
The switch supports video resolutions from 480p up to 2160p (HDR 4K at 60 Hz). The model is 3D-compatible and uses HDMI® interfaces for signal transmission.
Switching functions
The switching between the connected devices takes place either directly at the switch or via the accompanying remote control. Intelligent recognition selects active inputs automatically when needed.
Audio functions
The device is equipped with an integrated audio extractor and supports the audio format DTS. In addition, the audio return channel (ARC) can be used for a simplified audio wiring.
Housing and power supply
The black housing has dimensions of 179 x 66 x 22 mm (W x H x D) with a weight of 256.5 g. The power is supplied via USB via the accompanying power supply in combination with the USB-A-to-USB-C®-cable.
This text is machine translated.
Features
- Compliant with HDMI resolution up to 4K@60Hz 4:4:4 , HDCP 2.2
- Supports resolution up to 4K@60Hz 4:4:4

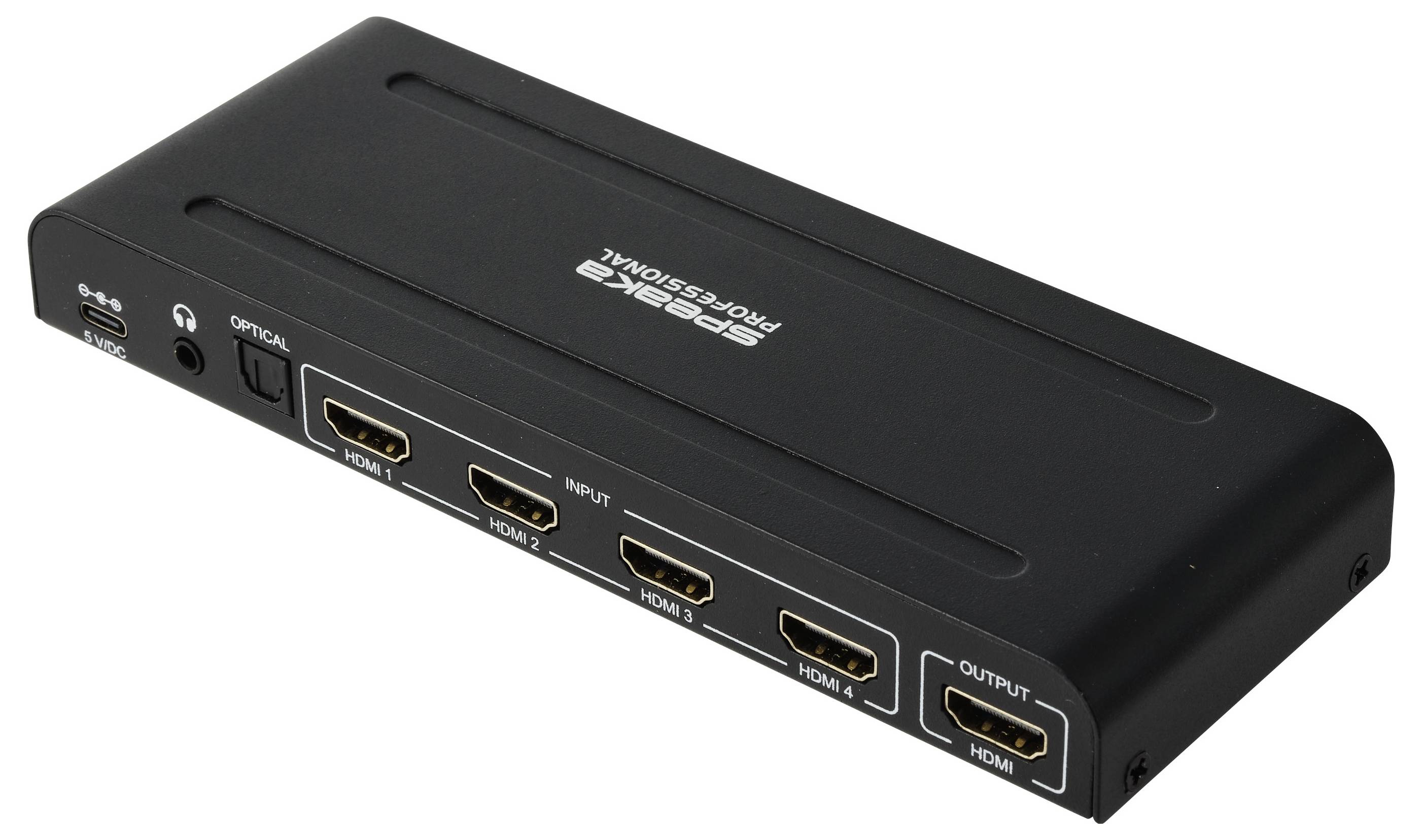

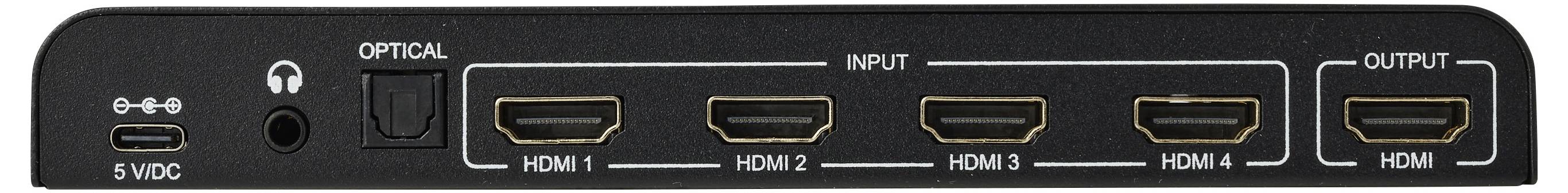

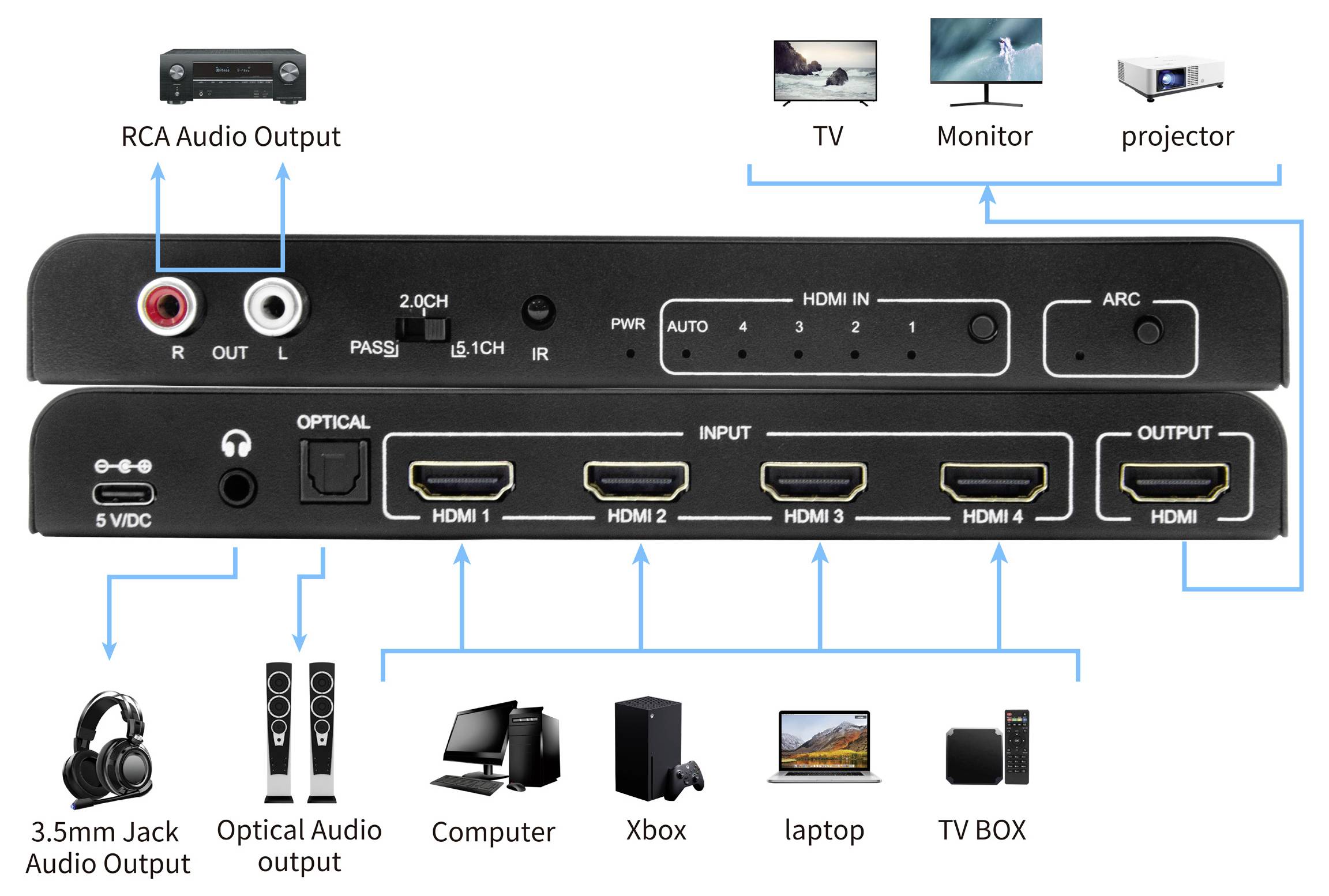

- Supports 4 ports HDMI input, 1 port HDMI output, Toslink SPDIF output, L/Routput,3.5mm Audio output

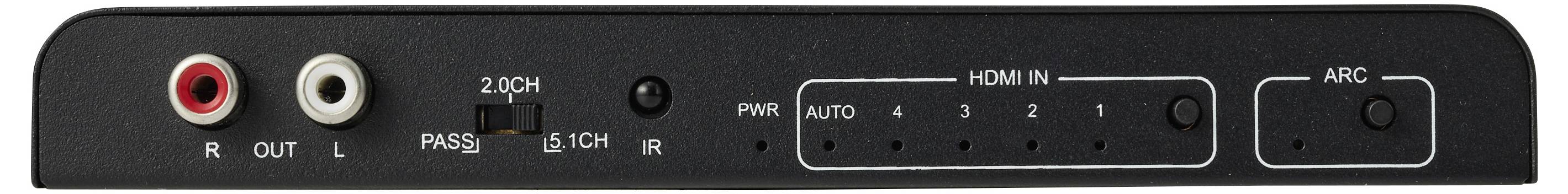

- L/R and Toslink SPDlF port output support ARC function
- 3.5mm Jack port output only support audio extract function,not support ARC
- Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
- Supports smart auto switch function
- Supports IR and Panel button control
- Support HDR10
- Iron Enclosure

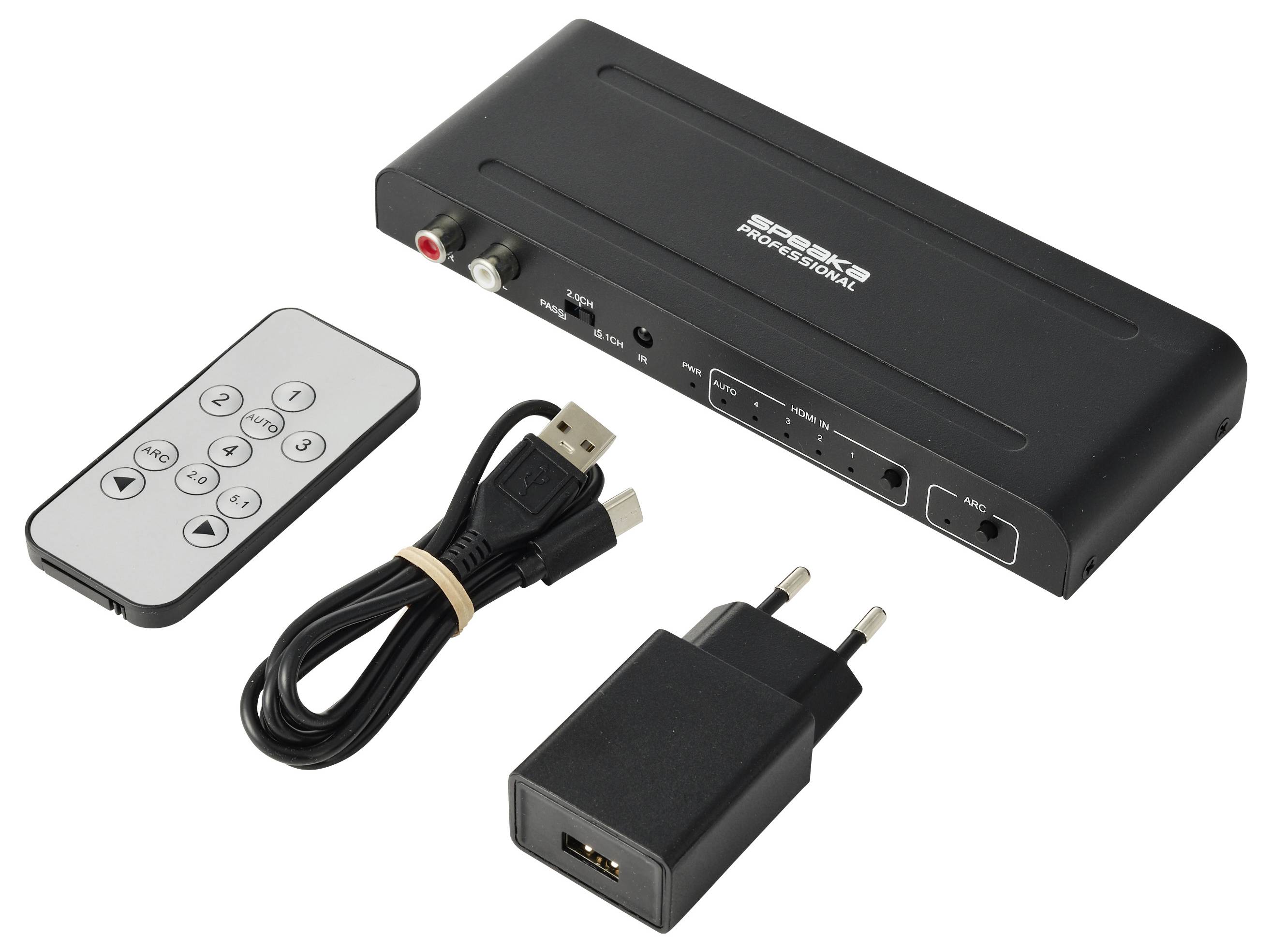

Scope of delivery
- Main Unit
- User manual
- Power Adapter
- USB-A to USB-C® cable
- Remote Control with CR025 battery
