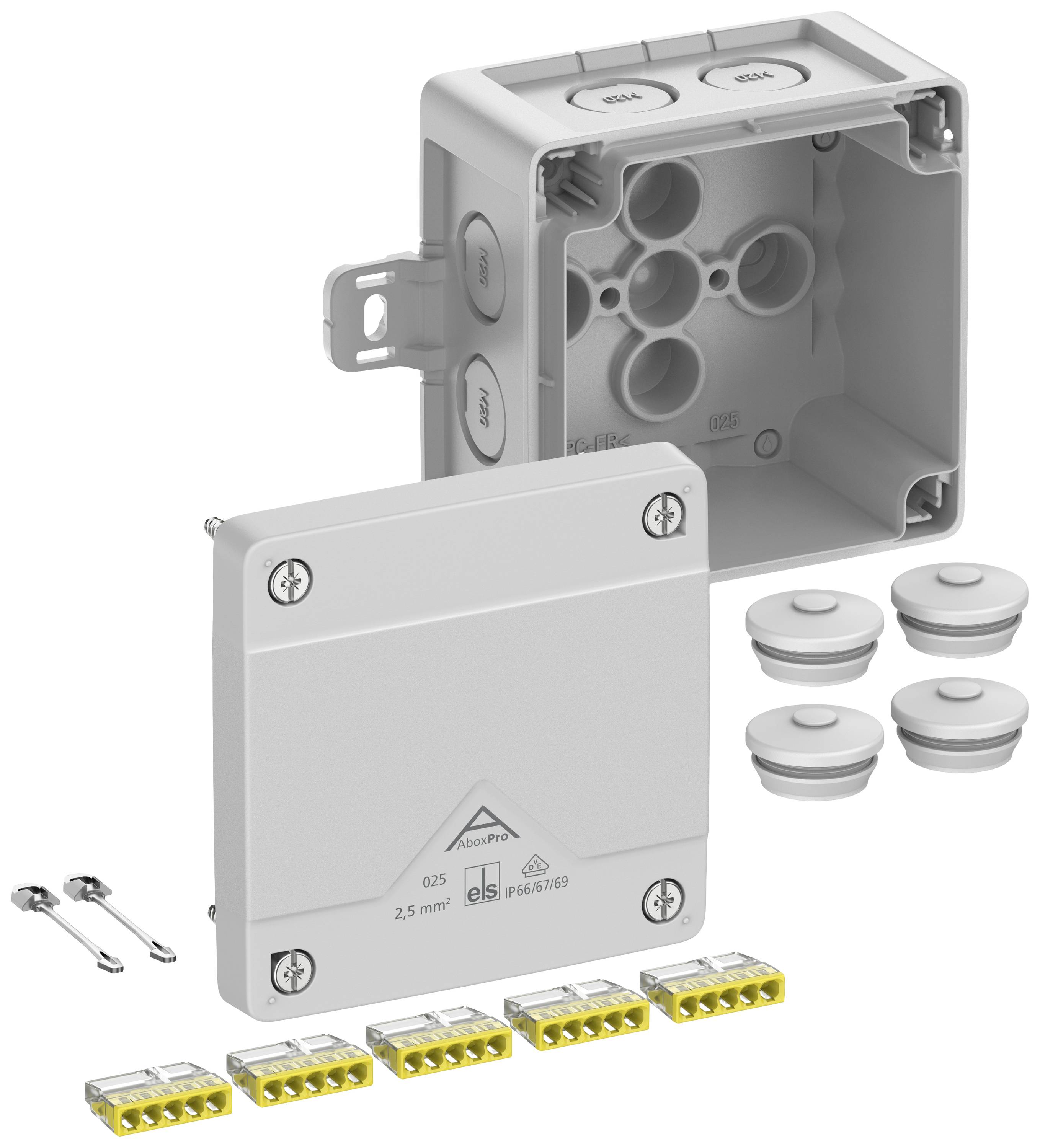

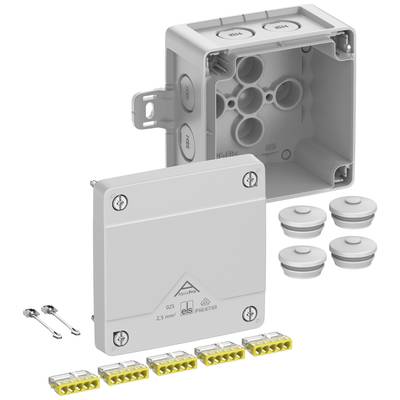

Spelsberg 40242101 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€
Technical specifications
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 92 x 92 x 60 mm
- Content
1 pc(s)
- Height
60 mm
- Length
92 mm
- Width
92 mm
- Product type
Junction box
Documents & Downloads
Datasheet
Datasheet 3062284 Spelsberg 40242101 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062284 Spelsberg 40242101 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection rating, 2.5 mm² nominal cross-section, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), discharge membranes, M16/M20, (1 back, 7 side), external mounting points, for industrial installations and unprotected outdoor areas, gray, Ui = 450 V AC, In = 24 A, with 5 screwless 5-conductor terminals WAGO 2273-205, max. Nominal cross-section in accordance with DIN EN 60998: 2.5 mm², clamping cross -sections per pole: 5 x 0.5 - 2.5 mm² rigid Cu and Al (refer to the installation instructions!).
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double membrane brackets IP66 M20 sealing range 7 - 13 mm
- Cover retainer
