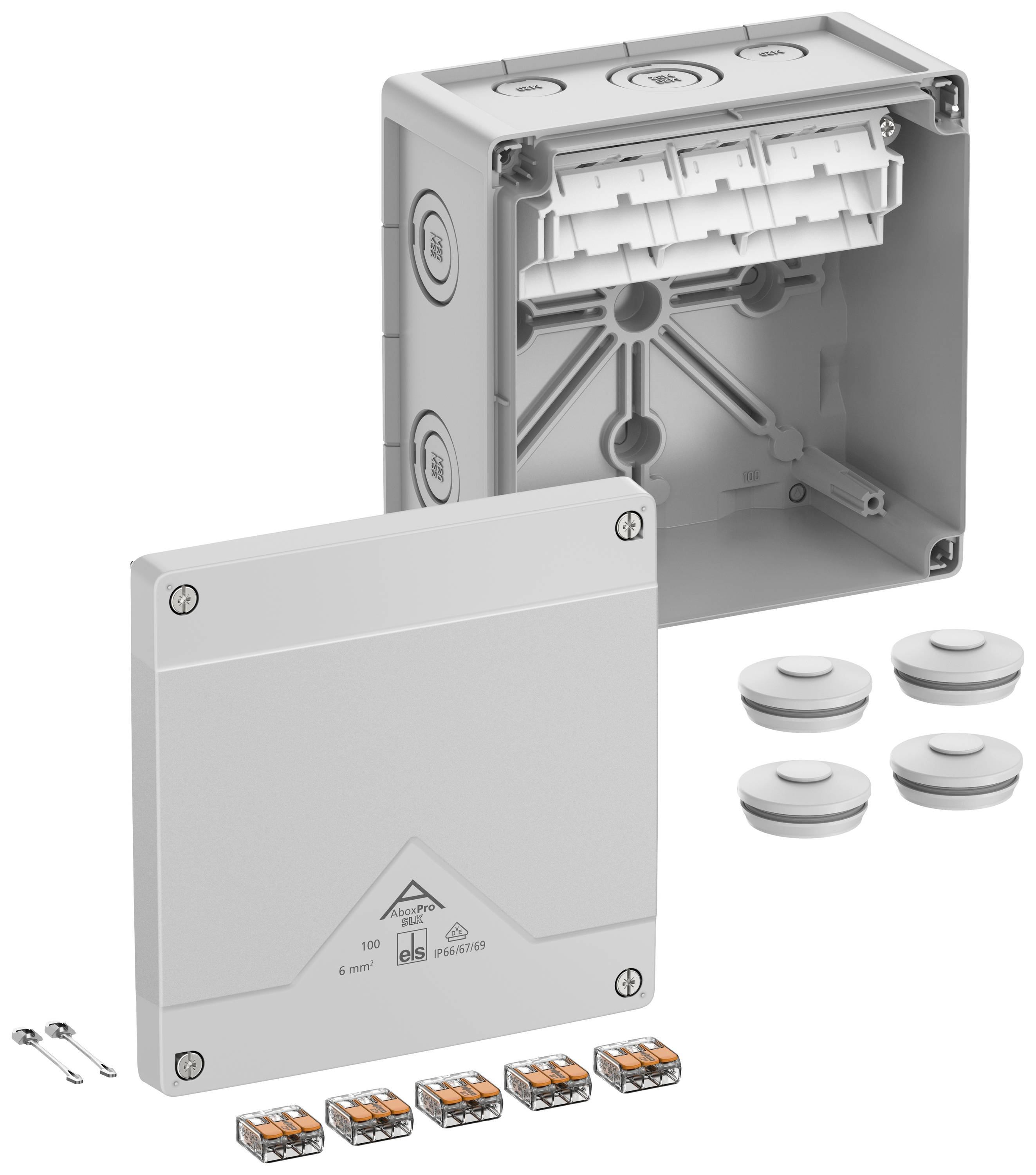

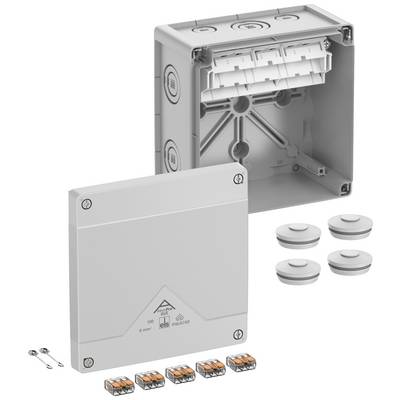

Spelsberg 40647001 Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 28.99 / piece)
€ 28.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 152 x 152 x 85 mm
- Content
1 pc(s)
- Width
152 mm
- Height
85 mm
- Length
152 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062324 Spelsberg 40647001 Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection, nominal cross-section 6 mm², UI=450 V AC, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22)), DLG (ammonia resistance), DNV (class: Ships & offshore installations), impact membranes, M20/M25/M32, (2 back, 10 side), Internal mounting points, with screwless terminals for industrial installations and unprotected outdoor areas, gray, In=41 A, with 5 high-lying, screwless 3-conductor terminals type WAGO 221-613 - 6 mm², clamping cross-sections per pole: 3 x 0.2 to 6 mm² rigid / flexible Cu.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double diaphragm supports IP66 M32 sealing range 13 - 21 mm
- Cover retainer
