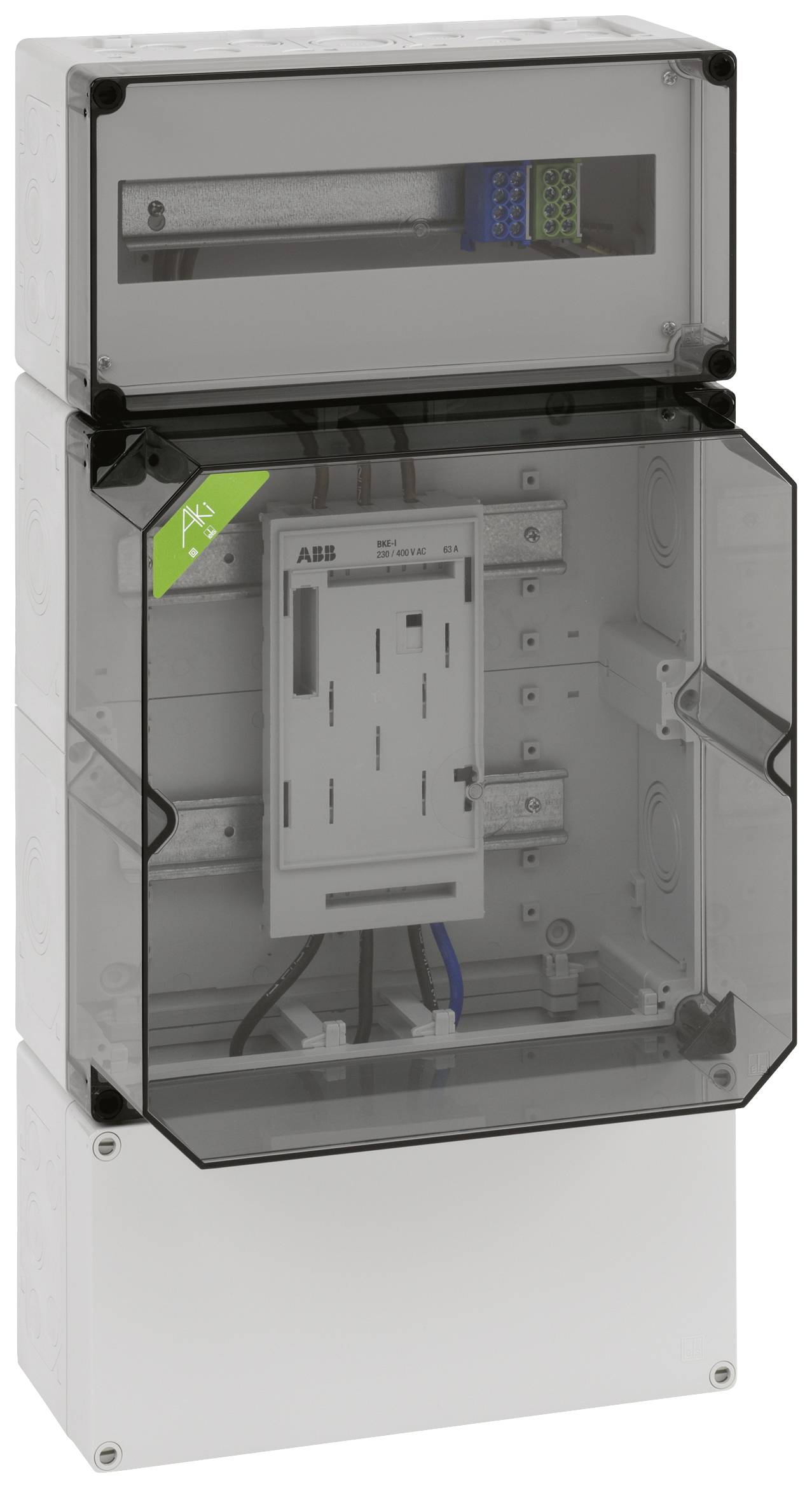

Electrical control cabinet with a transparent lid and multiple connections. Colour-coded cables are visible at the top, with an ABB control unit located at the bottom.

Electrical control cabinet with a transparent lid and multiple connections. Colour-coded cables are visible at the top, with an ABB control unit located at the bottom.

Spelsberg

Product type

Meter box

Mounting type

Structure

Width

300 mm

Height

600 mm

Depth

210 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 14 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 399.00 / piece)

€ 399.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection system: IP65
Material: Plastic
Installation depth: 191 mm
With mounting rail: Yes

Product type: Meter box

with PE and N terminals: Yes

Mounting type: Structure

Width: 300 mm

Height: 600 mm

Dim: (W x H x D) 300 x 600 x 210 mm

Depth: 210 mm

Content: 1 pc(s)

: Surface mounting

: 300

: 600 mm

: 210 mm

: FALSE

: 191 mm

: Plastic

: IP65

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2379417 Spelsberg 75211001 AKi-Z 403-eHZ Meter box Structure Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2379417 Spelsberg 75211001 AKi-Z 403-eHZ Meter box Structure Content 1 pc(s)

Description

Meter housing, industrial quality, with transparent cover, can be sealed as standard, with mounted BKE-I for the electronic household counter, standard sealable consumer room above, with 35mm standard rail and PE/N double terminals, standard sealable consumer room below, with 35mm standard rail and 5-pin HA clamp 25/16qmm, with double membrane socket, closure and insulation plug

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers

Related products can be found here

Safety Switches Distribution Cabinet Accessories DIN Rail PSUs Penlights Wet Room Junction Boxes Wiring DIN Rail Mount Timers CEE Connectors, CEE Adapters RCCBs Connector Clips & Single Wire Connectors MCB Terminal blocks & U-clamp Terminals

Description

Meter housing, industrial quality, with transparent cover, can be sealed as standard, with mounted BKE-I for the electronic household counter, standard sealable consumer room above, with 35mm standard rail and PE/N double terminals, standard sealable consumer room below, with 35mm standard rail and 5-pin HA clamp 25/16qmm, with double membrane socket, closure and insulation plug

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers
