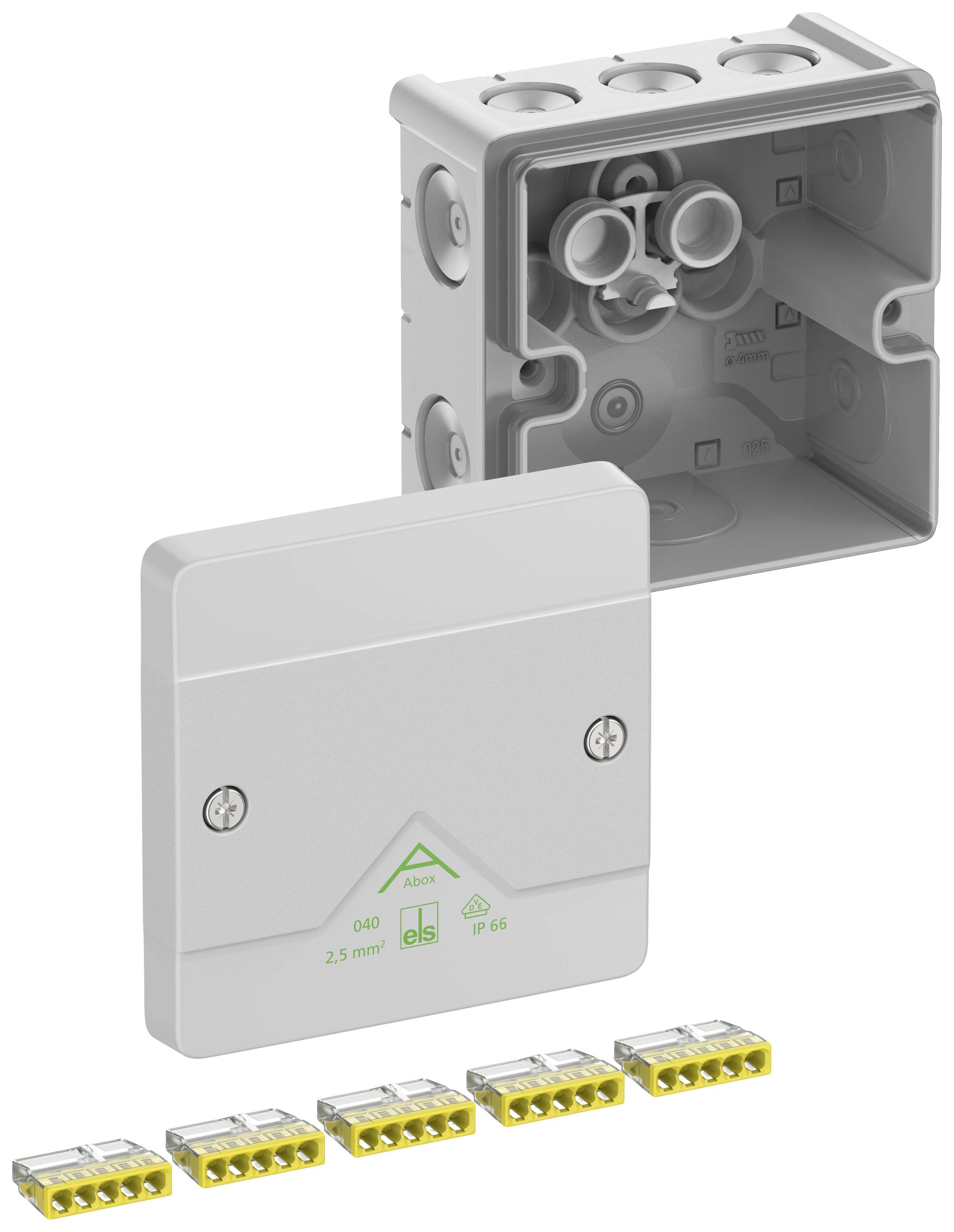

Spelsberg 80243001 Junction box (L x W x H) 102 x 102 x 57 mm Grey IP66 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.99 / piece)
€ 6.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
- Dim
(L x W x H) 102 x 102 x 57 mm
- Content
1 pc(s)
- Width
102 mm
- Height
57 mm
- Length
102 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3062245 Spelsberg 80243001 Junction box (L x W x H) 102 x 102 x 57 mm Grey IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062245 Spelsberg 80243001 Junction box (L x W x H) 102 x 102 x 57 mm Grey IP66 1 pc(s)
Description
Junction box, with IP66 protection, nominal diameter 4 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), self-sealing, soft introduction membranes, M20/M25, Sealing area 4 - 21 mm, (1 back-side, 10 lateral), interior fixing points, for standard installations indoors and in protected outdoor areas, gray, Ui=450 V AC, In=24 A, with 5 screwless 5-conductor terminals WAGO 2273-205, max. Nominal cross-section according to DIN EN 60998: 2.5 mm², clamping cross-sections per pole: 5 x 0.5 - 2.5 mm² rigid Cu/Al (observe the installation instructions!)
This text is machine translated.
This text is machine translated.
