Buy Spelsberg BEL Air active M40 12-1/gr Fan 12 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm Piece 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

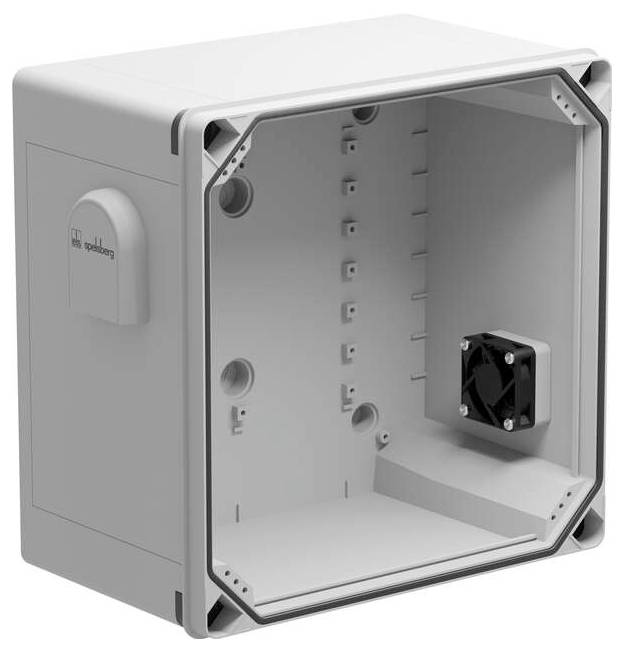

Gray wall-mounted electrical enclosure with open front door, showing interior mounting slots and a cooling fan; branded 'the electric' on the side.

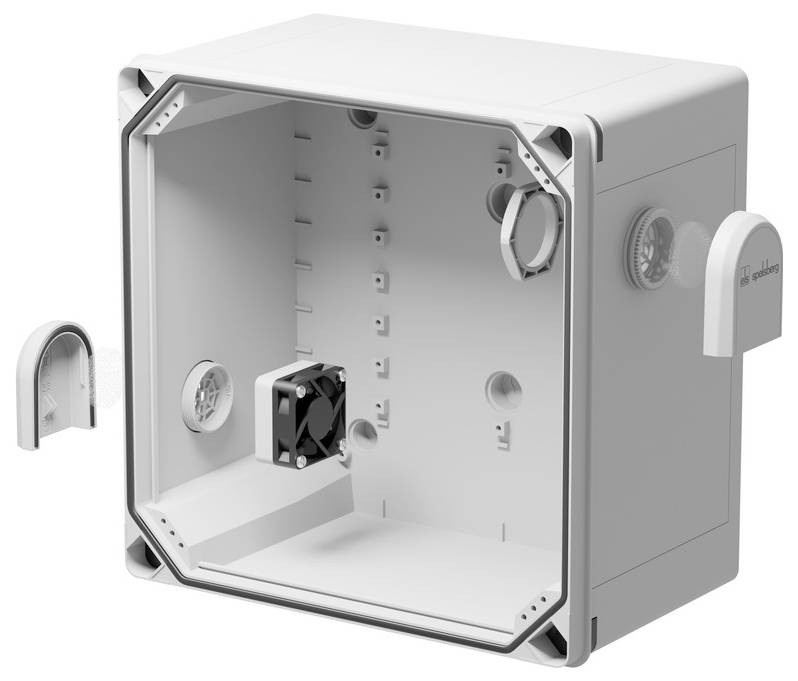

Open electrical enclosure box with a removable front cover, internal mounting points, vents, and side dial controls on a white background

1/3

Packaging type

Piece

Product type

Fan

Operating voltage

12 V DC

Power

1.4 W

Noise emission (max.)

38.1 dB

Datasheet (PDF)

Spelsberg

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ventilation element AIR, light gray, protection class IP55, impact strength IK07

UV-resistant

Technical specifications

Flammability class to UL94: V2
Glow wire resistance 650 °C (EN 60695-2-11)
Volume flow, free-blowing: 31.6 m³/h.
Sound pressure level 38.1 dB
Material: Polycarbonate

Packaging type: Piece

Product type: Fan

Type: BEL Air active M40 12-1/gr

Features: splashproof

Operating voltage: 12 V DC

: 1.4 W

Noise emission (max.): 38.1 dB

Air flow rate: 31.6 m³/h

Factory colour: Light grey

: IP55
IK07

Width: 61 mm

Height: 47 mm

Depth: 70 mm

Dim: (W x H x D) 61 x 47 x 70 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3775580 Spelsberg BEL Air active M40 12-1/gr Fan 12 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3775580 Spelsberg BEL Air active M40 12-1/gr Fan 12 V DC 1.4 W (W x H x D) 61 x 47 x 70 mm Piece 1 pc(s)

Description

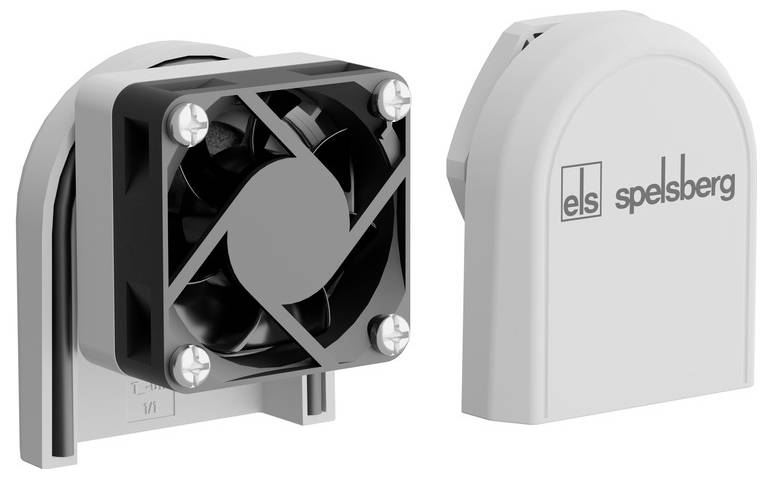

Ventilation element AIR, light gray, protection class IP55, impact strength IK07.
Filter fan for installation in housing openings M40, for heat dissipation from industrial empty housings and small distributors, class filter insert G4 as per DIN EN 779, for wall thicknesses from 1.25 to 4.5 mm. 12 V DC, power class 1, gray

This text is machine translated.

Description

Ventilation element AIR, light gray, protection class IP55, impact strength IK07.
Filter fan for installation in housing openings M40, for heat dissipation from industrial empty housings and small distributors, class filter insert G4 as per DIN EN 779, for wall thicknesses from 1.25 to 4.5 mm. 12 V DC, power class 1, gray

This text is machine translated.
