Spelsberg IBTronic XL Drillbox 97680101 Rack casing 280 x 255 x 92 Plastic Multicolour 1 pc(s)

A white, oval plastic component with two connection openings and a central air outlet. Possibly a part for a fan or cooling device.

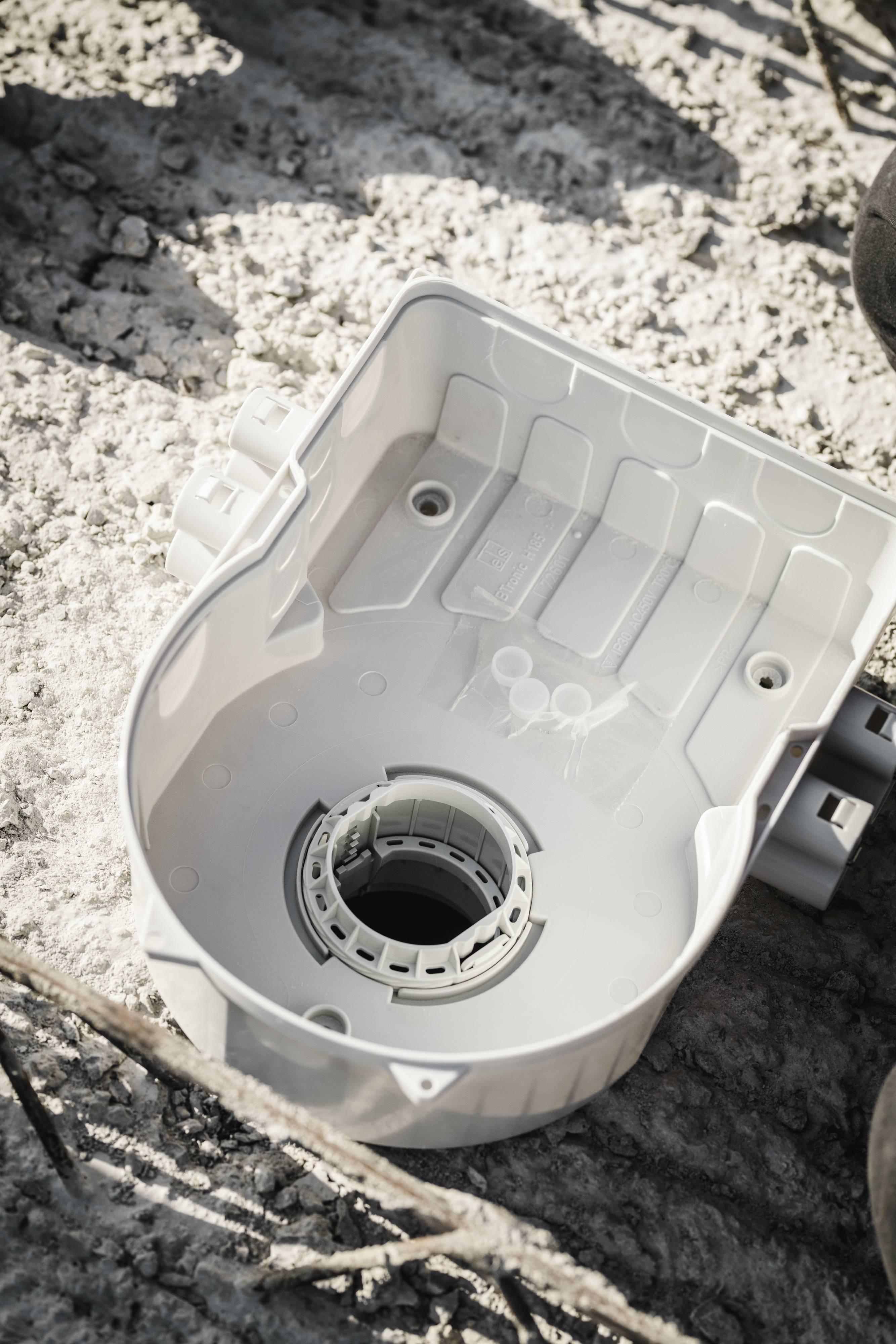

A white plastic component lies on stony ground. It has a circular opening in the centre and a textured inner surface.

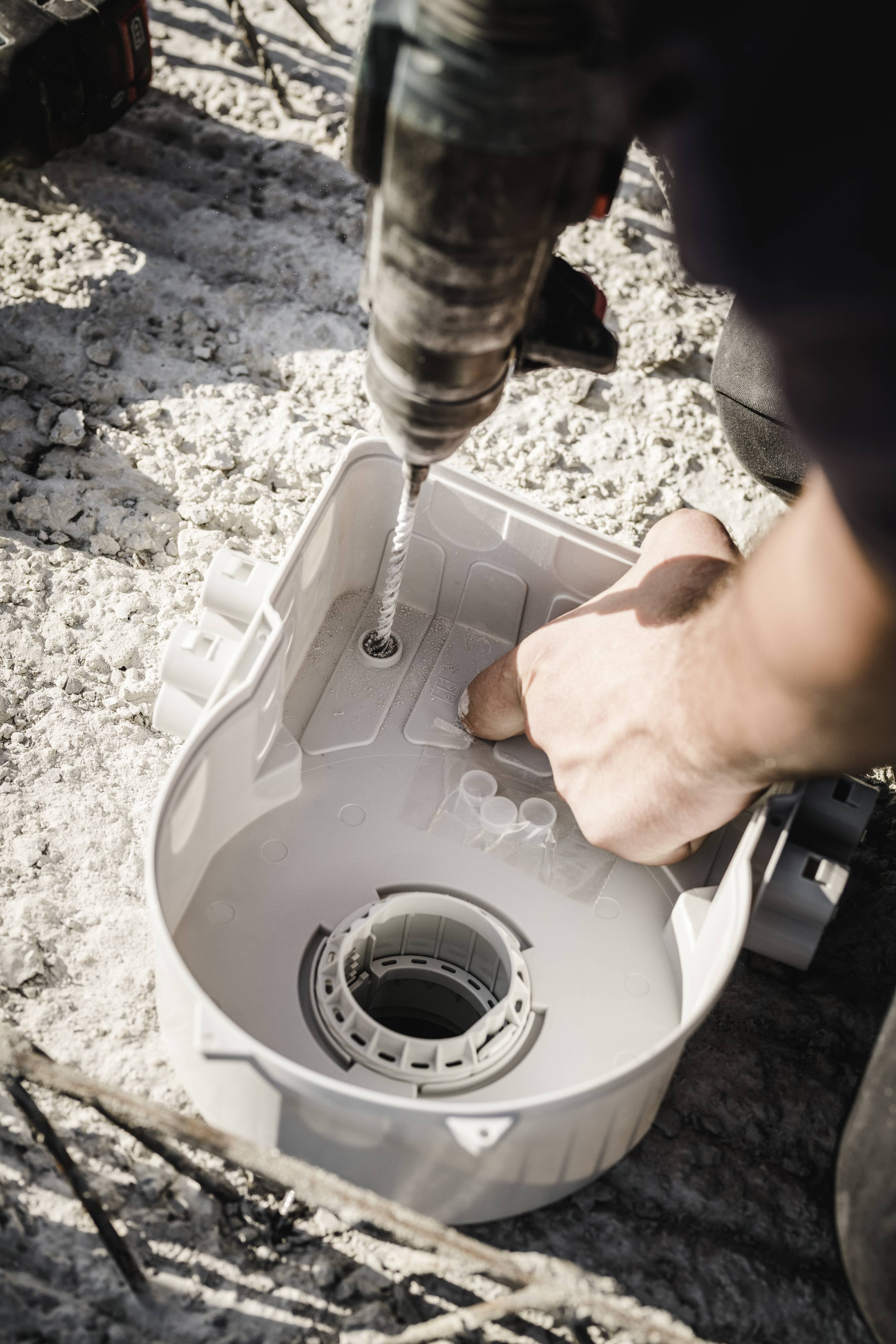

A drill is being drilled by a person into a grey plastic casing. Hands are holding the casing firmly on a concrete surface.

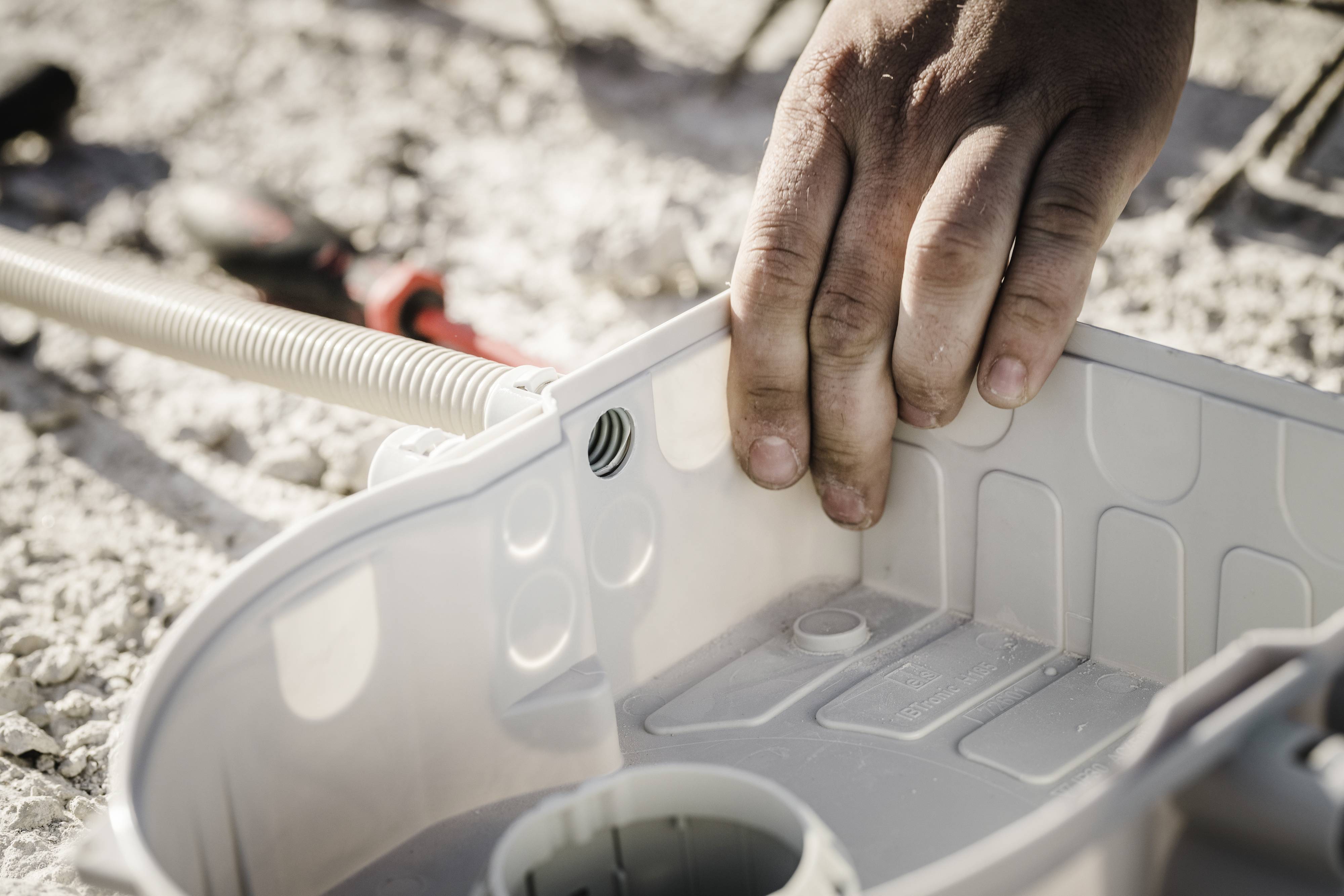

A hand is holding a grey plastic container with a hose connection. A red tool lies on the ground in the background.

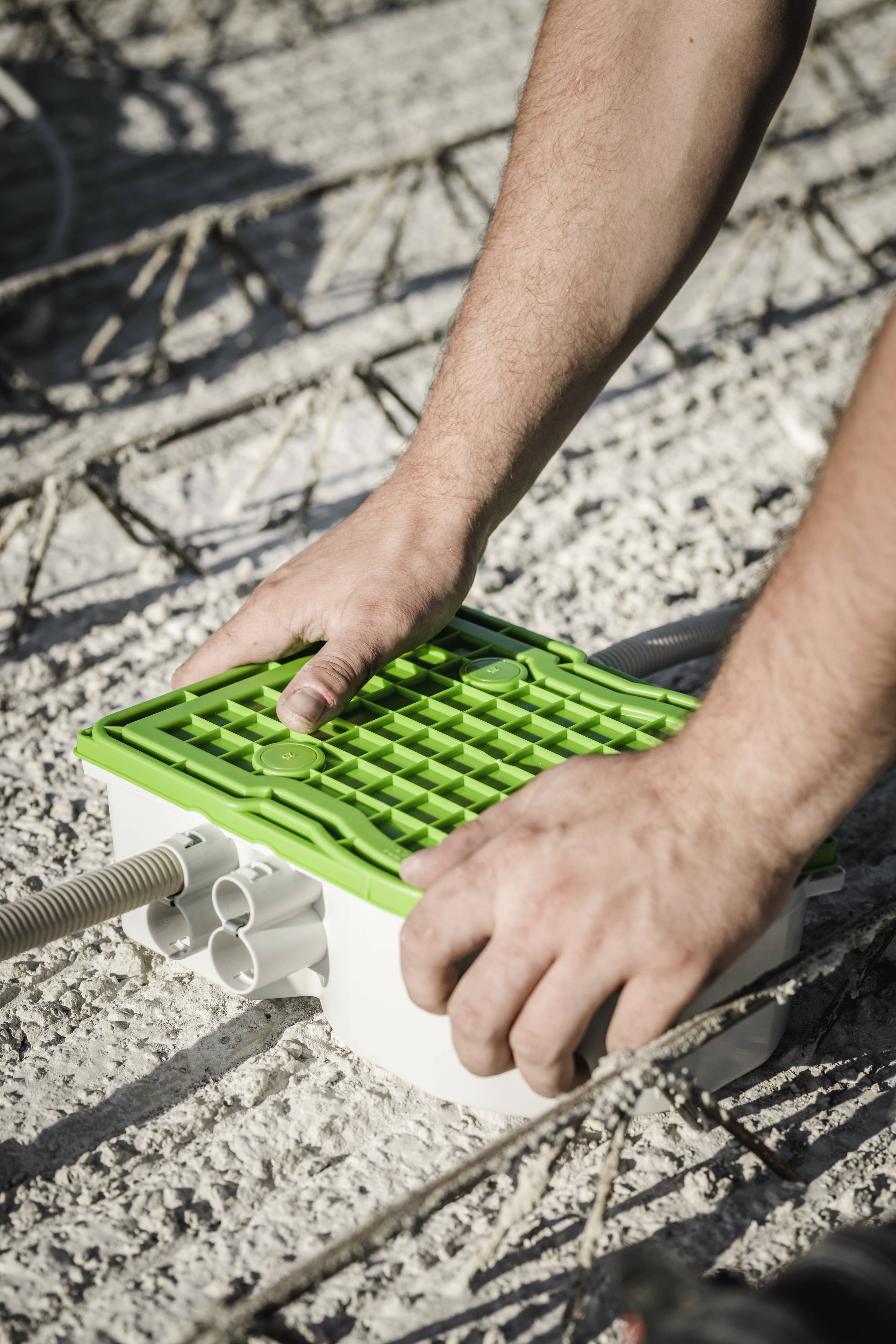

A person is installing a green cover on a white electrical socket embedded in a concrete floor.

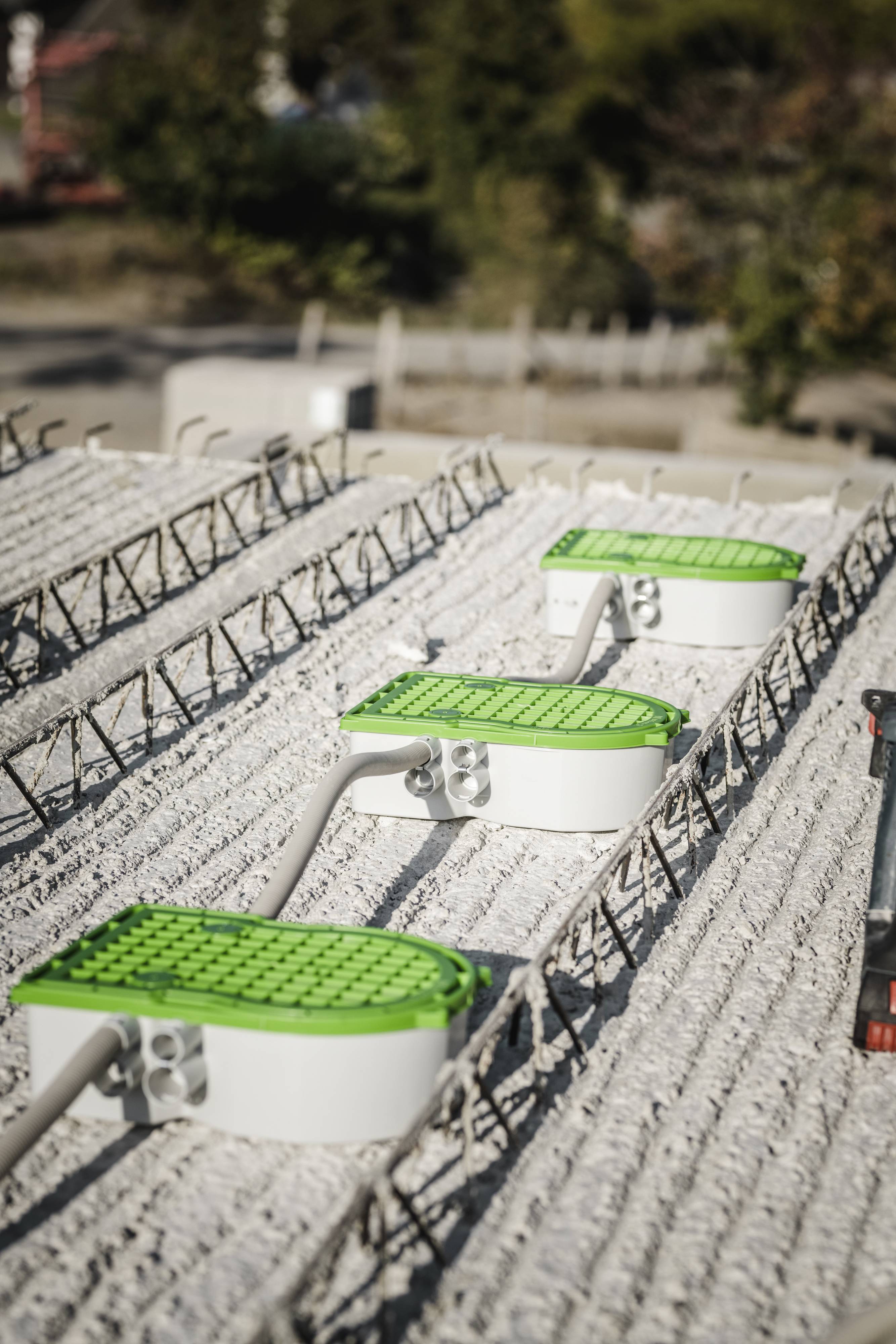

Three green electrical junction boxes on a sloped roof with corrugated sheets, surrounded by trees in the background.

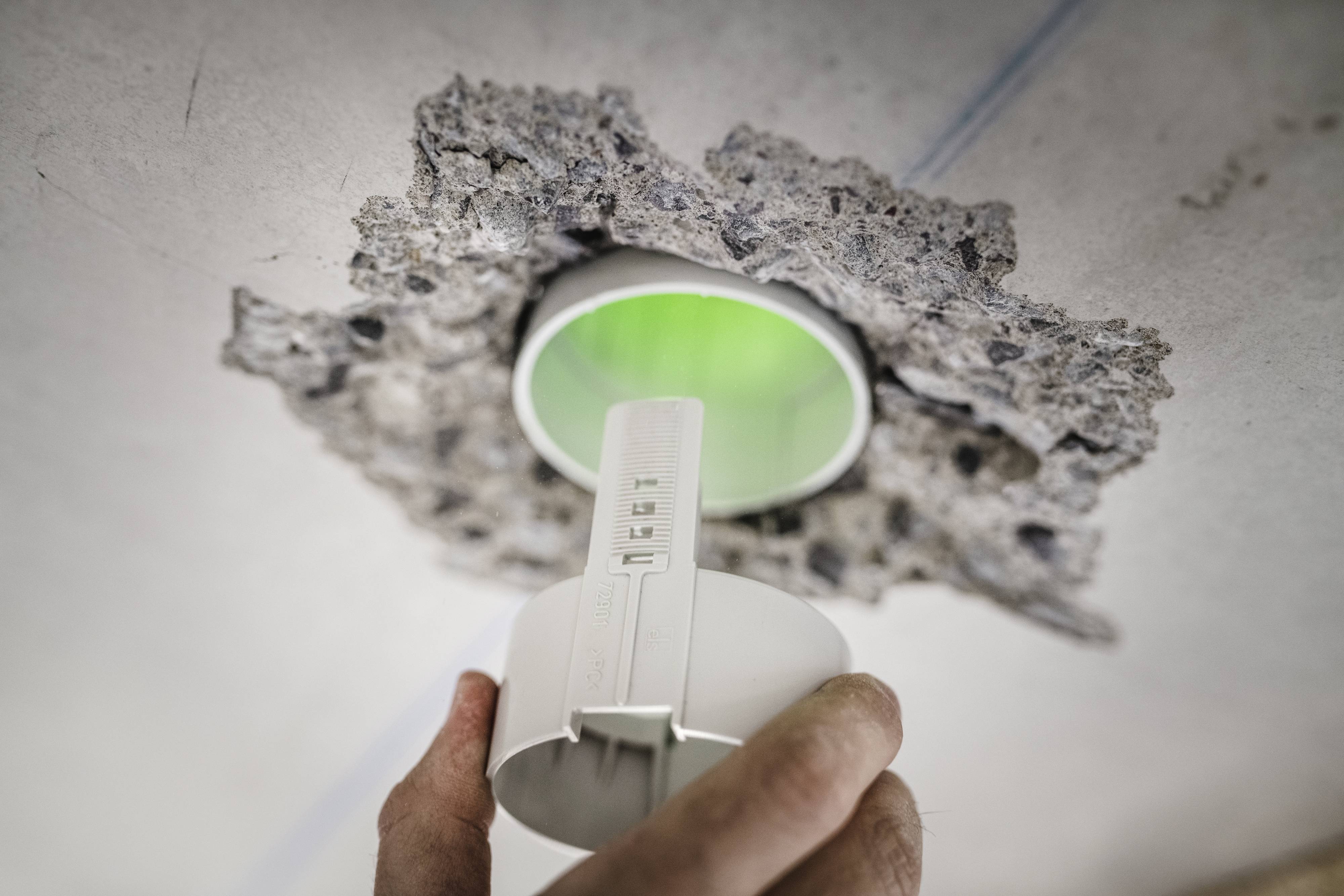

A hand holds a white plastic cylinder beneath a hole in a ceiling with crumbling concrete. The hole has a green background.

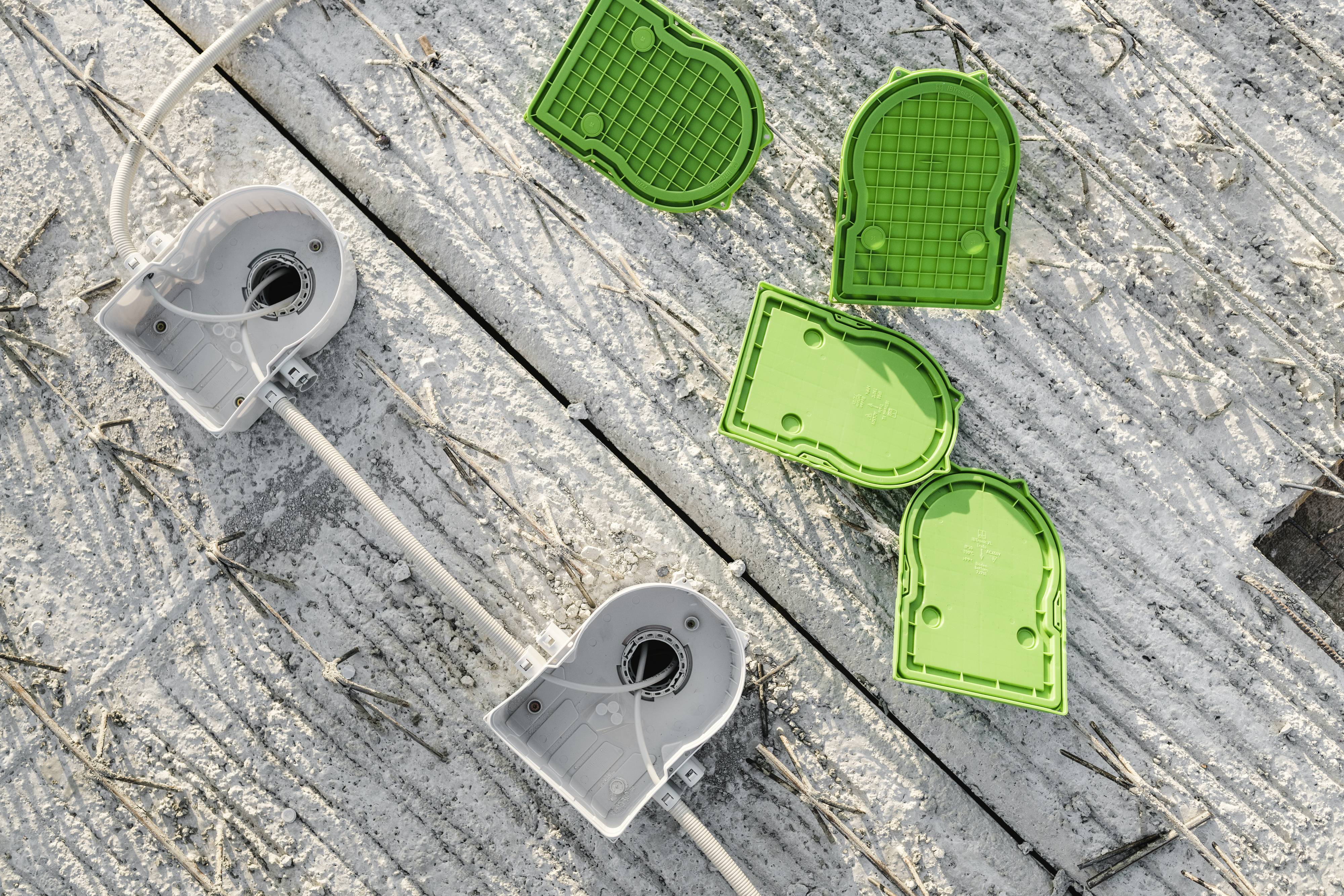

Two open grey cable boxes with cables on a weathered wooden floor, with several green covers beside them.
1/8
Product type
Rack casing
Material
Plastic
Width
280 mm
Height
255 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 57.99 / piece)
€ 57.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Application: For blanket
  • Suitable for lamp output 0 - 50 W.
  • Installation depth: 92 mm
  • Installation width 280 mm
  • Installation length 255 mm
  • Max. Lamp diameter 68 mm
  • Min Cover thickness 160 mm
Product type

Rack casing

Material

Plastic

Factory colour

Multicolour

Width

280 mm

Height

255 mm

Content

1 pc(s)

Dim

(W x H x D) 280 x 255 x 92 mm

Depth

92 mm

Type

IBTronic XL Drillbox

Wireless charging

No

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2379628 Spelsberg IBTronic XL Drillbox 97680101 Rack casing 280 x 255 x 92 Plastic Multicolour 1 pc(s)

Description

Universal installation housing with additional connection space, (e.g. for installation of an electronic safety transformer up to max. 150 VA) for finished part construction, halogen-free, for installation of NV/HV/LED lamps, suitable for subsequent installation in finished part ceilings of 45-70mm by means of 82mm core bore, for installation of VDE tested lamps according to DIN EN 60598 (VDE 0711), As well as with F-marking or MM-marking, maximum installation height NV-lamps: 105mm, HV-lamps: 110mm, lamp output max. 50 W aluminum, outlet opening: 76mm, ARD (outer ring diameter of the lamp), min. 85mm, 8 combination tube entries 4 x M20, 4 x M25, integrated pipe stopper and strain relief for pipes M20, M25

This text is machine translated.

Hints

Safety-relevant component - installation only by skilled workers
