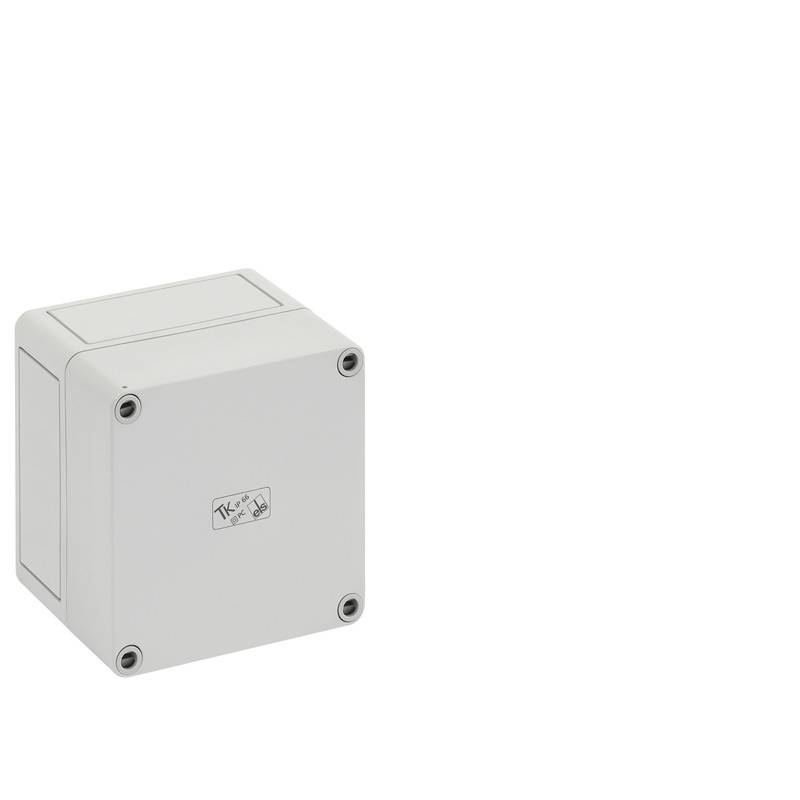

Spelsberg TK PC 1111-9-o Enclosure (empty) 110 x 110 x 90 x 90 Polycarbonate (PC) Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
110 mm
Datasheet (PDF)
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 110 x 110 x 90 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
wallmount option
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
- Type
Without metric knockouts
- Knockouts
No
- Length
110 mm
- Width
110 mm
- Height
90 mm
- Dimensions
110 x 110 x 90 mm
- Weight
0.275 kg
- Compatible with (details)
Distribution boxes Abox / Abox Pro from 2024, TK 1111, TK 1309, TK 1313, TK 1809, TK 1811, Abox/Abox-i 060
- Standards
UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia resistant), DNV (class: Ships and offshore installations), EN 60695-2-11, DIN EN 60715
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1111-9-o
- Dim
(L x W x H) 110 x 110 x 90 mm
- Manufacturer part #
12090401
- Depth
90 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628647 Spelsberg TK PC 1111-9-o Enclosure (empty) 110 x 110 x 90 x 90 Polycarbonate (PC) Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628647 Spelsberg TK PC 1111-9-o Enclosure (empty) 110 x 110 x 90 x 90 Polycarbonate (PC) Grey 1 pc(s) Piece
