Name: Spelsberg TK PC 1313-10-to Enclosure (empty) 130 x 130 x 99 x 99 Plastic fibre compound Grey, Transparent 1 pc(s) Piece
Brand: Spelsberg
SKU: 3628657
Availability: BackOrder

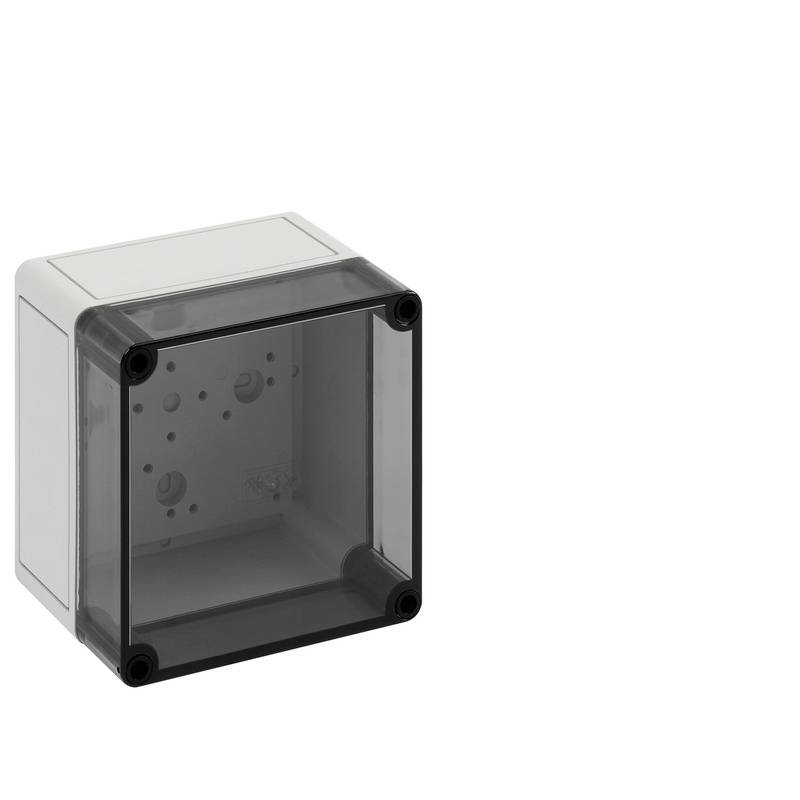

Small square electrical enclosure with a dark transparent front cover and four corner screws, shown isolated on a white background.

Packaging type

Piece

Product type

Enclosure (empty)

Material

Plastic fibre compound

IP rating

IP66

Width

130 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free

Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 130 x 130 x 99 mm
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Enclosure (empty)

Features: Cover (clear)

Material: Plastic fibre compound

: IP66

Factory colour: Grey
Transparent

Type: Without metric knockouts

Knockouts: No

Length: 130 mm

Width: 130 mm

Height: 99 mm

Dimensions: 130 x 130 x 99 mm

Weight: 0.3402 kg

Compatible with (details): Suitable for installation in industrial environments and protected outdoor areas
Compatible with mounting plate TK MPI-1313, standard rail TS 15-111, standard rail NS 35-81, standard rail NS 35-106, mast/pipe mounting kit MABF 100-1, Outer mounting bracket set TK ABL, outer hinge set ASS-KL, mounting hardware HBA, spacer set TK DST, cable channel attachment KTB 1-100

Standards: UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia-resistant), DNV (classification: Ships and offshore installations)

Content: 1 pc(s)

Industrial packaging: Yes

Type: TK PC 1313-10-to

Dim: (L x W x H) 130 x 130 x 99 mm

Manufacturer part #: 13050501

Depth: 99 mm

UKCA: yes
