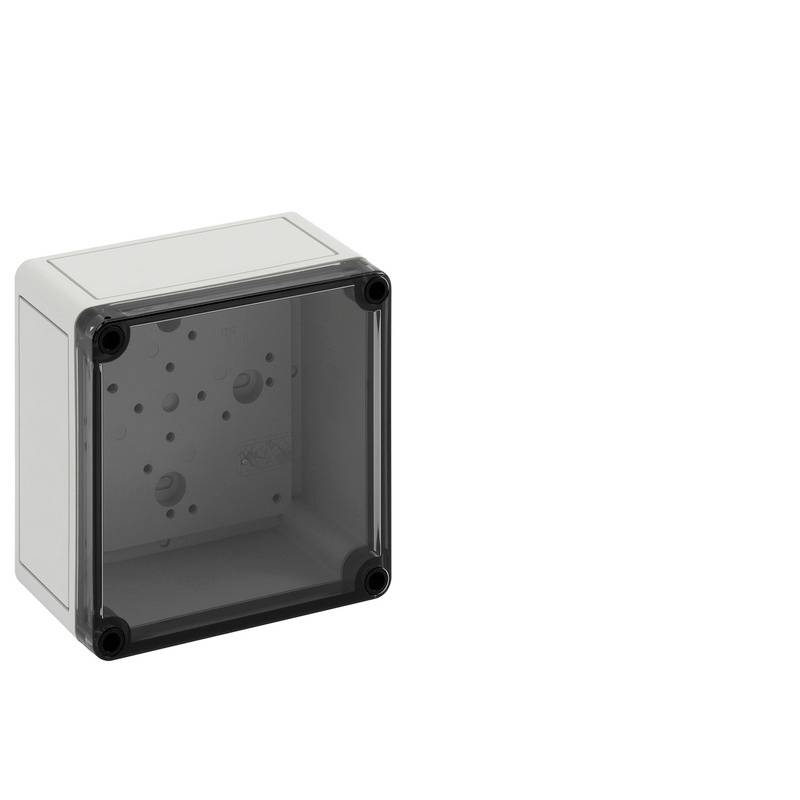

Spelsberg TK PC 1313-7-to Enclosure (empty) 130 x 130 x 75 x 75 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
130 mm
Datasheet (PDF)
Number
Total (€ 26.99 / piece)
€ 26.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 130 x 130 x 75 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
with top
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
130 mm
- Width
130 mm
- Height
75 mm
- Dimensions
130 x 130 x 75 mm
- Weight
0.27 kg
- Compatible with (details)
Mast-/pipe mounting set MABF 100-1
External mounting bracket set TK ABL
Outer hinge set ASS-KL
Mounting material HBA
Distance set TK DST
Mounting plate TK MPI-1313
Standard rail TS 15-111
Standard rail NS 35-81
Standard rail NS 35-106
Cable trough fixing KTB 1-100
- Standards
UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia resistant), DNV (class: Ships and offshore installations), EN 60695-2-11, DIN EN 60715
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1313-7-to
- Dim
(L x W x H) 130 x 130 x 75 mm
- Manufacturer part #
13000501
- Depth
75 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628656 Spelsberg TK PC 1313-7-to Enclosure (empty) 130 x 130 x 75 x 75 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628656 Spelsberg TK PC 1313-7-to Enclosure (empty) 130 x 130 x 75 x 75 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
