Name: Spelsberg TK PC 1811-11-to Enclosure (empty) 110 x 180 x 111 x 111 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
Brand: Spelsberg
SKU: 3628672
Availability: BackOrder

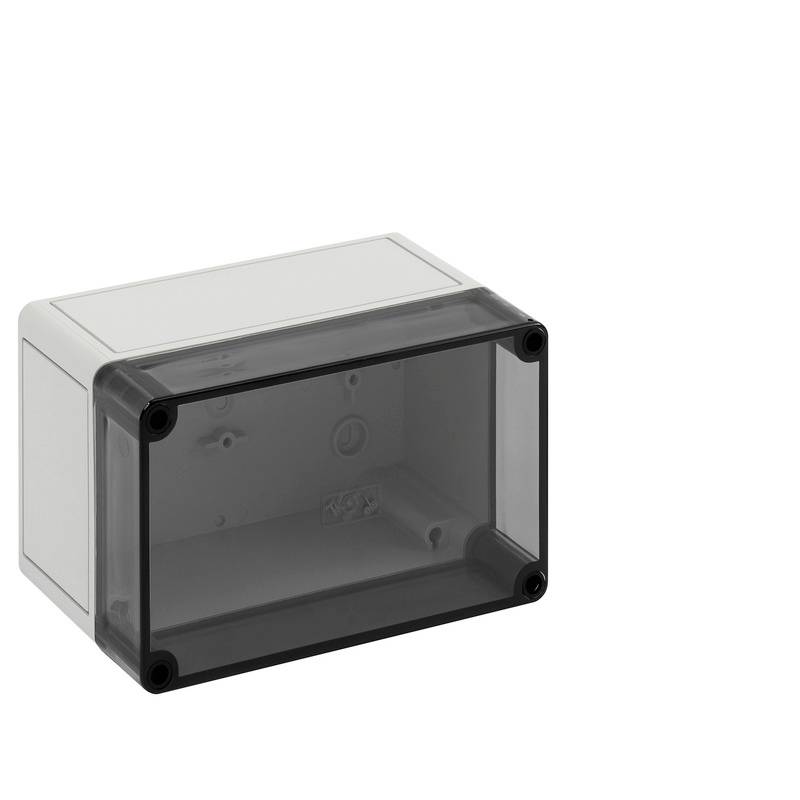

Gray rectangular electrical enclosure box with a dark transparent front cover and four corner screw mounts on a white background.

Packaging type

Piece

Product type

Enclosure (empty)

Material

Polycarbonate (PC)

IP rating

IP66

Width

180 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 34.99 / piece)

€ 34.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free

Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 180 x 110 x 111 mm
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Enclosure (empty)

Features: Cover (clear)

Material: Polycarbonate (PC)

: IP66

Factory colour: Grey
Transparent

Type: Without metric knockouts

Knockouts: No

Length: 110 mm

Width: 180 mm

Height: 111 mm

Dimensions: 180 x 110 x 111 mm

Weight: 0.4417 kg

Compatible with (details): Mast/pipe mounting kit MABF 65-3 for empty housing TK 1809, TK 1811, small distribution boxes AK(i)...
External mounting kit TK ABL for all TK PS/PC- and RK-casing starting from TK PS/PC 77
Outer hinge set ASS-gro from TK PS/PC 1811 and from AKL/AKI 1
Mounting material HBA for attaching to the standard lid screw for TC...
MOUNTING PLATE TK MPI-1811 FOR TK PS / TK PC 1811
Standard rail NS 35-81 for TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 and Abox/Abox-i 060,...
Standard rail NS 35-144 for TK PS/PC 1809/1811/1813/1818/2518
Cable channel mounting KTB 1-100 for mounting housings on cable channel systems with a long hole width of 7 mm...

Standards: UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (classification: Ships and offshore installations), EN 60695-2-11 (flame retardant), DIN EN 60715 (standard rail)

Content: 1 pc(s)

Industrial packaging: Yes

Type: TK PC 1811-11-to

Dim: (L x W x H) 110 x 180 x 111 mm

Manufacturer part #: 13050601

Depth: 111 mm

UKCA: yes
