Name: Spelsberg TK PC 1811-16-o Enclosure (empty) 180 x 180 x 165 x 165 Plastic (fibreglass reinforced) Grey 1 pc(s) Piece
Brand: Spelsberg
SKU: 3628670
Availability: BackOrder

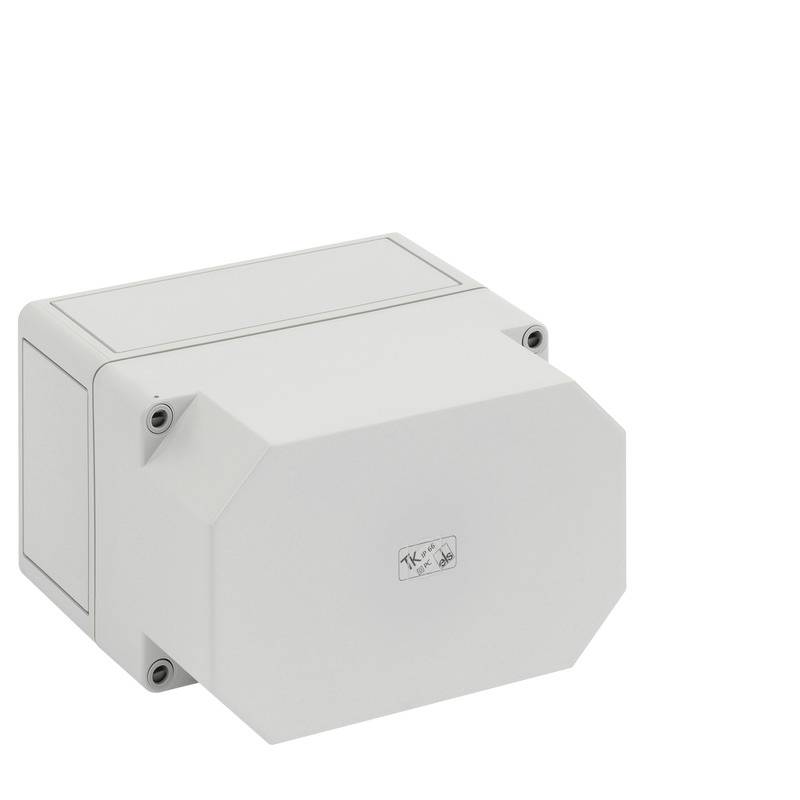

White rectangular electrical enclosure or control box with a hinged front cover and visible mounting screws, shown on a plain background.

Packaging type

Piece

Product type

Enclosure (empty)

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

180 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€ 51.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free

Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 180 x 110 x 165 mm
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Enclosure (empty)

Features: wallmount option

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Type: Without metric knockouts

Knockouts: No

Length: 180 mm

Width: 180 mm

Height: 165 mm

Dimensions: 180 x 110 x 165 mm

Weight: 0.575 kg

Compatible with (details): MABF 65-3 mast/pipe mounting set (for empty housing TK 1809, TK 1811, small distribution boxes AK(i)...), external mounting bracket set TK ABL (for all housings TK PS/PC, RK, TK PS/PC 77 or higher), external hinge set ASS-gro (from TK PS/PC 1811 and AKL/AKI 1), mounting plate HBA TK MPI-1811 (TK PS / TK PC 1811), Standard rail NS 35-81 (for TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 and Abox/Abox-i 060,...), standard rails NS 35-144 (TK PS/PC 1809/2518/1813/1818/1811) New cable tray mounting KTB 1-100 (for mounting housings on cable tray systems)

Standards: UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistivity), DNV (class: Ships and offshore installations), EN 60695-2-11

Content: 1 pc(s)

Industrial packaging: Yes

Type: TK PC 1811-16-o

Dim: (L x W x H) 180 x 180 x 165 mm

Manufacturer part #: 12140601

Depth: 165 mm

UKCA: yes
