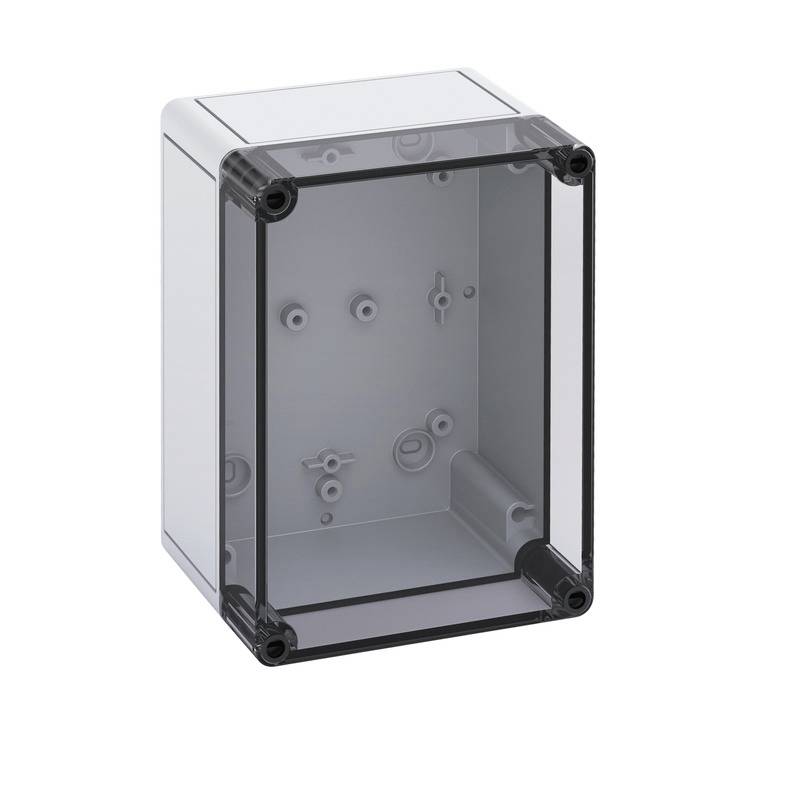

Spelsberg TK PC 1813-11-to Enclosure (empty) 130 x 180 x 111 x 111 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
180 mm
Datasheet (PDF)
Number
Total (€ 37.99 / piece)
€ 37.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 180 x 130 x 111 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
with top
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
130 mm
- Width
180 mm
- Height
111 mm
- Dimensions
180 x 130 x 111 mm
- Weight
0.5 kg
- Compatible with (details)
Mast-/pipe mounting kit MABF 100-1, mounting bracket set TK ABL, hinge set ASS-big, mounting material HBA, mounting plate TK MPI-1813, Mounting plate TK MPS-1813, standard rails TS 15-154 (for TK 1809, TK 1811, TK 1813, TK 1818, TK 2518), Standard rail NS 35-144 (TK PS/PC 1809/1811/1813/1818/2518), cable tray mounting KTB 1-100
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (classification: Ships and offshore installations)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1813-11-to
- Dim
(L x W x H) 130 x 180 x 111 mm
- Manufacturer part #
13051601
- Depth
111 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628681 Spelsberg TK PC 1813-11-to Enclosure (empty) 130 x 180 x 111 x 111 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628681 Spelsberg TK PC 1813-11-to Enclosure (empty) 130 x 180 x 111 x 111 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
