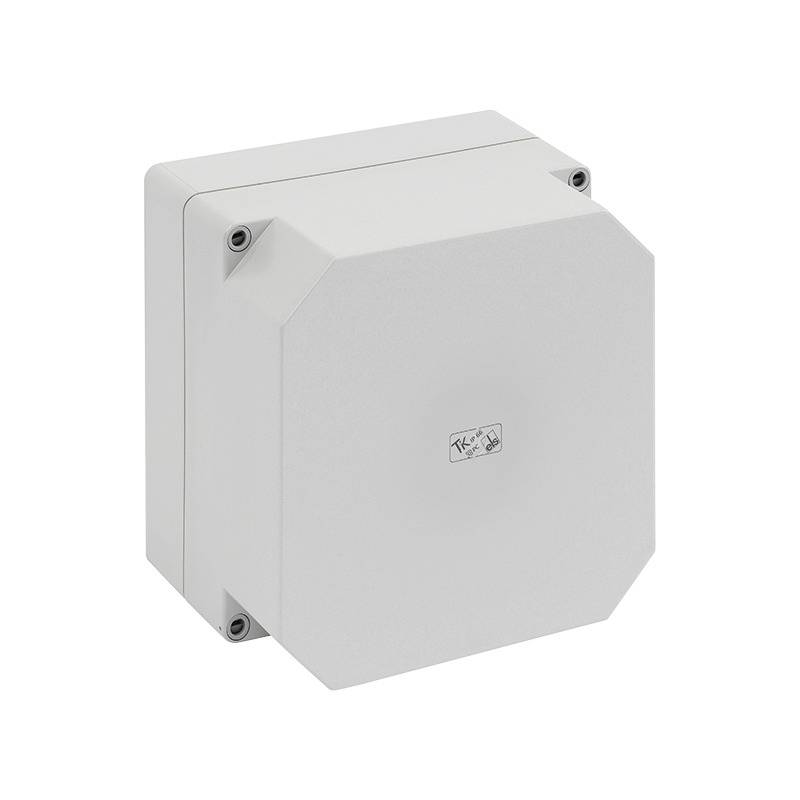

Spelsberg TK PC 1818-13f-o Enclosure (empty) 180 x 182 x 137 x 137 Polycarbonate (PC) Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
182 mm
Datasheet (PDF)
Number
Total (€ 55.99 / piece)
€ 55.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 182 x 180 x 137 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
waterproof
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
- Type
Without metric knockouts
- Knockouts
No
- Length
180 mm
- Width
182 mm
- Height
137 mm
- Dimensions
182 x 180 x 137 mm
- Weight
0.7163 kg
- Compatible with (details)
Mast/pipe mounting set MABF 150-3 (for empty housing TK 1818, 2518 (vertical), small distribution box)
External mounting clip set TK ABL (for all TK PS/PC, RK housings, TK PS/PC 77 onwards)
Outer hinge set ASS-gro (from TK PS/PC 1811 and AKL/AKI 1)
Mounting material HBA (for TK)
MOUNTING PLATE TK MPI-1818 (FOR TK PS / TK PC 1818)
Standard rail NS 35-144 (for TK PS/PC 1809/1811/1813/1818/2518)
Cable channel mounting KTB 1-100 (for mounting housings on cable channel systems with long hole width of 7 mm)
- Standards
UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (class: Ships and offshore installations), EN 60695-2-11, UL94 V2, DIN EN 60715
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 1818-13f-o
- Dim
(L x W x H) 180 x 182 x 137 mm
- Manufacturer part #
12141301
- Depth
137 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628720 Spelsberg TK PC 1818-13f-o Enclosure (empty) 180 x 182 x 137 x 137 Polycarbonate (PC) Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628720 Spelsberg TK PC 1818-13f-o Enclosure (empty) 180 x 182 x 137 x 137 Polycarbonate (PC) Grey 1 pc(s) Piece
