Name: Spelsberg TK PC 2518-13f-to Enclosure (empty) 254 x 254 x 137 x 137 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
Brand: Spelsberg
SKU: 3628700
Availability: BackOrder

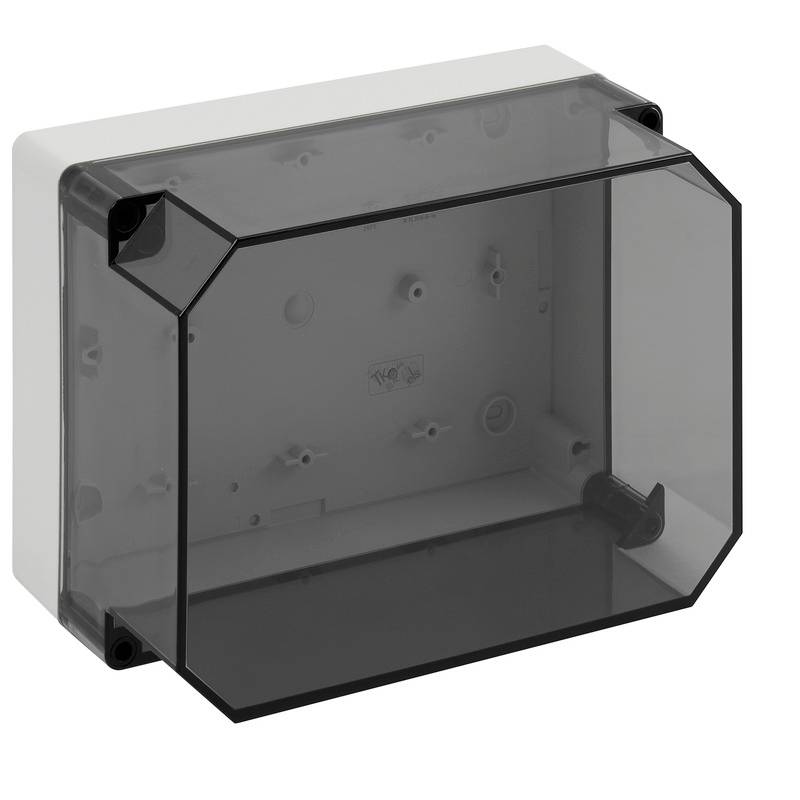

Translucent black wall-mounted electrical enclosure box with hinged front cover on a white background.

Packaging type

Piece

Product type

Enclosure (empty)

Material

Polycarbonate (PC)

IP rating

IP66

Width

254 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free

Empty housing, with protection class IP66, polycarbonate, glass fiber reinforced, certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 NO. 94.2-07), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 254 x 180 x 137 mm
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Enclosure (empty)

Features: Cover (clear)

Material: Polycarbonate (PC)

: IP66

Factory colour: Grey
Transparent

Type: Without metric knockouts

Knockouts: No

Length: 254 mm

Width: 254 mm

Height: 137 mm

Dimensions: 254 x 180 x 137 mm

Weight: 0.865 kg

Compatible with (details): For empty housing TK 1818, 2518 (vertical), small distributor board...
For empty housing TK 2518 (horizontal), TK 3625 (portrait), small...
For all TK PS/PC- and RK-casing starting from TK PS/PC 77
From TK PS/PC 1811 and AKL/AKI 1
FOR TK PS / TK PC 2518
TK PS/PC 2518/362

Standards: UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammonia resistance), DNV (classification: Ships and offshore installations)

Content: 1 pc(s)

Industrial packaging: Yes

Type: TK PC 2518-13f-to

Dim: (L x W x H) 254 x 254 x 137 mm

Manufacturer part #: 13101101

Depth: 137 mm

UKCA: yes
