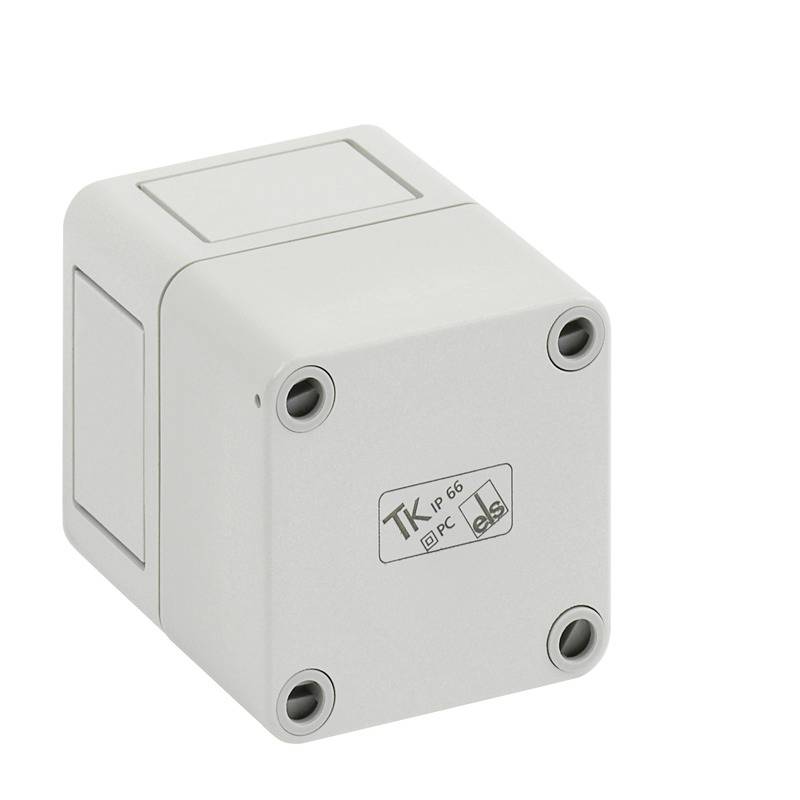

Spelsberg TK PC 77-8-o Enclosure (empty) 65 x 65 x 81 x 81 Polycarbonate (PC) Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
65 mm
Datasheet (PDF)
Number
Total (€ 15.99 / piece)
€ 15.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Glass-fiber reinforced, gray, smooth side-wall dimensions: 65 x 65 x 81 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
wallmount option
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
- Type
Without metric knockouts
- Knockouts
No
- Length
65 mm
- Width
65 mm
- Height
81 mm
- Dimensions
65 x 65 x 81 mm
- Weight
0.135 kg
- Compatible with (details)
Mast/pipe mounting set MABF 65-2 (for empty housing TK 77, TK 97, TG 88, TG 1208, TG 1608) External mounting bracket set TK ABL (for all housings TK PS/PC, RK AB TK PS/PC 77), external hinge set ASS-KL (for TK PS/PC 77 to TK PS/PC 97), mounting plate TK MPI-49.5 (for TK PS / TK PC 77), standard rails TS 15-77 (for TK 77, TK 1809)
- Standards
UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia-resistant), DNV (classification: Ships and offshore installations)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 77-8-o
- Dim
(L x W x H) 65 x 65 x 81 mm
- Manufacturer part #
12090101
- Depth
81 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628635 Spelsberg TK PC 77-8-o Enclosure (empty) 65 x 65 x 81 x 81 Polycarbonate (PC) Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628635 Spelsberg TK PC 77-8-o Enclosure (empty) 65 x 65 x 81 x 81 Polycarbonate (PC) Grey 1 pc(s) Piece
