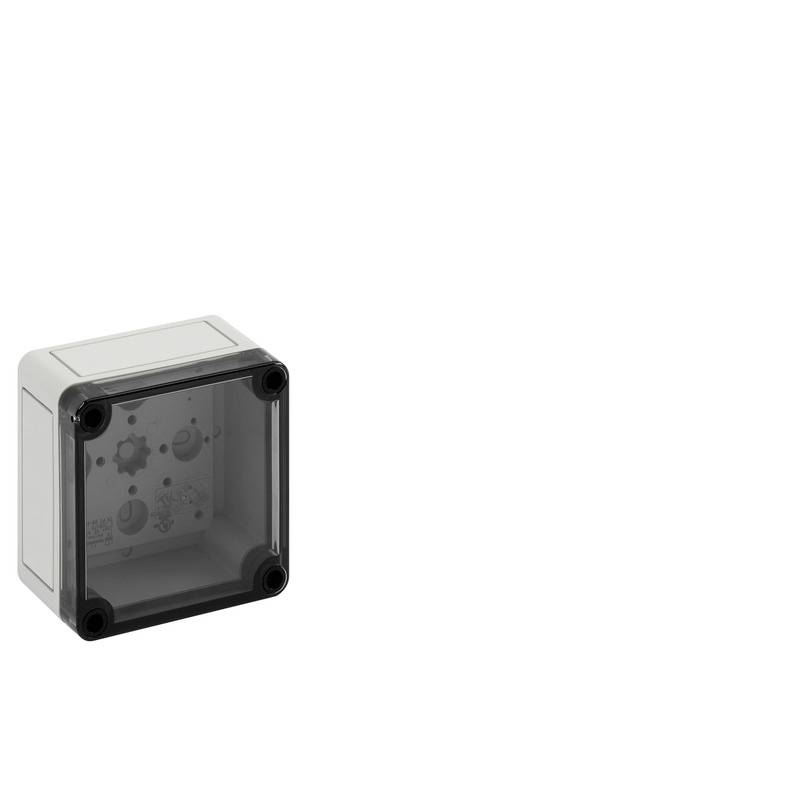

Spelsberg TK PC 99-6-to Enclosure (empty) 94 x 94 x 57 x 57 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Enclosure (empty)
Material
Polycarbonate (PC)
IP rating
IP66
Width
94 mm
Datasheet (PDF)
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
14-day return policy included
Highlights & Details
Empty housing, protection class IP66, impact resistance IK08, protection class II, UI 690V AC, Rated insulation voltage 1000V DC, UL, DLG, DNV, halogen-free
- Empty housing, IP66 protection class, polycarbonate, glass fiber reinforced, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 NO. 94.2-7), DLG (ammonia-resistant), DNV (class: Ships & offshore installations), Ui=690V AC, Ui=1000V DC, interior fixing points, for industrial installations and protected outdoor areas, box: Polycarbonate, glass-fiber reinforced , gray, lid: Polycarbonate, Transparent, smooth side walls. Dimensions 94 x 94 x 57 mm
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Enclosure (empty)
- Features
Cover (clear)
- Material
Polycarbonate (PC)
IP66
- Factory colour
Grey
Transparent
- Type
Without metric knockouts
- Knockouts
No
- Length
94 mm
- Width
94 mm
- Height
57 mm
- Dimensions
94 x 94 x 57 mm
- Weight
0.1862 kg
- Compatible with (details)
TK 77, TK 97, TG 88, TG 1208, TG 1608 (FOR MABF 65-2)
TK PS/PC, RK CASE, TK PS/PC 77 (FOR TK ABL)
TK PS/PC 77 to TK PS/PC 1809 (for ass-KL)
TK PS / TK PC 99 (FOR TK MPI-99)
TK 97, TK 99, TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 (FOR TS 15-80)
- Standards
UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (ammonia resistant), DNV (classification: Ships and offshore installations), EN 60695-2-11 (filament flammable)
- Content
1 pc(s)
- Industrial packaging
Yes
- Type
TK PC 99-6-to
- Dim
(L x W x H) 94 x 94 x 57 mm
- Manufacturer part #
13000301
- Depth
57 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3628644 Spelsberg TK PC 99-6-to Enclosure (empty) 94 x 94 x 57 x 57 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3628644 Spelsberg TK PC 99-6-to Enclosure (empty) 94 x 94 x 57 x 57 Polycarbonate (PC) Grey, Transparent 1 pc(s) Piece
