Name: Stabila LAX 500 G Cross line laser Range (max.): 40 m
Brand: Stabila
SKU: 3400654
Availability: InStock

A laser level and a mount, suitable for precise measurements on construction sites. Device has green laser lines.

Stabila LAX 500 G Cross line laser Range (max.): 40 m-1

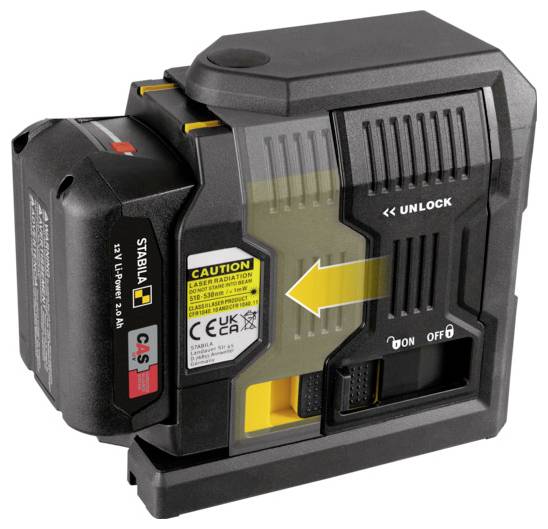

A black laser levelling device with yellow accents. It displays a warning label with CE marking and an 'unlock' sliding switch.

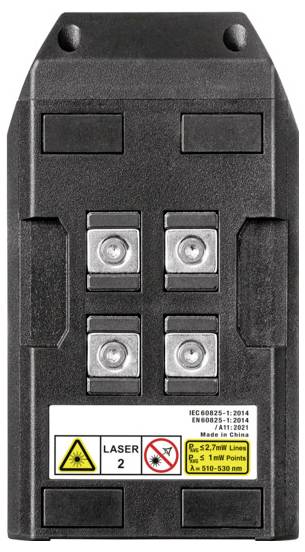

The rear of a device laser housing displays warning notices: 'Laser 2', visibility 510-530 nm, IEC standard compliance.

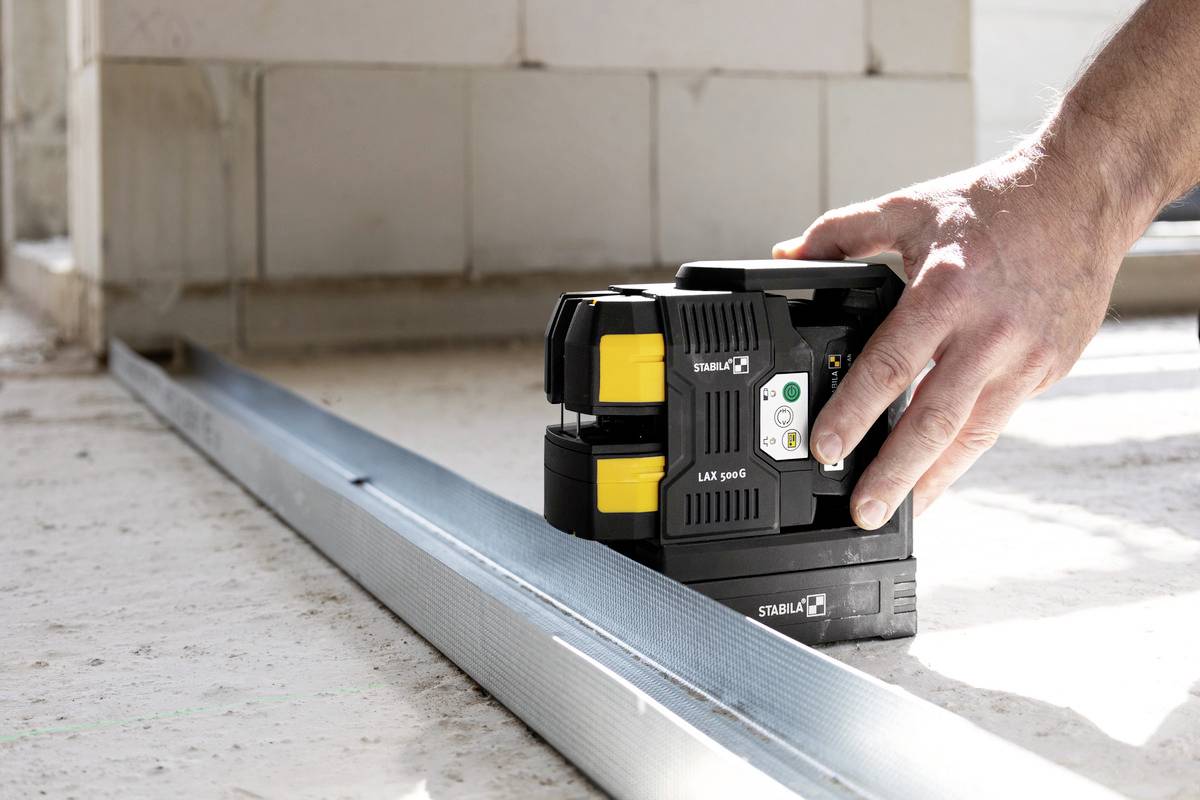

A hand places a laser measuring device on a building site to level the ground. Unfinished masonry is visible on the left.

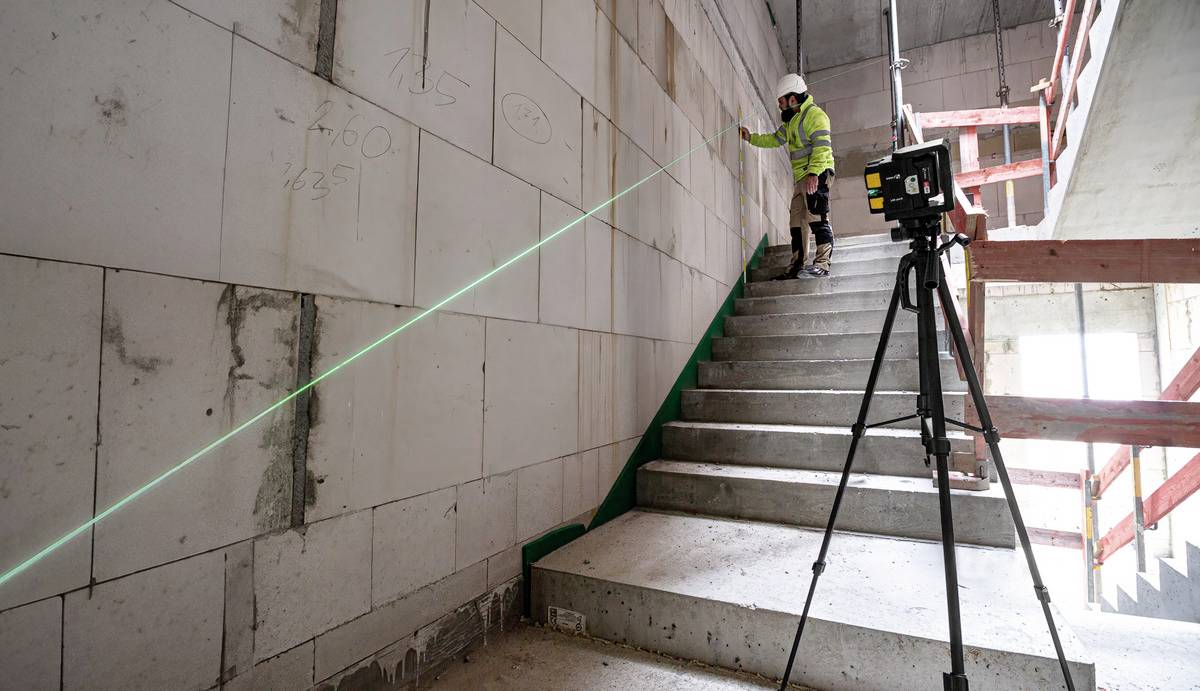

A construction worker is measuring the walls along a staircase using a laser device on a building site. The room is in a shell state.

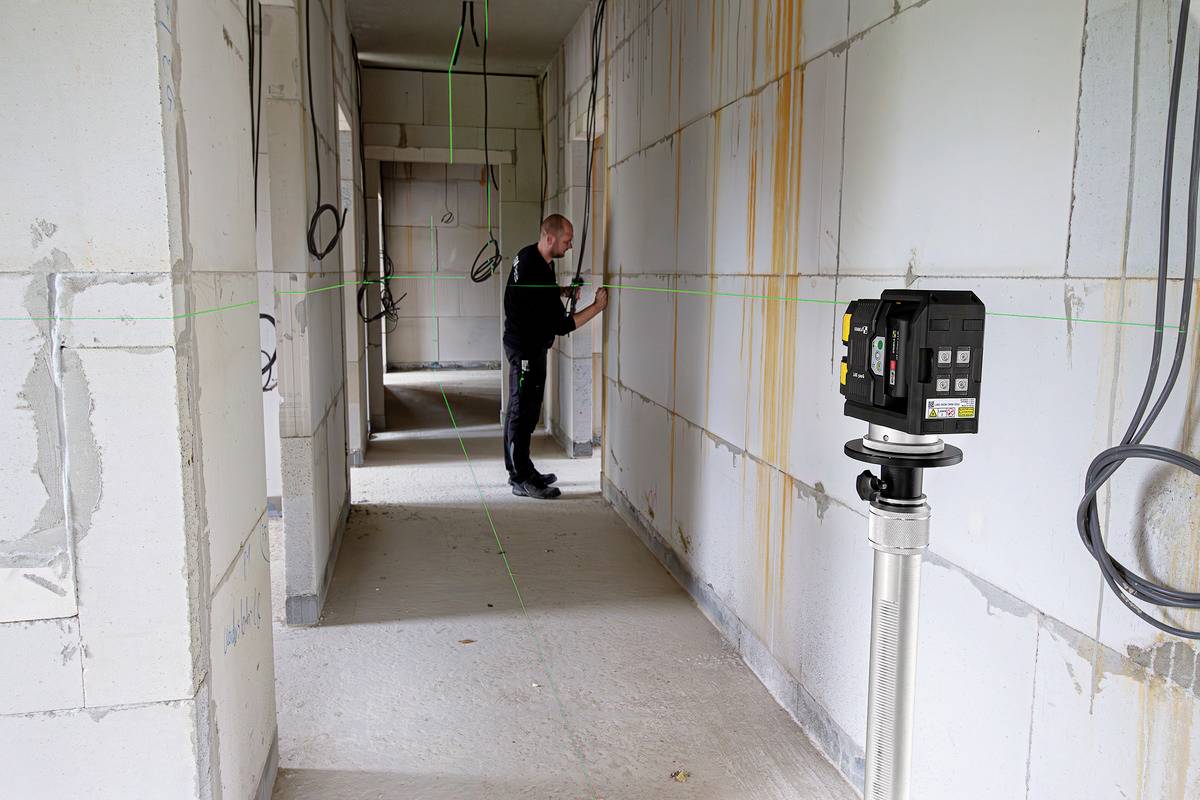

A person is measuring a wall in an unfinished building with a laser levelling device. The room has grey concrete walls.

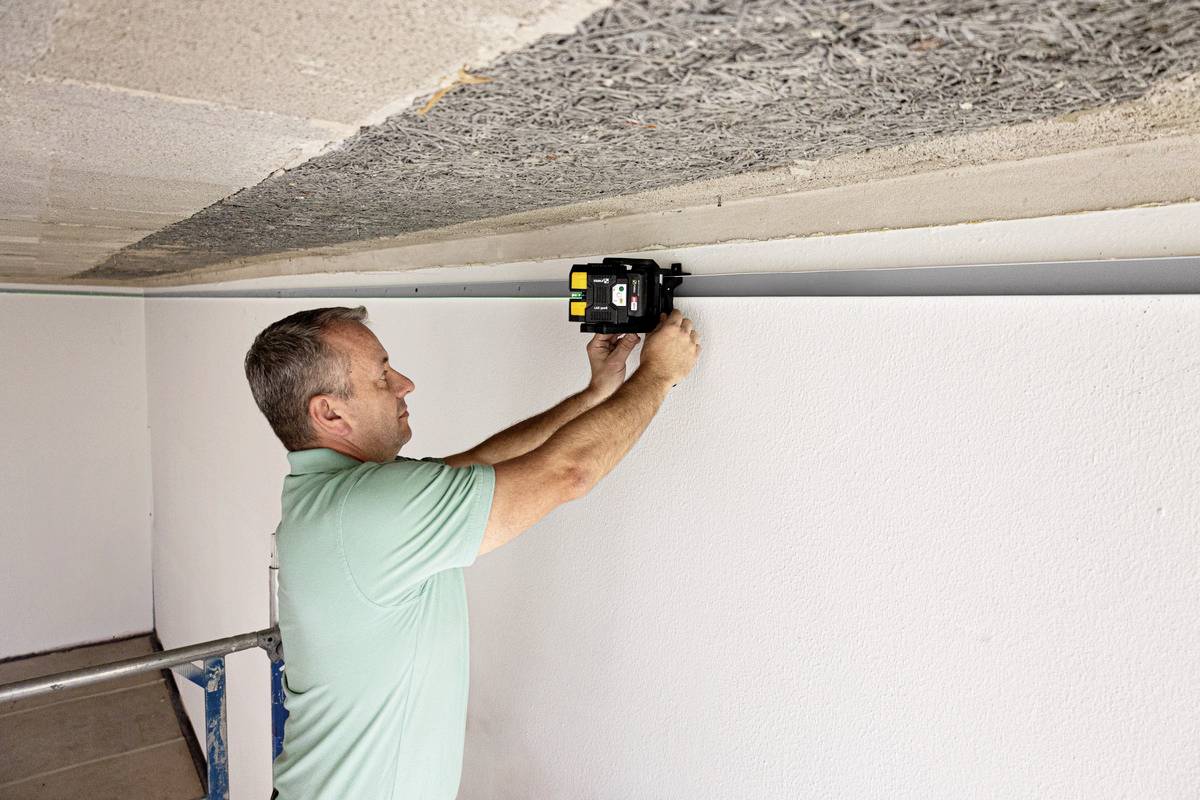

A man is using a laser tool on the ceiling to mark a straight line on the white wall, possibly for construction work.

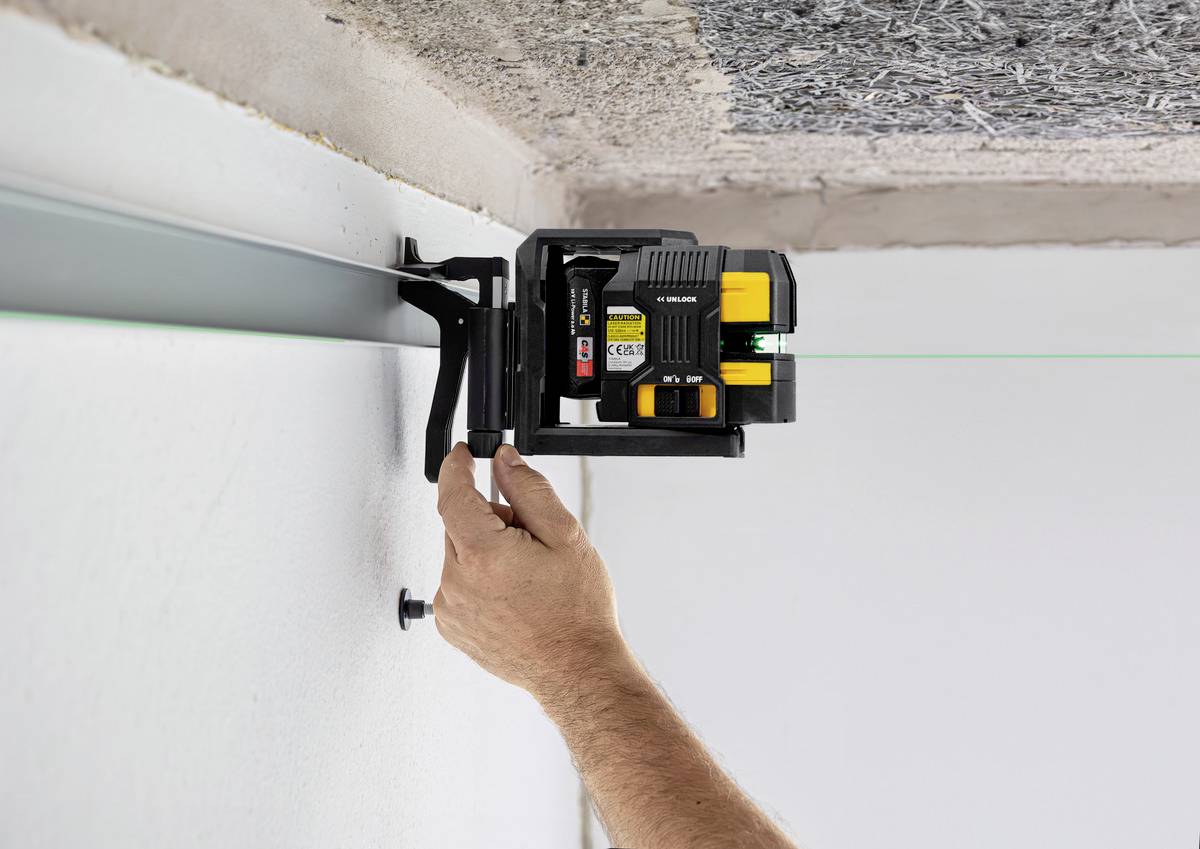

'A hand adjusts a laser spirit level on a ceiling to project a line for precise alignment.'

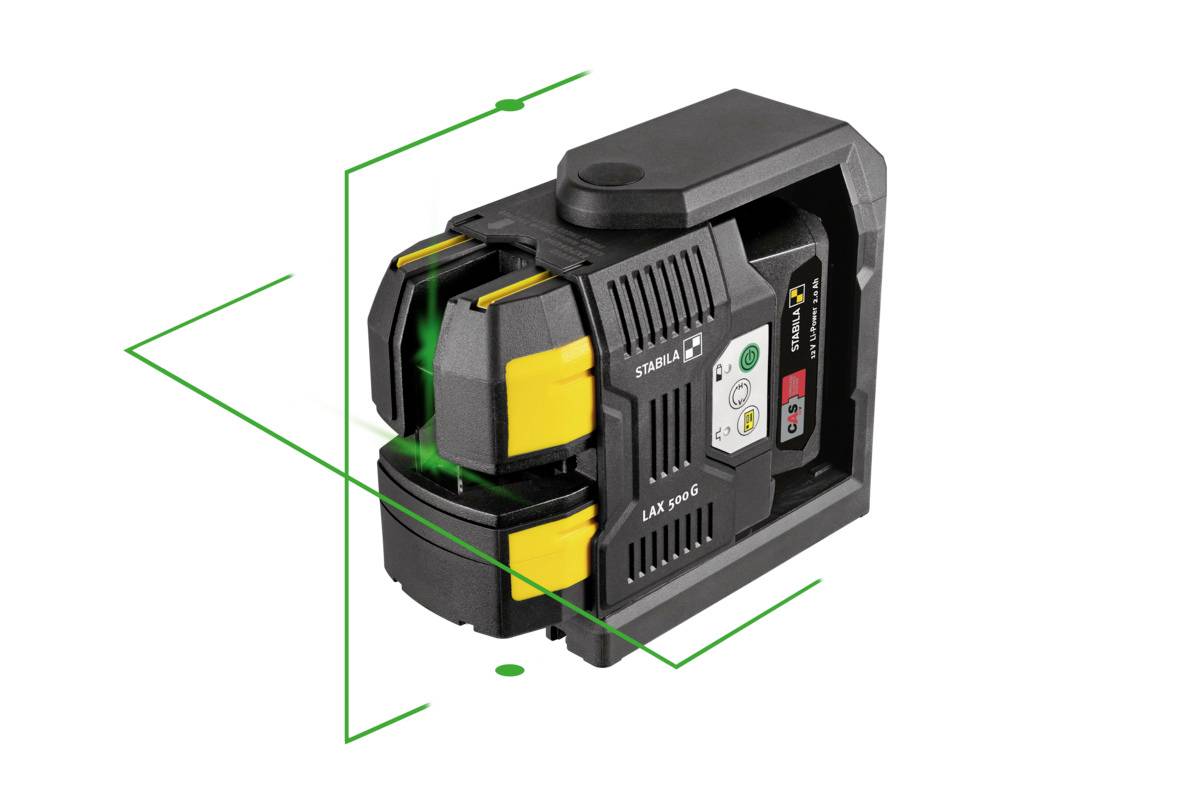

A green laser leveller projects lines at a right angle. The device has a black and yellow casing.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 535.00 / piece)

€ 535.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cross-line soldering laser LAX 500 G, 12-V system, 7-piece set, with battery and charger (EU)

CAS-12-V battery operated, self-leveling cross line-laser with soldering points for efficient working on the horizontal and vertical level
GREENBEAM technology: Working directly on sharp, highly visible lines – up to 40 m away
High power diodes: Vertical line covers almost the entire room.
Manual mode: Positioning of the laser in any inclination while the pendulum is locked.
Switchable pulse-modulated lines: Compatible for working with line receivers (available optionally).
Long operating time: CAS-battery 12 V LI-Power 2.0 Ah for a use of up to 20 hours.
Short charging time: Quick recharge in max. 45 minutes.
Protector system for laser optics: Shock-absorbing soft-grip sheath, rotating housing as well as protective slide prevent damages.
Pluggable laser base: Direct working on U-profiles.
Flexible positioning: 1/4"-thread, rare earth magnets and wall bracket.
Rugged carrying case
Protection class IP 54 (without battery).

Technical specifications

Product type: Cross line laser

Range (max.): 40 m

Accuracy (+/-): 0.3 mm/m

Laser category: 2

: Manufacturer's standards (no certificate)

Type: LAX 500 G

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3400654 Stabila LAX 500 G Cross line laser Range (max.): 40 m

User & Safety Instructions

User & Safety Instructions 3400654 Stabila LAX 500 G Cross line laser Range (max.): 40 m

Description

Discover the powerful LAX 500 G, the cross-line laser with solder points and modern battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology stands for pin-sharp lines, with which you can transmit heights or line-up to 40 m distance In the manual mode the laser can be positioned at any desired inclination and is versatile thanks to the clever set-accessories. The laser optics are best protected by the Protector system. Stabila – work efficiently!

This text is machine translated.

Features

GREENBEAM technology for extremely long and optimally visible laser lines. Many possible applications due to cross lines and solder points. High performance CAS-battery 12 V LI-Power 2.0 Ah. Effective protection of optic thanks to Protector system. Flexible positioning: 1/4"-thread, magnets, laser base, wall bracket.

Scope of delivery

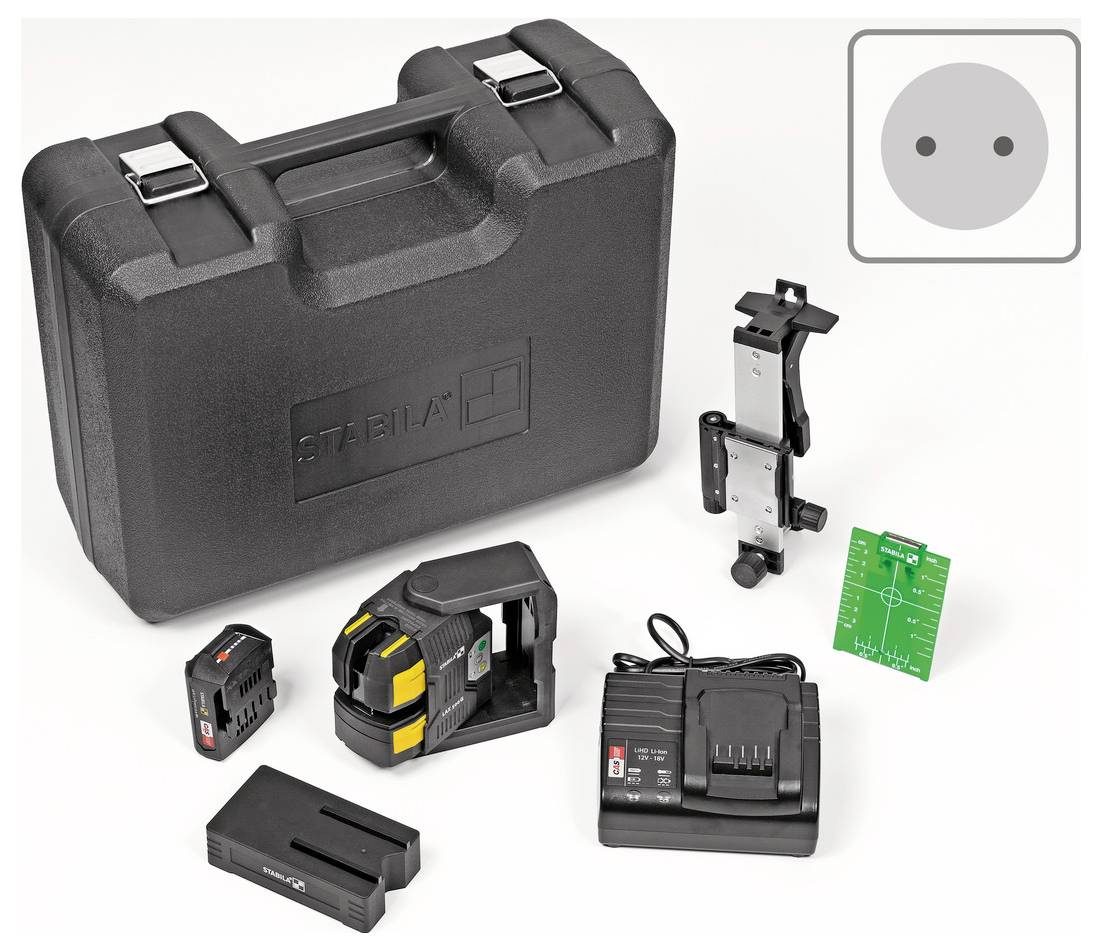

Cross-line soldering laser LAX 500 G, CAS battery 12 V LI-Power 2.0 Ah, CAS charger SC 30 (EU), laser base SLB 500, wall bracket SWB 10, destination plate, Carrying case
