Name: Stahlwille 730R/5 VDE 96550150 Torque wrench Calibrated to (ISO standards) 10 - 50 Nm
Brand: Stahlwille
SKU: 3013075
Price: 599 EUR
Availability: BackOrder

Red medical injection device with a digital display in the centre, two yellow buttons on the left and a yellow lever on the right.

A red insulin pen for administering insulin, with a display for dosage and yellow control buttons.

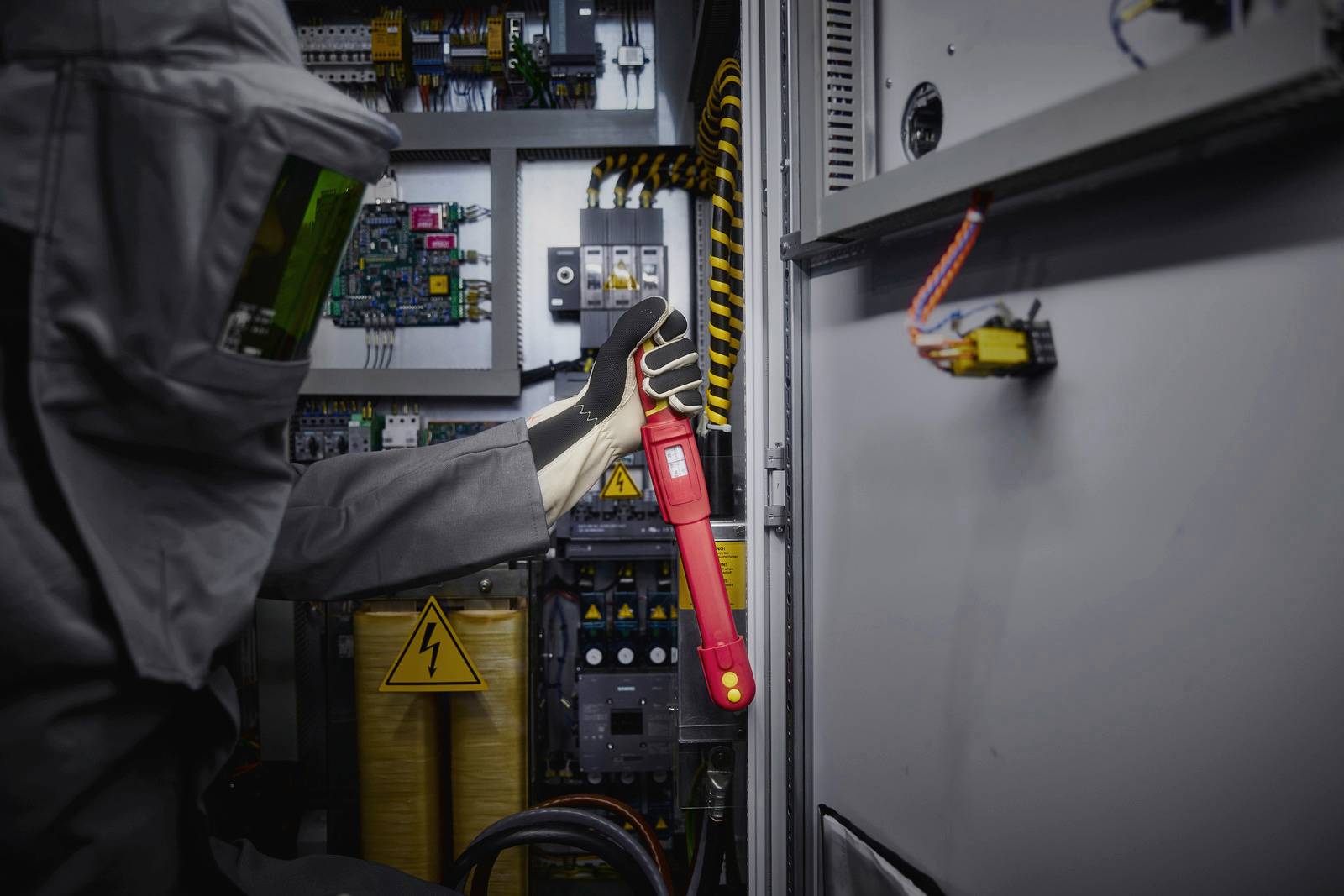

A person in protective clothing is working with an insulated tool on an electrical control cabinet, surrounded by warning signs.

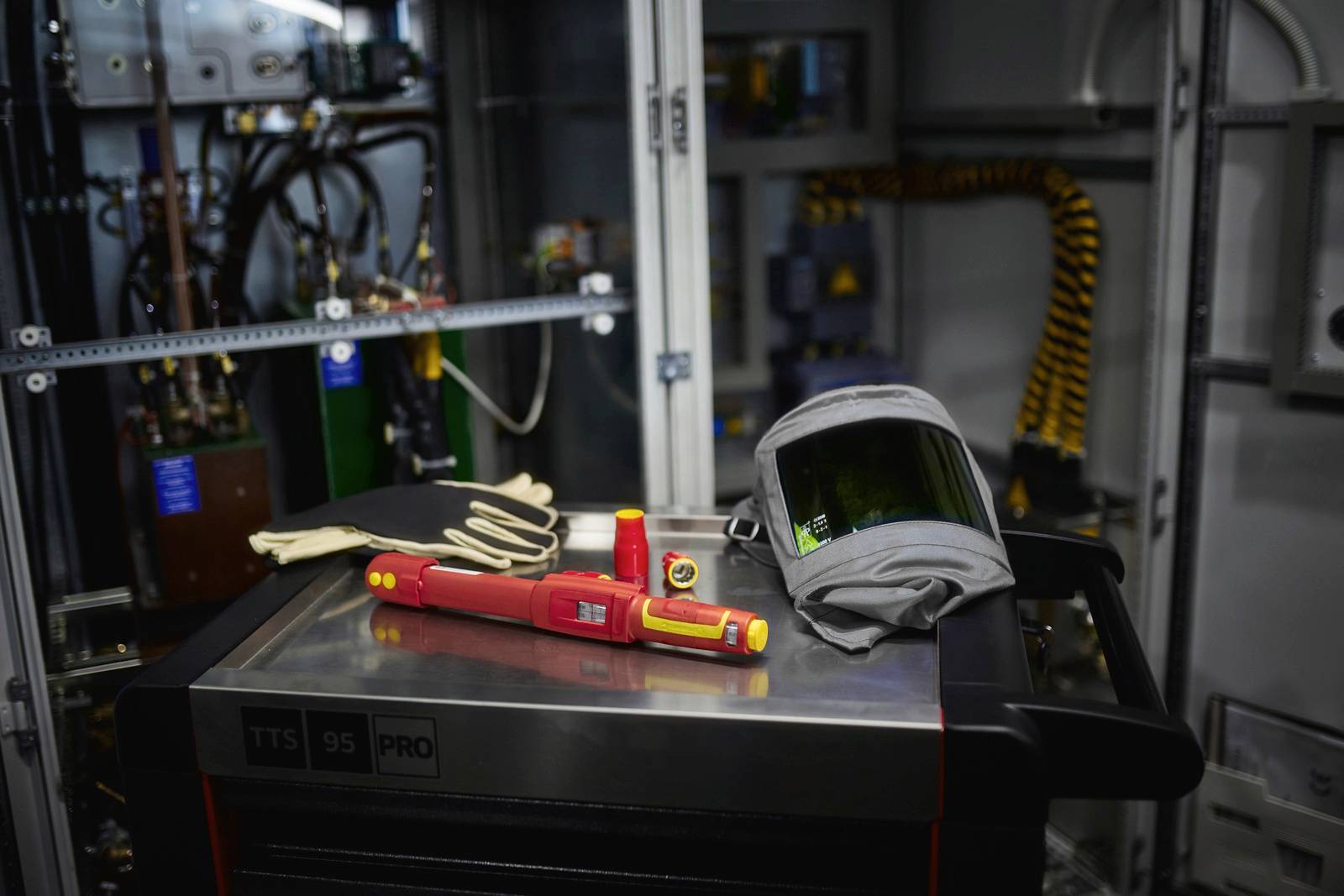

A welding helmet, gloves and tools are lying on a metal table in an industrial workshop environment.

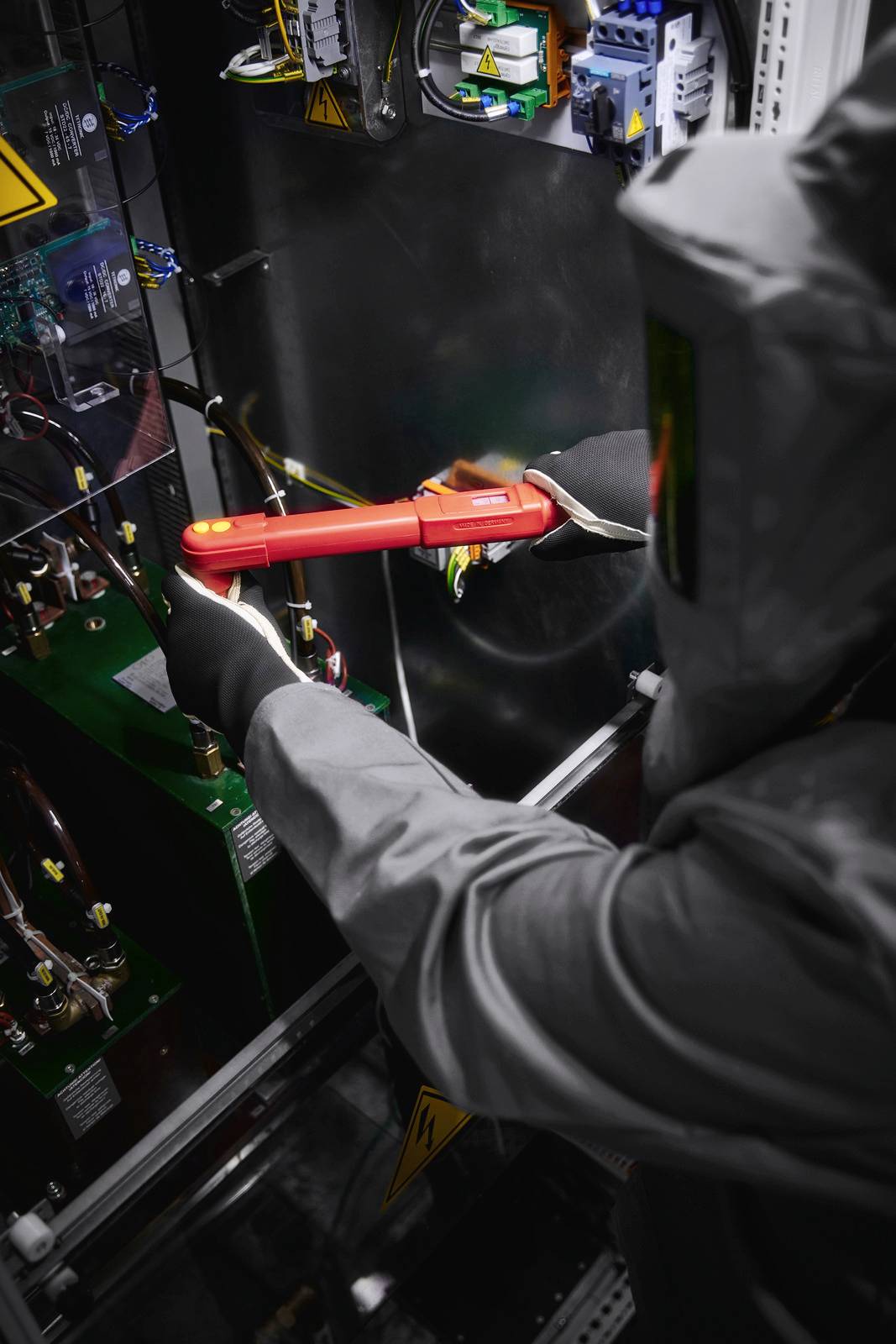

A person is checking electrical connections in a control cabinet using a voltage tester. Safety clothing is being worn.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 599.00 / piece)

€ 599.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VDE TORQUE WRENCH MANOSKOP® 730R/5 VDE 10-50 N·m

Technical specifications

b1:43 mm
b2 49.5 mm
h1 36 mm
h2 59.5 mm
L 390.5 mm
LF 308.5 mm
SF 28 mm
Size 5
Size Tool-intake square socket: 9 x 12 mm
Square drive 3/8" (10 mm)

Product type: Torque wrench

Features: Slipping

Downforce: 3/8" (10 mm)

Torque (min.): 10 Nm

Torque (max.): 50 Nm

Trigger accuracy: 3 %

Graduation: 0.25 Nm

DIN standard: DIN EN ISO 6789-2:2017

Weight: 1365 g

: ISO standards

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3013075 Stahlwille 730R/5 VDE 96550150 Torque wrench Calibrated to (ISO standards) 10 - 50 Nm

User & Safety Instructions

User & Safety Instructions 3013075 Stahlwille 730R/5 VDE 96550150 Torque wrench Calibrated to (ISO standards) 10 - 50 Nm

Description

Mechanically triggering torque wrench for controlled screw fitting. The special plastic cover of the MANOSKOP® 730R VDE offers reliable protection for safe and efficient working under voltage of up to 1000 volts. Low-wear triggering system with bending rod ensures permanently correct and safe measurement results. Independent adjustment of the key is possible without dismantling and re-testing of insulation. Change of plug-in ratchet without renewed insulation test.

This text is machine translated.

Features

Release with a double stop signal
With 3/8" plug-in ratchet
Replacement of 725QR VDE ratchet without re-testing of insulation
QuickRelease security lock
Quick, precise setting through Quick Select quick adjustment
Double insulation for VDE-compliant working under voltage up to 1000V (according to IEC 60900)
With insulated torque wrench sleeve made of fiberglass reinforced polyamide plastic
The cover is resistant to all liquids such as alkalis, fuels or oils
Very easy-to-read double scale with color differentiation of N
m/ft
lb
No reset to "0" is required, as the measuring element is loaded only when the load is applied
Low wear triggering mechanism
Re-adjust without dismantling and without re-testing the insulation
Calibration certificate according to DIN EN ISO 6789-2:2017
