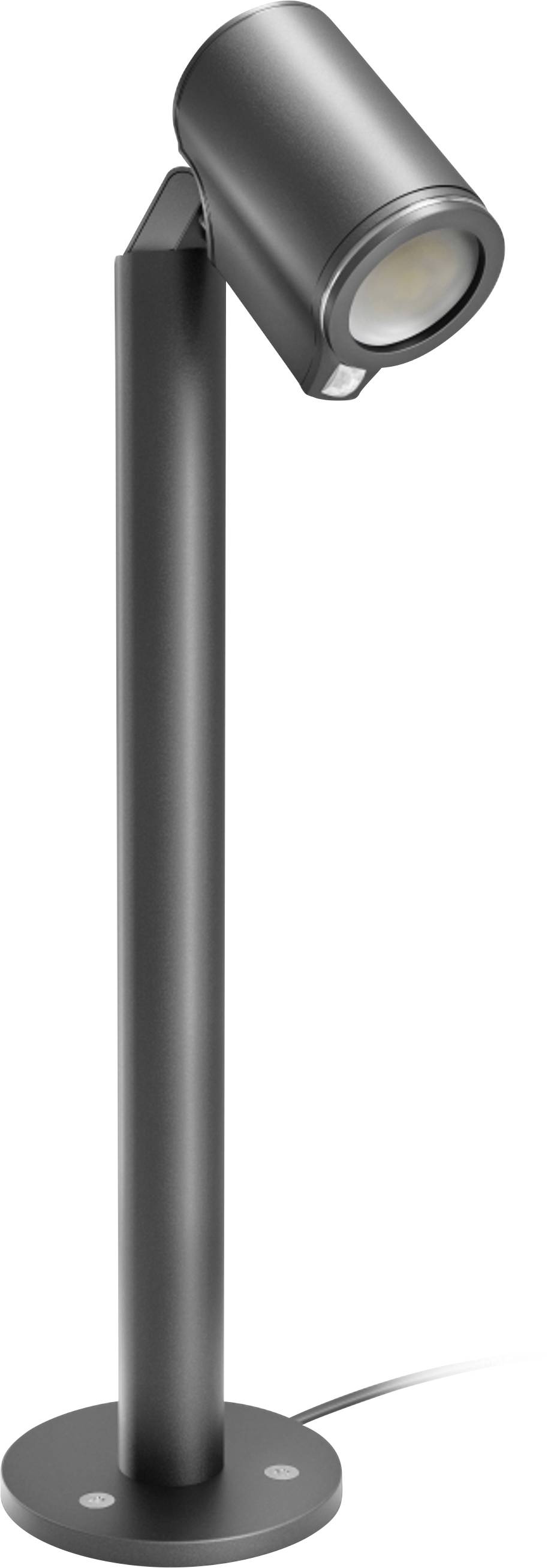

Steinel LED STRAHLER SPOT WAY SC 24V 089320 Outdoor floodlight (+ motion detector) 7.93 W Colours (LEDs): RGBWW
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Highlights & Details
Steinel LED Spot Way SC 24V, smart way lighting, motion detector, 16 MIO. Colours, plug & play

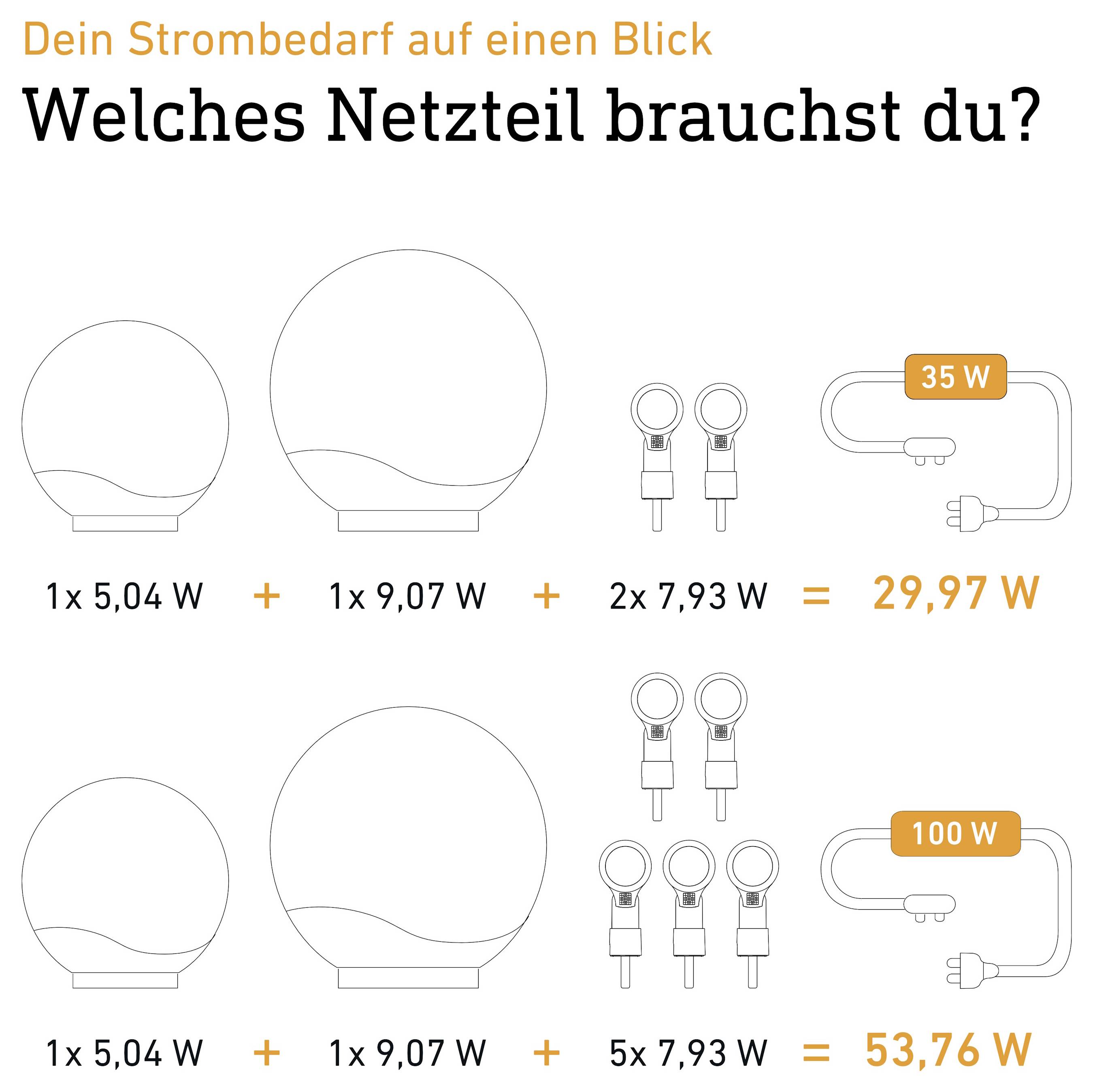

- Power= 7.93 W
- Total luminous flux= 363 lm
- Colour temperature= 4000 K
- RGBWW
Technical specifications
- Ambient temperature -20 to 40 °C.
- Twilight setting: 2 – 2000 lx (with teach-function)
- Basic light function is adjustable 10 – 100 % (time: 5 s - 60 min)
- Main light adjustable from 10 - 100 %
- Networking: Yes, via Bluetooth Mesh
- LED life: 60000 hours (L70B50 at 25°)
- Radial range: R = 2 m (3 m²)
- Product type
Outdoor floodlight (+ motion detector)
- Operating voltage
24 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
7.93 W
7.93 W
- Energy consumption
8 kWh/1000h
4000 K
- Colour
RGBWW
363 lm
- Total luminous flux
363 lm
- PIR detection angle (horizontal)
90°
- Coverage max. (width)
10 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
60 min
- Light features
App-enabled
Dimmable
- Swivel range (max.)
90°
- Protection class
III
IP65
- Factory colour
Anthracite
- Material
Aluminium
PC
- Weight
1.02 kg
- Dim
(L x W x H) 140 x 226 x 572 mm
- Feed length
0.65 m
n.rel.
- Type
External Spot (plug & play)
- Colour rendering index
R9 60
- Light bulb included
Yes
- Width
226 mm
- Height
572 mm
- Length
140 mm
- Depth
140 mm
- Light duration (max.)
60 h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3742898 Steinel LED STRAHLER SPOT WAY SC 24V 089320 Outdoor floodlight (+ motion detector) 7.93 W Colours (LEDs): RGBWW
User & Safety Instructions
User & Safety Instructions 3742898 Steinel LED STRAHLER SPOT WAY SC 24V 089320 Outdoor floodlight (+ motion detector) 7.93 W Colours (LEDs): RGBWW
Warranty Terms
Warranty Terms 3742898 Steinel LED STRAHLER SPOT WAY SC 24V 089320 Outdoor floodlight (+ motion detector) 7.93 W Colours (LEDs): RGBWW
Description

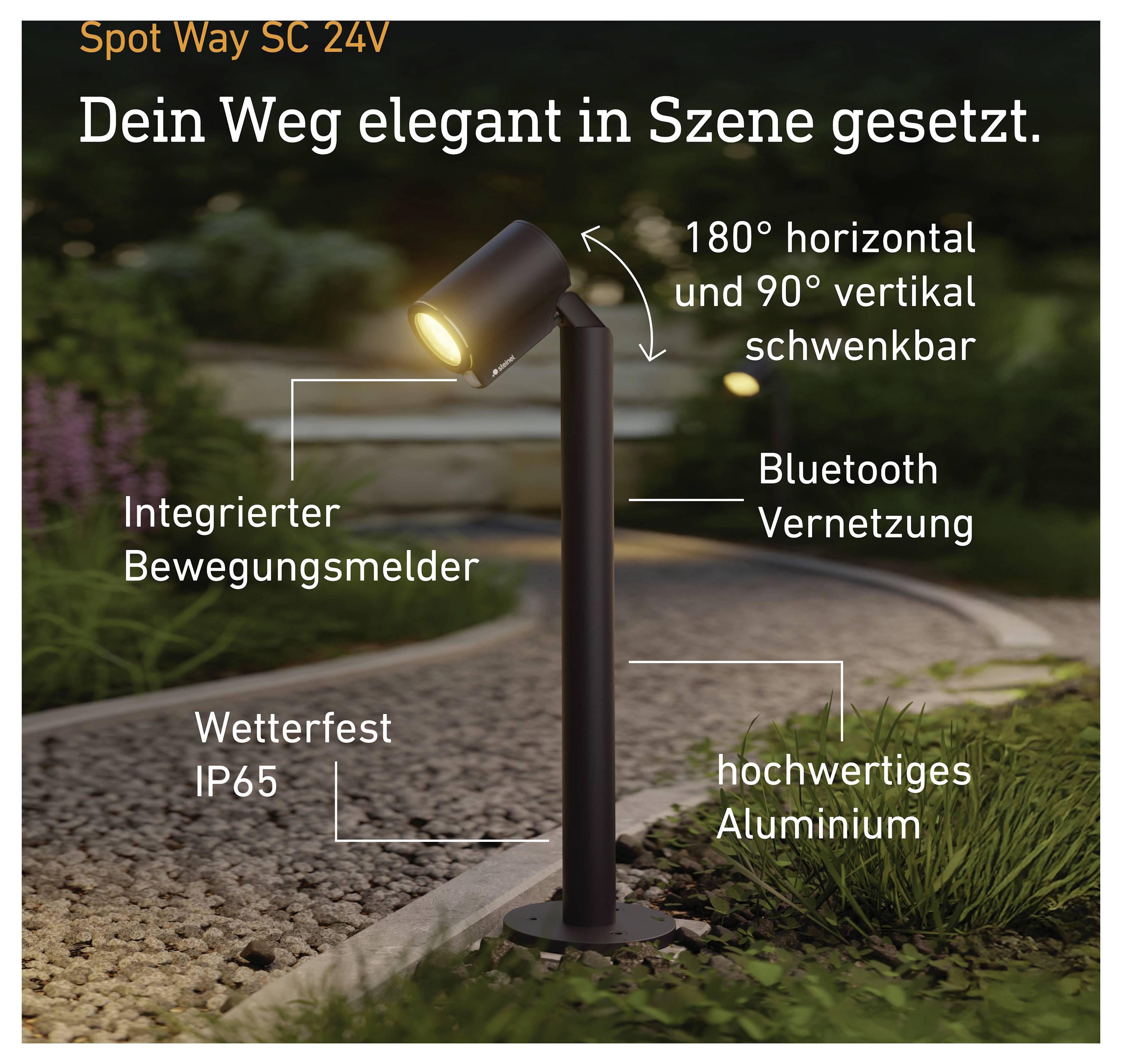

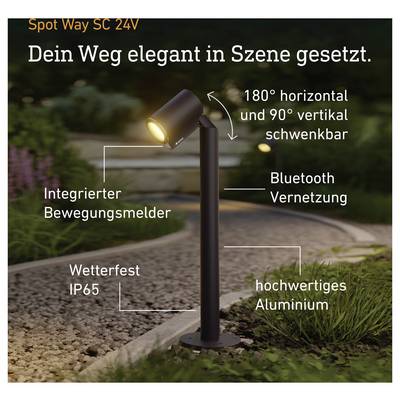

Stylish lighting. For paths, beds and terraces.

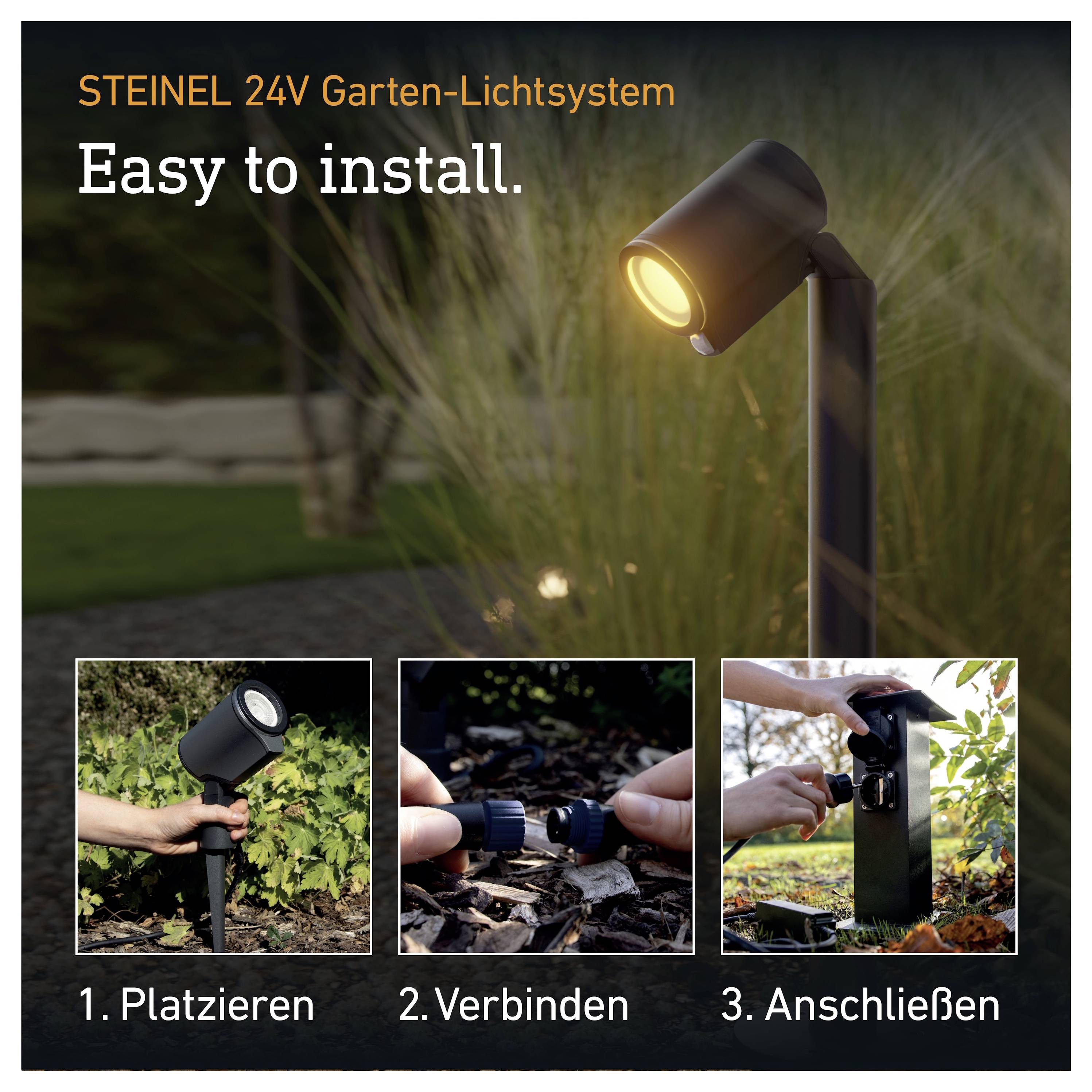

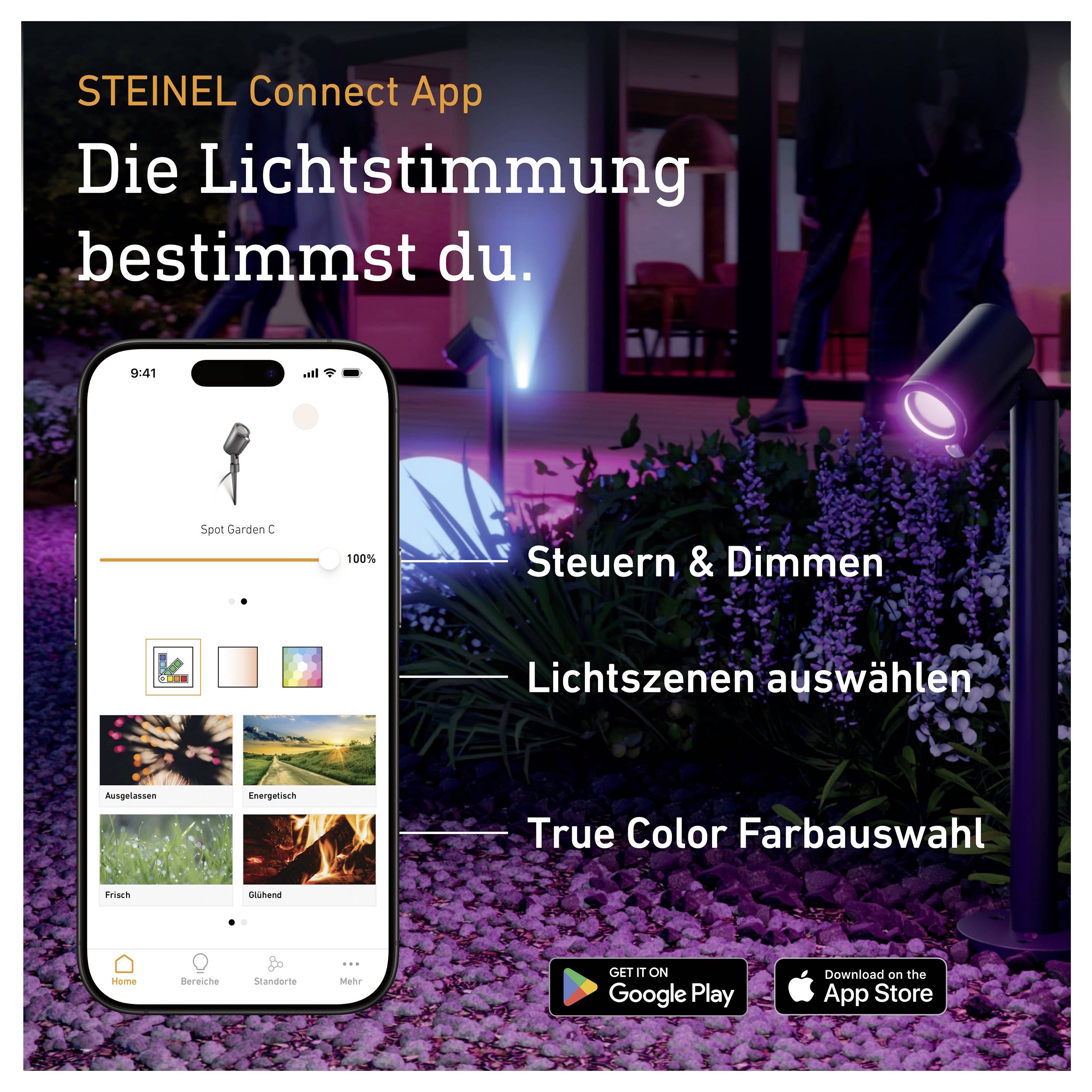

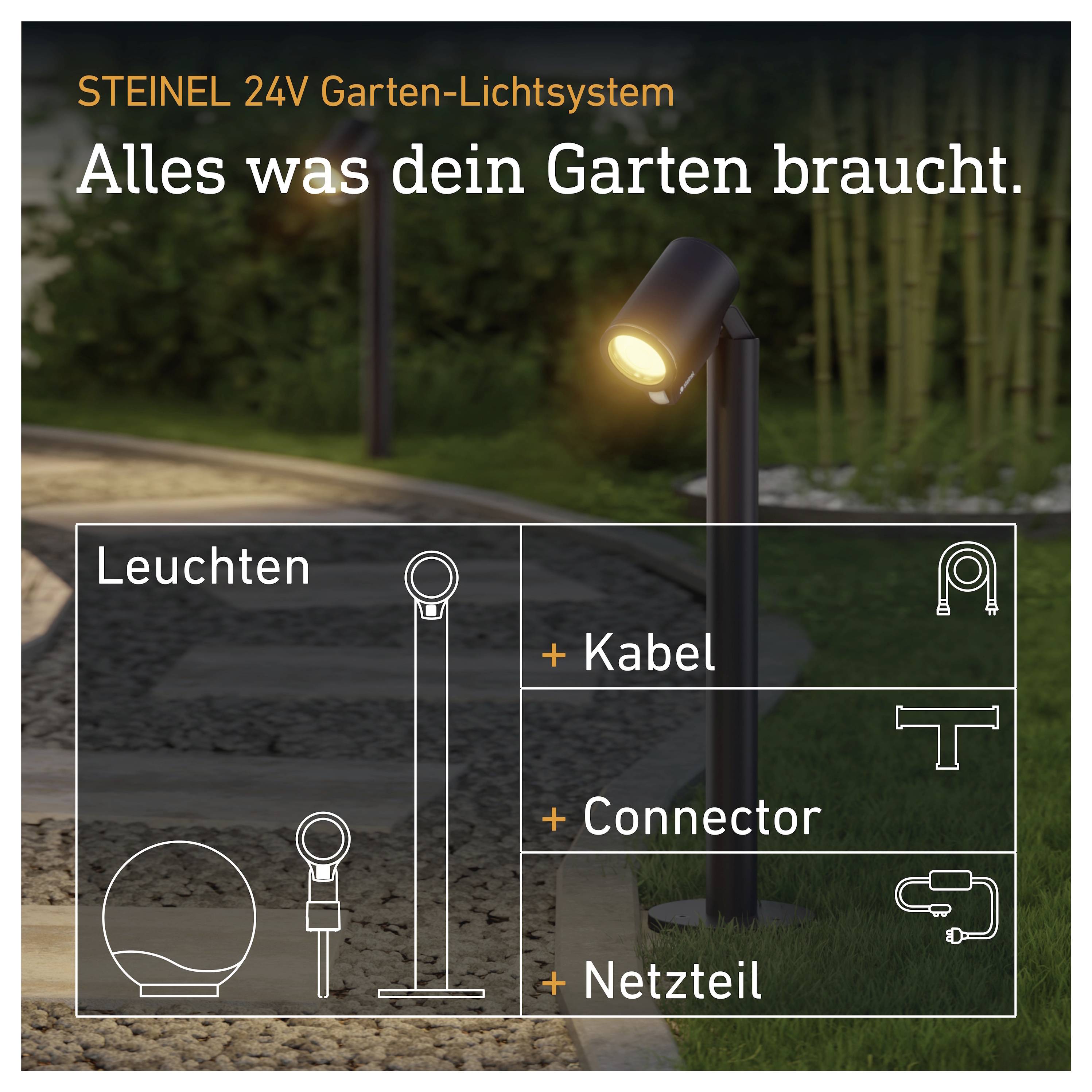

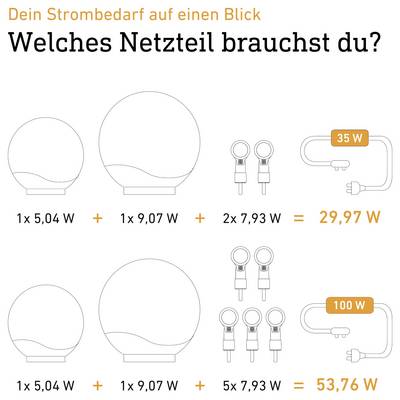

The perfect solution for impressive and functional lighting of paths around the house. As part of the 24 V garden lighting system, the spotlight "Spot Way 24V" convinces with its sleek, modern design and provides targeted, atmospheric light exactly where you need it. Thanks to Plug & Play the installation is done in a jiffy. Warm white light or color accents on request – dark garden paths, beds or terrace areas are elegantly and safely illuminated (363 lm). Available as "Spot Way C 24V" with brightness sensor and as "Spot Way SC 24V" with innovative infrared sensor (90° recording) and a range of 10 m. controlled and individually adjusted everything is comfortably via the Steinel Connect APP - from time and twilight settings to light groups and switch-on/off times. Power supply unit is not included in the delivery.
This text is machine translated.
The perfect solution for impressive and functional lighting of paths around the house. As part of the 24 V garden lighting system, the spotlight "Spot Way 24V" convinces with its sleek, modern design and provides targeted, atmospheric light exactly where you need it. Thanks to Plug & Play the installation is done in a jiffy. Warm white light or color accents on request – dark garden paths, beds or terrace areas are elegantly and safely illuminated (363 lm). Available as "Spot Way C 24V" with brightness sensor and as "Spot Way SC 24V" with innovative infrared sensor (90° recording) and a range of 10 m. controlled and individually adjusted everything is comfortably via the Steinel Connect APP - from time and twilight settings to light groups and switch-on/off times. Power supply unit is not included in the delivery.
This text is machine translated.
Features
- Motion detector
- twilight sensor
- APP time switch function
Scope of delivery
- 1x spotlight "Spot way SC 24V"
- Fitting Material
System requirements
- IOS/Android, Bluetooth
