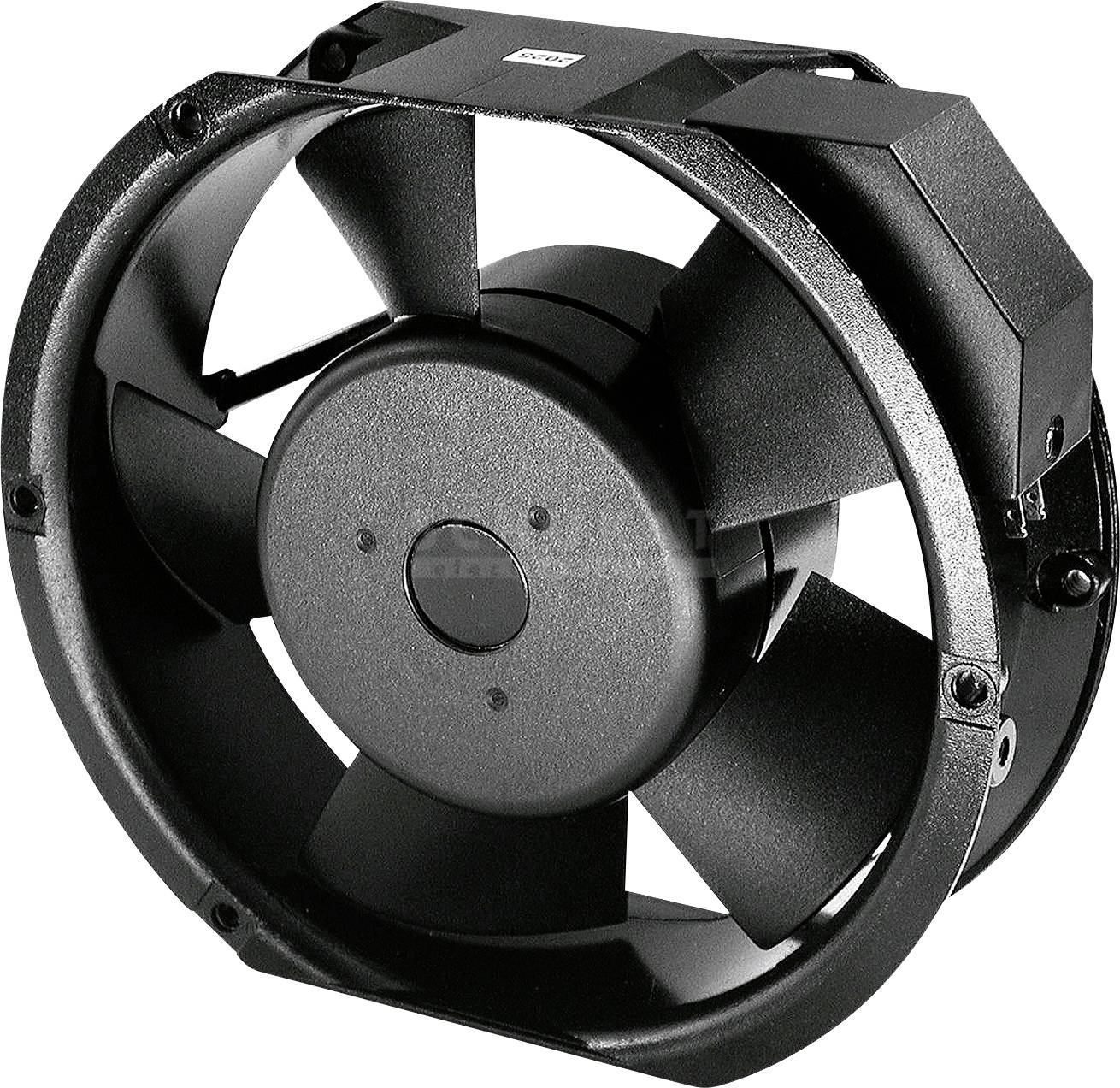

Sunon A2175HBL-TC Axial fan 230 V AC 344.82 m³/h (L x W x H) 172 x 151 x 51 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
25 W
Type of bearing
Ball bearing
Air flow rate
344.82 m³/h
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Axial fan
- Type
A2175HBL-TC
- Nominal voltage
230 V AC
- Max. operating voltage
230 V
- Operating voltage
230 V (max)
- Max. current consumption
110 mA
25 W
- Type of bearing
Ball bearing
- Rotational speed
2800 U/min
- Noise emission (max.)
51 dB
- Air flow rate
344.82 m³/h
- Connection
Type C CEE 7/16 plug 2.8 mm
- Material
Thermoplastic
PBT
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
172 mm
- Width
151 mm
- Height
51 mm
- Dim
(L x W x H) 172 x 151 x 51 mm
Documents & Downloads
Datasheet
Datasheet 2358037 Sunon A2175HBL-TC Axial fan 230 V AC 344.82 m³/h (L x W x H) 172 x 151 x 51 mm
