Sunon CF4113LBL-000U-ABD Axial fan 230 V AC 109.22 m³/h (L x W x H) 120 x 120 x 38 mm

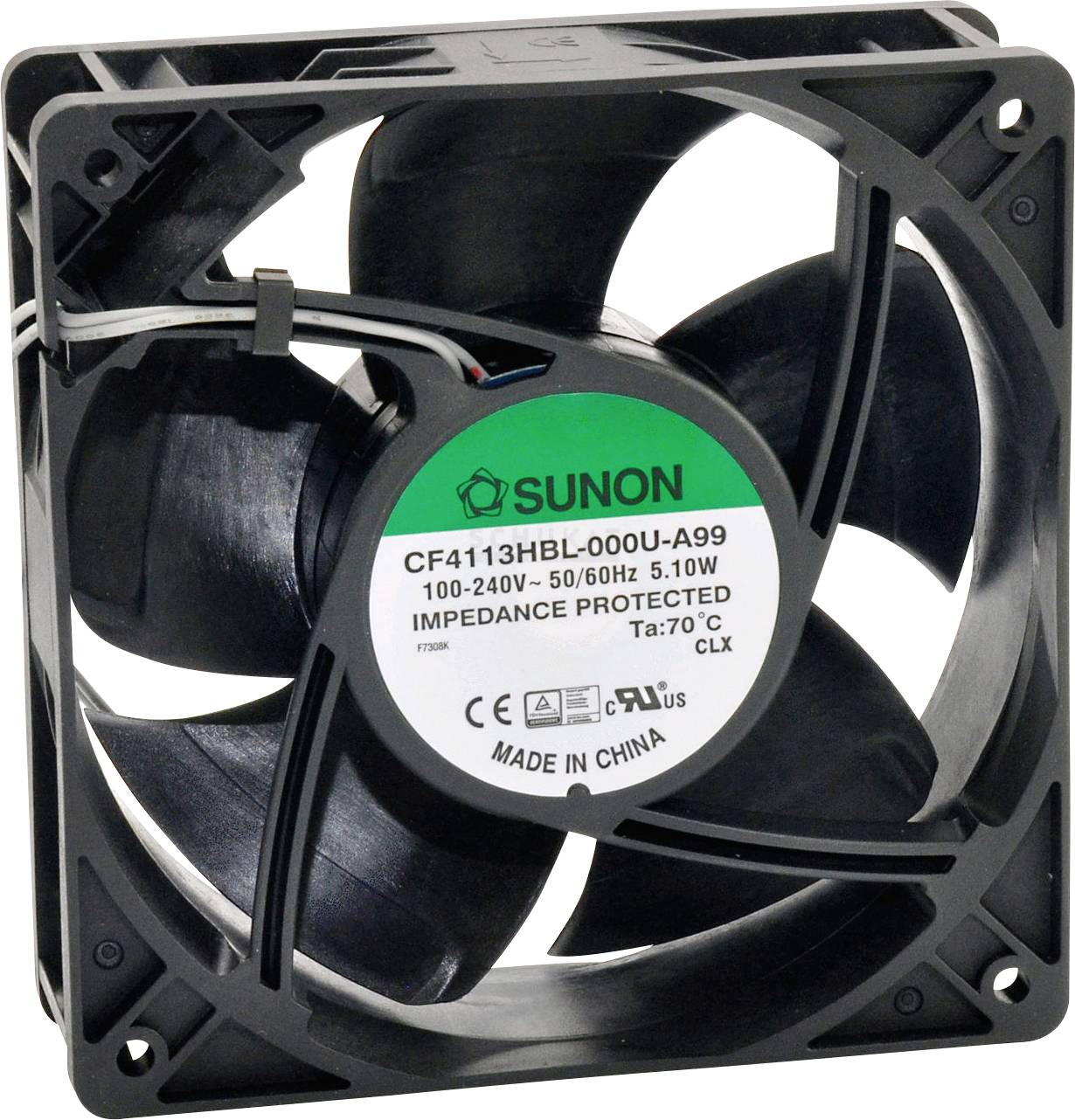

A black fan with five blades. In the centre, a sticker with the inscription 'CF4113HBL-000U-A99'. Voltage 100-240V.
Image similar
Product type
Axial fan
Nominal voltage
230 V AC
Power
1.8 W
Type of bearing
Ball bearing
Air flow rate
109.22 m³/h
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 35.99 / piece)
€ 35.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Axial fan

Type

CF4113LBL-000U-ABD

Nominal voltage

230 V AC

Min. operating voltage

110 V

Max. operating voltage

230 V

Operating voltage

110 - 230 V

Max. current consumption

37 mA

1.8 W

Type of bearing

Ball bearing

Rotational speed

2000 U/min

Noise emission (max.)

31.4 dB

Air flow rate

109.22 m³/h

Connection

Open end cable

Cable length

0.31 m

Material

Thermoplastic

PBT

Min. temperature

-25 °C

Max. temperature

+70 °C

Length

120 mm

Width

120 mm

Height

38 mm

Dim

(L x W x H) 120 x 120 x 38 mm

Documents & Downloads

Datasheet

Datasheet 2357970 Sunon CF4113LBL-000U-ABD Axial fan 230 V AC 109.22 m³/h (L x W x H) 120 x 120 x 38 mm

User & Safety Instructions

User & Safety Instructions 2357970 Sunon CF4113LBL-000U-ABD Axial fan 230 V AC 109.22 m³/h (L x W x H) 120 x 120 x 38 mm
