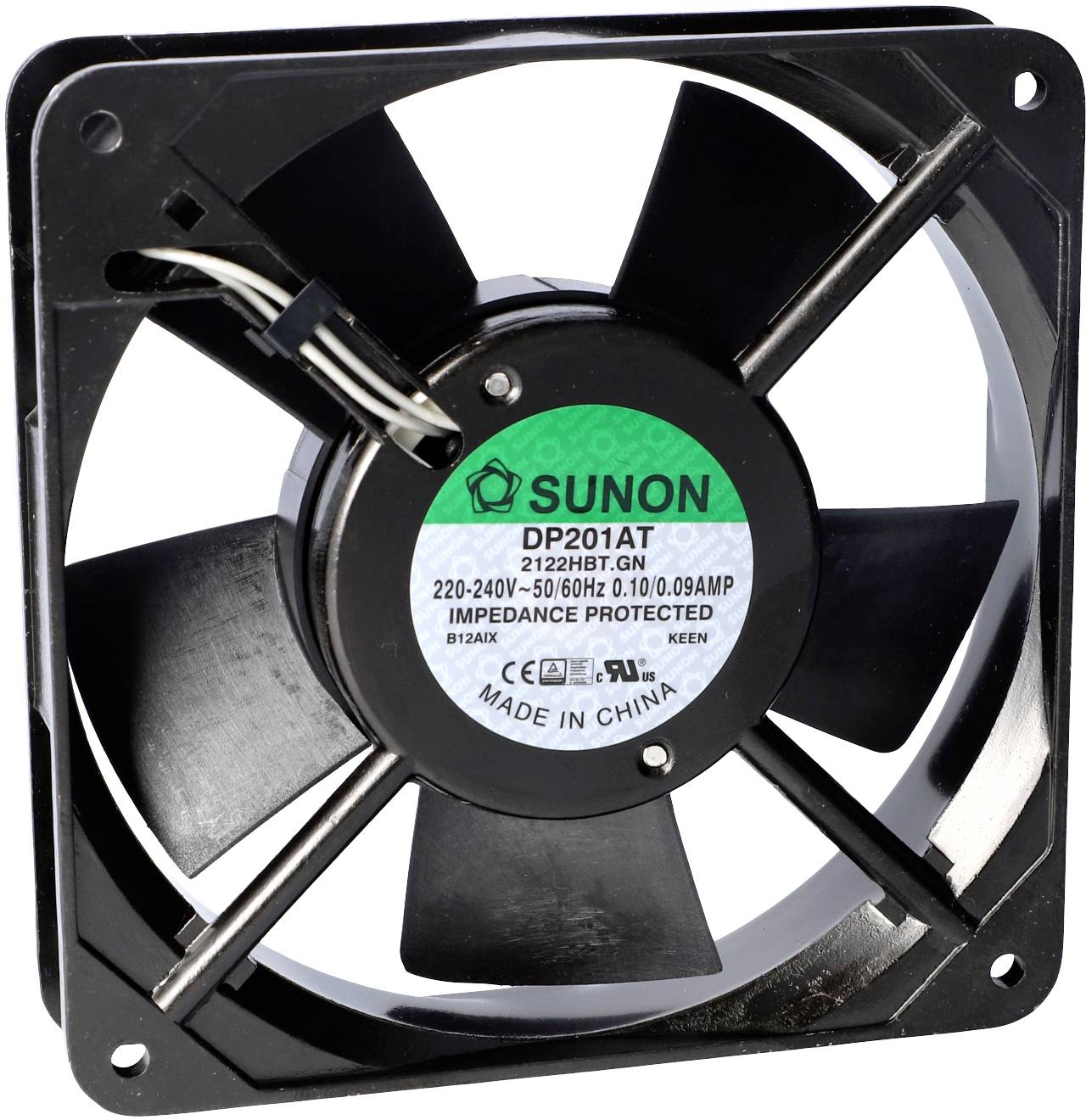

Sunon DP201AT-2122HBL.GN Axial fan 230 V AC 112.1 m³/h (L x W x H) 25 x 120 x 120 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
18 W
Type of bearing
Ball bearing
Air flow rate
112.1 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Technical specifications
- Connection type: Wire AWG24, UL3266, stripped, tinned
- Product type
Axial fan
- Type
DP201AT-2122HBL.GN
- Nominal voltage
230 V AC
- Min. operating voltage
185 V AC
- Max. operating voltage
245 V AC
- Operating voltage
185 - 245 V AC
- Max. current consumption
0.09 A
18 W
- Type of bearing
Ball bearing
- Rotational speed
2150 U/min
- Noise emission (max.)
44 dB
- Air flow rate
112.1 m³/h
- Connection
Braid
- Pressure (max.)
34.86 Pa
- Factory colour
Black
- Material
Thermoplastic
- Weight
356.25 g
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
25 mm
- Width
120 mm
- Height
120 mm
- Dim
(L x W x H) 25 x 120 x 120 mm
Documents & Downloads
Datasheet
Datasheet 2992651 Sunon DP201AT-2122HBL.GN Axial fan 230 V AC 112.1 m³/h (L x W x H) 25 x 120 x 120 mm
User & Safety Instructions
User & Safety Instructions 2992651 Sunon DP201AT-2122HBL.GN Axial fan 230 V AC 112.1 m³/h (L x W x H) 25 x 120 x 120 mm
