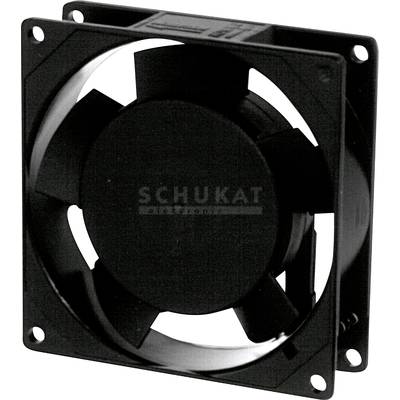

Sunon SF23092A2092HBL Axial fan 230 V AC 50.96 m³/h (L x W x H) 92 x 92 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
14.5 W
Type of bearing
Ball bearing
Air flow rate
50.96 m³/h
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Product type
Axial fan
- Type
SF23092A2092HBL
- Nominal voltage
230 V AC
- Max. operating voltage
230 V
- Operating voltage
230 V (max)
- Max. current consumption
70 mA
14.5 W
- Type of bearing
Ball bearing
- Rotational speed
2350 U/min
- Noise emission (max.)
37 dB
- Air flow rate
50.96 m³/h
- Connection
Open end cable
- Material
Thermoplastic
PBT
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
92 mm
- Width
92 mm
- Height
25 mm
- Dim
(L x W x H) 92 x 92 x 25 mm
Documents & Downloads
Datasheet
Datasheet 2358040 Sunon SF23092A2092HBL Axial fan 230 V AC 50.96 m³/h (L x W x H) 92 x 92 x 25 mm
