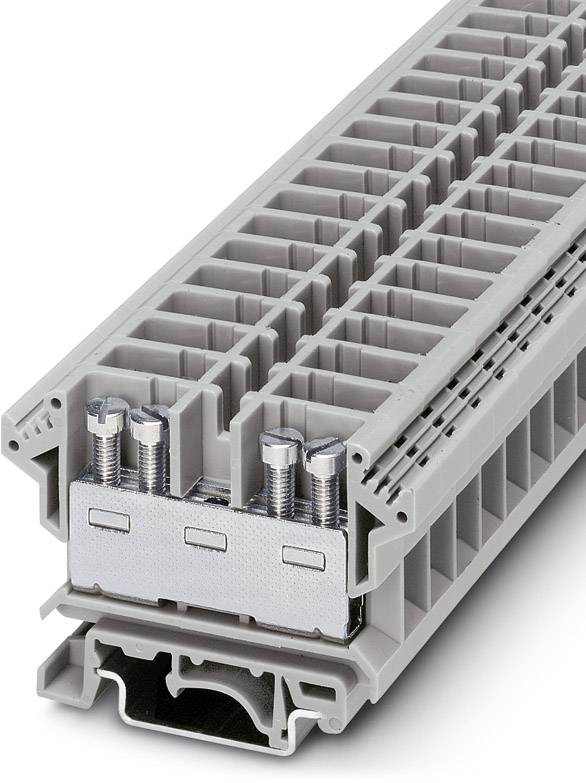

Switchable terminal block URK-ND 2 0701095 Phoenix Contact
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 11.58 / piece)
€ 579.00
incl. VAT
Only 7 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
800 V
- Stripping length (max.)
15 mm
- Manufacturer part #
0701095
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
URK-ND 2
- Dim
(L x W x H) 64 x 10.2 x 43.5 mm
- Width
10.2 mm
- Height
43.5 mm
- Length
64 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565049 Switchable terminal block URK-ND 2 0701095 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565049 Switchable terminal block URK-ND 2 0701095 Phoenix Contact
Description
Switchable terminal block, Connection method: Screw connection, Cross section: 0.5 mm² -16 mm² , AWG: 20 - 8, Width: 10.2 mm, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: gray
