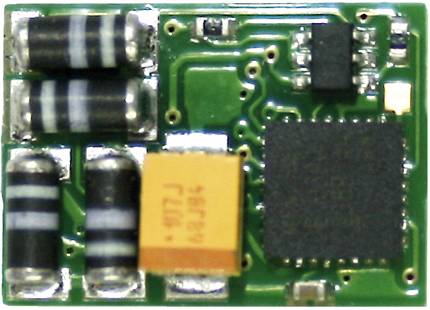

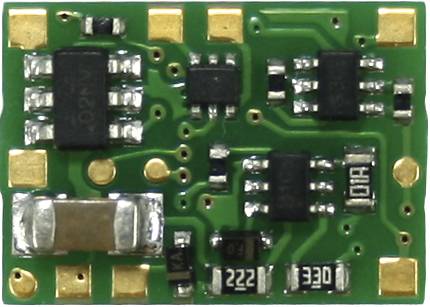

TAMS Elektronik 42-01180-01 Decoder Module, w/o cable, w/o connector
EAN:
Part number:
Item no:
Number
Total (€ 17.99 / piece)
€ 17.99
incl. VAT
14-day return policy included
Highlights & Details
Function decoder FD-R Basic.3
- 4 function outputs
- Function mapping according to RCN-227
- Recommended for all nominal sizes
Technical specifications
- Product type
Decoder
- Decoder manufacturer
Tams
- Digital format
MM
DCC
- Decoder type
Module
w/o cable
w/o connector
- Selectable effects
Dimmer
Flashing
Kicks
Reverse lamp
Analogue programming
- No. of outputs
4 x
- No. of switch modes
4
- Address range
1 - 255/10239
- Speed levels
14, 28 oder 128
- Current at outputs (max.)
300 mA
- Max. total current
800 mA
- Length
12.5 mm
- Width
9.5 mm
- Height
3.3 mm
- Age category
15 years and over
- Dim
(L x W x H) 12.5 x 9.5 x 3.3 mm
- Type
FD-R basic.3 without connection cable
- Manufacturer part #
42-01180-01
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2378020 TAMS Elektronik 42-01180-01 Decoder Module, w/o cable, w/o connector
Description
Small function decoder with 4 outputs, e.g. for switching the direction-dependant lighting and the interior lighting of control wagons.
Effects of the switching outputs:
Direction-dependant switching
Locomotor light
Flashing and alternating flashing, flashing frequency separately adjustable for each output
Inverted switching
Dim
Kicking
Programming for consist operation
Programming for analogue operation
This text is machine translated.
Effects of the switching outputs:
Direction-dependant switching
Locomotor light
Flashing and alternating flashing, flashing frequency separately adjustable for each output
Inverted switching
Dim
Kicking
Programming for consist operation
Programming for analogue operation
This text is machine translated.
Features
- Recommended for all nominal sizes
- 4 function outputs
- Function mapping according to RCN-227
- Formats DCC + MM
- Programming: DCC: CVS, POM | MM: Register
- Address range: DCC: 10,239 | MM: 255
- Number of speed settings (DCC): 14, 28 or 128
- With RailCom
- Automatic analogueue detection
- Power supply: 12 – 24 V digital voltage or max. 18 V analogueue DC voltage
- Function mapping according to RCN-227
- F-KEYS: DCC: F0 - F28 | MM: F0 - F4
- Effects of the switching outputs: Invert, flash, dim, kick
- Connection of the support capacitor: (100-470 µF, min. 25 V)
- Max. Current per output [mA]: AUX1-2: 300, AUX3-4: 100
Scope of delivery
- FD-R Basic.3
- User manual.
