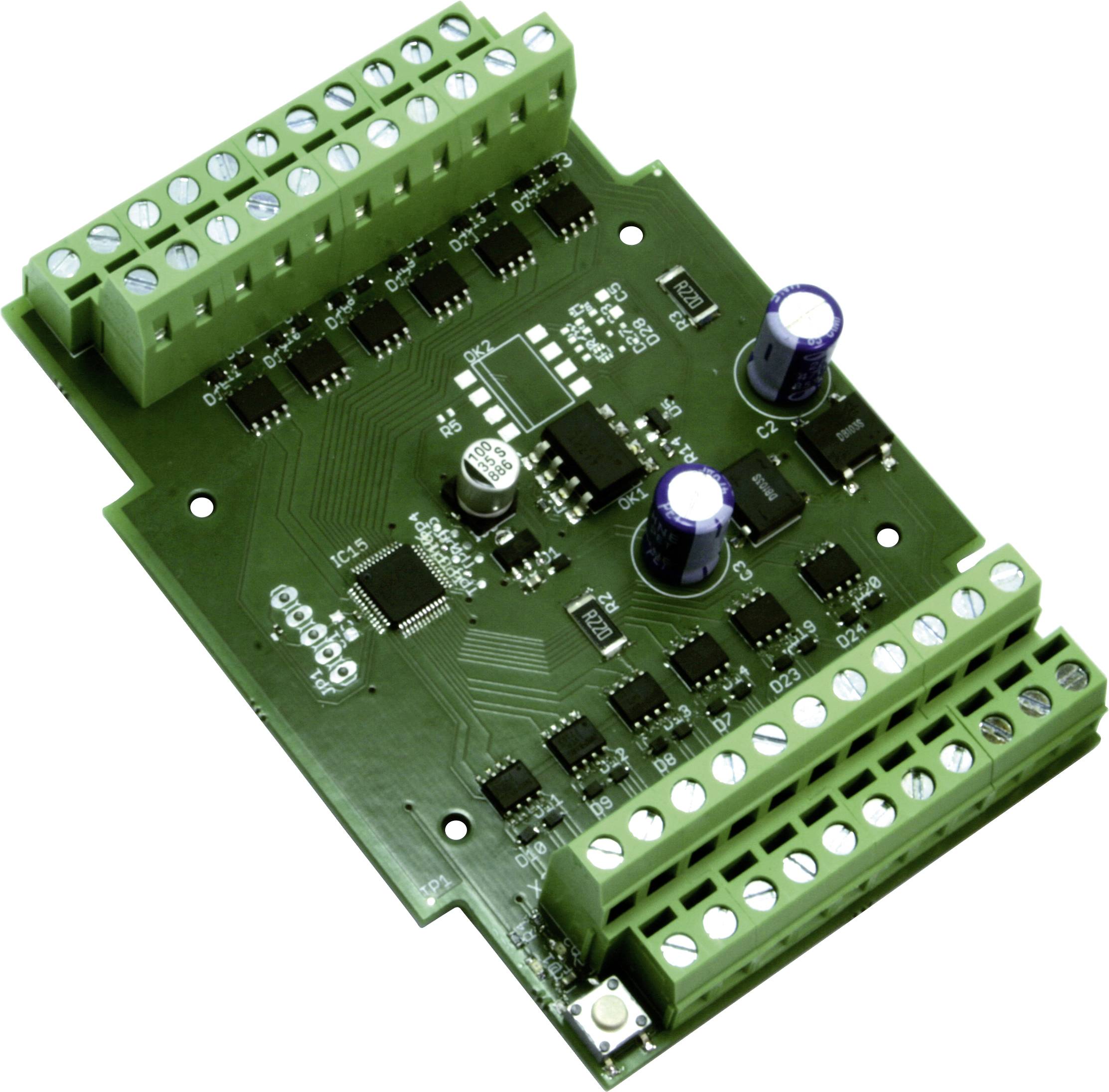

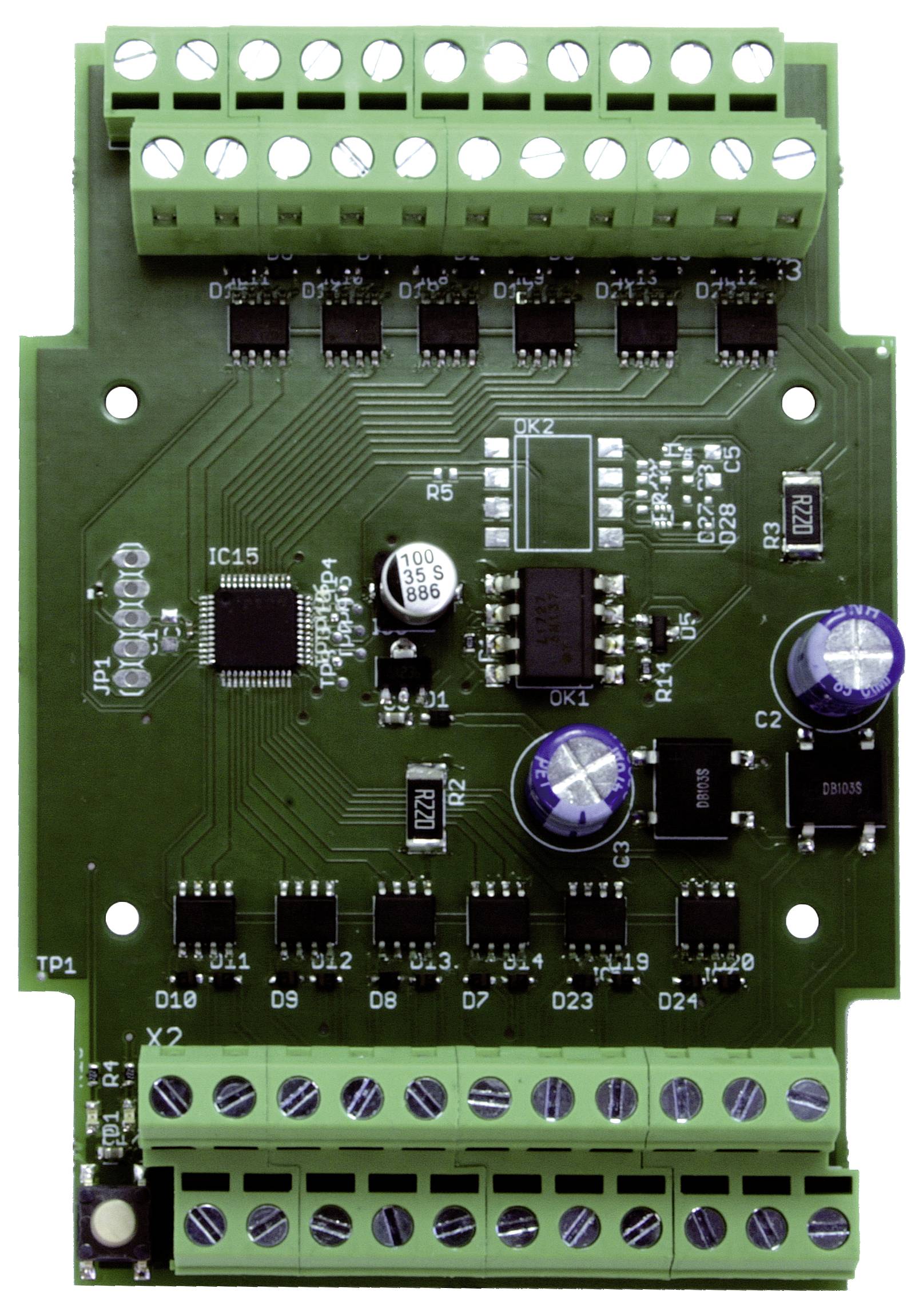

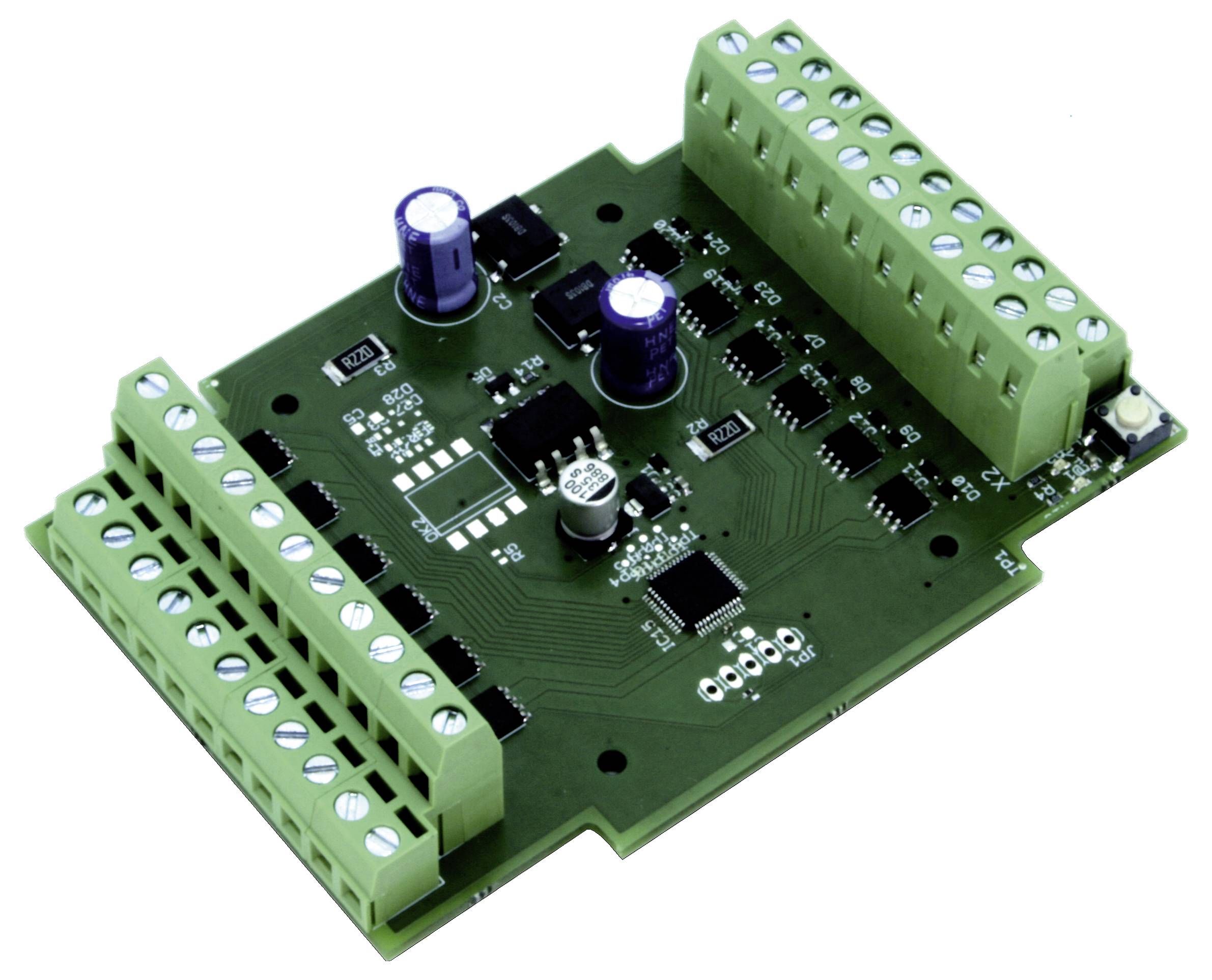

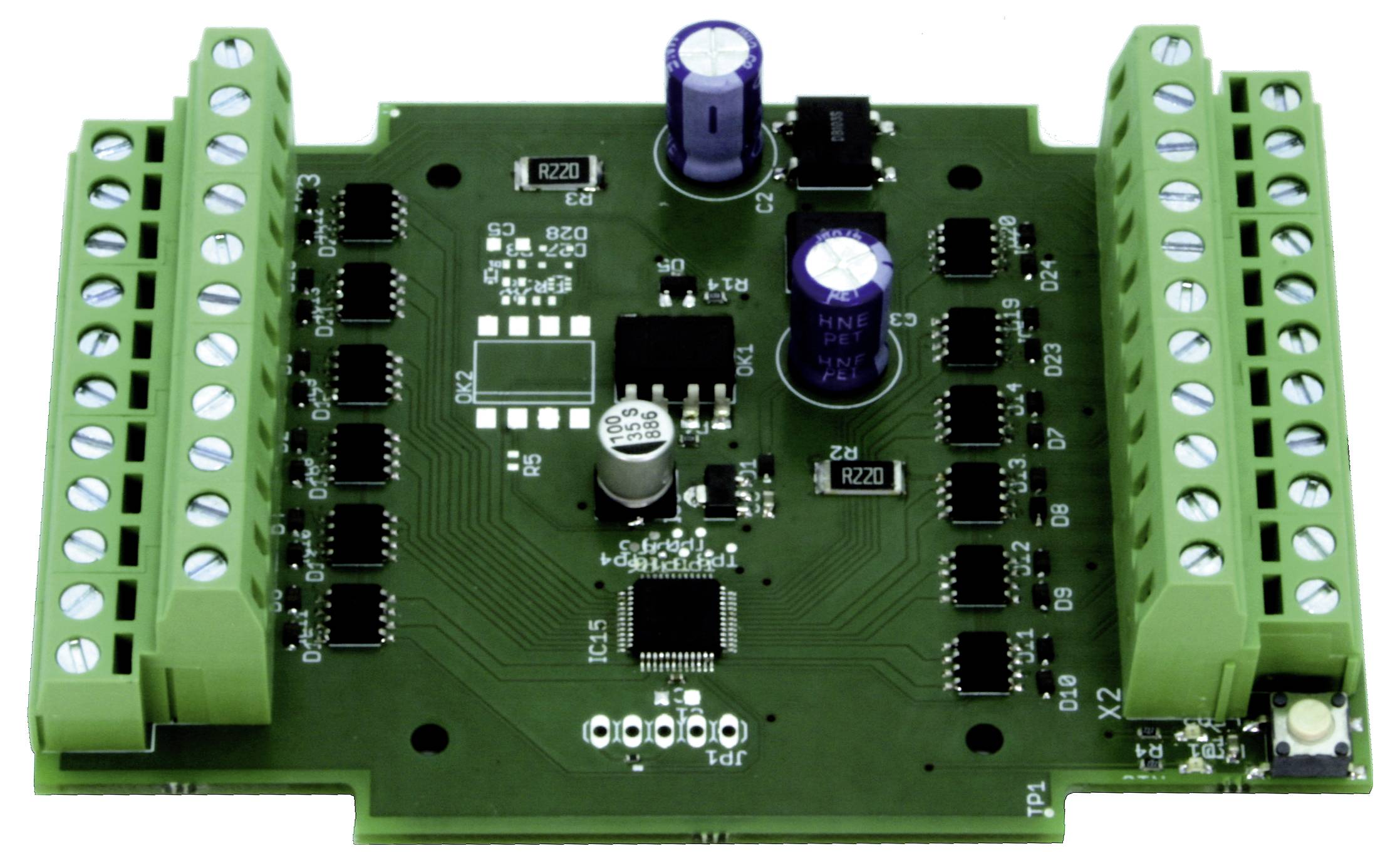

TAMS Elektronik 43-02126-01 WD-12 Point decoder

For direct control of:
Points and form signals with double-coil drive (switching current: Max. 1 A)
Decoupling (max. switching current 1 A)
1- or 2-level light signals or switch lanterns with LEDs

Control: Optionally via
Turnout addresses: DCC: 1 – 2040 | Motorola: 1 – 1020
Or DCC or MM locomotive addresses

Address setting: Optional
With a programming button
Or by setting the CV variables in DCC format
Assignment of the 12 switch outputs / output pairs to three any 4-way address blocks

Other adjustment options:
On-time
Control via points or locomotive addresses

Supply voltage:
Digital voltage from the booster circuit
Or separate transformer (10 – 18 V AC voltage) or separate power supply (12 – 24 V DC voltage)
