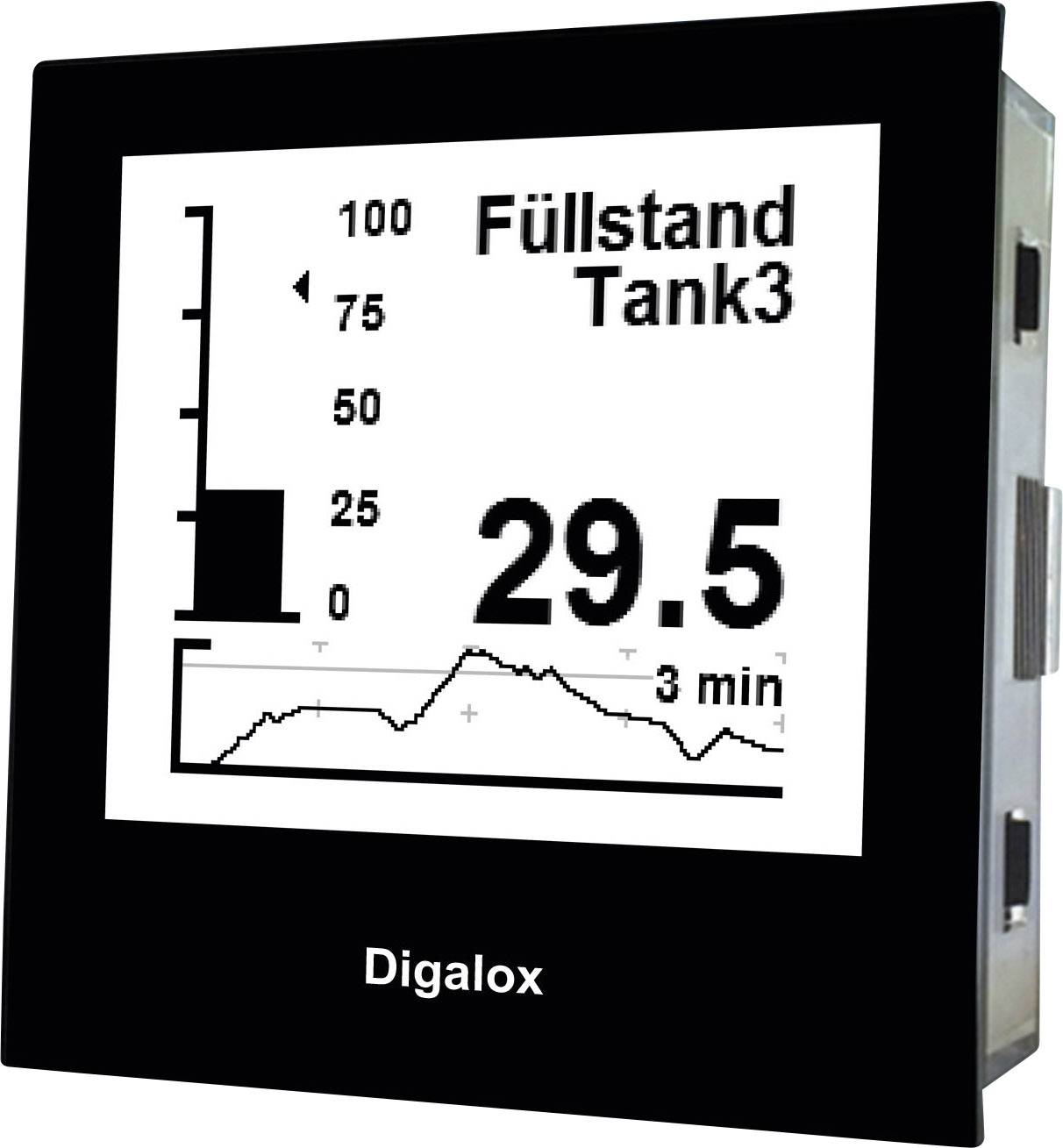

Digital screen shows 'Tank 3 Level' with a reading of 29.5 and a graph depicting fluctuations over 3 minutes.

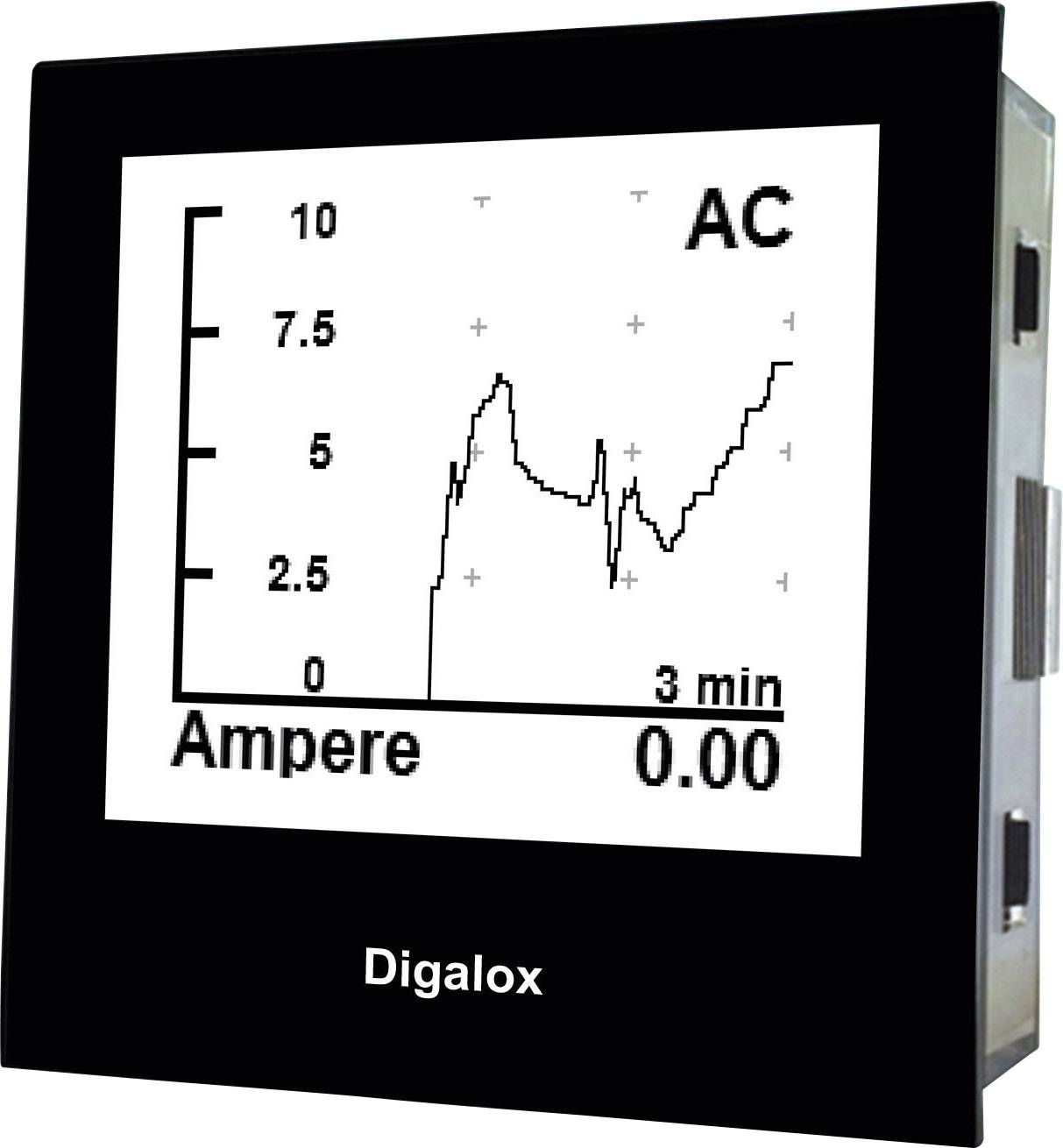

Digital display shows linear graph progression of 'Amperes' against time in minutes with marked increase. Top right reads 'AC'.

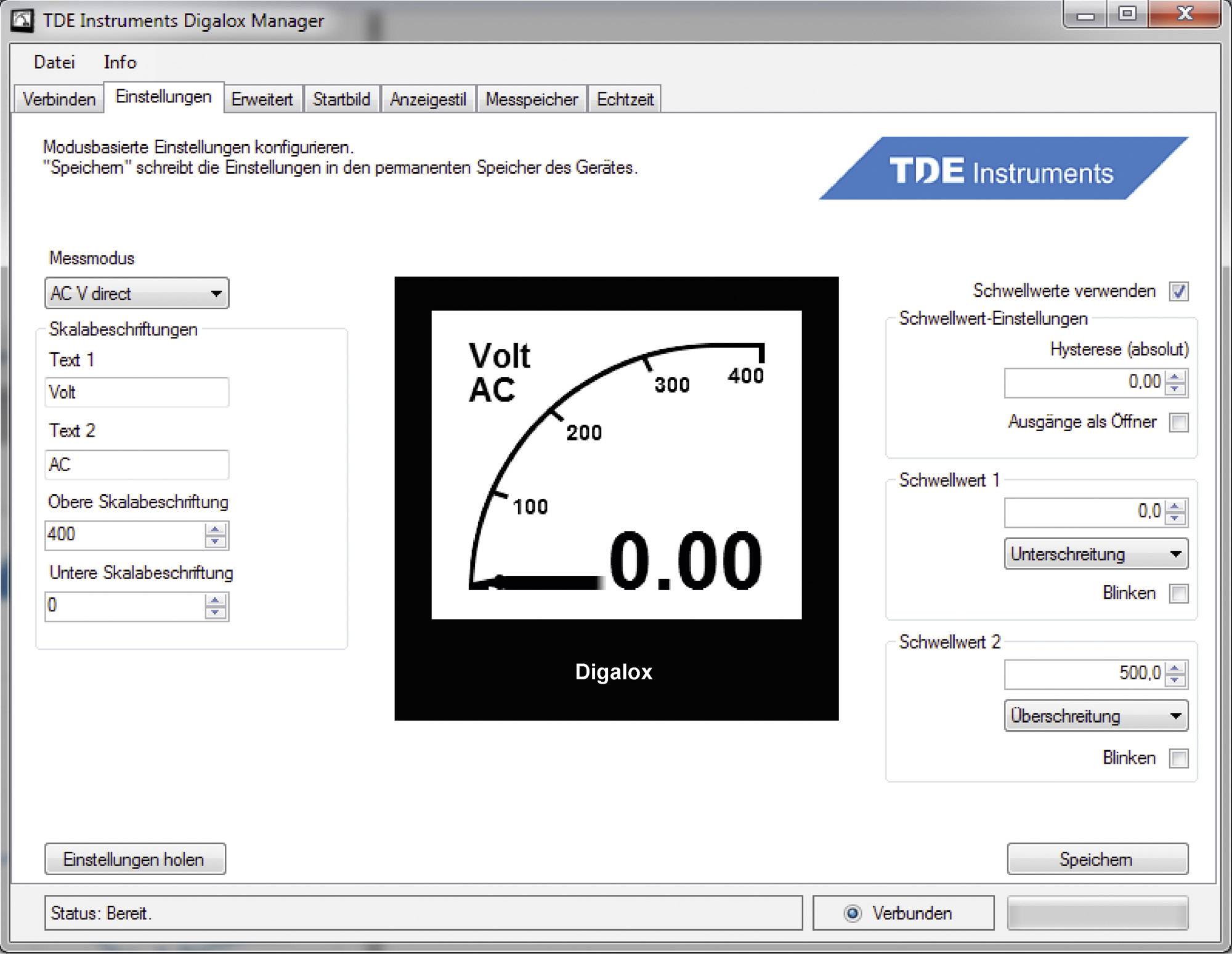

Software user interface for the TDE Instruments Digalox Manager. Displays voltage in volts. Scale setting options visible.

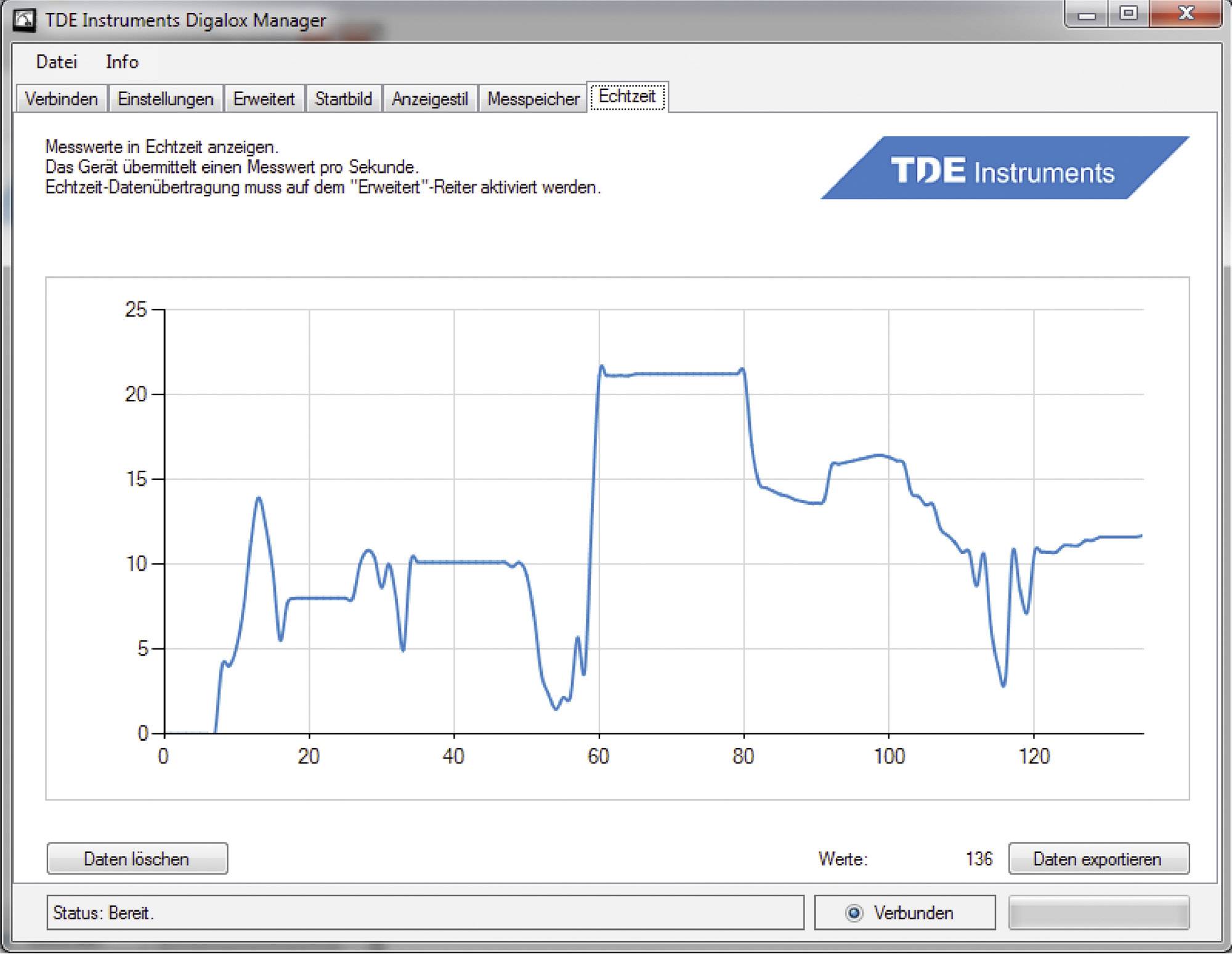

Screenshot of a "TDE Instruments Digalox Manager" with a diagram showing an irregular temperature progression from 0 to 100 minutes.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

42 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

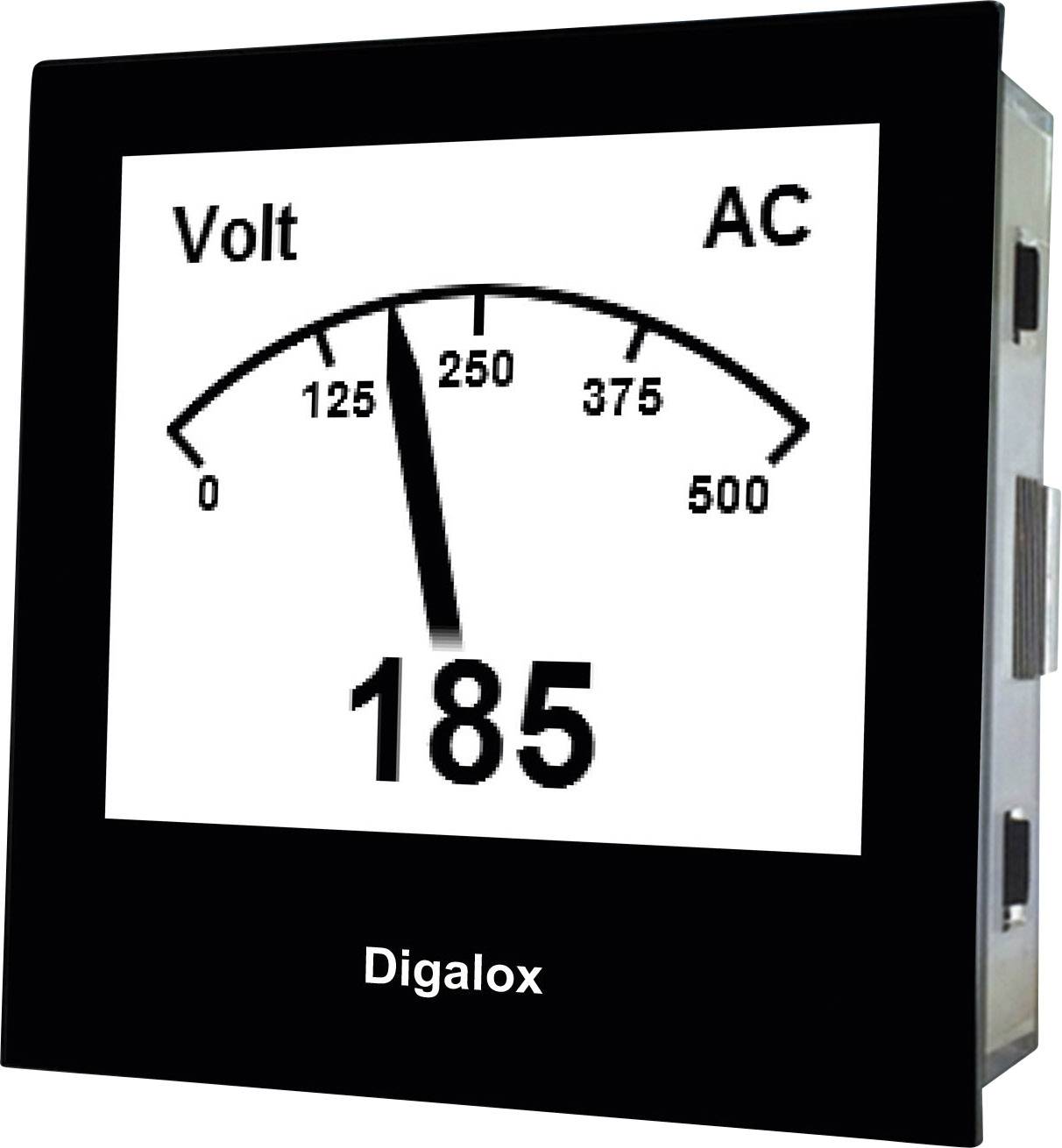

Graphical DIN-panelmeter for Voltage and Ampere with USB interface TDE Instruments Digalox DPM72-AVP

Graphic display 16 grey levels with white backlight
Pointer and digital display
USB interface, galvanically isolated
Adjustable scale-endpoint
Recording of measurement over up to 14 days
Alarm outputs with adjustable thresholds, galvanically isolated
User splash display
Different display styles, e.g. tachometer, bargraph, timebased view
Transmission of measure value
Integration of measure value
Accuracy 1% true RMS
Windows software for individual configuration and measure value recording

Technical specifications

Product type: Digital rack-mount meter

Reading type: Frequency
Speed
AC voltage
DC voltage
Amperage
AC current
DC current

Reading range (min.): -500 V
-10 A
10 Hz

Type: Digalox DPM72-AVP

Reading range (max.): 500 V
10 A
1000 Hz

Display technology: LCD

: IP65 (on front)

Recess width: 68 mm

Display (counts): 9999

Recess height: 68 mm

Operating voltage: 12 V DC/AC
24 V DC/AC

Dim: (L x W x H) 59 x 72 x 72 mm

Weight: 180 g

Max. operating voltage: 24 V DC/AC

Min. operating voltage: 12 V DC/AC

Display lighting: white

Features: selectable units

Factory colour: Black

Width: 72 mm

Height: 72 mm

Length: 59 mm

Frame width: 7.2 cm

Frame height: 7.2 cm

Interfaces: USB

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 1193746 TDE Instruments Digalox DPM72-AVP Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 1193746 TDE Instruments Digalox DPM72-AVP Digital rack-mount meter

Conformity certificate

Conformity certificate 1193746 TDE Instruments Digalox DPM72-AVP Digital rack-mount meter

Description

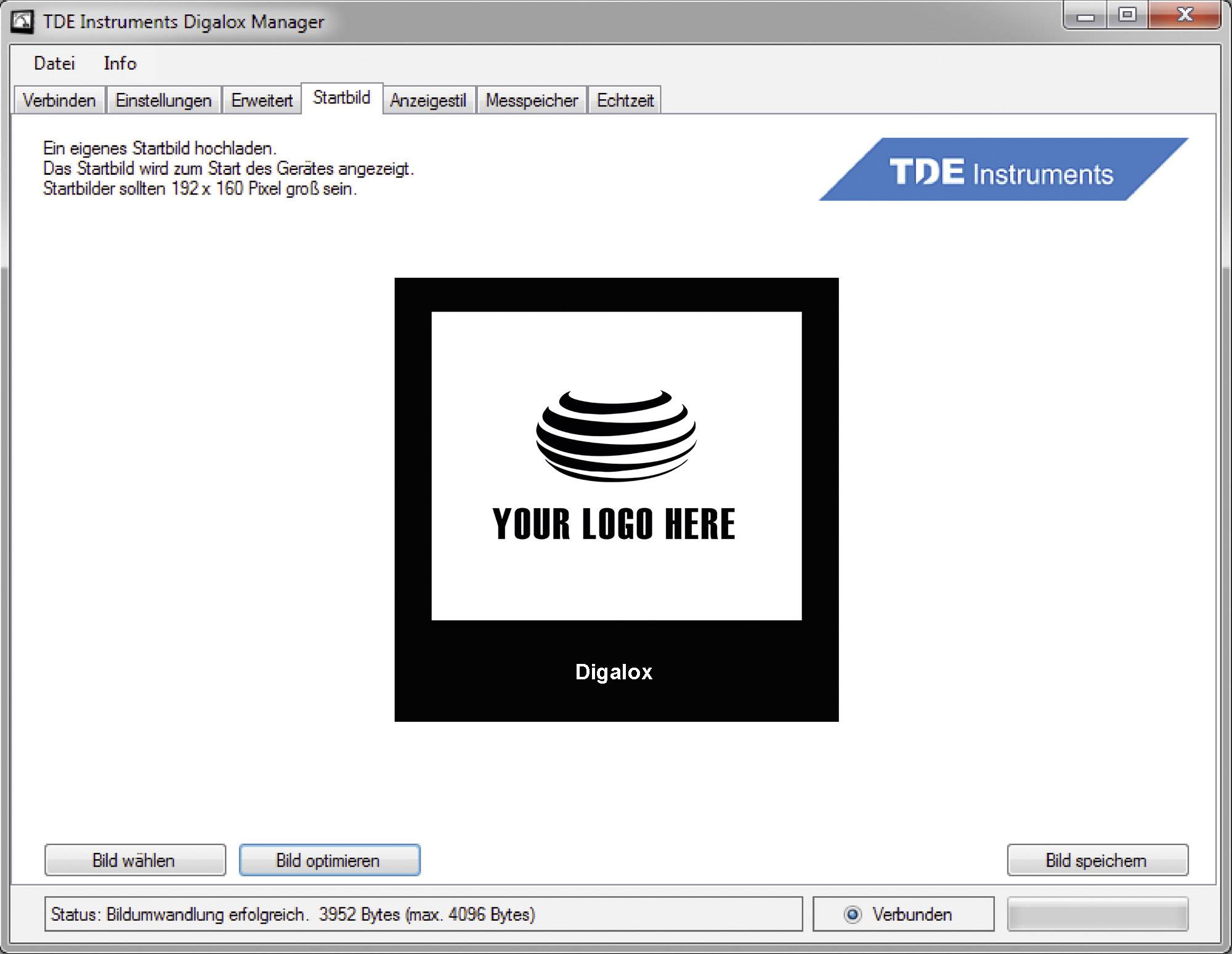

Graphical measuring instrument which unites the benefits of an analogue display with the accuracy of a digital instrument. The common measure modes (Volt AC/DC, Ampere, frequency, analog signal 0/2 to 10 Volts and 5A current transformer) are supported. Scale-endpoint of the indicator as well as scaling of the analog signal and current transformer measurement can be adjusted freely via the DIP-switch, alternatively there is an option for automatic adaption of the scale-endpoint. The unit can be switched between Volt and Ampere measurement via an external switch. Minimum and maximum values are recorded and can be displayed optionally using an external switch. Measured values are recorded over a timespan of 3 minutes to 14 days. The timebase as well as the display of the measuring history can be activated by an external switch. The following parameters can be adjusted using the USB-Software: Scale-endpoint, scale-caption, display-style (pointer, tachometer, bargraph and more), splash display, thresholds for alarm output, hysteresis and more. Recorded measurement values can be read as well as a continuous transmission of the actual measuring value enabled. Using the software, values can be viewed, recorded and be exported as CSV.
