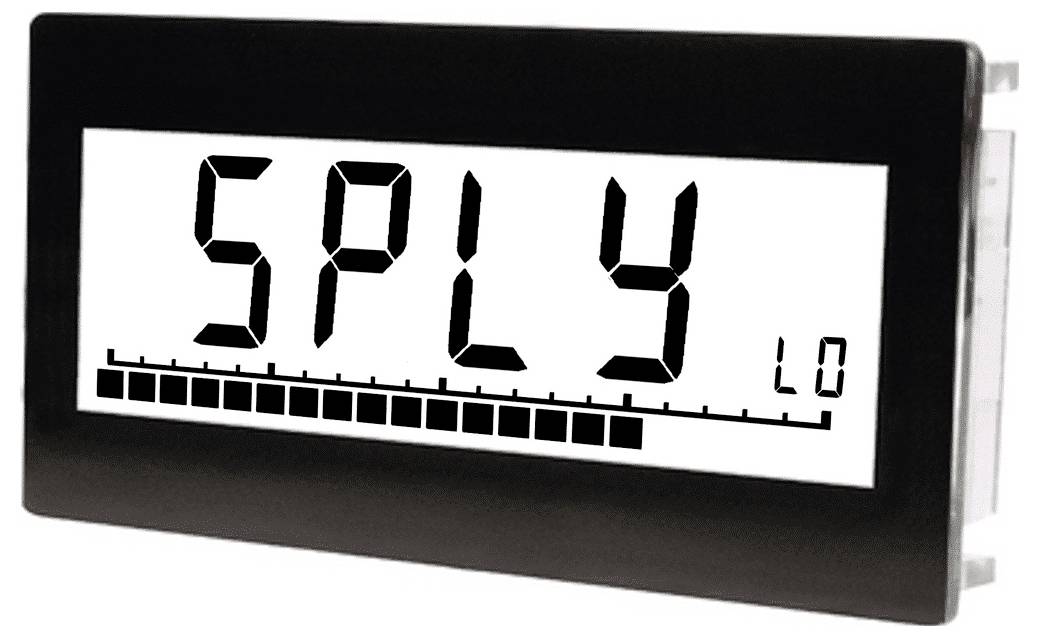

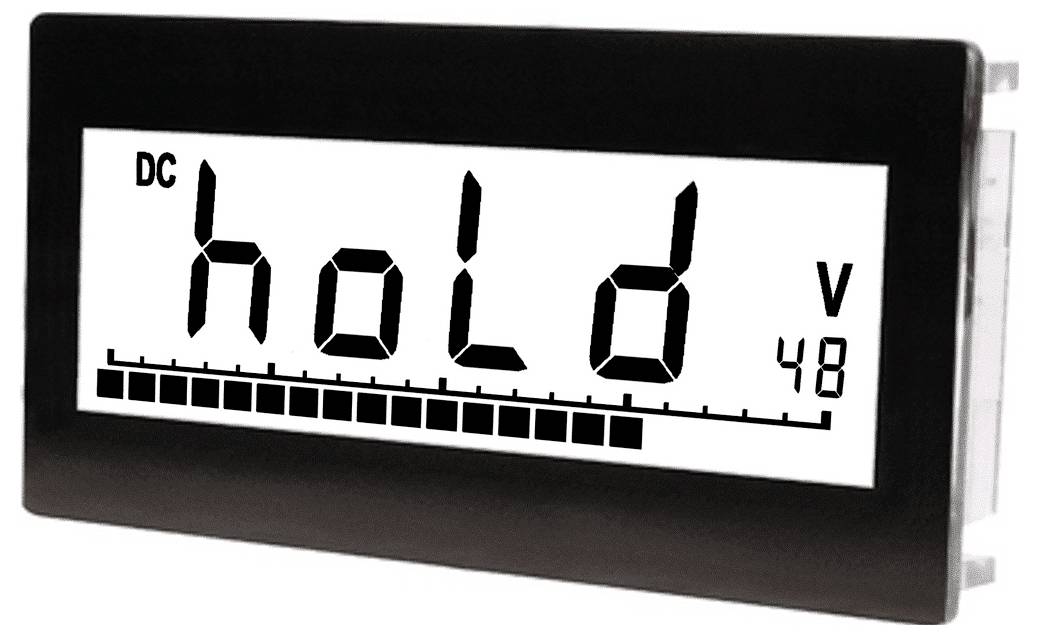

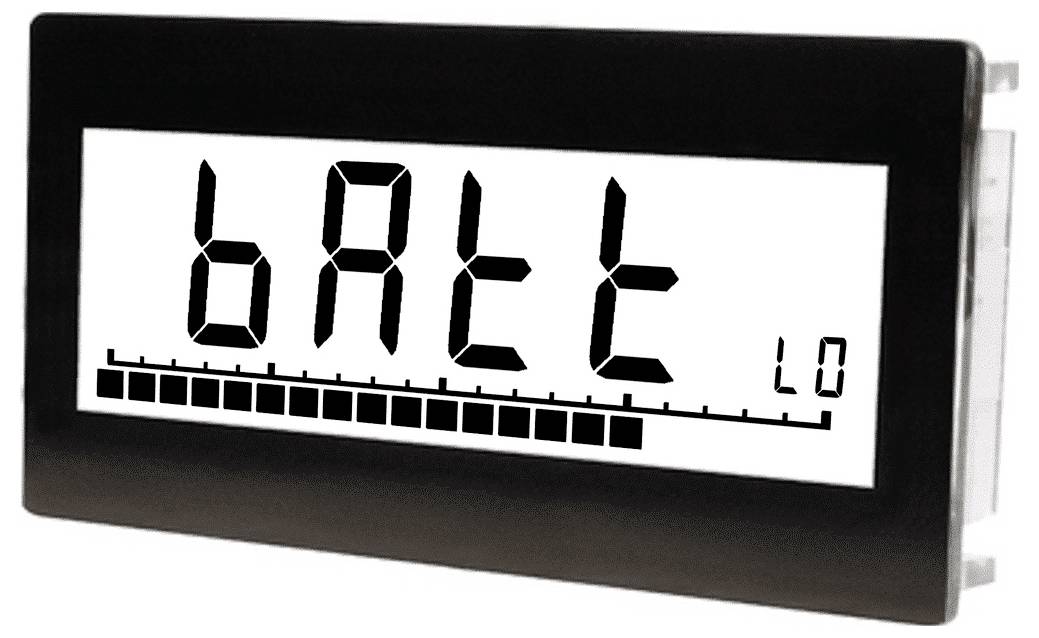

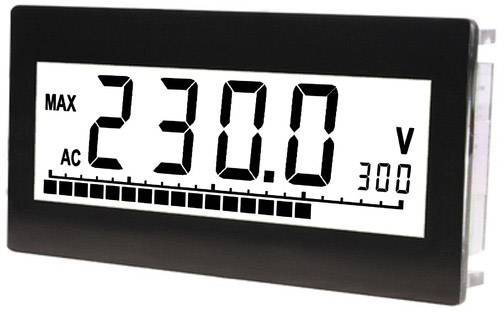

TDE Instruments DPM36 Digital rack-mount meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 81.99 / piece)
€ 81.99
incl. VAT
Only 1 Piece(s) available
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
Voltage
Amperage
AC voltage
DC voltage
AC current
DC current
Frequency
- Reading range (min.)
0 V
0 A
- Type
DPM36
- Reading range (max.)
300
- Display technology
LCD
- Recess width
68 mm
- Display (counts)
4
- Recess height
33 mm
- Operating voltage
30 V DC
- Dim
(W x H) 72 mm x 36 mm
- Max. operating voltage
24 V DC
- Min. operating voltage
8 V DC
- Display lighting
white
- Recess depth
33 mm
- Width
72 mm
- Height
36 mm
- Frame width
72 mm
- Frame height
3.6 cm
- Interfaces
USB
- Interfaces
USB 2.0 port Micro B
- Digit height
12.3 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2102944 TDE Instruments DPM36 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 2102944 TDE Instruments DPM36 Digital rack-mount meter
Description
this an historic product which is not available, thus not updated anymore
