Name: TDK-Lambda DRL60-24-1 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)
Brand: TDK-Lambda
SKU: 1885065
Availability: InStock

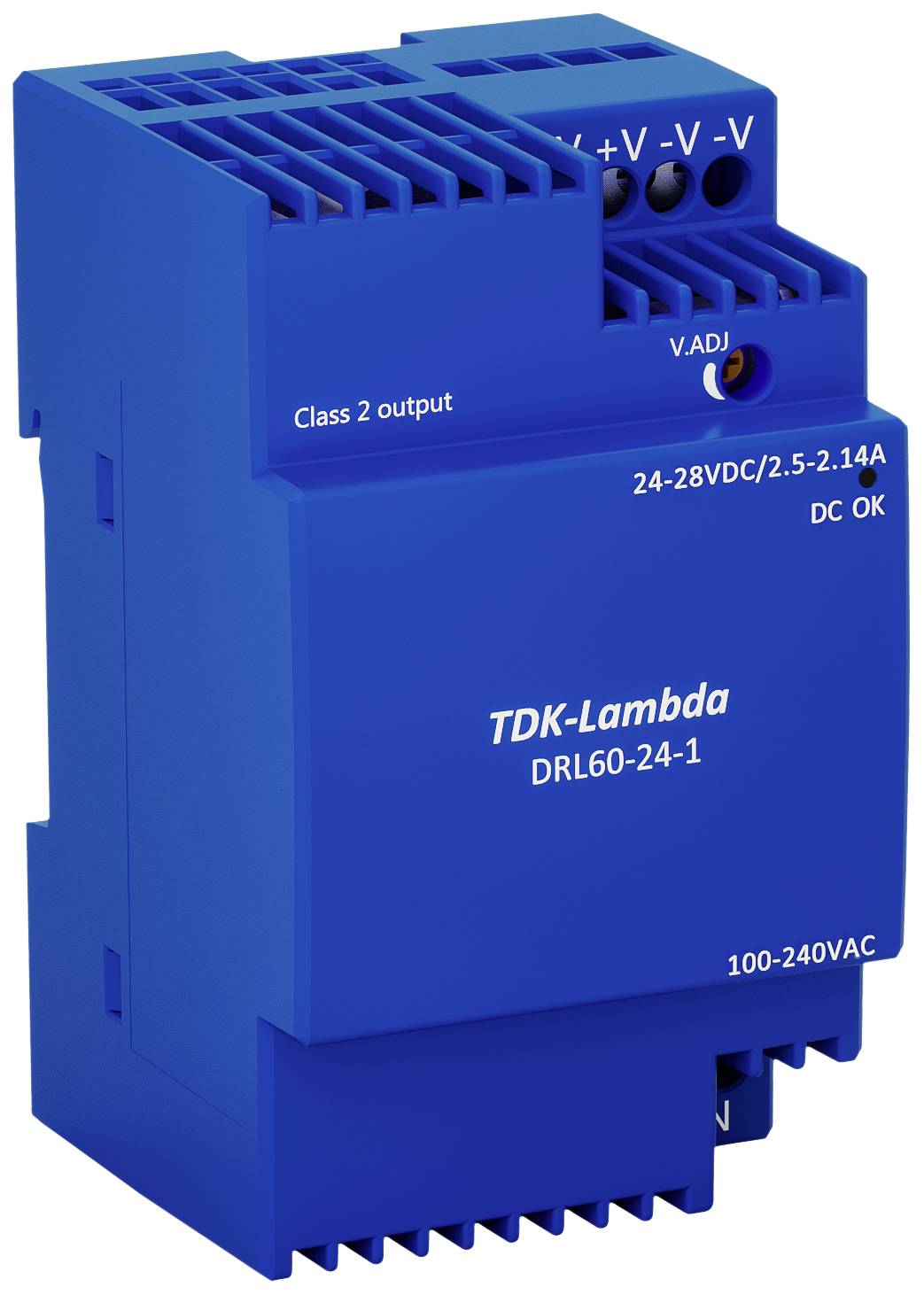

Blue switch mode power supply by TDK-Lambda, model DRL60-24-1, with input 100-240VAC and output 24-28VDC/2.5-2.14A.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

40 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DIN-Rail Power Supply; DRL-60-24-1

24 V/2.5 A
60 W power
Temperature range -40 to 85 °C

Technical specifications

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Input voltage (max.): 264 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V

Dim: (L x W x H) 55.6 x 54 x 91 mm

Weight: 200 g

Output voltage (max.): 28 V

Output voltage (min.): 24 V

Operating temperature (max.): 71 °C

Max. operating temperature (derating): 85 °C

Min. operating temperature (derating): -40 °C

Operating temperature (min.): -25 °C

Manufacturer part #: DRL60-24-1

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 54 mm

Height: 91 mm

Length: 55.6 mm

Max. temperature: 85 °C

Min. temperature: -40 °C

Type: DRL60-24-1

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Warranty Terms

Warranty Terms 1885065 TDK-Lambda DRL60-24-1 Rail mounted PSU (DIN) 24 V 2.5 A 60 W Content 1 pc(s)

Description

The S DRL-DIN rail power supply series is suitable for building automation and, in particular, for the narrow spaces in meter locations, distribution boxes or sub-distributions. It provides 10 - 100 W output power, meets the ErP efficiency guidelines and is controlled by a network-wide range input (85-264 V AC). All four performance classes are available with 24 VDC nominal output voltage available, there are also 12 V DC models with 10, 30 and 60 W output power. All models (except the 10 W devices) have trimmbare outputs. The S DRL series has a protection class II structure (protective insulation) and therefore requires no protective earth conductor. The test voltage between input and output is 3 kV AC. All models are convection cooled and for operating temperatures between -20°C and +71°C. In addition, the series is equipped with long-life electrolytic capacitors

This text is machine translated.
