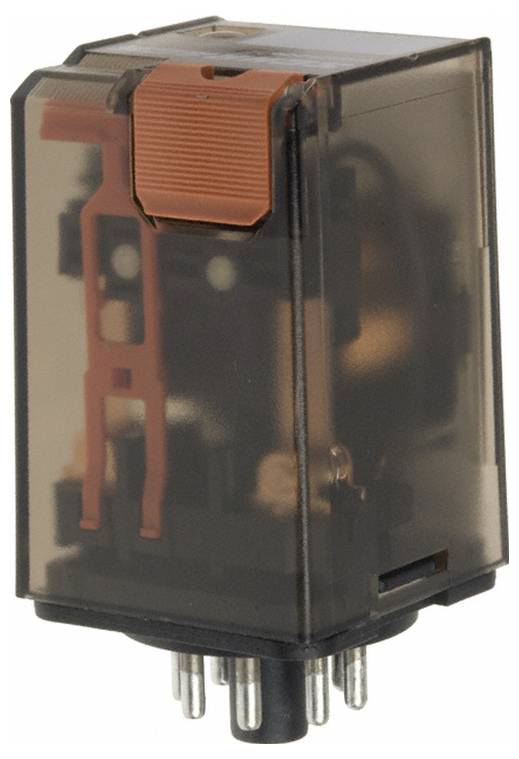

Image similar
TE Connectivity MT221024 Industrial relay Nominal voltage: 24 V DC 2 change-overs Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
2 change-overs
Nominal voltage
24 V DC
Type
MT221024
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Type of relay mounting: Socket
- sealing class: RTI
- Insulation distance class (mm): 2.5 – 4
- Insulation creep current class (mm): 3 – 5.5
- Contact cut-off current (A): 10
- Contact switch-on current (A): 20
- Contact limit current (A): 10
- Contact limit short-time current (A): 10
- Contact numbers of the poles: 2
- Magnetic system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
MT221024
- Connection
Plug
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
24 V DC
- Creepage distance (coil/clips)
4 mm
- Resistance (coil)
475 Ω
- Coil voltage rating
1200 mW
- Features
pluggable
- Max. temperature
+60 °C
- Min. temperature
-45 °C
- Length
35.6 mm
- Width
35.5 mm
- Height
57 mm
- Dim
(L x W x H) 35.6 x 35.5 x 57 mm
- Content
1 pc(s)
- Weight
80 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272698 TE Connectivity MT221024 Industrial relay Nominal voltage: 24 V DC 2 change-overs Piece 1 pc(s)
