Buy TE Connectivity T92P11A22-240 Industrial relay Nominal voltage: 240 V AC 2 change-overs Piece 1 pc(s) | Conrad Electronic | Conrad COM

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

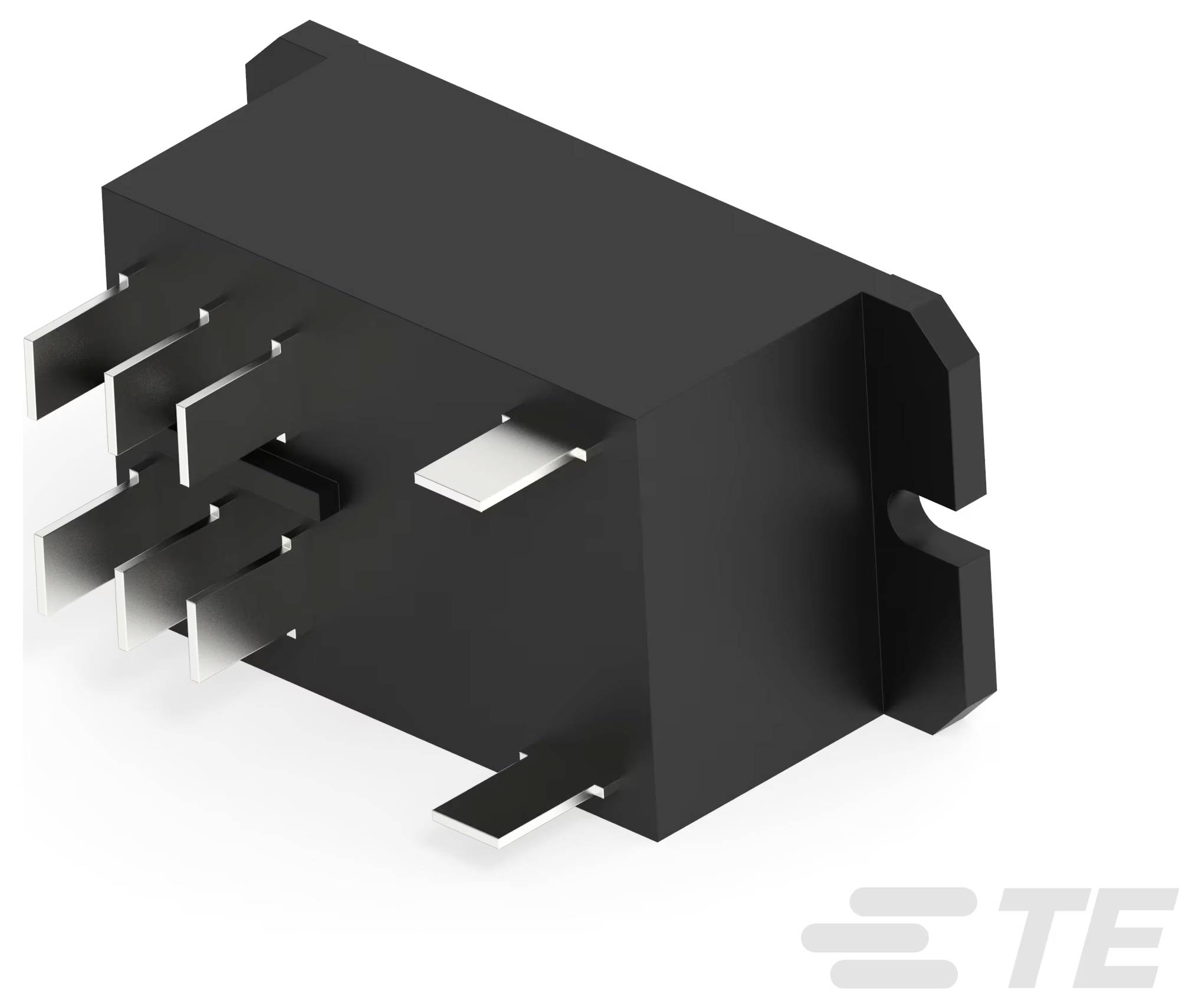

A black rectangular electrical component with metal pins protruding from one side, likely used for electronic connections or circuits.

A black rectangular electrical component with metal pins protruding from one side, likely used for electronic connections or circuits.

Image similar

Packaging type

Piece

Product type

Industrial relay

Contact type

2 change-overs

Nominal voltage

240 V AC

Type

T92P11A22-240

TE Connectivity

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TE Connectivity T92P11A22-240 Industrial relay Nominal voltage: 240 V AC 2 change-overs Piece 1 pc(s)

Our service for you

Technical specifications

Output side connection: AC / AC
relay mounting type: PCB mounting
Output nominal voltage (AC relay) (Vrms): 0 – 277
Output nominal current (A): 0 – 3, 0 – 40
Output nominal current (Arms): 0 – 3, 0 – 40
Output voltage (max.) (V) 600
output current (min.) (A): 0.5
Output switching: Random
sealing class: RTI
Housing type: Dust cap made of plastic
Insulation distance class (mm): 8 – 9.5
Insulation creep current class (mm): 8 – 9.5
Insulation probe functions: Original surge voltage of 8,000 V between contacts & coil
Contact cut-off current (A): 40
Contact cut-in current (
A): 40 Contact limit current (A): 40
Contact numbers of the poles: 2
-pole AC monostable

Packaging type: Piece

Product type: Industrial relay

Type: T92P11A22-240

Connection: Print

Contact type: 2 change-overs

Contact material: AgCdO

Nominal voltage: 240 V AC

Creepage distance (coil/clips): 8 mm

Resistance (coil): 3800 Ω

Coil voltage rating: 4000 mW

Features: + enclosure

Max. temperature: +85 °C

Min. temperature: -55 °C

Length: 52.32 mm

Width: 34.54 mm

Height: 30.73 mm

Dim: (L x W x H) 52.32 x 34.54 x 30.73 mm

Content: 1 pc(s)

Weight: 86 g

RoHS-compliant: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2272786 TE Connectivity T92P11A22-240 Industrial relay Nominal voltage: 240 V AC 2 change-overs Piece 1 pc(s)
