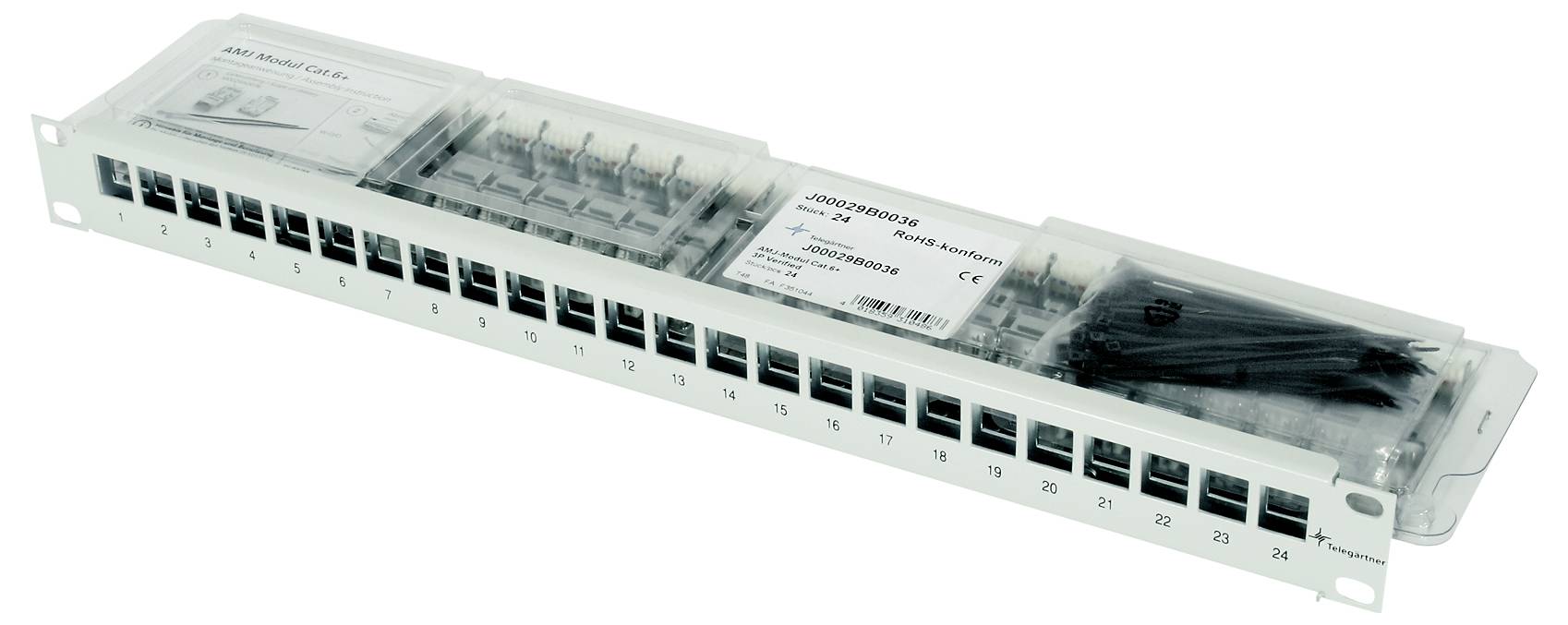

Telegärtner 100007011 19" mount (equipped) 483 mm (19") CAT 6A 1 U Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
19" mount (equipped)
- Rack size
483 mm (19")
CAT 6A
- Rack unit
1 U
- Connection method
IDC Cut & Clip terminals
- Connections
RJ45 8/8
- Depth
44 mm
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3737095 Telegärtner 100007011 19" mount (equipped) 483 mm (19") CAT 6A 1 U Black
User & Safety Instructions
User & Safety Instructions 3737095 Telegärtner 100007011 19" mount (equipped) 483 mm (19") CAT 6A 1 U Black
Description
For continuous wiring
From floor distributors to machines, users can use components such as Telegärtner's 19" module carriers
Through universal connector technique and
Set connection technology. The 19" module carriers are the right solution for individual design in the distribution area. They are available in gray or black and with or without interception. It can be used with our high-performance modules, pre-equipped versions or empty housing. The sections in the practical Keystone-format enable an individual assembly. The equipped versions meet the transmission characteristics according to CAT. 6A according to EN 60603-7-51.
Specifications:
Integrated cable traps,
Potential connection via an enclosed PE line,
Front plate printed with port numbering,
Steel housing (powder-coated)
CAT.6A (ISO/IEC) according to IEC 60603-7-51, CAT.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100,
Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801,
10 Gigabit Ethernet compliant (IEEE 802.3an),
≥750 mating cycles with RJ45/RJ11/RJ12 plugs,
Suitable for PoE+ according to IEEE 802.3at,
Visually monitored test of the RJ45 contact heights,
Equipped with AMJ module K
Notes: Tool-free connection technology, suitable for RJ45/11/12-plug
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Incl. 24 AMJ-modules K CAT.6A (ISO/IEC) T568B, cable interception and potential connection kit
Colour, black
Short description: 19" module carrier 1 HE
This text is machine translated.
