Name: Telegärtner 100023418 100023418 BNC connector Socket, horizontal mount 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1090841
Availability: InStock

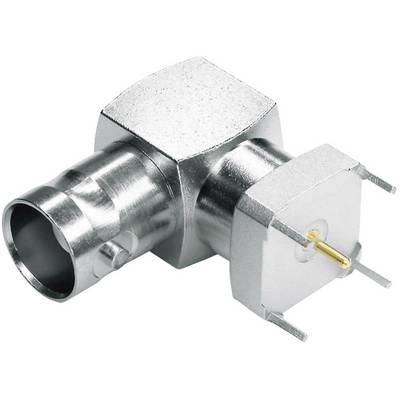

A metallic RF connector in angled design, suitable for high-frequency connections in electronics-related applications.

Technical drawing of a cylindrical motor with precise dimensional specifications in millimetres, showing diameter and height.

1/2

Cable category

LTP

Product type

BNC connector

Connector type

Socket, horizontal mount

Impedance

50 Ω

Connection

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

43 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by TRU COMPONENTS

TRU COMPONENTS 2632826 BNC connector Socket, horizontal mount 50 Ω 1 pc(s)

Fast track dispatch on Thu 29 Oct

€ 5.99

incl. VAT plus

Highlights & Details

BNC plug connector

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Mounting dimensions: Z06

Cable category: LTP

Product type: BNC connector

Connector type: Socket, horizontal mount

Impedance: 50 Ω

Connection: Print

Content: 1 pc(s)

Case material: Brass nickel plated

Manufacturer part #: 100023418

Insulation resistance: ≥ 5 GΩ

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -40 - +155 °C

Type: 100023418

Seal type: Bayonet

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Cable category

Cable Ø

Connection

Connector type

Impedance

Product type

Telegärtner 100023301 100023301 BNC connector Plug, right angle 50 Ω 1 pc(s)

Item no:1366643

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

RG 316/U

2.70 mm

Screws

Plug, right angle

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Telegärtner 100023303 100023303 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366268

Fast track dispatch on Thu 29 Oct

69 Piece(s)Conrad Electronic

RG 142 B/U

5 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Telegärtner 100023304 100023304 BNC connector Plug, right angle 50 Ω 1 pc(s)

Item no:1090886

Fast track dispatch on Thu 29 Oct

98 Piece(s)Conrad Electronic

RG 316/U

2.60 mm

Crimp

Plug, right angle

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Telegärtner 100023305 100023305 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090850

Fast track dispatch on Thu 29 Oct

23 Piece(s)Conrad Electronic

RG 58

4.95 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.99^*

Telegärtner 100023312 100023312 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090849

Fast track dispatch on Thu 29 Oct

56 Piece(s)Conrad Electronic

RG 316

2.60 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Telegärtner 100023314 100023314 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366772

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

G 022 32

3 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Telegärtner 100023316 100023316 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090844

Fast track dispatch on Thu 29 Oct

15 Piece(s)Conrad Electronic

H155

5.90 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

Telegärtner 100023319 100023319 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090847

Fast track dispatch on Thu 29 Oct

35 Piece(s)Conrad Electronic

RG 213

10.30 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Telegärtner 100023320 100023320 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1366785

Fast track dispatch on Thu 29 Oct

49 Piece(s)Conrad Electronic

RG 214/U

10.80 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Telegärtner 100023321 100023321 BNC connector Plug, straight 50 Ω 1 pc(s)

Item no:1090845

Fast track dispatch on Thu 29 Oct

58 Piece(s)Conrad Electronic

LMR 400

10.30 mm

Crimp

Plug, straight

50 Ω

BNC connector

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Documents & Downloads

Datasheet

Datasheet 1090841 Telegärtner 100023418 100023418 BNC connector Socket, horizontal mount 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090841 Telegärtner 100023418 100023418 BNC connector Socket, horizontal mount 50 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
