Name: Telegärtner 100023555 100023555 BNC connector Socket, straight 75 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1365968
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

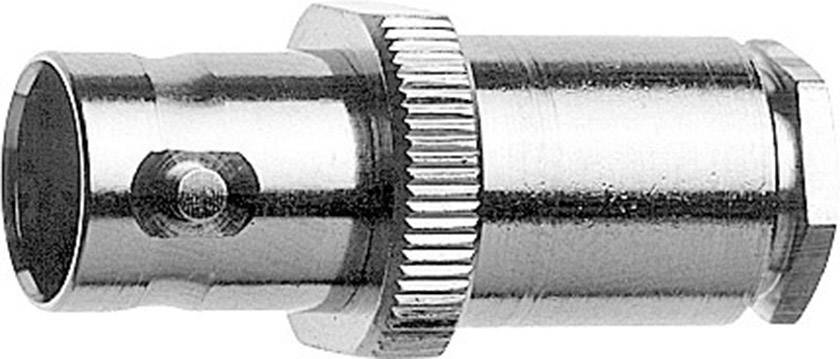

Metallic BNC connector with knurled screw connection, used for coaxial cables in video or data networks.

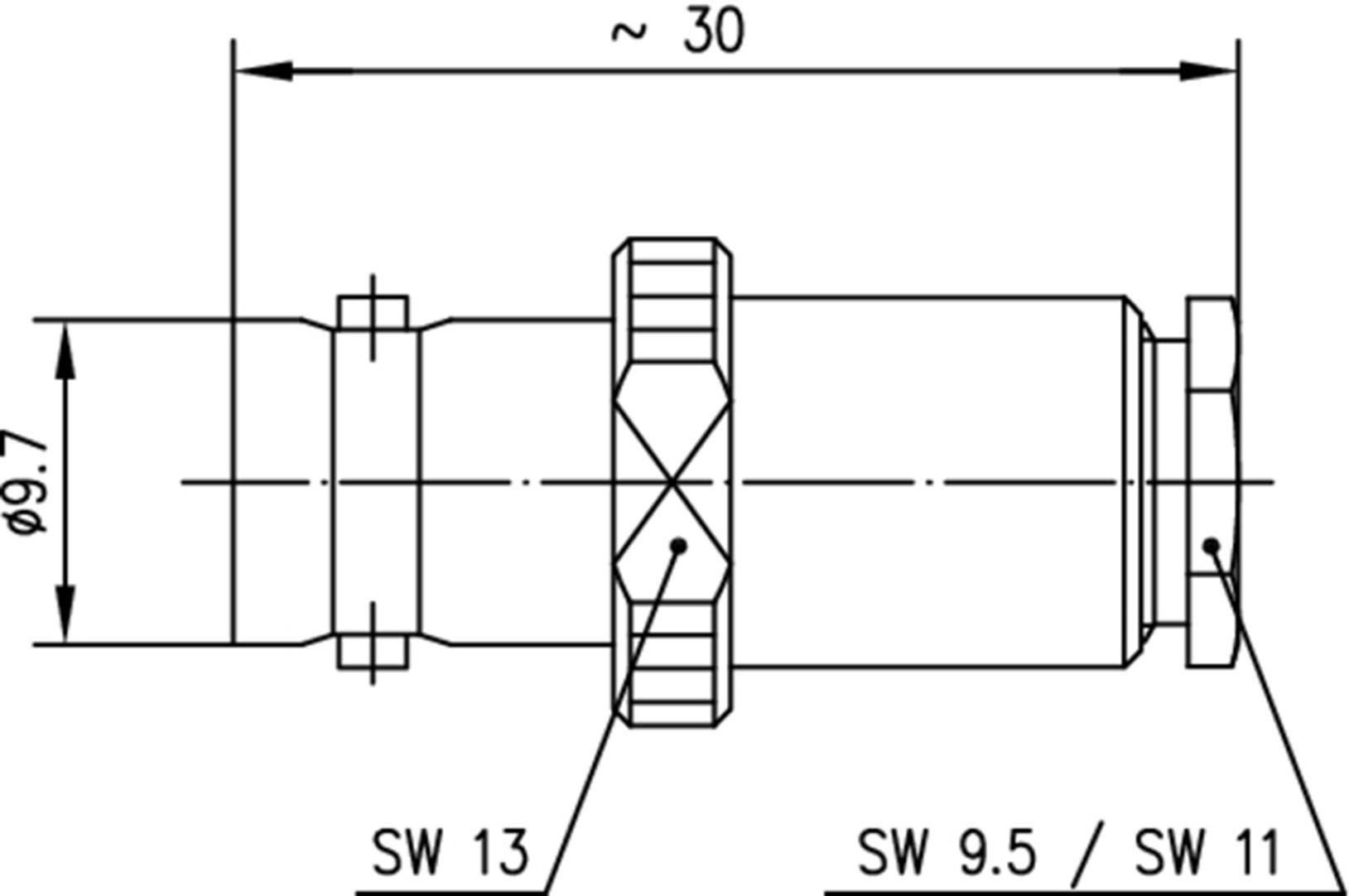

Technical drawing of a connector with the specifications 'SW 13', 'SW 9.5 / SW 11' and length measurement '≈ 30' and diameter '⌀9.7'.

1/2

Image similar

Cable category

RG 59 B/U

Product type

BNC connector

Connector type

Socket, straight

Impedance

75 Ω

Connection

Screws

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

BNC plug connector

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Our service for you

Technical specifications

Cable category: RG 59 B/U

Product type: BNC connector

Connector type: Socket, straight

Impedance: 75 Ω

Connection: Screws

Content: 1 pc(s)

Cable Ø: 6 mm

Max. frequency: 4 GHz

Case material: Brass nickel plated

Manufacturer part #: 100023555

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -40 - +155 °C

Type: 100023555

Seal type: Bayonet

UKCA: not relevant
