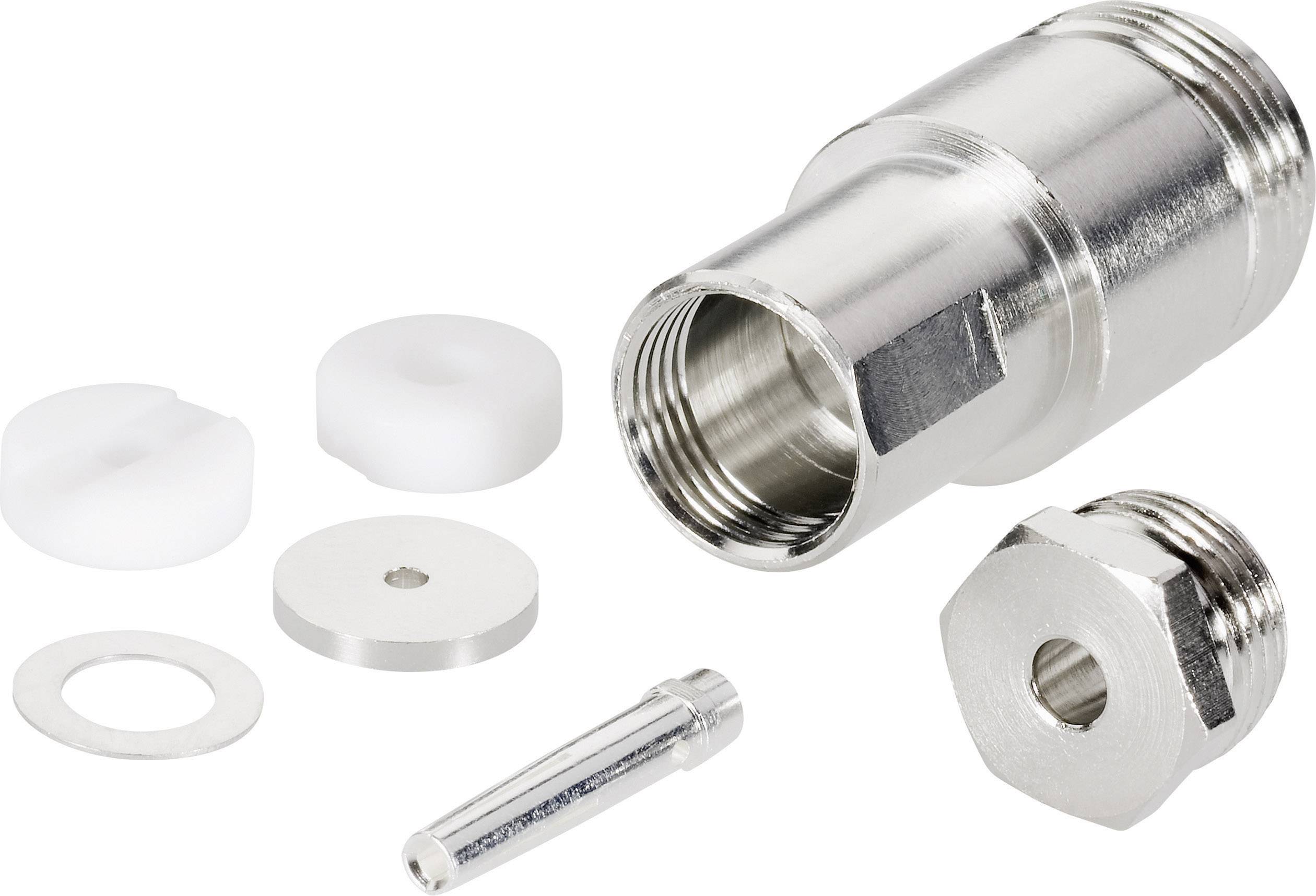

Telegärtner 100024080 100024080 N connector Socket, straight 50 Ω 1 pc(s)
Cable category
RG 316/U
Product type
N connector
Connector type
Socket, straight
Impedance
50 Ω
Connection
Screws
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 9.99 / piece)
€ 15.99
-38 %
€ 9.99
incl. VAT
14-day return policy included
Highlights & Details
Telegärtner 100024080 100024080 N connector Socket, straight 50 Ω 1 pc(s)
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 316/U
- Product type
N connector
- Connector type
Socket, straight
- Impedance
50 Ω
- Connection
Screws
- Content
1 pc(s)
- Cable Ø
2.70 mm
- Max. frequency
11 GHz
- Manufacturer part #
100024080
- Insulation material
PTFE
- Material (details)
Brass, gold plated
- RoHS-compliant
Yes
- Type
100024080
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 744440 Telegärtner 100024080 100024080 N connector Socket, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744440 Telegärtner 100024080 100024080 N connector Socket, straight 50 Ω 1 pc(s)
Description
The series includes widespread coaxial connectors medium size N. They have a screw connection and are included in the plug face waterproof. This may vary depending on the design up to a frequency of 11 GHz. The shaft resistance amounts to 50 Ω. Connector variants are available for flexible, semi-flex, semi-rigid and corrugated sheath cable. Cable, depending on the design by crimping, terminals or soldering. Due to their constructive in very good electrical values in the Return Loss (VSWR) and inter-modulation is achieved. The connectors of the series N are vibration-proof and are used in signal and data transmission. N connectors are particularly suitable for coaxial connections for the transmission medium performance at high frequencies.
This text is machine translated.
This text is machine translated.
