Buy Telegärtner 100023895 100023895 N connector Plug, right angle 50 Ω 1 pc(s)

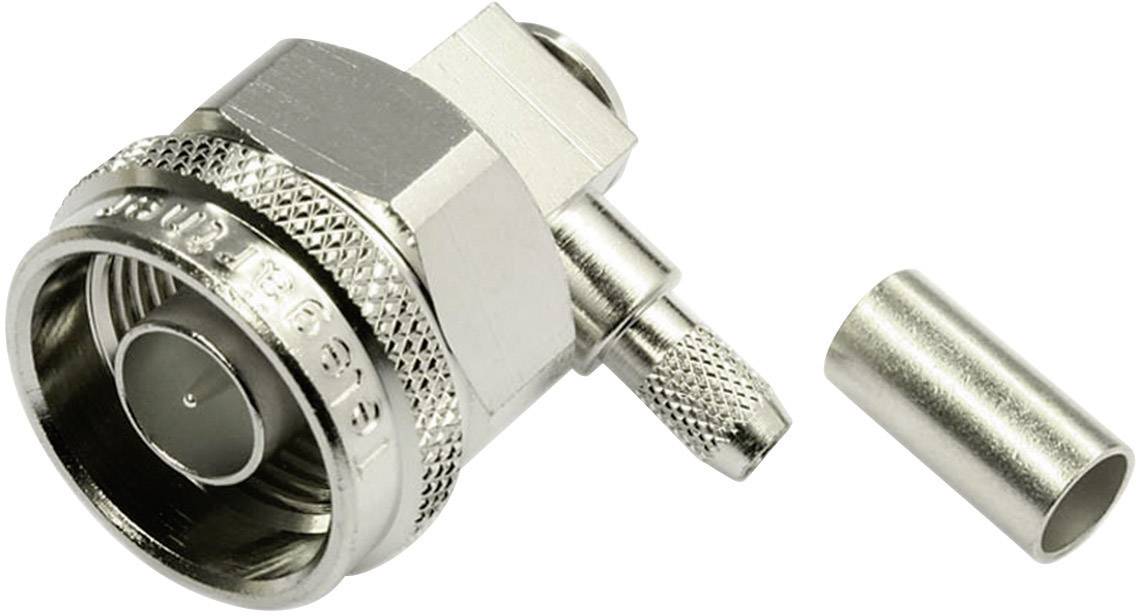

Coaxial plug with metal casing and removable sleeve, suitable for antenna connections in consumer electronics.

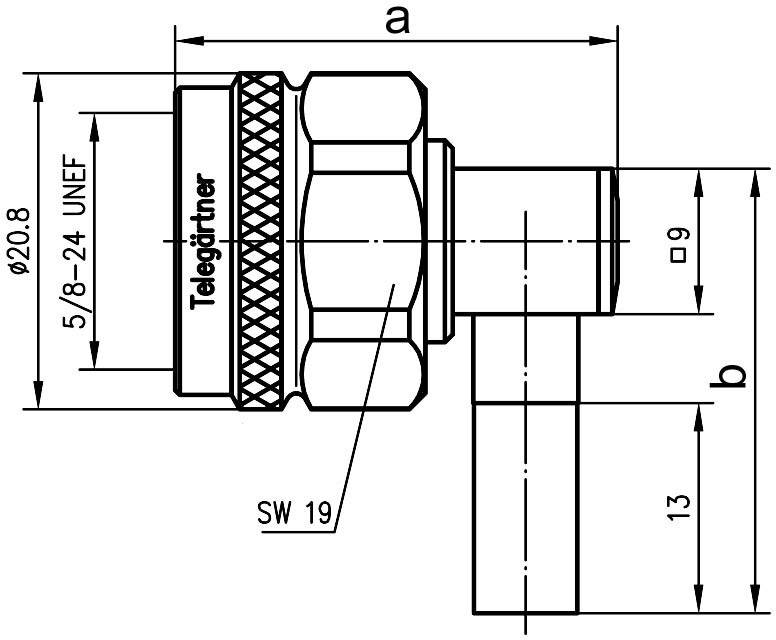

Technical drawing of a right-angled connector with dimensions and thread specifications. Key features: diameter 20.8 mm, hexagon width 19, length 13 mm.

1/2

Cable category

RG 223/U

Product type

N connector

Connector type

Plug, right angle

Impedance

50 Ω

Connection

Crimp

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

408 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

14-day return policy included

Report legal concerns

N-Plug connection

Highlights & Details

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Our service for you

Technical specifications

Cable category: RG 223/U

Product type: N connector

Connector type: Plug, right angle

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 5.40 mm

Manufacturer part #: 100023895

Insulation resistance: 5 GΩ

Insulation material: PTFE

RoHS-compliant: Yes

Type: 100023895

Seal type: Screw-on

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1090922 Telegärtner 100023895 100023895 N connector Plug, right angle 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090922 Telegärtner 100023895 100023895 N connector Plug, right angle 50 Ω 1 pc(s)

Description

The series includes widespread coaxial connectors medium size N. They have a screw connection and are included in the plug face waterproof. This may vary depending on the design up to a frequency of 11 GHz. The shaft resistance amounts to 50 Ω. Connector variants are available for flexible, semi-flex, semi-rigid and corrugated sheath cable. Cable, depending on the design by crimping, terminals or soldering. Due to their constructive in very good electrical values in the Return Loss (VSWR) and inter-modulation is achieved. The connectors of the series N are vibration-proof and are used in signal and data transmission. N connectors are particularly suitable for coaxial connections for the transmission medium performance at high frequencies.
